854-10655 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Module/solution> 854-10655

854-10655: Descriptionminimc module, TP-TX/ssfx-sm1550; CategoryModule/solution; File Size686KB，2 Pages; ManufacturerB+B SmartWorx; Environmental Compliance

Download Datasheet Parametric View All

854-10655 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	854-10655	-	-	View	Buy Now

854-10655 Overview

minimc module, TP-TX/ssfx-sm1550

854-10655 Parametric

Parameter Name	Attribute value
Datasheets
MiniMC Series
IE-MiniMC Quick Start Guide
Standard Package	1
Category	Networking Solutions
Family	Miscellaneous

Preview

Download Datasheet

View All

MiniMc Series

DS-MiniMc-1313

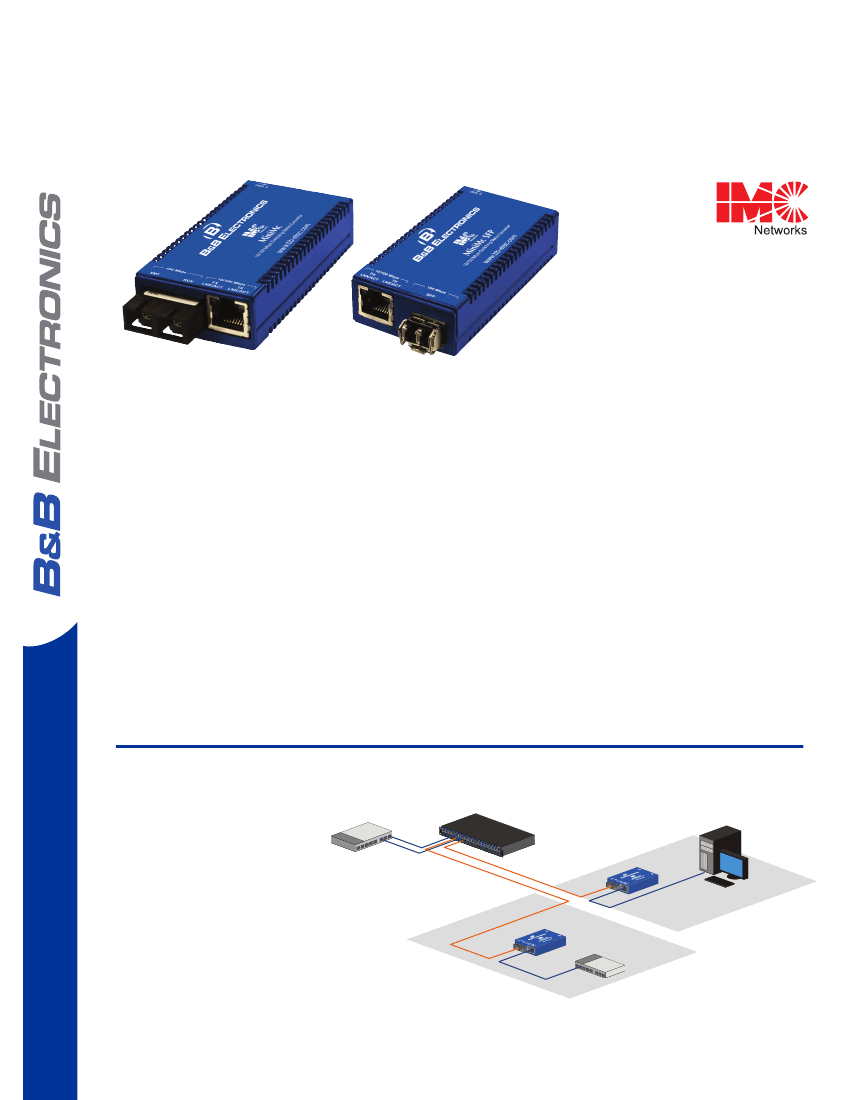

SWITCHING 10/100 MINIATURE FIBER MEDIA CONVERTERS

The MiniMc Series offers the most reliable and cost-effective switching

10/100 Mbps miniature media converters in the industry.

Features and Benefits

The most cost-effective miniature fiber converters

available

• 10/100 Mbps switching MiniMc connects 10 or 100 Mbps copper to 100

Mbps fiber (fixed or SFP version)

• 6-year comprehensive warranty on converter and power adapter

Media conversion is the most cost-effective solution for extending the

productive life of legacy wiring plants and equipment while allowing

implementation of new technologies. Measuring less than 3.5 inches deep

and 2 inches wide, the MiniMc-Gigabit and Giga-MiniMc are one of the

industry’s smallest media converters with both data connections on the

same side of the unit. An optional fiber SFP port gives network operators the

flexibility to upgrade network equipment to different fiber interfaces.

Designed and manufactured in the USA, the MiniMc Series extends 10 and

100 Mbps twisted pair network segments up to 80 km over fiber

Both a media and data rate converter, the MiniMc features 10/100 Auto

Negotiation on the copper port while the fiber port operates at 100 Mbps full

duplex. MiniMc 10/100 switching fiber converters are ideal for all premises,

FTTD, LAN-to-LAN or LAN-to-MAN fiber networking applications.

Multiple powering options include a country-specific AC wall adapter or USB-

power cord. The unit can also be installed into the IE-PowerTray/18-AC which

allows for 18 conversions in only 1.5U of rack space, or mounted .

The MiniMc 10/100 fiber media converters are backed with a 6-year

comprehensive warranty that includes the power supply.

Plug-and-Play Operation

• User-friendly 10/100 Mbps Auto Negotiation technology on MiniMcs

• AutoCross feature for twisted pair connection on all converters

Perfect for a variety of applications

• MiniMcs include country-specific, high-reliability AC power adapters and

can also be powered with an optional USB-power cable

• Available with multi-mode fiber or single-mode fiber, single-strand fiber,

CWDM fiber and SFP connectors

Space saving features

• Compact, metal enclosures with external AC power adapters

• IE-PowerTray/18-AC chassis supports up to 18 modules in the 1.5U high,

rack-mountable enclosure

Application Example

PRODUCT INFORMATION

This common application depicts a wiring

closet housing a copper switch which is

paired to the high-density IE-PowerTray/18-

AC populated with MiniMc’s. The copper

is converted to fiber and then run to

another MiniMc, converting the data back

to copper, in a local Fiber-to-the-Desk

set-up. A second drop shows a remote

copper switch connected to the switch in

the wiring closet.

CLOSET

Switch

PowerTray/18

With MiniMc 10/100

Installed

10/100 Base-T

100Base-FX

MiniMc 10/100

10/100Base-T

MiniMc 10/100

LOCAL

Switch

10/100Base-T

REMOTE

www.bb-elec.com
