Product is compliant to RoHS directive and fully compatible with lead free assembly.
80
60
Applications
50
40
30
80

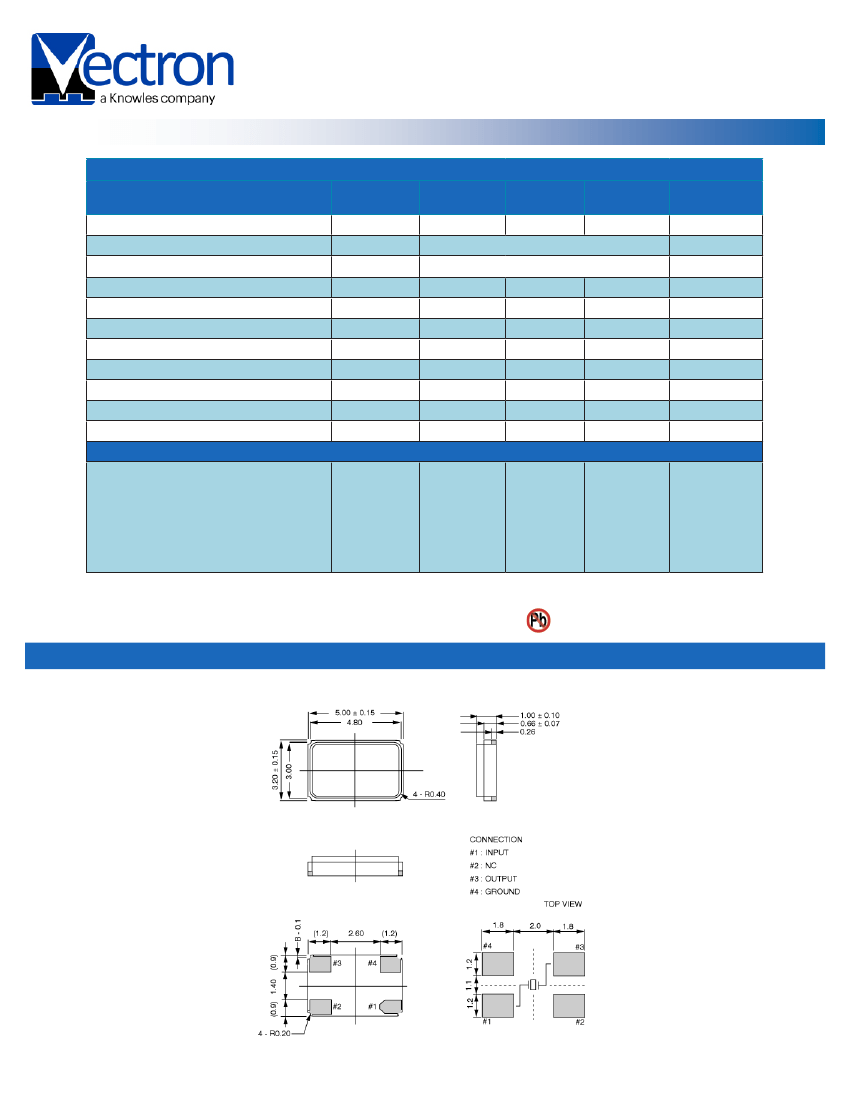

Package Drawing
Block Diagram
Vectron International • 267 Lowell Road, Suite 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Page1

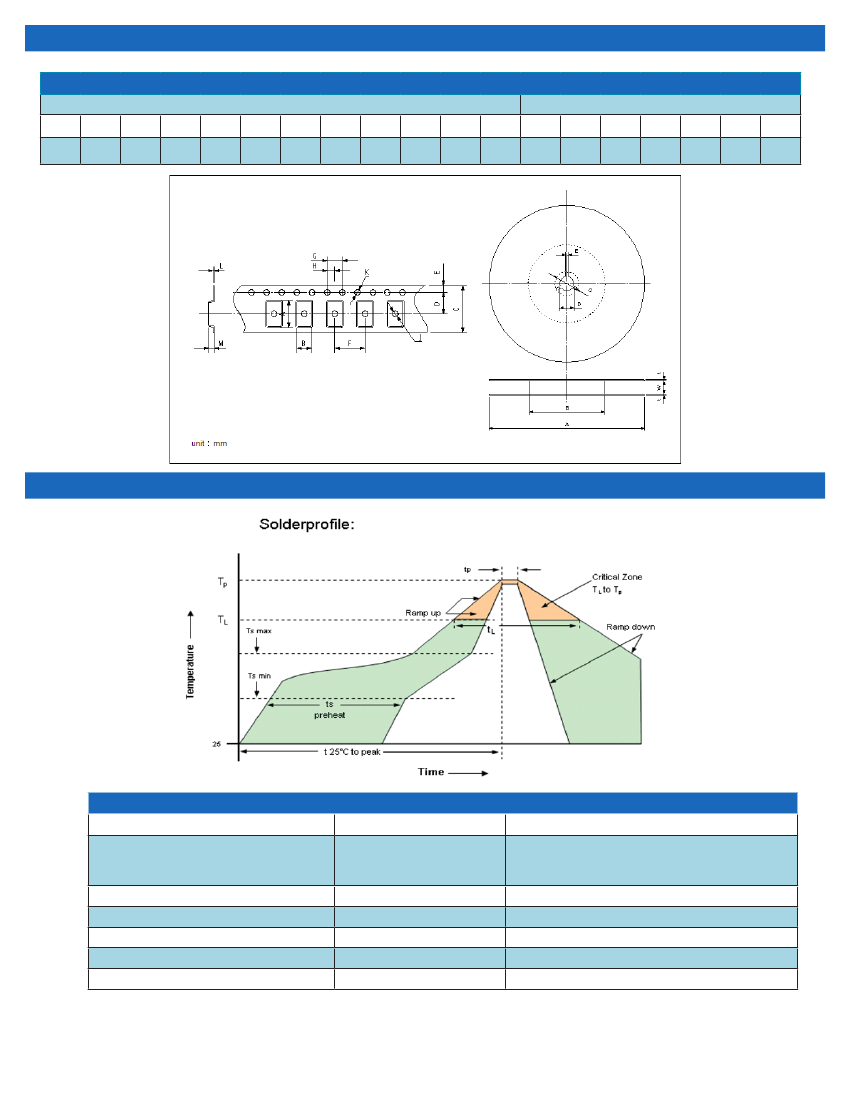

Tape & Reel
Table 7. Tape and Reel Dimensions (mm)
Tape
A
5.25
B
3.45
C
12.0
D
5.5
E
1.75
F
8.0
G
4.0
H
2.0
J
1.5
K
1.5
L
0.3
M
1.1
Reel
A
178
B
180
C
21.0
D
13.0
E
2.0
W
12.4
T
2.0
Reliability & IR Compliance
Table 2: Reflow Profile
Parameter
PreHeat Time
Ts-min
Ts-max
Ramp Up
Time Above 217 °C
Time To Peak Temperature
Time at 260 °C
Ramp Down
Symbol
t
S
Value
60 sec Min, 260 sec Max
150°C
200°C
3 °C/sec Max
60 sec Min, 150 sec Max
480 sec Max
30 sec Max
6 °C/sec Max
R
UP
t
L
T
AMB-P
t
P
R
DN
Pads are Au over Ni and compatible with either SnPb or Pb free attachment.
MSL: 1
Vectron International • 267 Lowell Road, Suite 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Page2
Ordering Information
VXM2 - XXX - XX- xxMxxxxxxx
Product
5.0 x 3.2mm, Crystal
Mode
1:
Fundamental
3:
3rd Overtone
Temp Stability
C:
10ppm
D:
15ppm
E:
20ppm
F:
25ppm
G:
30ppm
H:
35ppm
I:
40ppm
J:
45ppm
K:
50ppm
S:
100ppm
Frequency in MHz
Load Capacitance
0: Series Resonance
06-32pF
Operating Temperature
E:
-40 to 85 °C
J:
-20 to 70 °C
W: -10
to 70 °C
T:
0 to 70 °C
*Note: not all combination of options are available.
Other specifications may be available upon request.
10ppm stability not available for -40 to 85°C
Revision History
Revision Date
August 29, 2016
Approved
RC
Description
Initial datasheet for factory approval and release to customer.
For Additional Information, Please Contact
Vectron International
267 Lowell Road, Suite 102
Hudson, NH 03051
Tel: 1.888.328.7661
Fax: 1.888.329.8328
USA:
Vectron International
Landstrasse, D-74924
Neckarbischofsheim, Germany
Tel: +49 (0) 3328.4784.17
Fax: +49 (0) 3328.4784.30
Europe:
Vectron International
68, Yin Cheng Road (C), 22
nd
Floor
One LuJiaZui
Pudong, Shanghai 200120, China
Tel: 86.21.6194.6886
Fax: 86.21.6194.6699
Asia:
Disclaimer
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
