714-93-214-31-012: DescriptionIC Socket, SIP14, 14 Contact(s),; CategoryThe connector socket; File Size165KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

714-93-214-31-012 Overview

IC Socket, SIP14, 14 Contact(s),

714-93-214-31-012 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP14
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e0
Number of contacts	14
Base Number Matches	1

Preview

Download Datasheet

View All

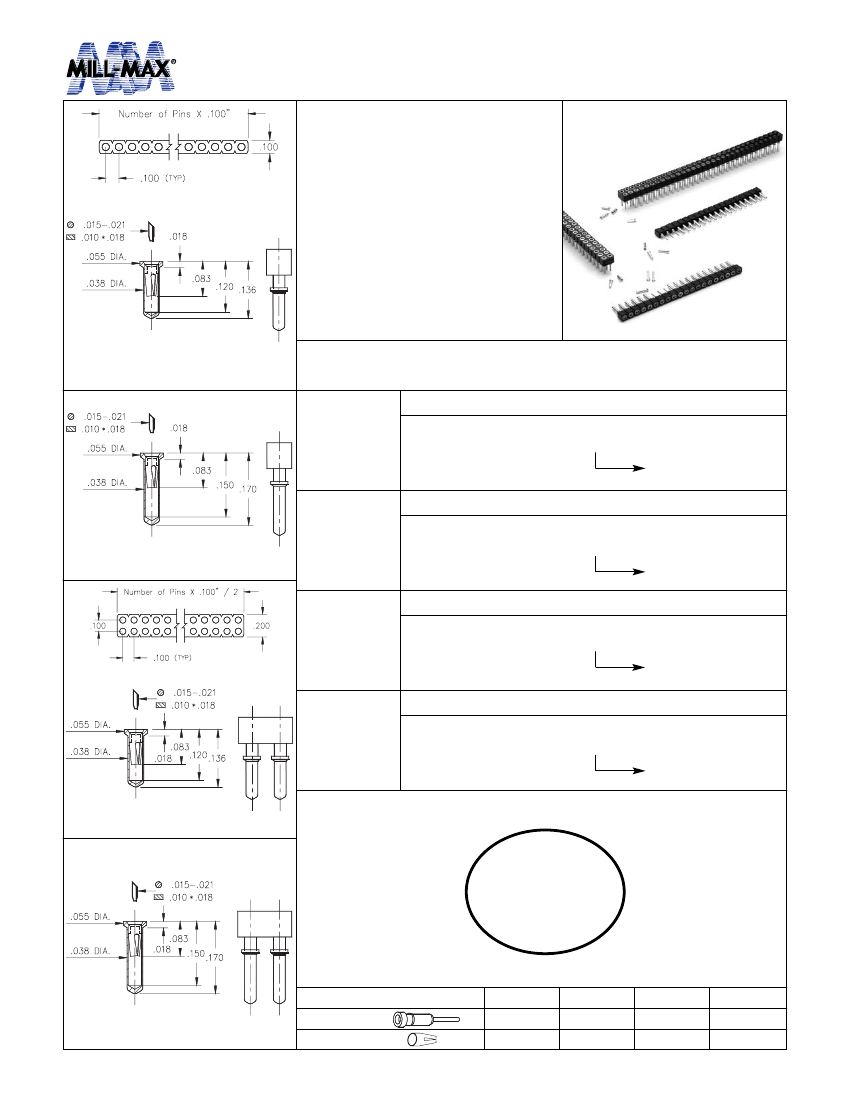

SINGLE-IN-LINE SOCKETS

Ultra Low Profile Carriers

Single and Double Row

•

Ultra low profile receptacles sit

.018” above the board.

Series 714...01X

•

Series 714 uses M-M# 0552-1,

0552-2 pin receptacles. See page

127 for details.

•

Hi-Rel, 3-finger BeCu #11 clip is

rated at 3amps. See page 206

for details.

Fig. 1

Ordering Information

Single Row (.039 min. mounting hole)

Fig. 1

714-XX-1_ _-31-012

Specify # of pins

01-64

Single Row (.039 min. mounting hole)

Fig. 2

714-XX-1_ _-31-018

Specify # of pins

01-64

Double Row (.039 min. mounting hole)

Fig. 3

714-XX-2_ _-31-012

Specify # of pins

02-64

Double Row (.039 min. mounting hole)

Fig. 4

714-XX-2_ _-31-018

Specify # of pins

02-64

Fig. 3

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

30µ” Au

200µ”Sn/Pb

Sleeve (Pin)

200µ” Sn/Pb 200µ”Sn/Pb

Fig. 4

Contact (Clip)

w w w. m i l l - m a x . c o m

516-922-6000
