4752 Overview

lens dome clear snap-IN

4752 Parametric

Parameter NameAttribute value
Datasheets
474x,475x Series
Standard Package1,000
CategoryOptoelectronics
FamilyOptics - LEDs, Lamps - Lenses
TypeLens - C
ColClear, Diffused
Number of LEDs1
For Use With/Related Products4740 Retainer Cli
Lens Style/SizeRound with Domed Top, 9.7mm
Optical Patte-
Viewing Angle-
Mounting Type*
engineered to light up your design
www.vcclite.com
1.800.522.5546

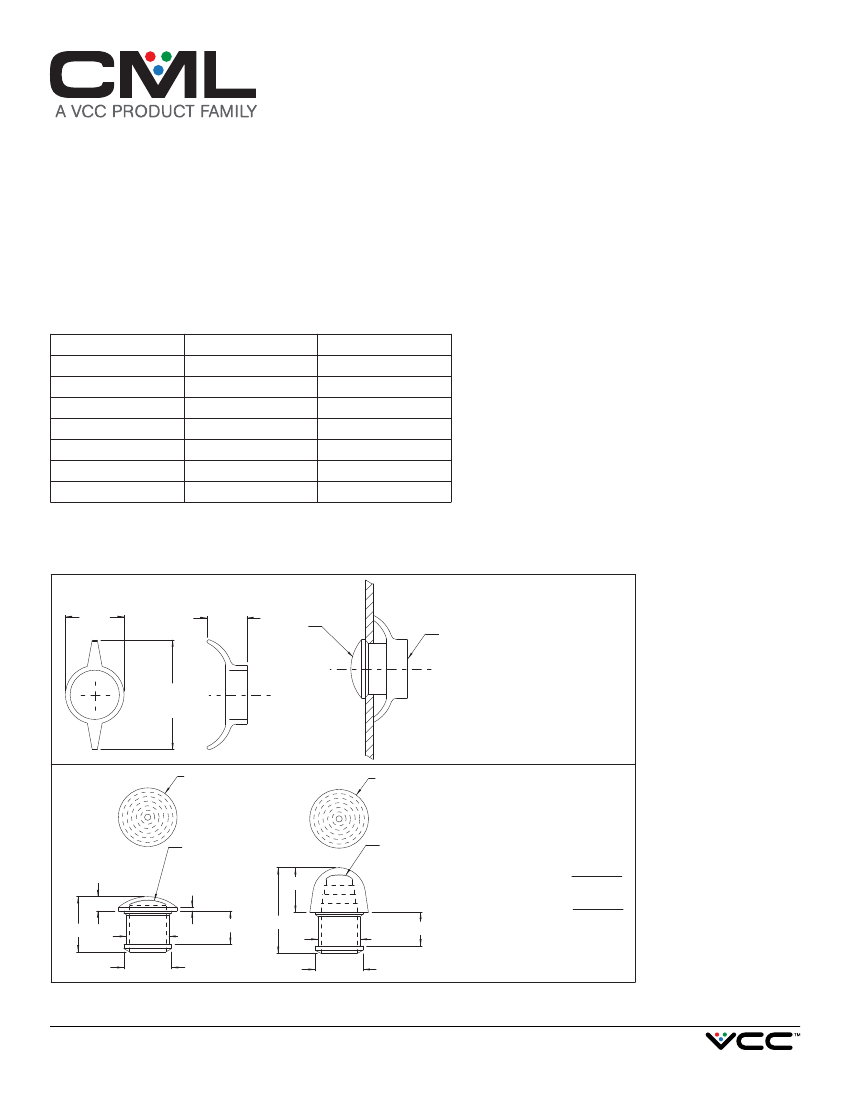

Lens Retainer Clip
Description and Features
Series 4740, 4750 Lenses
Mounting: Rear snap-on to lens models 4741, 4751. Will snapfit into .030-.093 thick panel in a .312-.317 mounting hole.
Lens: Polycarbonate
Clip: Natural acetal
Note: Order model 4740 lens retainer clip and appropriate lens separately.
Lens Color
Red
Clear
Amber
White
Green
Blue
Yellow
Low Profile Model No. Dome Model No.
4741
4742
4743
4744
4745
4746
4747
4751
4752
-
-
4755
-
-
Outline Dimensions
Material: Acetel, Natural
Lens Retainer Clip
Ø.400
.240
MAX.
LENS
LENS
RETAINER
CLIP
.680 IN
RELAXED
CONDITION
#4740 Clip
Low Profile
Ø.380
Dome
Ø.380
#4751-4757
Lens
#4741-4747
Lens
LIGHT
DIFFUSING
RINGS
.030
.250
LIGHT
DIFFUSING
RINGS
Panel Thickness Range: .030 - .093
(.76 - 2.36)
Mounting Hole Diameter: .317 (8.05)
.312 (7.93)
.090
.330
Ø.270
Ø.310
.190
.480
Ø.270
Ø.310
.190
All dimensions are in inches.
CML and Chicago Miniature Lamp are registered trademarks of Visual Communications Company, LLC.
