390402-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 390402-7

390402-7: Description184 CONTACT(S), FEMALE, 25 DEGREE SINGLE PART CARD EDGE CONN, SOLDER, SOCKET; CategoryThe connector The connector; File Size635KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

390402-7 Overview

184 CONTACT(S), FEMALE, 25 DEGREE SINGLE PART CARD EDGE CONN, SOLDER, SOCKET

390402-7 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	POLARIZED
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	390402
Mixed contacts	NO
Installation method	25 DEGREE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	184
Base Number Matches	1

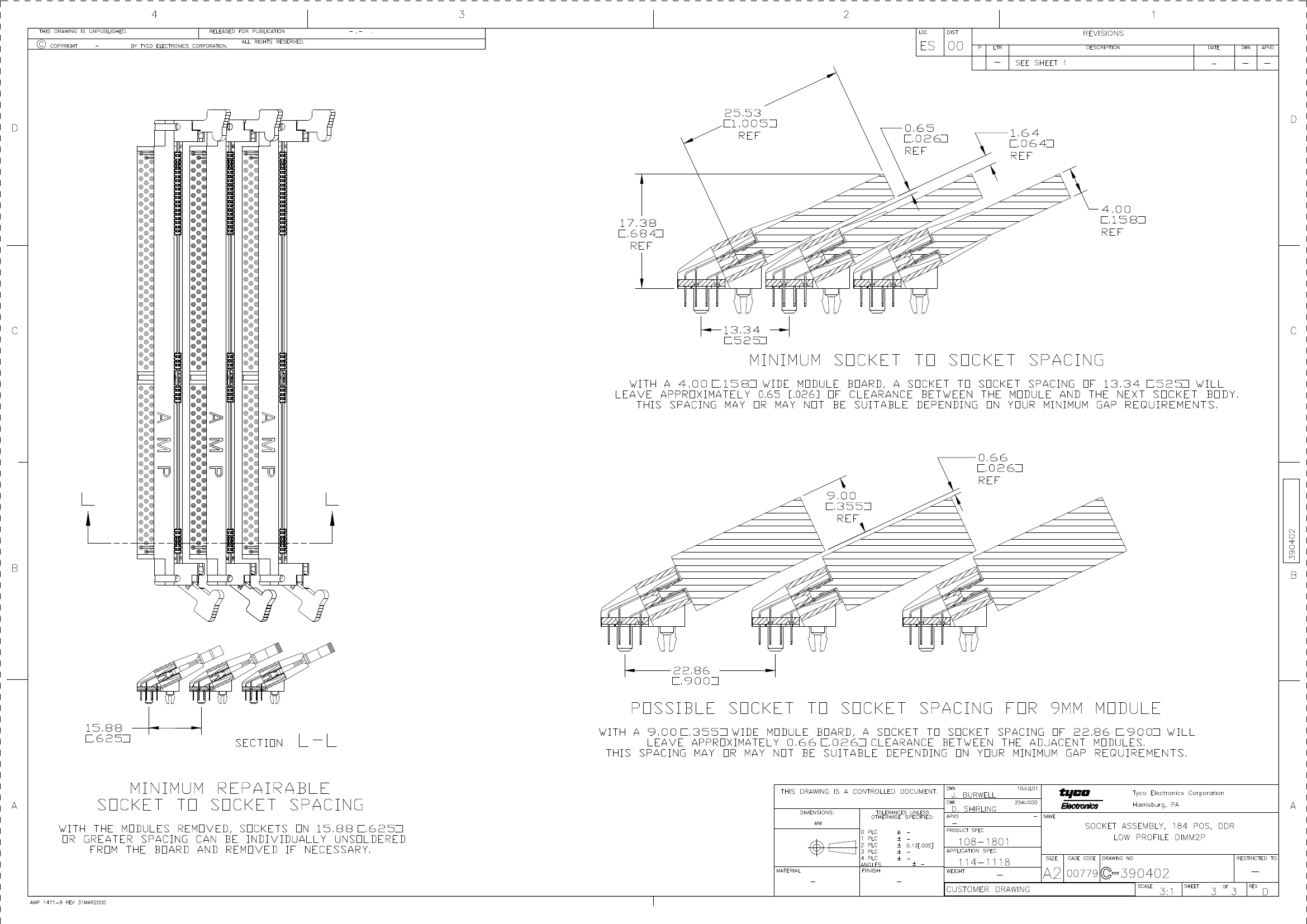

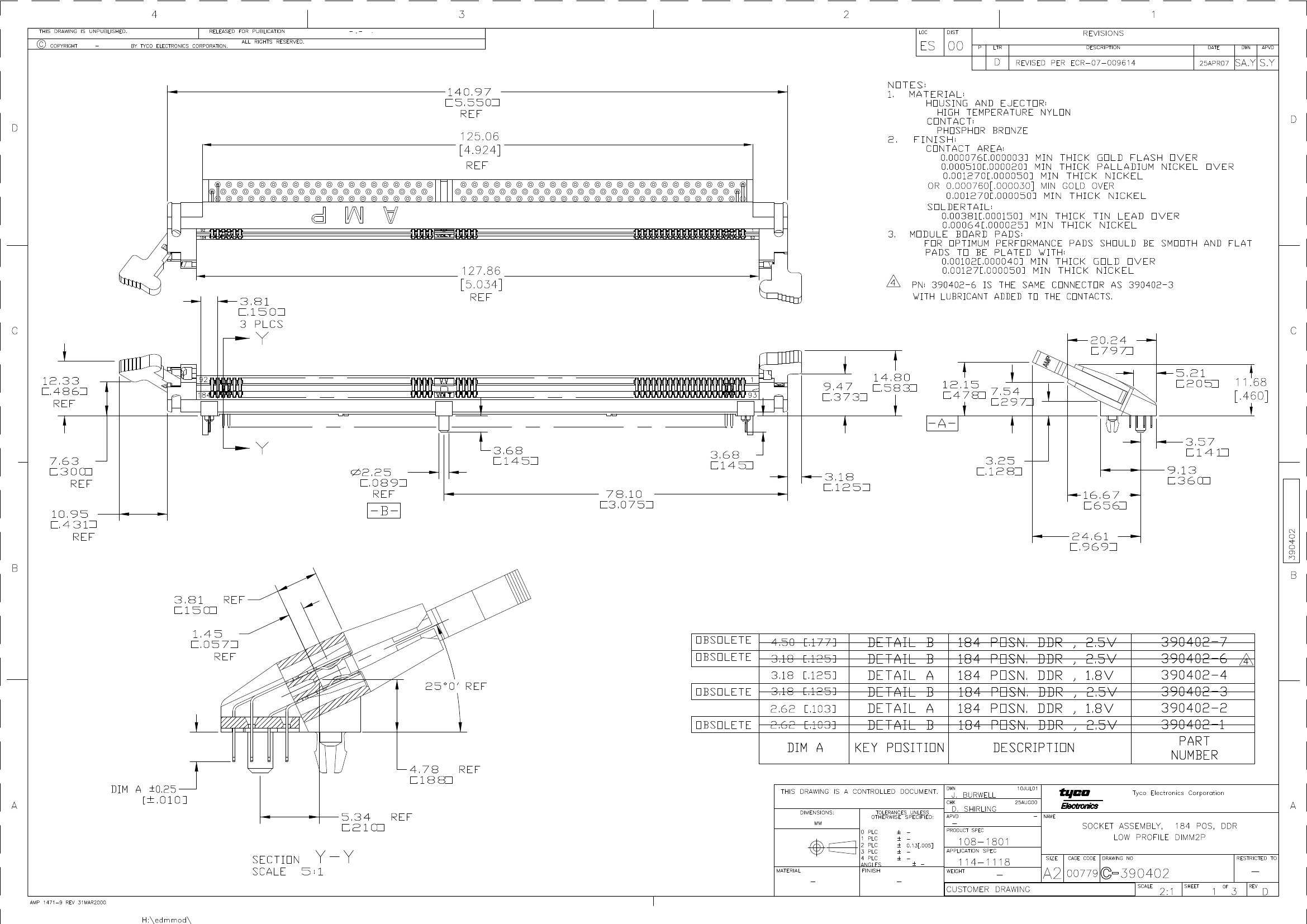

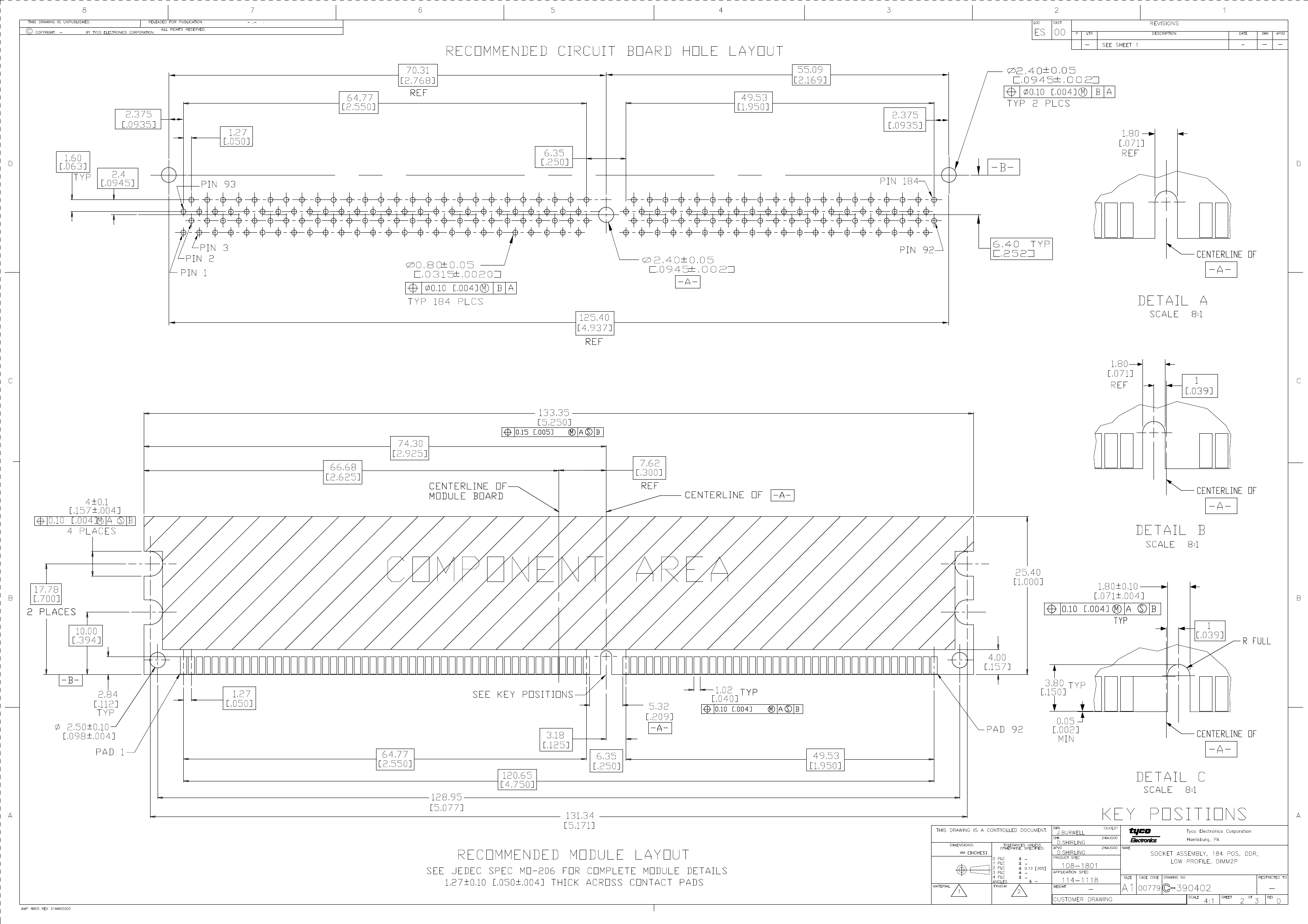

Preview

Download Datasheet

View All

390402-7 Related Products

	390402-7	390402-6	390402-3	390402-2	390402-4
Description	184 CONTACT(S), FEMALE, 25 DEGREE SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	184 CONTACT(S), FEMALE, 25 DEGREE SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	184 CONTACT(S), FEMALE, 25 DEGREE SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	CONNECTOR, 184 CONTACT(S), FEMALE, 25 DEGREE SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	CONNECTOR, 184 CONTACT(S), FEMALE, 25 DEGREE SINGLE PART CARD EDGE CONN, SOLDER, SOCKET
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	390402	390402	390402	390402	390402
Mixed contacts	NO	NO	NO	NO	NO
Installation method	25 DEGREE	25 DEGREE	25 DEGREE	25 DEGREE	25 DEGREE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	184	184	184	184	184
Base Number Matches	1	1	1	-	-
Is it Rohs certified?	-	-	incompatible	incompatible	incompatible
Contact to complete cooperation	-	-	NOT SPECIFIED	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact material	-	-	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE
UL Flammability Code	-	-	94V-0	94V-0	94V-0
