C11378_EMILY-M-XP datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> C11378_EMILY-M-XP

C11378_EMILY-M-XP: Descriptionlens for cree XP-E; CategoryLED optoelectronic/LED; File Size791KB，6 Pages; ManufacturerLedil; Websitehttp://www.ledil.com

Download Datasheet Parametric Compare View All

C11378_EMILY-M-XP Overview

lens for cree XP-E

C11378_EMILY-M-XP Parametric

Parameter Name	Attribute value
Datasheets
Emily-XP
Standard Package	77
Category	Optoelectronics
Family	Optics - LEDs, Lamps - Lenses
Type	Lens with Integrated Mou
Col	Cle
Number of LEDs	1
For Use With/Related Products	Cree XP-E
Lens Style/Size	Round with Flat Top, 26mm
Optical Patte	Medium
Viewing Angle	18°
Mounting Type	Adhesive, Position Pins

Preview

Download Datasheet

View All

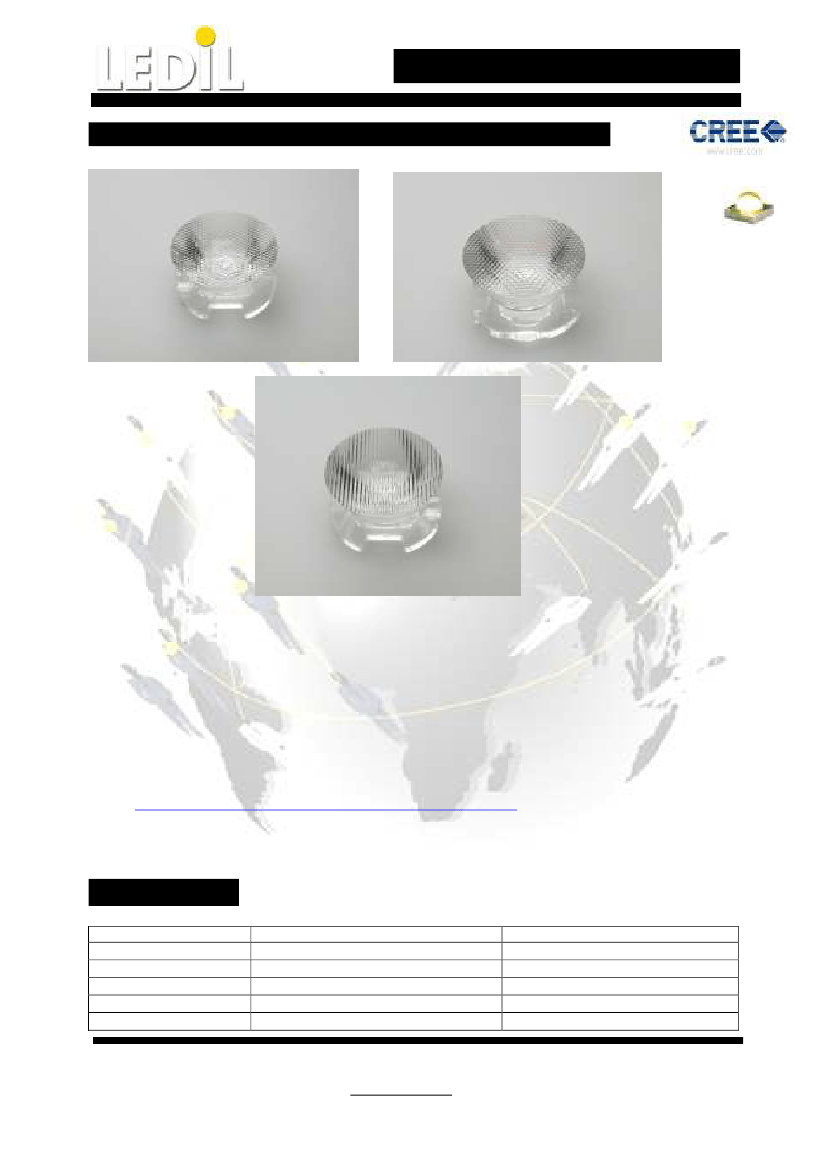

LEDIL F’FORM OPTICS

FULLY SEALABLE EMILY LENSES FOR CREE XP-E

Specially designed for Cree XLAMP XP-E series of LEDs.

Lens material optical grade PMMA with high UV and temperature resistance

(105°C/220°F)

High optical efficiency, up to 90%

No lens holder. Lens has small position pins, fastening to heat sink with a PU foam

adhesive tape of automotive grade. For mounting instruction, please see datasheet at

the bottom page.

We advise customer to ensure the suitability and sufficiency of the bond in the end

product. For example, mechanical stress, vibration and holes on the surface of the

circuit boar weaken the strength of the tape.

Please check fastening details from this link:

(http://www.ledil.com/datasheets/DataSheet_TAPE.pdf)

Lens foot can be potted with resin without losses in optical efficiency

(fully

sealed construction

of luminaire possible)

Diameter 26 mm, height 15mm

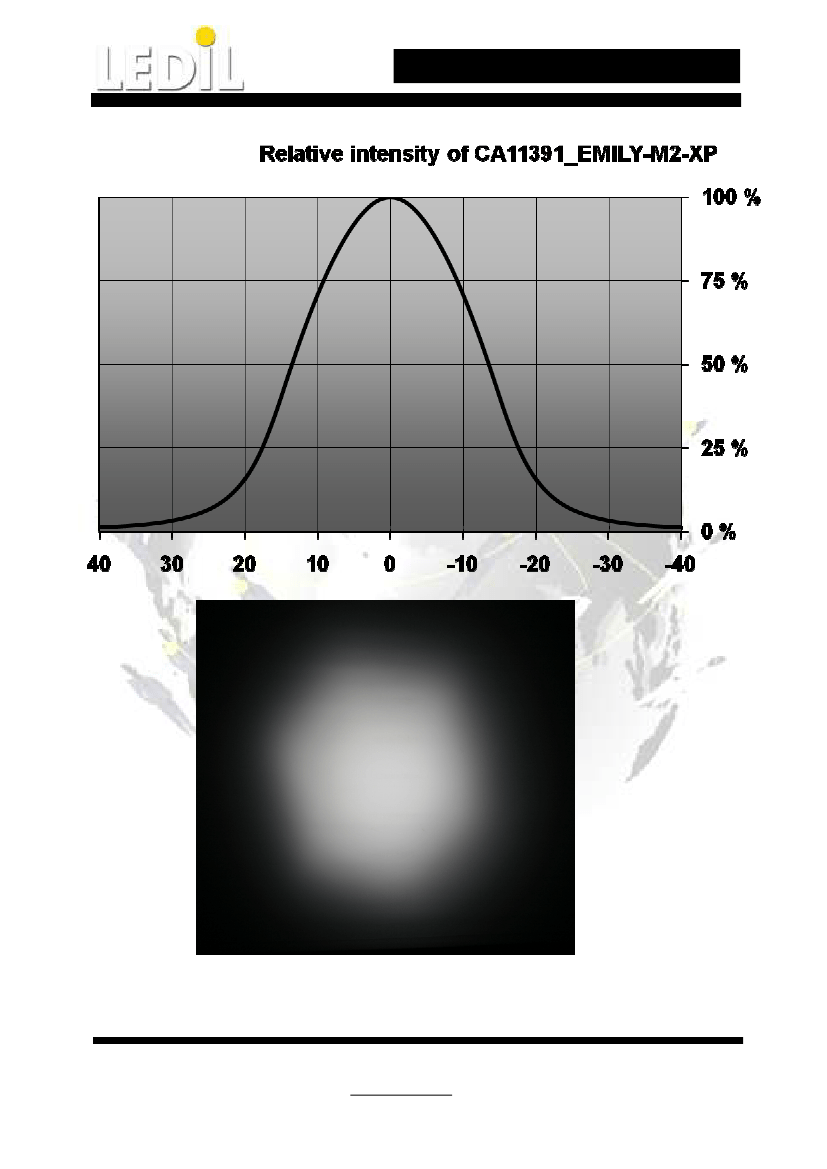

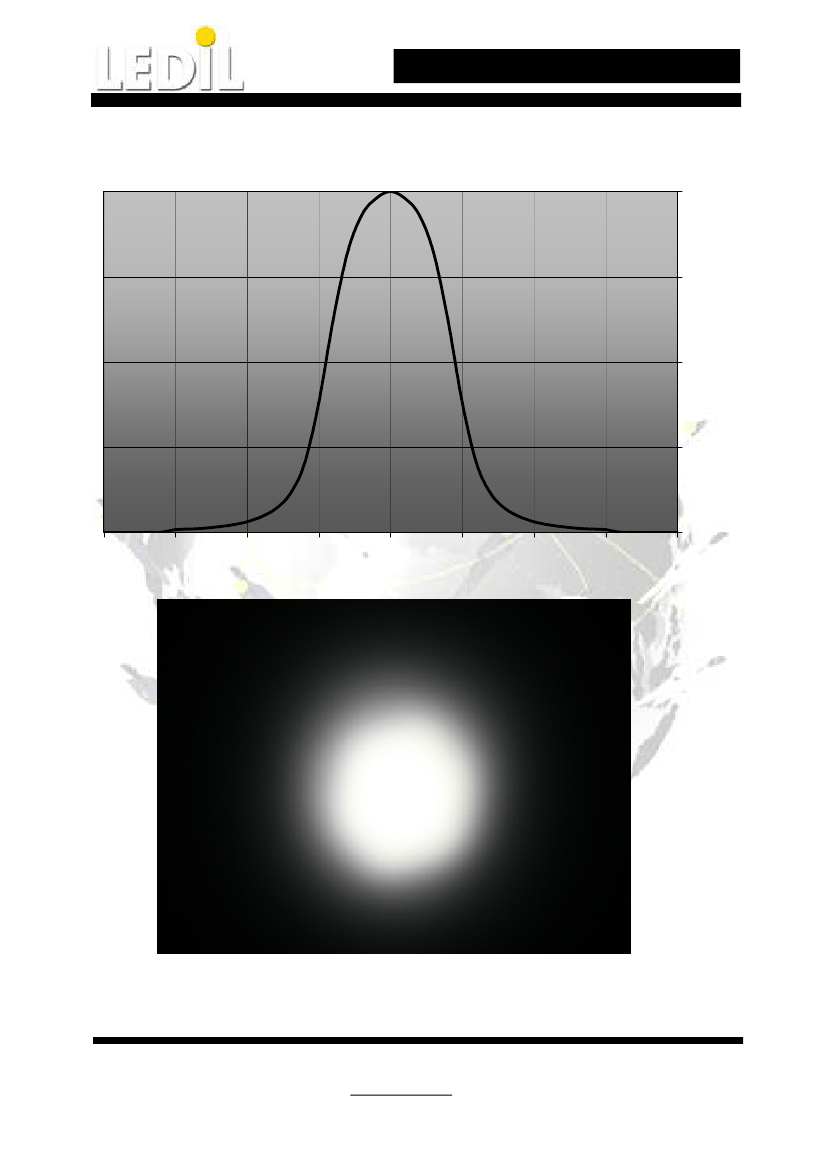

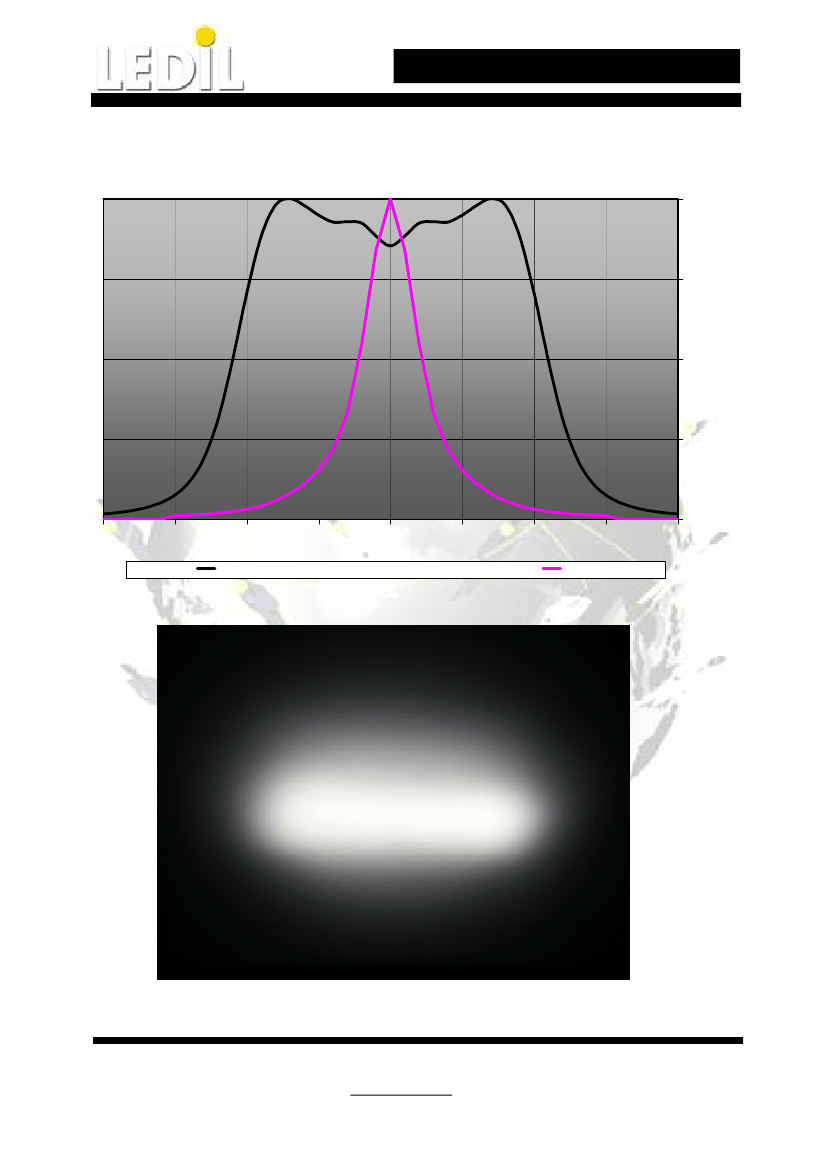

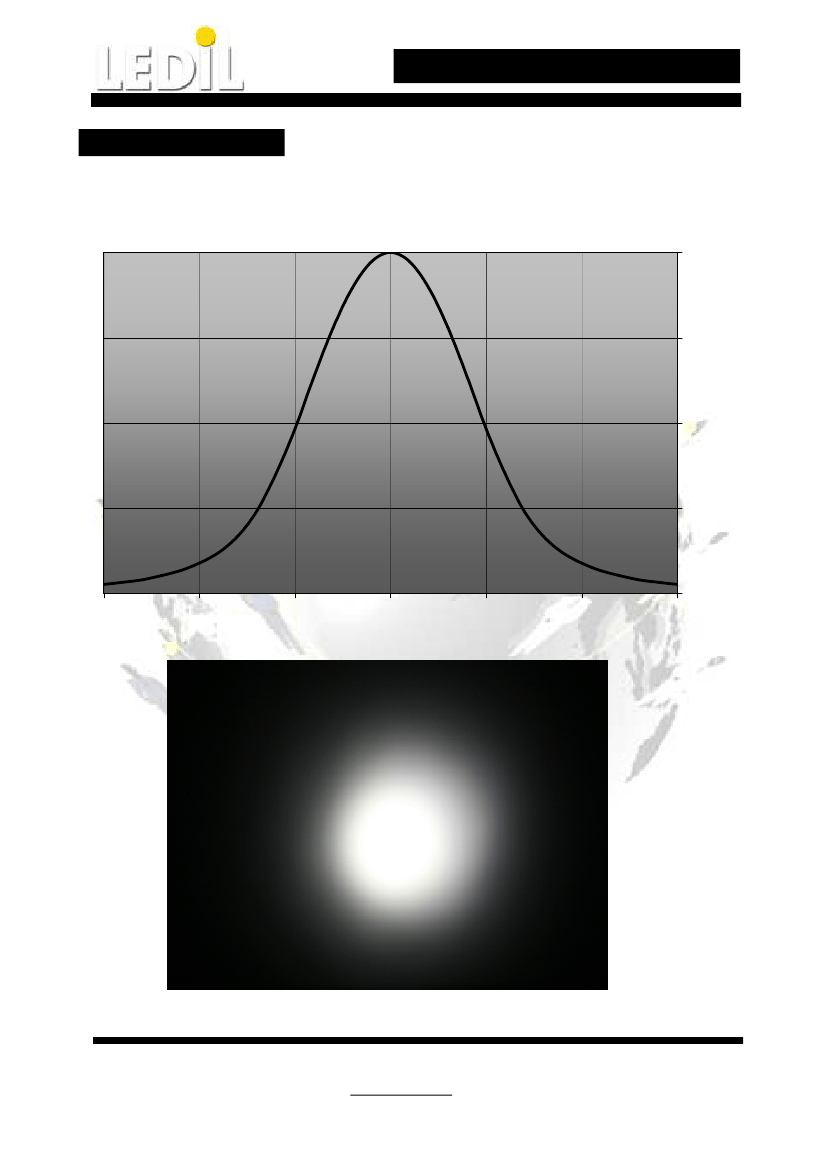

LENS TYPES

NAME

ORDERING CODE

FWHM Angle

Emily

Smooth Spot

Medium

Medium 2

Oval

Oval 90°

CA11387_Emily-SS-XP

CA11388_Emily-M-XP

CA11391_Emily-M2-XP

CA11389_Emily-O-XP

CA11390_Emily-O-90-XP

±5°

±9°

±14°

±22° x ±5°

Ledil Oy

Tehdaskatu 13

FIN-24100 SALO, Finland

www.ledil.com

email: ledil@ledil.com

FAX: +358-2-733 8001

2011-03-07

C11378_EMILY-M-XP Related Products

	C11378_EMILY-M-XP	C11377_EMILY-SS-XP	C11379_EMILY-O-XP	C11380_EMILY-O-90-XP
Description	lens for cree XP-E	lens for cree XP-E	lens for cree XP-E	lens for cree XP-E
Standard Package	77	77	77	77
Category	Optoelectronics	Optoelectronics	Optoelectronics	Optoelectronics
Family	Optics - LEDs, Lamps - Lenses	Optics - LEDs, Lamps - Lenses	Optics - LEDs, Lamps - Lenses	Optics - LEDs, Lamps - Lenses
Type	Lens with Integrated Mou	Lens with Integrated Mou	Lens with Integrated Mou	Lens with Integrated Mou
Col	Cle	Cle	Cle	Cle
Number of LEDs	1	1	1	1
For Use With/Related Products	Cree XP-E	Cree XP-E	Cree XP-E	Cree XP-E
Lens Style/Size	Round with Flat Top, 26mm	Round with Flat Top, 26mm	Round with Flat Top, 26mm	Round with Flat Top, 26mm
Optical Patte	Medium	S	Oval	Oval 90°
Viewing Angle	18°	10°	44° x 10°	44° x 10°
Mounting Type	Adhesive, Position Pins	Adhesive, Position Pins	Adhesive, Position Pins	Adhesive, Position Pins
