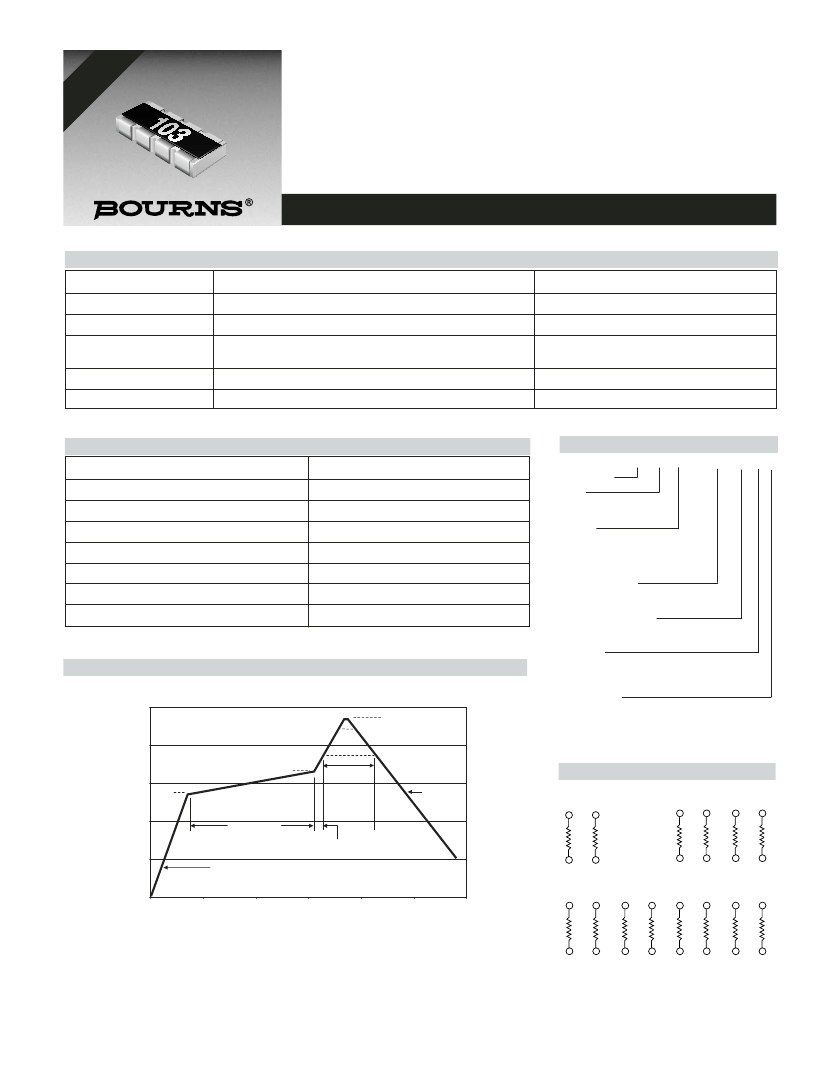

Features
■
■
■
■
■
■
Lead free version available (see How to Order “Termination” options)
RoHS compliant*
Convex and concave terminals
2, 4 or 8 isolated elements available
Resistance tolerance ±1 % and ±5 %
Resistance range: 10 ohms to 1 megohm
CAT/CAY 16 Series - Chip Resistor Arrays
Specifications
Requirement
Short Time Overload
Soldering Heat
Temperature Cycling (5)
Moisture Load Life
Load Life
Characteristics
±1 % (±2 % for CAT16-J8 & CAY16-J8)
±1 %
±1 %
±2 % (±3 % for CAT16-J8 & CAY16-J8)
±2 % (±3 % for CAT16-J8 & CAY16-J8)
Test Method
Rated Voltage X 2.5, 5 seconds
260 °C ±5 °C, 10 seconds ±1 second
125 °C (30 minutes) - normal (15 minutes)
-30 °C (30 minutes) - normal (15 minutes)
1000 hours
1000 hours
Characteristics
Characteristics
Number of Elements
Power Rating Per Resistor
Resistance Tolerance
Resistance Range E24 (J), E96 + E24 (F)
Max. Working Voltage
Operating Temp. Range
Rating Temperature
CAT16/CAY16
2 (J2), 4 (F4, J4), 8 (J8)
62 mW (31 mW for CAY16-J8)
±1 %, ±5 %
10 ohms - 1 megohm
50 V (25 V for CAY16-J8)
-55 °C - 125 °C
+70 °C
How To Order
CA Y 16 - 103 J 4 __
Chip Arrays
Type
• T = Concave
• Y = Convex
Models
• J2 = 0606 Package Size
• F4, J4 = 1206 Package Size
• J8 = 2406 Package Size for CAT16;
1506 Package Size for CAY16
Resistance Code
• 103 = 10 K ohms
• 1003 = 100 K ohms (1 % tolerance)
Resistance Tolerance
• J = ±5 %
• F = ±1 % (4 resistor package only)
Resistors
• 2 = 2 Isolated Resistors
• 4 = 4 Isolated Resistors
• 8 = 8 Isolated Resistors
Terminations*
• LF = Tin-plated (lead free)
• Blank = Solder-plated
*Model CAY16-J8 is available only with tin-plated
terminations.
Soldering Profile for Lead Free Chip Resistors and Arrays
275
<1>
Maximum of 20 seconds between
260 °C peak
<1>
255 °C
+255 °C and +260 °C
225
220 °C
Temperature (°C)
190 °C
175
150 °C
60 - 90
seconds
Ramp Down
3 °C/second
Schematics
CAT16-J2
CAY16-J2
CAT16-F4, -J4
CAY16-F4, -J4
125
60 - 120 seconds
10 seconds minimum
R1
R2
R1
R2
R3
R4
75
Ramp Up
3 °C/second maximum
25
0
50
100
150
Time (seconds)
200
250
300
CAT16-J8
CAY16-J8
R1
R2
R3
R4
R5
R6
R7
R8
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
CAT/CAY 16 Series - Chip Resistor Arrays

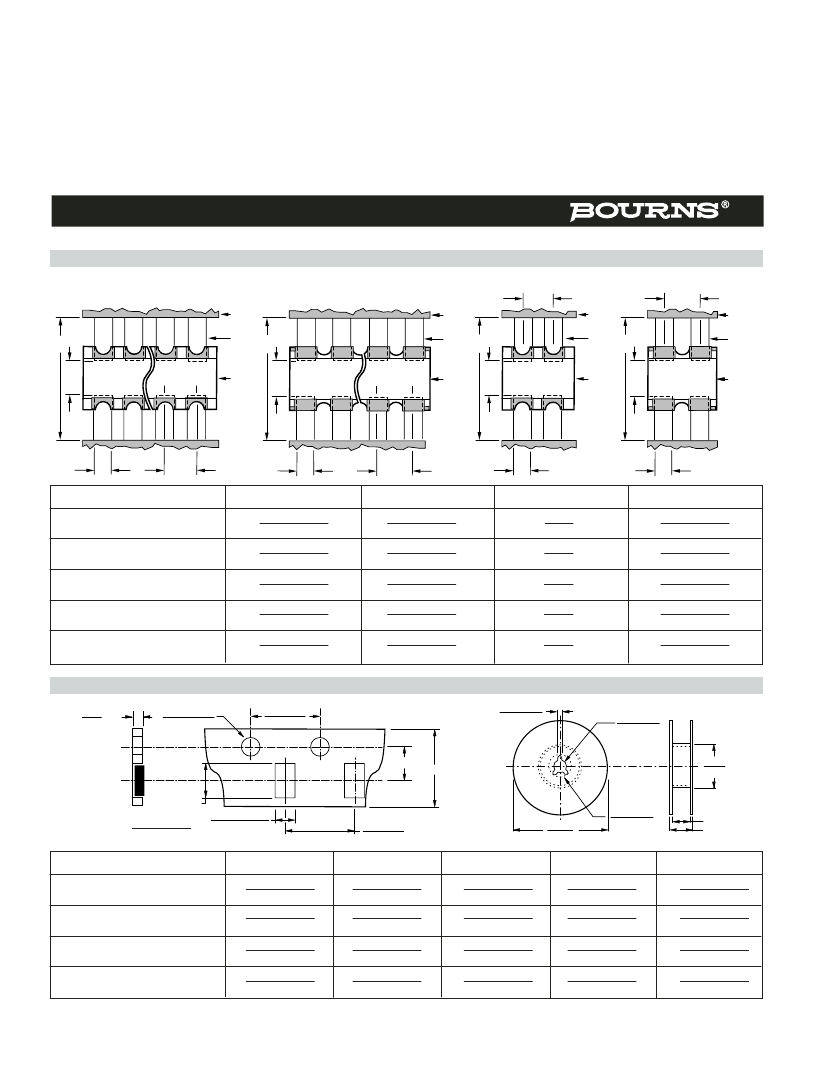

Land Patterns
CAT16-F4, -J4, -J8
Solder
resist
Land
CAY16-F4, -J4, -J8
Solder
resist
Land
CAT16-J2
p
Solder
resist
Land
CAY16-J2
p
Solder
resist
Land
f
f
f
f
Chip
resistor
array
a
a
Chip
resistor
array
a
Chip
resistor
array
a
Chip
resistor
array
b
p
b
p
b
b
Model
CAT16-F4, -J4, -J8
CAY16-F4, -J4
CAY16-J8
CAT16-J2
CAY16-J2
a
0.7 to 0.9
(.028 to .035)
0.7 to 0.9
(.028 to .035)
0.7 to 0.9
(.028 to .035)
0.7 to 0.9
(.028 to .035)
0.7 to 0.9
(.028 to .035)
b
0.4 to 0.45
(.016 to .0178)
0.4 to 0.45
(.016 to .0178)
0.3 to 0.35
(.012 to .014)
0.4 to 0.45
(.016 to .0178)
0.4 to 0.45
(.016 to .0178)
p
0.80
(.032)
0.80
(.032)
0.50
(.020)
0.80
(.032)
0.80
(.032)
f
2.0 to 2.2
(.079 to .087)
2.4 to 2.8
(.094 to .11)
2.0 to 2.2
(.079 to .087)
2.2 to 2.6
(.087 to .102)
2.0 to 2.2
(.079 to .087)
Packaging Dimensions
1.0
MAX.
(.039)
1.5 + 0.1 - 0
(.059 + .004 - 0)
4.0
±
0.1
(.158
±
.004)
2.0
±
0.5
(.079
±
.020)
13.0
±
0.5
(.511
±
.020)
b
c
60
(2.362)
a
DIMENSIONS ARE:
MM
(INCHES)
2.0 + 0.1/-0.2
(.08 + .004/-.008)
4.0
±
0.1
(.157
±
.004)
180
(7.087)
21.0
±
0.8
(.827
±
.031)
d
e
Model
CAT16-F4, -J4 & CAY16-F4, J4
CAT16-J2 & CAY16-J2
CAT16-J8
CAY16-J8
a
3.40 ± 0.10
(.134 ± .004)
1.80 ± 0.10
(.070 ± .004)
6.90 ± 0.20
(.272 ± .008)
4.10 ± 0.15
(.161 ± .012)
b
3.50 ± .005
(.138 ± .004)
3.50 ± .005
(.138 ± .004)
5.50 ± 0.10
(.217 ± .004)
3.50 ± 0.05
(.138 ± .002)
c
8.0 ± 0.3
(.315 ± .012)
8.0 ± 0.3
(.315 ± .012)
12.0 ± 0.2
(.472 ± .008)
8.0 ± 0.3
(.315 ± .012)
d
9.0 ± 0.3
(.354 ± .012)
9.0 ± 0.3
(.354 ± .012)
13.0 ± 0.2
(.512 ± .008)
9.0 ± 0.3
(.354 ± .012)
e
11.4 ± 1.0
(.449 ± .040)
11.4 ± 1.0
(.449 ± .040)
15.4 ± 1.0
(.606 ± .040)
11.4 ± 1.0
(.449 ± .040)
• 5,000 pcs. per reel (J2, J4, CAY16-J8)
4,000 pcs. per reel (CAT16-J8)
• Paper tape
REV.03/15/04
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
