RA03115RF0D: DescriptionArray/Network Resistor, Isolated, 0.0625W, 115ohm, 50V, 1% +/-Tol, -200,200ppm/Cel, 1206; CategoryPassive components The resistor; File Size102KB，1 Pages; ManufacturerCompostar Technology Co., Ltd.

Download Datasheet Parametric View All

RA03115RF0D Overview

Array/Network Resistor, Isolated, 0.0625W, 115ohm, 50V, 1% +/-Tol, -200,200ppm/Cel, 1206

RA03115RF0D Parametric

Parameter Name	Attribute value
Objectid	1214365199
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Chip
Manufacturer's serial number	RA03
Network Type	Isolated
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.6 mm
Package length	3.2 mm
Package form	SMT
Package width	1.6 mm
method of packing	Box
Rated power dissipation(P)	0.0625 W
resistance	115 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	RA03
size code	1206
Temperature Coefficient	200 ppm/°C
Tolerance	1%
Operating Voltage	50 V

Preview

Download Datasheet

View All

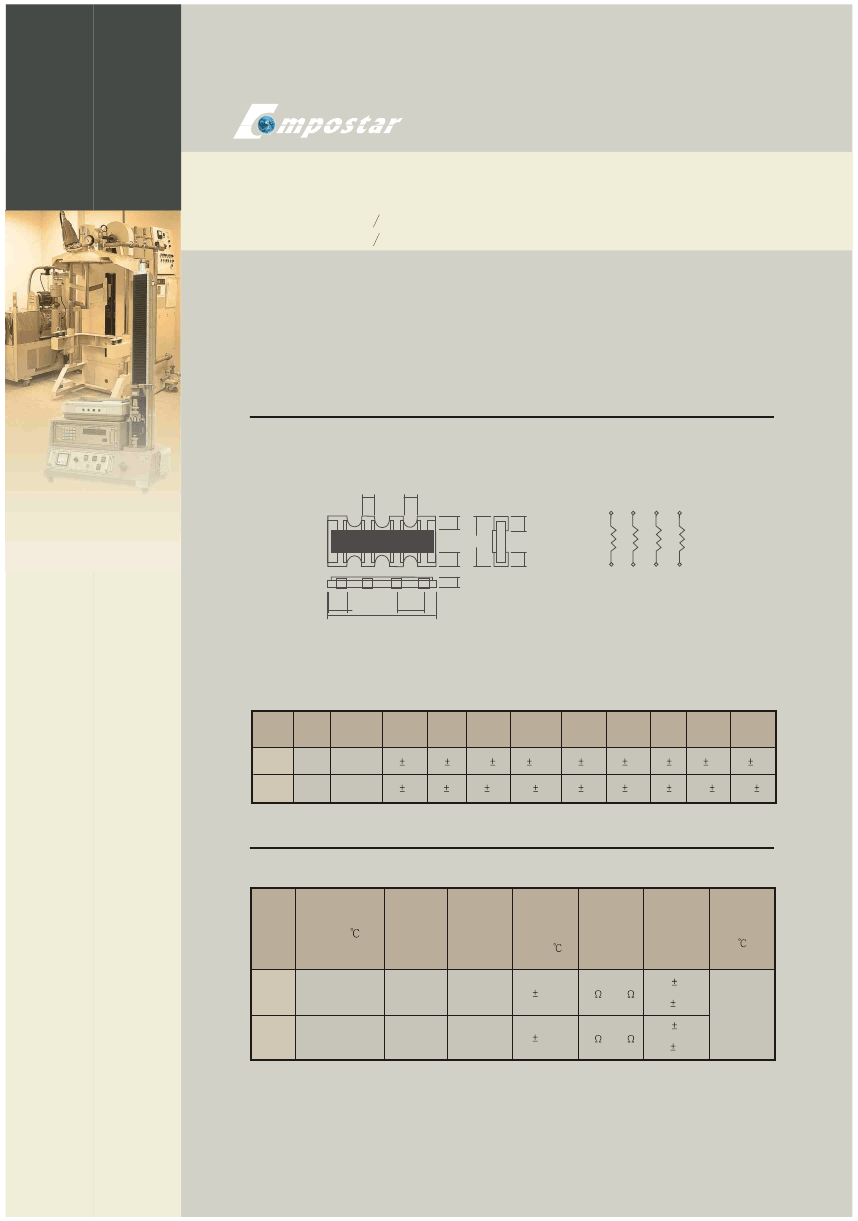

Thick Film Chip Resistor Array

RA03 (0603SIZE 4-ELEMENTS)

RA02 (0402SIZE 4-ELEMENTS)

FEATURES

1. High density SMD packaging gives higher productivity and reduced assembly costs.

2. Suitable for flow and reflow soldering.

3. Suitable for automatic surface mount.

DIMENSIONS AND STRUCTURE

Q

2

D

a

W

a

H

b

R1

b

R1

R2

R3

R4

=

R2

=

R3

=

R4

Q

1

L

P

Unit: mm

STYLE TYPE Terminal

RA 02

RA 03

024R

034R

L

W

H

Q

1

a

b

p

Q

2

D

Convex 2.0 0.1 1.0 0.1 0.45 0.1 0.3 0.1

0.2 0.1 0.3 0.1 0.5 0.1 0.2 0.1 0.2 0.1

Convex 3.2 0.15 1.6 0.2 0.6 0.1 0.65 0.15 0.3 0.15 0.3 0.15 0.8 0.1 0.45 0.1 0.38 0.1

RATINGS

TYPE

Rated

Power

At 70

(w)

Maximum

Working

Voltage

(Vw)

Maximum

Temperature

Resistance Resistance

Operating

Overload

Coefficient

Range

Tolerance

Temperature

of

Range

Voltage

Resistance

( )

(Vo)

(ppm/ )

J(

024R

1/16

50

100

200

10

~1M

5%)

F( 1%)

J(

5%)

-55~+125

034R

1/16

50

100

200

10

~1M

F( 1%)

-27-
