44472-0604

Description
Rectangular Power Connector, 6 Contact(s), Male, Solder Terminal
CategoryThe connector    The connector
File Size447KB,7 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

44472-0604 Overview

Rectangular Power Connector, 6 Contact(s), Male, Solder Terminal

44472-0604 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresMINI-FIT HCS
Connector typeRECTANGULAR POWER CONNECTOR
Contact point genderMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number44472
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell materialPOLYAMIDE66
Termination typeSOLDER
Total number of contacts6
UL Flammability Code94V-0
Base Number Matches1
FEATURES AND SPECIFICATIONS
Features and Benefits
s
Carries 3 more amperes per circuit than 5566
series headers
s
Headers available with mounting pegs for increased
board retention
s
Single row configuration saves board space
Electrical
Voltage: 600V
Current: (Used with 16 AWG)
Circuits
Amperes-Jr.
Amperes-HCS
2–3
9
12
4–6
8
11
7–10
7
10
12–24
6
9
4.20mm (.165") Pitch
Mini-Fit, HCS
Header
44472
Single Row, Vertical
With Pegs
Power Connectors
Reference Information
Product Specification: PSX-44476-0001
Packaging: Tray or bag
UL File No.: E29179
CSA File No.: LR19980
TUV License No.: R75142
Mates With:
5557
single row housing
Designed In: Millimeters
Contact Resistance: 10m
max.
Dielectric Withstanding Voltage: 1500V
Insulation Resistance: 1000 M
min.
Mechanical
Insertion Force to PCB: 5.0kg max.
Mating Force: 0.7kg (1.54 lb) max.
Unmating Force: 0.35kg (0.7 lb) min.
Normal Force: 200g min.
Durability: 30 cycles
Physical
Housing: 6/6 nylon, UL 94V-2 or UL 94V-0
Contact: High Copper Alloy
Plating: Tin
Operating Temperature: -40 to +105˚C
F

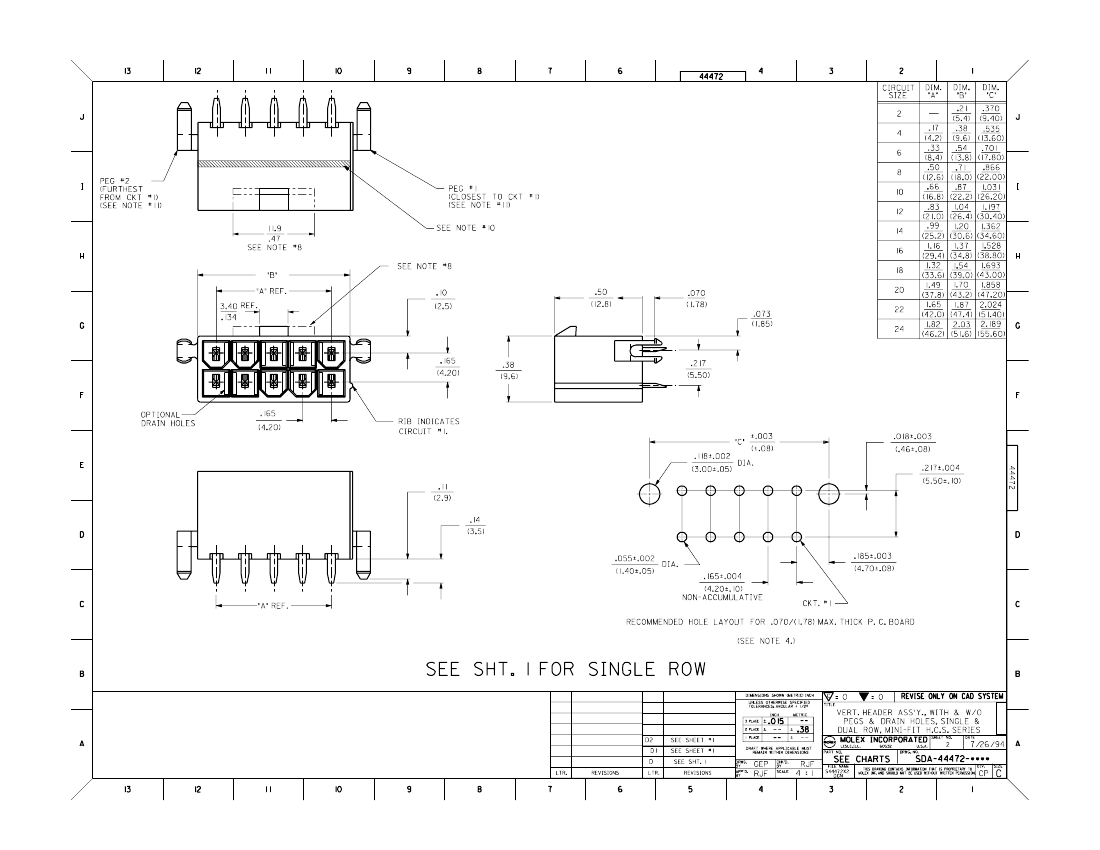

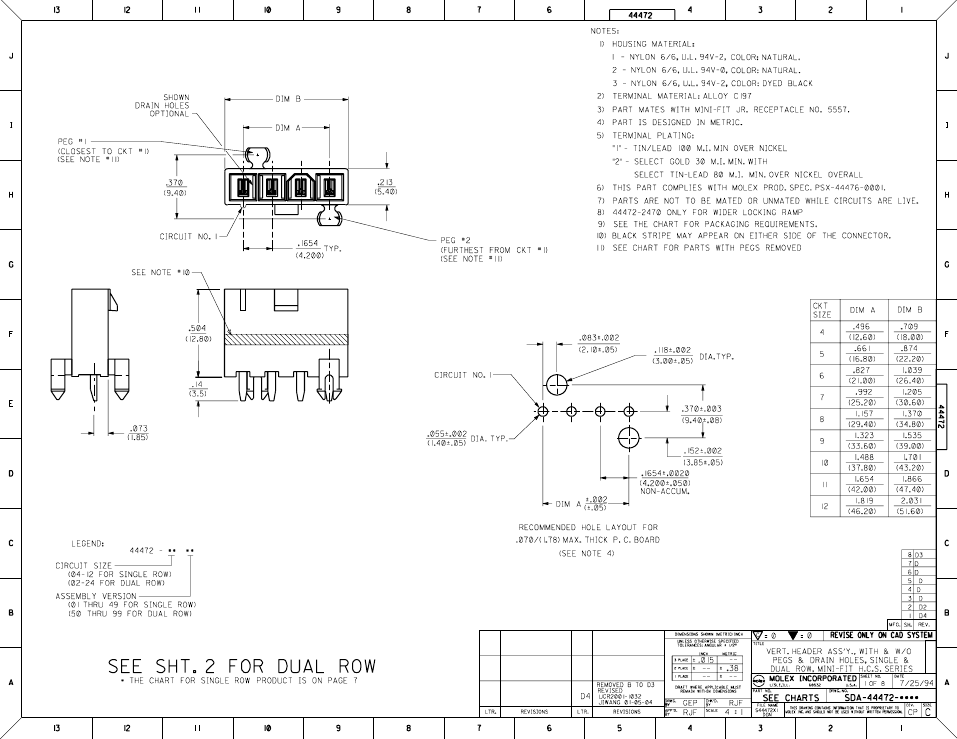

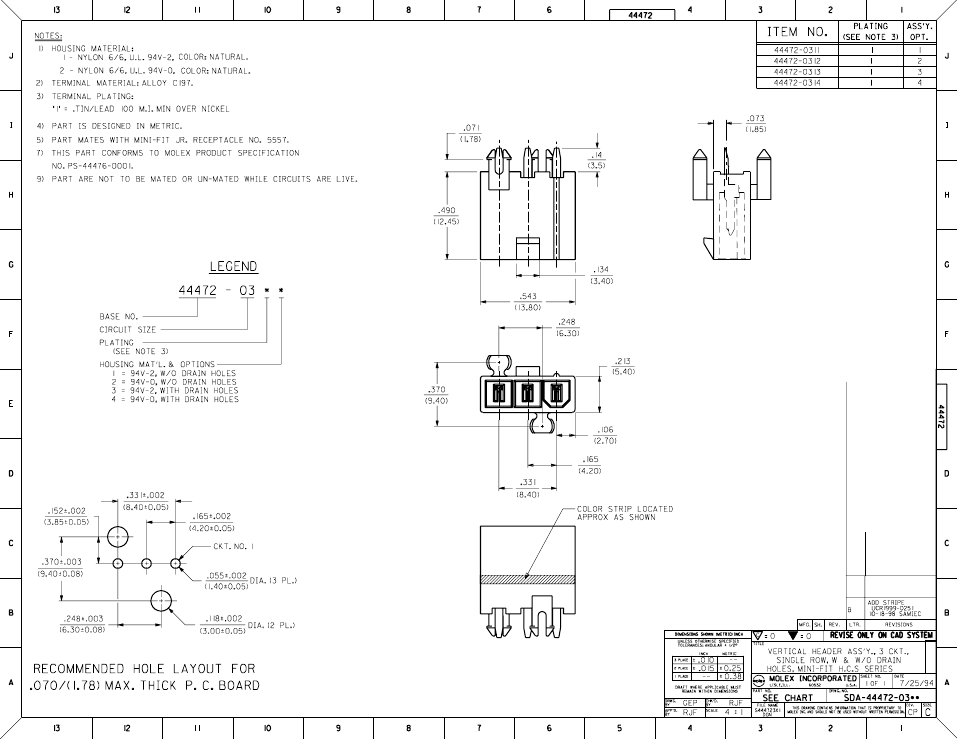

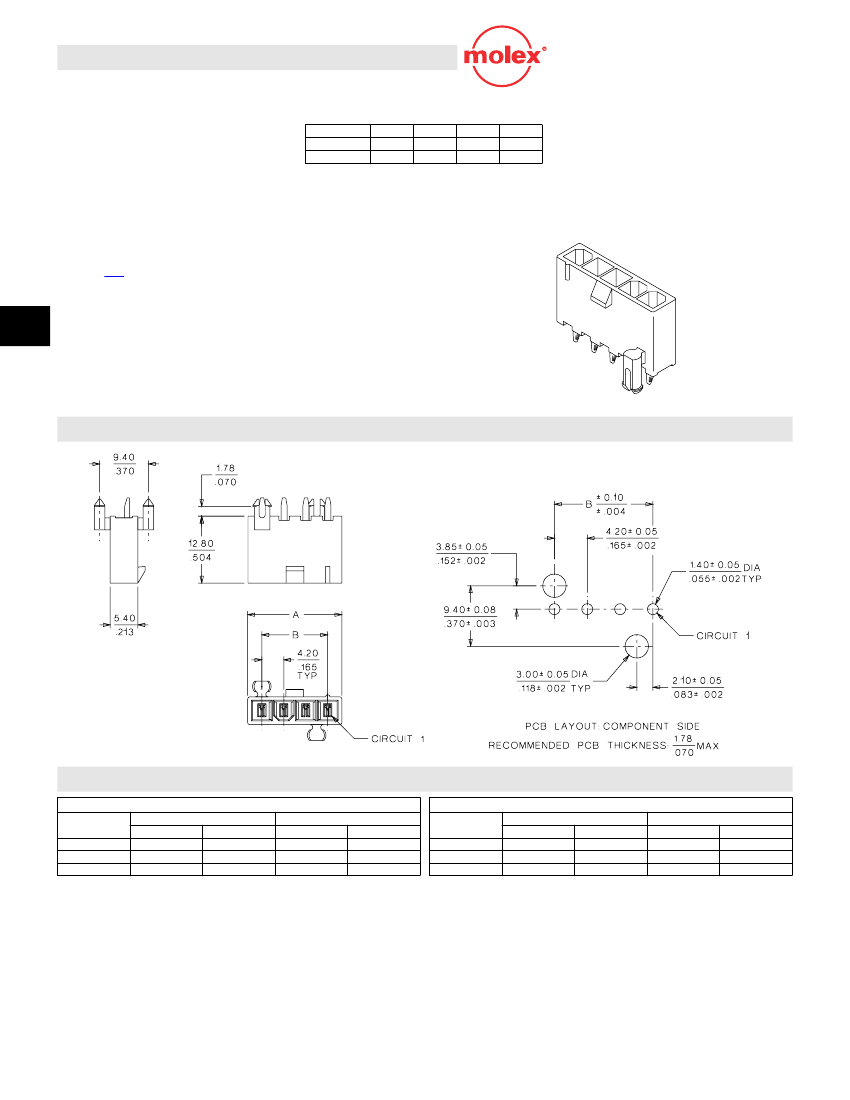

CATALOG DRAWING (FOR REFERENCE ONLY)

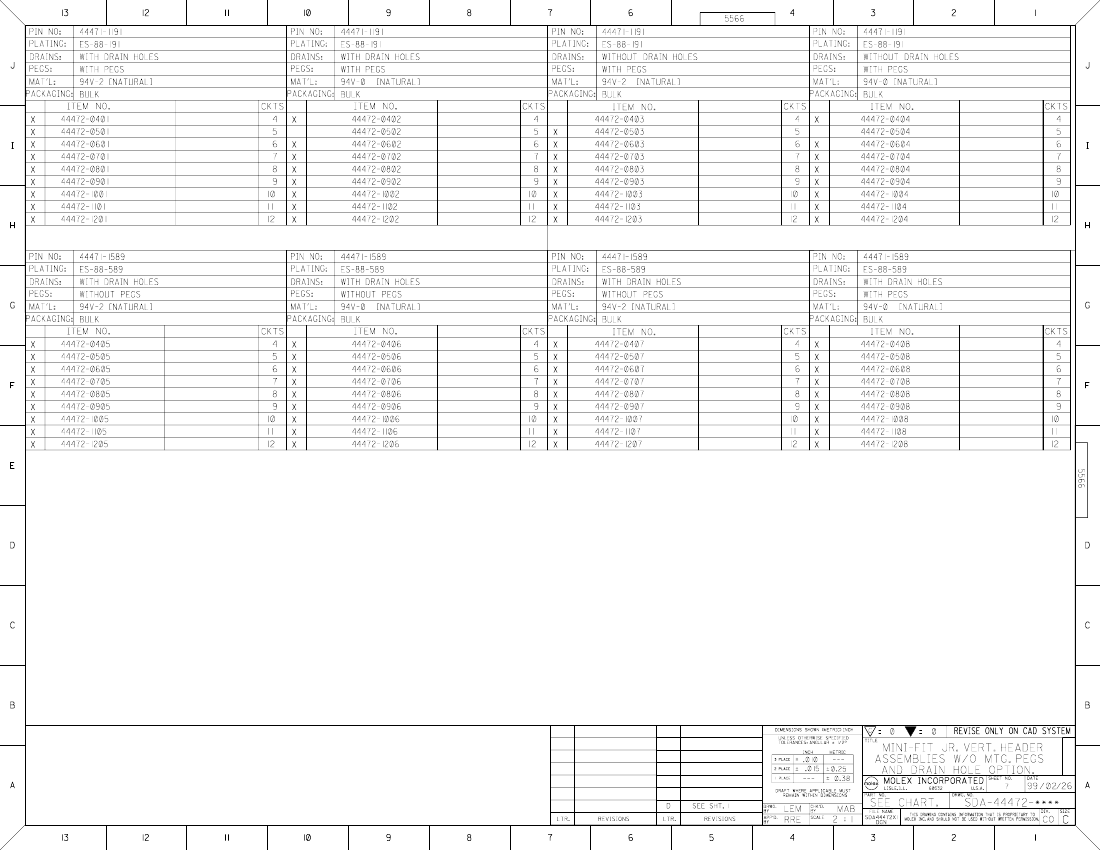

ORDERING INFORMATION AND DIMENSIONS
With Drain Holes
Circuits
3
4
5
Order No.
94V-2
44472-0313
44472-0401
94V-0
44472-0314
44472-0502
Dimension
A
13.80 (.543)
18.00 (.709)
22.20 (.874)
B
8.40 (.331)
12.60 (.496)
16.80 (.661)
Circuits
3
4
5
94V-2
44472-0311
Without Drain Holes
Order No.
94V-0
44472-0312
44472-0504
Dimension
A
B
13.80 (.543)
8.40 (.331)
18.00 (.709)
12.60 (.496)
22.20 (.874)
16.80 (.661)
