21FXR-RSM1-GAN-TB

Description
Card Edge Connector, 21 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal
CategoryThe connector    The connector
File Size79KB,2 Pages
ManufacturerJST
Download Datasheet Parametric View All

21FXR-RSM1-GAN-TB Overview

Card Edge Connector, 21 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal

21FXR-RSM1-GAN-TB Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Reach Compliance Codeunknow
Other featuresLOW PROFILE
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderFEMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch0.3 mm
Termination typeSURFACE MOUNT
Total number of contacts21
UL Flammability Code94V-0
Base Number Matches1

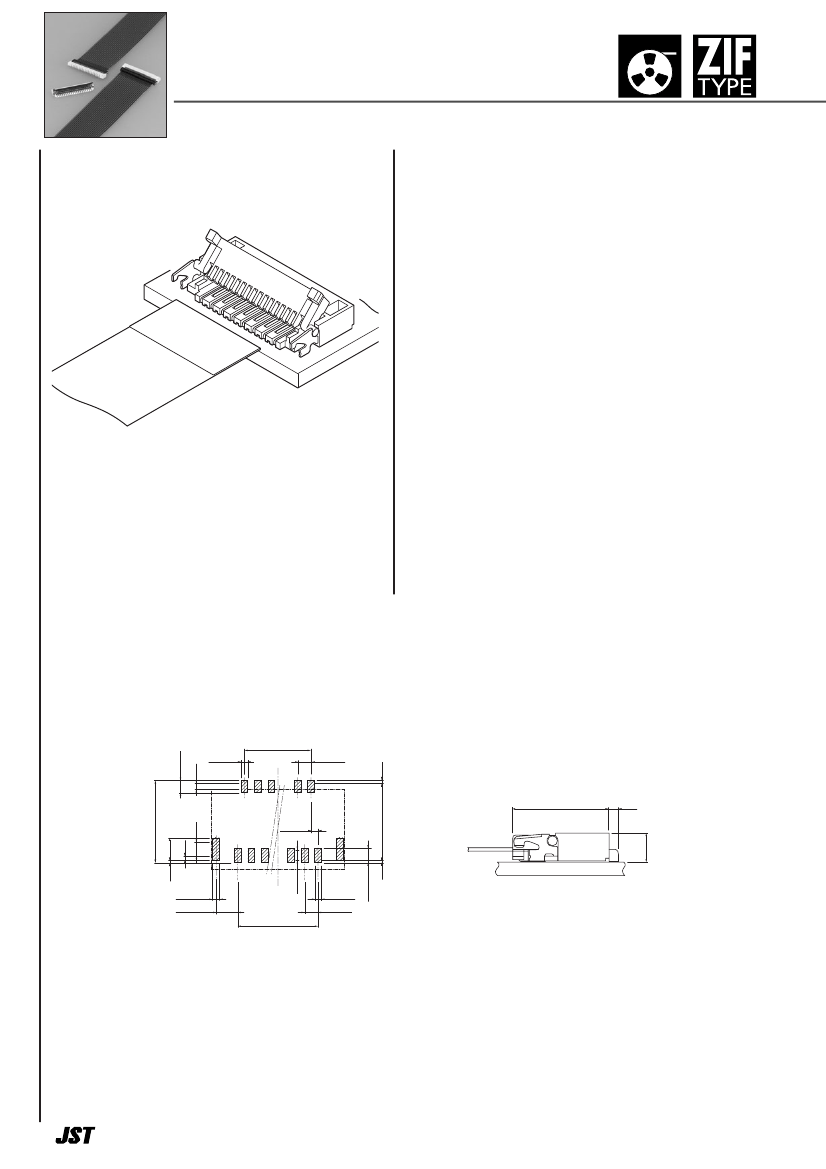

0.3mmピッチ
0.3mm pitch/Connectors for FPC
FXR
CONNECTOR
Emboss Tape
Specifications –––––––––––––––––––
• Current rating: 0.2A AC, DC
• Voltage rating: 50V AC, DC
• Temperature range:
-
25˚C to
+
85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 50m
max.
After environmental testing/ 50m
max.
(variation from initial value)
• Insulation resistance: 50M
min.
• Withstanding voltage: 200V AC/minute
• Applicable FPC: Conductor pitch/ 0.3mm
Conductor width/ 0.3mm
Mating part thickness/ 0.2±0.03mm
This FXR connector is a ZIF type
connector for FPC with only 1.0mm height.
• Low profile and ZIF mechanism
• Space saving design
• Heat resisting design suitable for surface
mounting
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
0
Recognized E60389
A
±0.05
0.5
±0.05
0.3
±0.05
0.3
0.6
±0.05
0.1
3.65
±0.1
1
±0.1
0.2
0.6
0.3
±0.05
3.45
±0.1
3.5
0.3
0.1
0.35
±0.05
0.975
±0.05
0.3
±0.05
0.6
±0.05
D
±0.05
Note: 1. The above figure is the figure viewed from the connector mounting side.
2. Tolerances are non-cumulative:
±
0.05mm for all centers.
3. The dimensions above should serve as a guideline. Contact JST for details.
1
0.67
±0.05
0.47
0.1
1
