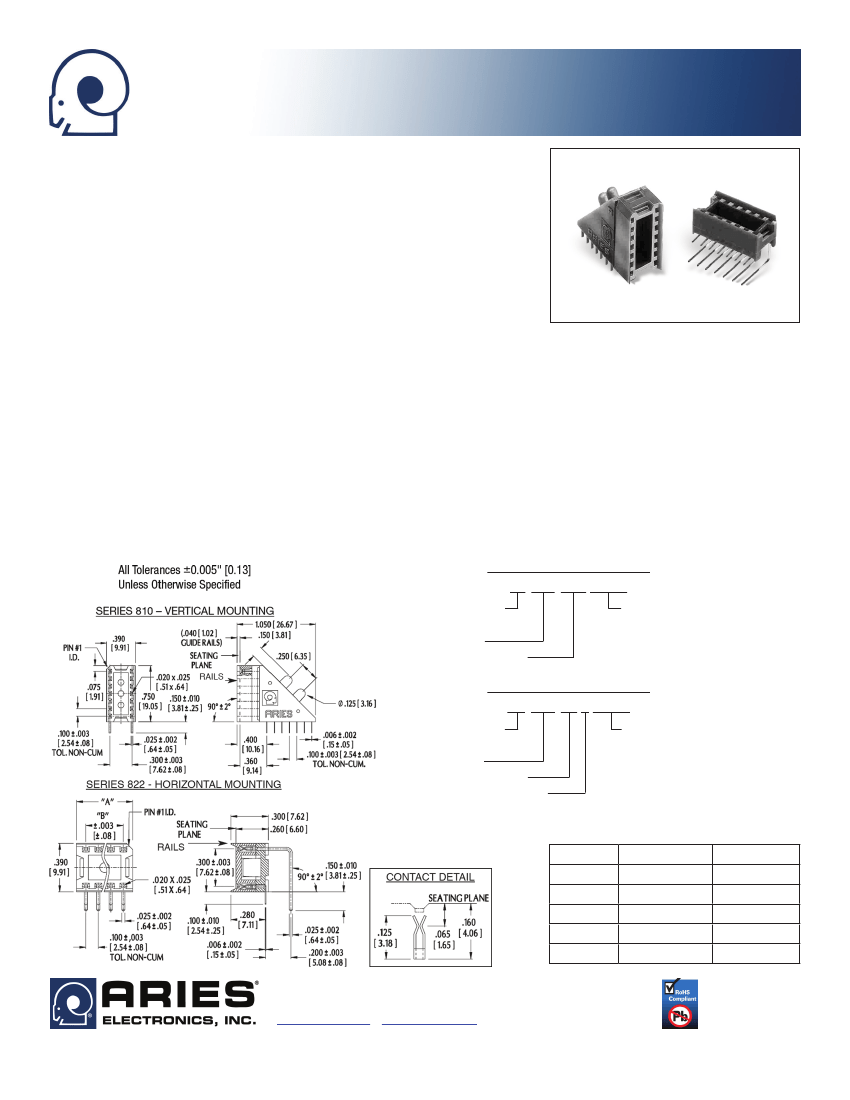

Series 810 and 822 Economy Model
Vertisocket with Bifurcated Contacts
TM
FEATURES
• These low-cost Vertisockets
TM
are recommended for high-volume vertical display
mounting applications
• Very useful for connection of board-to-board jumpers and for DIP switches, as
well as LED devices
GENERAL SPECIFICATIONS
• STANDARD BODY MATERIAL: black UL 94 V-0 4/6 Nylon
• BIFURCATED CONTACTS: Grade-A spring-tempered Phosphor Bronze per QQ-B-
750
• STANDARD CONTACT PLATING: 50μ [1.27μ] min. matte Sn per ASTM B545-97
over 50μ [1.27] Ni per QQ-N-290 (TL = 90/10 Sn/Pb per MIL-T-10727 Type 1 over
50μ [1.27] Ni per QQN-290)
• CONTACT CURRENT RATING: 1 amp
• OPERATING TEMPERATURE: 221°F [105°C]
• INSERTION FORCE: 110g/pin average
• WITHDRAWAL FORCE: 75g/pin average
• ACCEPTS FLAT LEADS: up to 0.014 [0.36] thick and 0.020 [0.51] wide
• ACCEPTS ROUND LEADS: up to 0.020 [0.51] dia.
• ACCEPTS LEAD LENGTHS: 0.75-0.160 [1.91-4.06] dia.
CUSTOMIZATION:
In addition to the standard products shown
on this page, Aries specializes in custom design and production.
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
right to change product general specifications without notice.
MOUNTING CONSIDERATIONS
• SUGGESTED PCB HOLE SIZE : For P/N 14-810-90R = 0.036 ± 0.002 [0.91 ± 0.05] dia.
: For P/N XX-822-90E = 0.044 ± 0.002 [1.12 ± 0.05] dia.
ORDERING INFORMATION
14-810-90R XXXX
Pin Count
(see Table)
Series
Display Angle
Options
WR = Without Rails
TL = Sn/Pb
WRTL = Without Rails Sn/Pb
ORDERING INFORMATION
XX-822-90 E XXXX
Pin Count
(see Table)
Series
Display Angle
Economy Version
Options
WR = Without Rails
TL = Sn/Pb
WRTL = Without Rails Sn/Pb
OTHER SIZES AVAILABLE – CONSULT FACTORY
No. of Pins
8
14
16
18
20
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
Dim. “A”
8 .450 [11.43]
14 .750 [19.05]
16 .850 [21.59]
18 .950 [24.13]
20 1.050 [26.67]
Dim. “B”
0.300 [7.62]
0.600 [15.24]
0.700 [17.78]]
0.800 [20.32]
0.900 [22.86]
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
13003
Rev. AA
