UHV1A472MHD6CM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> UHV1A472MHD6CM

UHV1A472MHD6CM: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 10V, 20% +Tol, 20% -Tol, 4700uF,; CategoryPassive components capacitor; File Size52KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

UHV1A472MHD6CM Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 10V, 20% +Tol, 20% -Tol, 4700uF,

UHV1A472MHD6CM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	763872922
package instruction	,
Reach Compliance Code	compliant
Country Of Origin	Japan
ECCN code	EAR99
YTEOL	6.7
capacitance	4700 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	16 mm
dielectric materials	ALUMINUM (WET)
length	20 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
ripple current	3575 mA
Terminal pitch	7.5 mm

Preview

Download Datasheet

View All

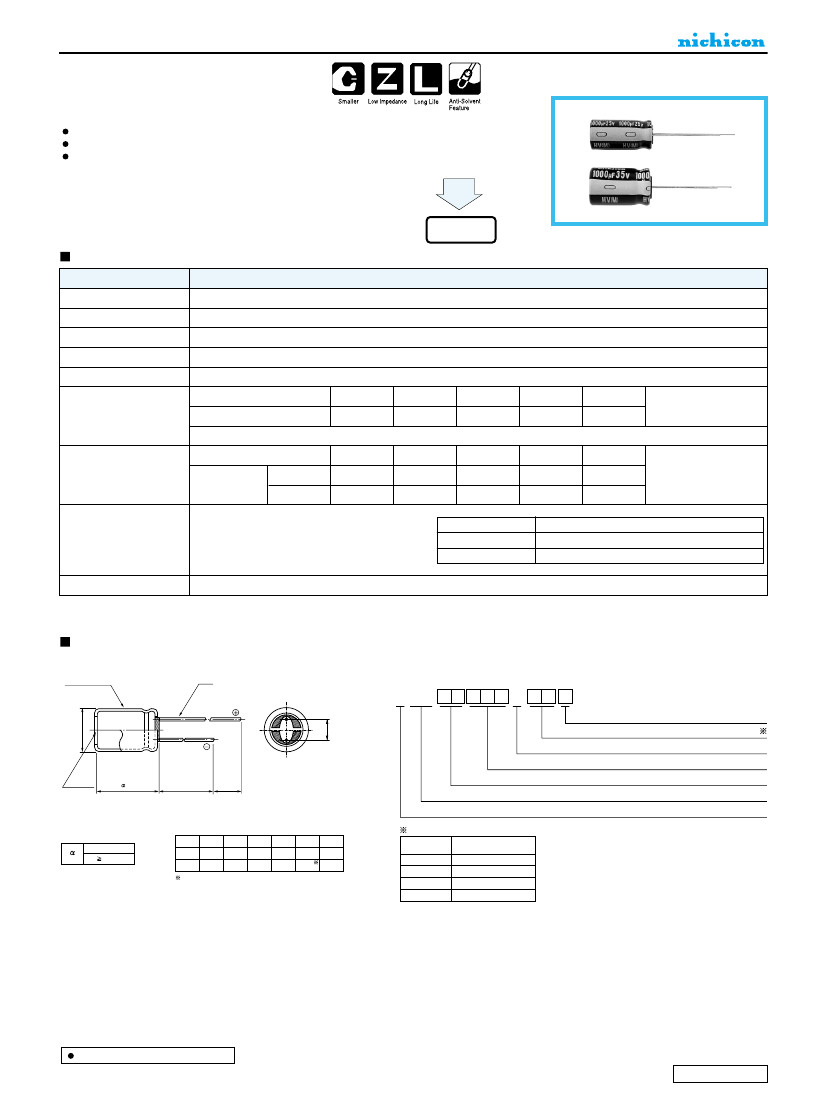

ALUMINUM ELECTROLYTIC CAPACITORS

High Ripple Low Impedance

series

Approved by Reliability Center for Electronic

Component, Japan-Certification No. RCJ-03-23C

Lower impedance at high frequency range.

Smaller case size and high ripple current.

Compliant to the RoHS directive (2002/95/EC).

Smaller

Specifications

ltem

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Performance Characteristics

– 40 to +105˚C

6.3 to 35V

47 to 8200µF

± 20% at 120Hz, 20˚C

After 2 minutes' application of rated voltage, leakage current is not more than 0.01CV or 3 (µA), whichever is greater.

Rated voltage (V)

6.3

0.21

0.18

0.15

0.13

0.11

120Hz 20˚C

Tangent of loss angle (tan

δ)

tan

(MAX.)

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

Rated voltage (V)

Stability at Low Temperature

6.3

Capacitance change

tan

Leakage current

120Hz

Impedance ratio

ZT / Z20 (MAX.)

Z–25˚C / Z+20˚C

Z–40˚C / Z+20˚C

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20

˚C

after D.C. bias plus

rated ripple current is applied for 6000 hours (5000

hours for

φD=5

and 6.3) at 105

˚C

, the peak voltage

shall not exceed the rated voltage.

Printed with white color letter on black sleeve.

Within ± 25% of the initial capacitance value (6.3V 10V : ± 30%)

200% or less than the initial specified value

Less than or equal to the initial specified value

Marking

Radial Lead Type

Sleeve (P.E.T.)

Type numbering system (Example : 25V 150

10 11

U HV 1 E 1 5 1 M E D

φD

0.5 MAX.

Size code

0.5

Configuration

Capacitance tolerance (± 20%)

Rated capacitance (150µF)

Pressure

relief vent

(φ6.3up)

L+

MAX.

MIN

Rated voltage (25V)

Series name

Type

(mm)

Configuration

6.3

8 · 10

12.5 · 16

Pb-free leadwire

Pb-free PET sleeve

(L < 20) 1.5

(L 20) 2.0

2.0

0.5

6.3

2.5

0.5

3.5

0.6

5.0

0.6

12.5

5.0

0.6

7.5

0.8

In case L > 25 for the

φ12.5

dia. unit, lead dia.

d = 0.8mm.

•

Please refer to page 20 about the end seal configulation.

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

Dimension table in next page.

CAT.8100B
