8-215079-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8-215079-0

8-215079-0: DescriptionMICRO-MATCH FOB.10P; CategoryThe connector The connector; File Size323KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

8-215079-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8-215079-0	-	-	View	Buy Now

8-215079-0 Overview

MICRO-MATCH FOB.10P

8-215079-0 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	POLARIZED, TOP ENTRY
body width	0.205 inch
subject depth	0.157 inch
body length	0.579 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	1000000000 Ω
Insulator color	RED
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug contact pitch	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	10
Base Number Matches	2

Preview

Download Datasheet

View All

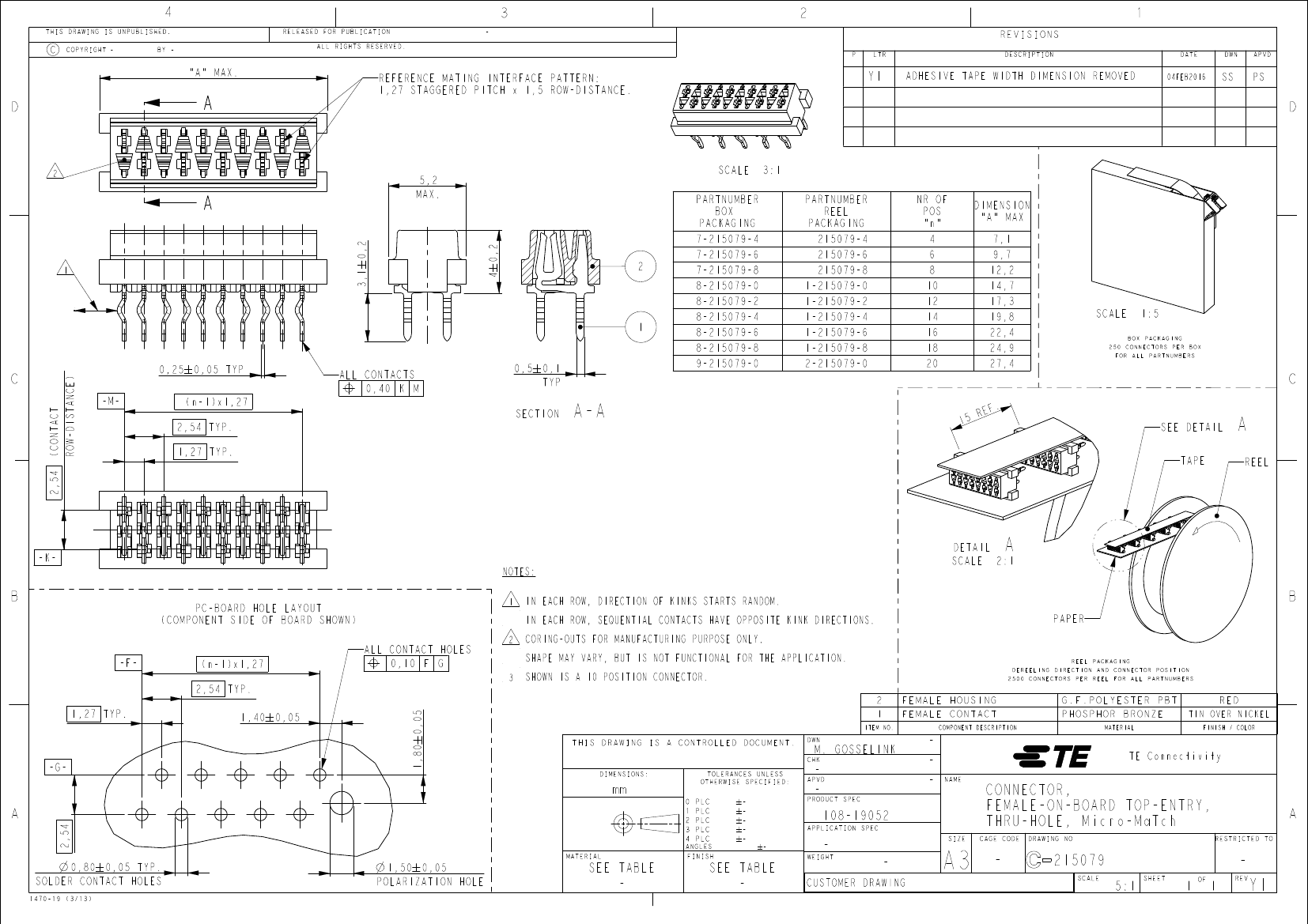

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

BY -

"A" MAX.

REFERENCE MATING INTERFACE PATTERN:

1,27 STAGGERED PITCH x 1,5 ROW-DISTANCE.

ADHESIVE TAPE WIDTH DIMENSION REMOVED

04FEB2016

5,2

MAX.

SCALE

PARTNUMBER

BOX

PACKAGING

4 # 0,2

7-215079-4

7-215079-6

7-215079-8

8-215079-0

8-215079-2

8-215079-4

8-215079-6

8-215079-8

9-215079-0

3:1

PARTNUMBER

REEL

PACKAGING

215079-4

215079-6

215079-8

NR OF

POS

"n"

DIMENSION

"A" MAX

7,1

12,2

14,7

17,3

19,8

22,4

24,9

27,4

SCALE

1:5

BOX PACKAGING

250 CONNECTORS PER BOX

FOR ALL PARTNUMBERS

3,1 0,2

9,7

1-215079-0

1-215079-2

1-215079-4

1-215079-6

1-215079-8

2-215079-0

ROW-DISTANCE)

0,25 0,05 TYP

-M-

(n-1)x1,27

2,54 TYP.

1,27 TYP.

ALL CONTACTS

0,40 K M

0,5 0,1

TYP

SECTION

SEE DETAIL

TAPE

(CONTACT

A-A

5 R

REEL

2,54

-K-

NOTES:

PC-BOARD HOLE LAYOUT

(COMPONENT SIDE OF BOARD SHOWN)

-F-

ALL CONTACT HOLES

0,10 F G

DETAIL

SCALE 2:1

PAPER

IN EACH ROW, DIRECTION OF KINKS STARTS RANDOM.

IN EACH ROW, SEQUENTIAL CONTACTS HAVE OPPOSITE KINK DIRECTIONS.

CORING-OUTS FOR MANUFACTURING PURPOSE ONLY.

SHAPE MAY VARY, BUT IS NOT FUNCTIONAL FOR THE APPLICATION.

REEL PACKAGING

DEREELING DIRECTION AND CONNECTOR PO SITION

2500 CONNECTORS PER REEL FOR ALL PAR TNUMBERS

(n-1)x1,27

2,54 TYP.

1,40 0,05

SHOWN IS A 10 POSITION CONNECTOR.

FEMALE HOUSING

FEMALE CONTACT

1,80 0,05

1,27 TYP.

G.F.POLYESTER PBT

PHOSPHOR BRONZE

MATERIAL

TIN OVER NICKEL

FINISH / COLOR

RED

ITEM NO.

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

-G-

M. GOSSELINK

COMPONENT DESCRIPTION

TE Connectivity

NAME

DIMENSIONS:

2,54

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

PRODUCT SPEC

0,80 0,05 TYP.

SOLDER CONTACT HOLES

1470-19 (3/13)

1,50 0,05

POLARIZATION HOLE

MATERIAL

ANGLES

PLC

APPLICATION SPEC

108-19052

SEE TABLE

FINISH

SEE TABLE

WEIGHT

CUSTOMER DRAWING

SIZE

CAGE CODE

CONNECTOR,

FEMALE-ON-BOARD TOP-ENTRY,

THRU-HOLE, Micro-MaTch

DRAWING NO

RESTRICTED TO

215079

SCALE

5:1

SHEET

REV
