FVZDF1.25-110A-8-TOR(S)(LF)

Description
conn QC rcpt 16-22awg 0.110
CategoryThe connector
File Size487KB，5 Pages
ManufacturerJST
Environmental Compliance
Download Datasheet Parametric View All

FVZDF1.25-110A-8-TOR(S)(LF) Overview

conn QC rcpt 16-22awg 0.110

FVZDF1.25-110A-8-TOR(S)(LF) Parametric

Parameter NameAttribute value
Datasheets
Ring Tongue Terminal
Standard Package1,000
CategoryConnectors, Interconnects
FamilyTerminals - Quick Connects, Quick Disconnect Connectors
PackagingReel
Terminal TypeStandard
GendeFemale
Tab Width0.110" (2.79mm)
Tab Thickness0.032" (0.81mm)
Tab Length0.252" (6.40mm)
Length - Overall0.764" (19.41mm)
TerminatiCrim
Wire Gauge16-22 AWG
InsulatiNon-Mating End Insulated
Mounting TypeFree Hanging (In-Line)
Features-
ColRed
Contact Material-
Contact Finish-
Insulation Diamete0.142" (3.61mm)
Other NamesFVZDF125110A8TORSLF

Preview

Download Datasheet

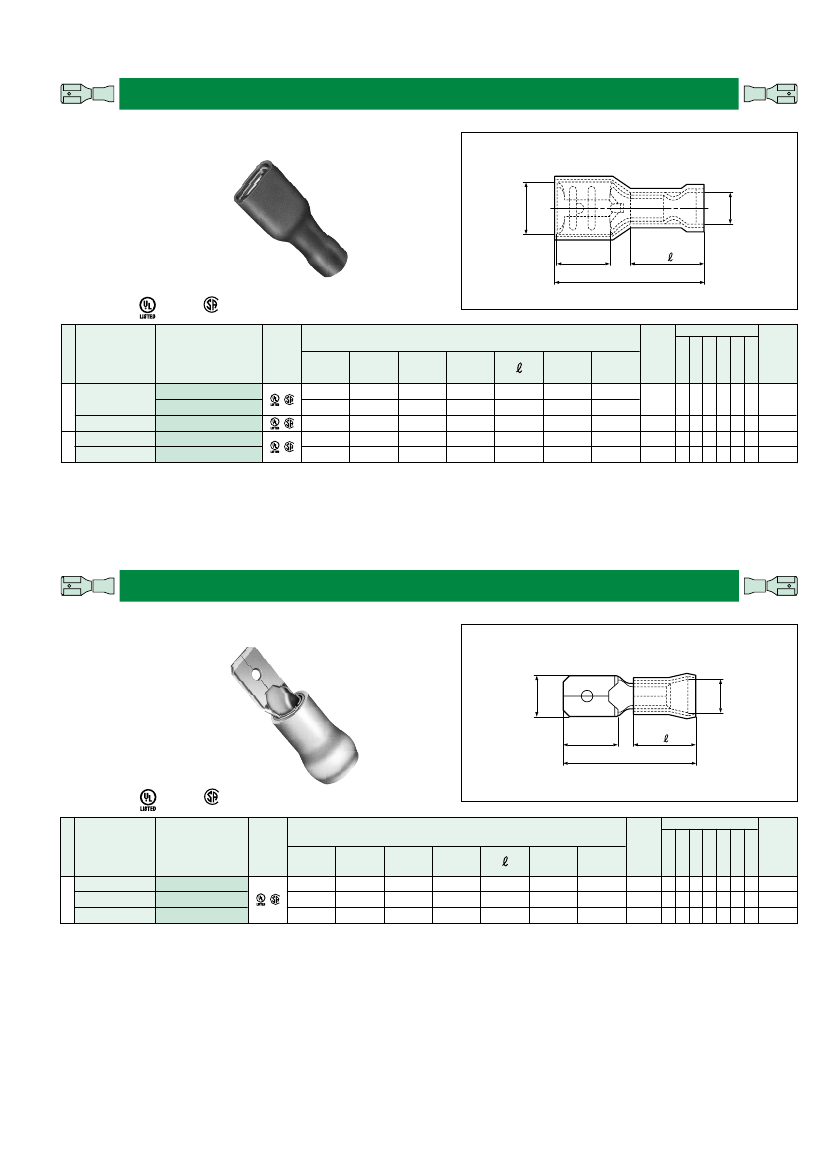

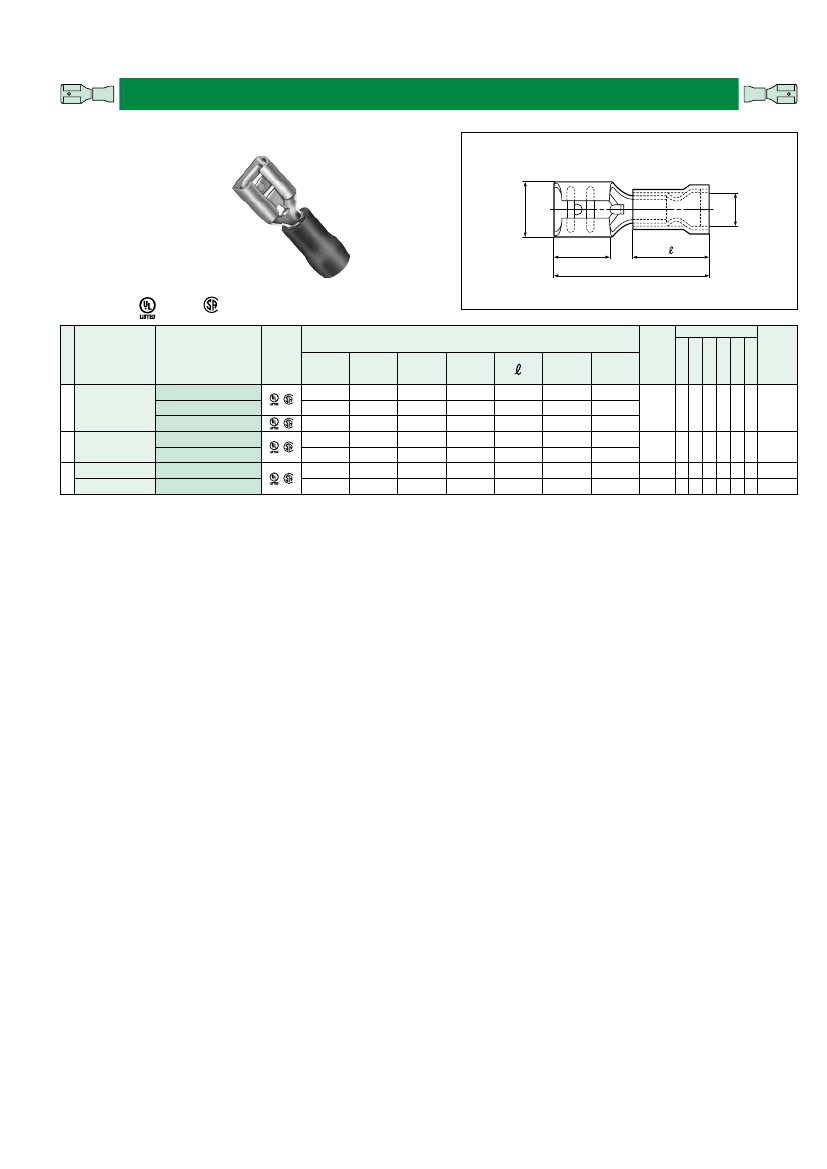

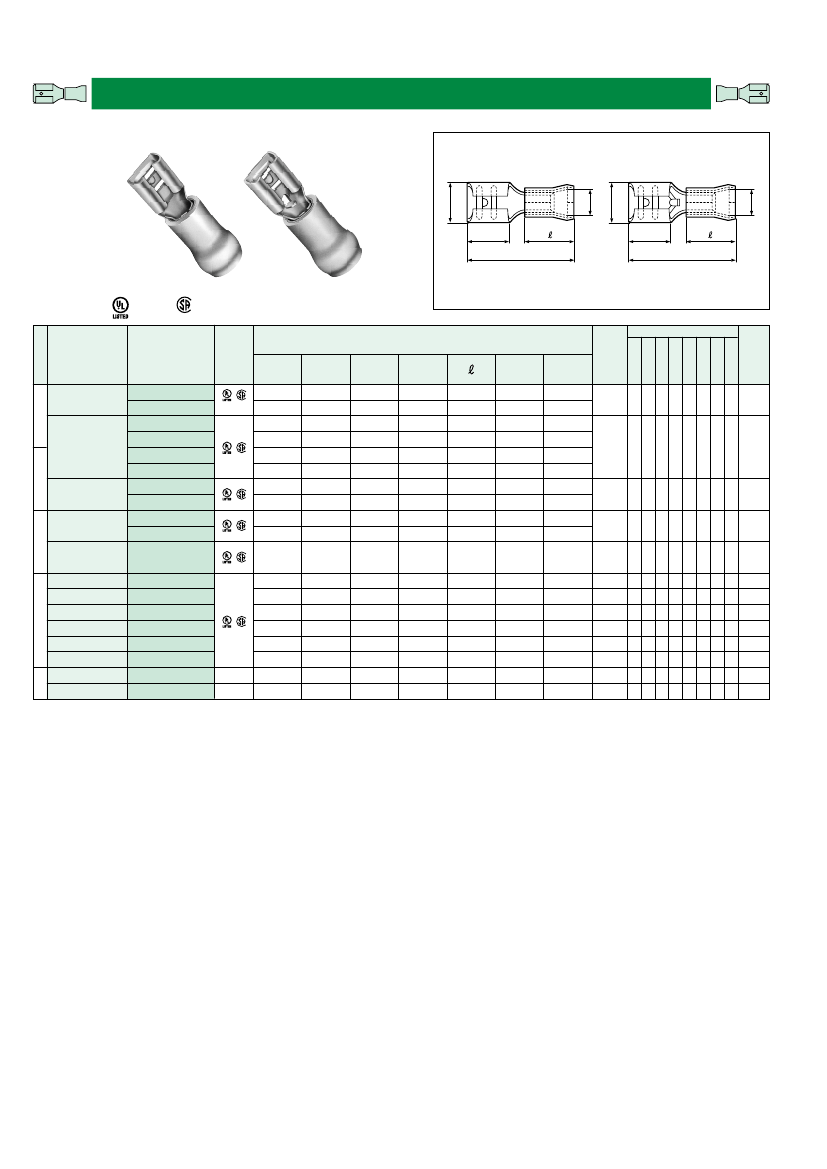

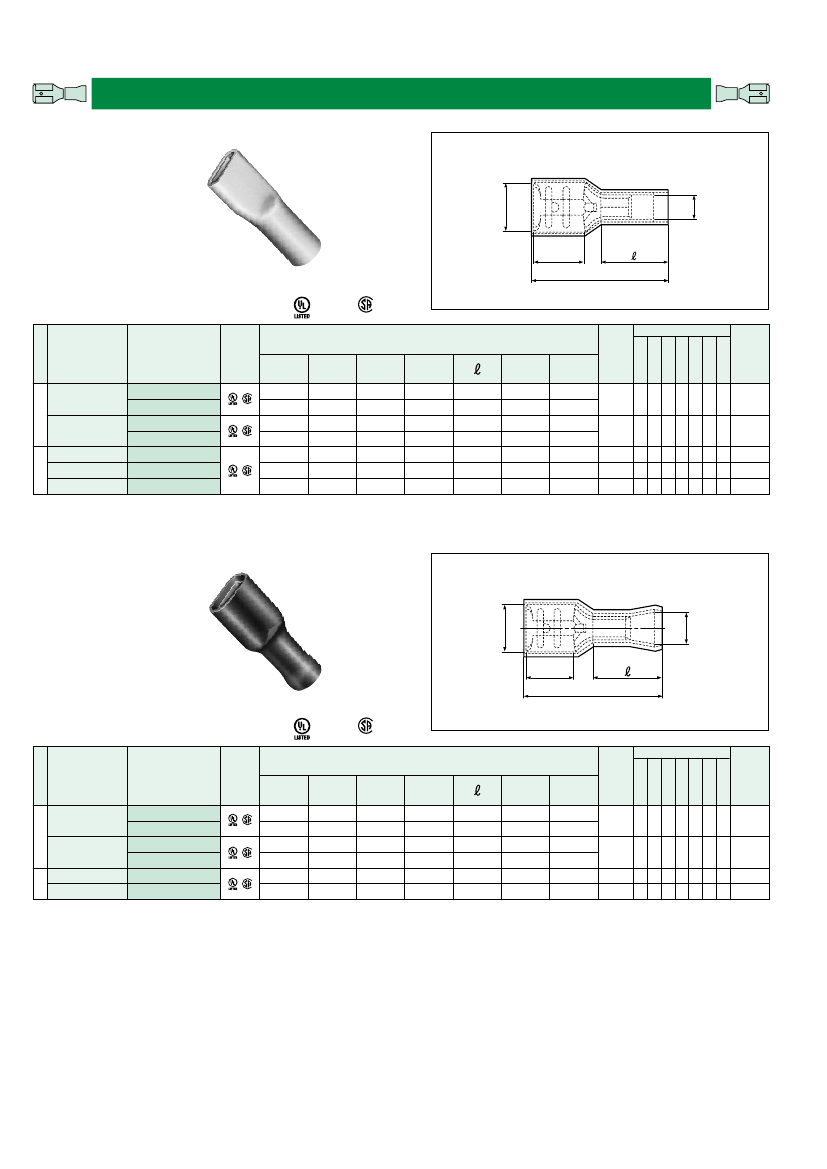

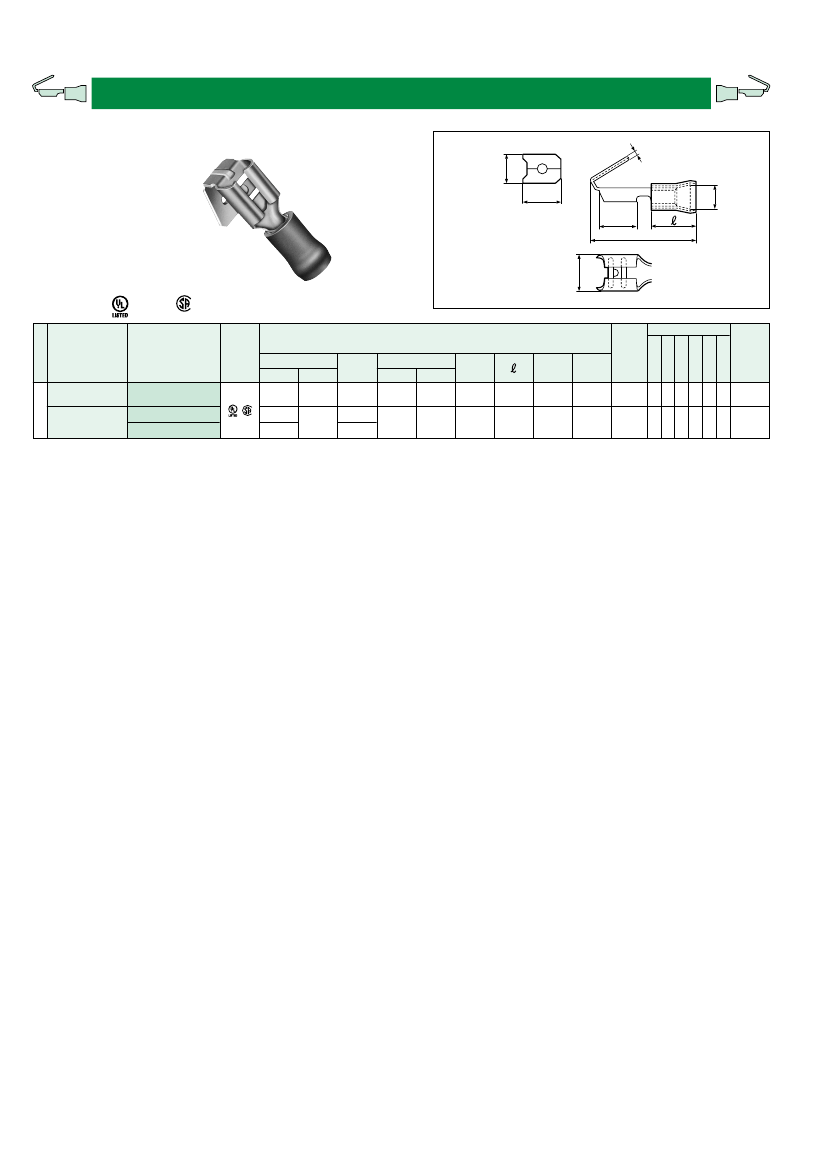

Solderless terminals
QUICK DISCONNECT
Female, Vinyl-insulated with copper sleeve
øD
E
L
Without wire-stop
E
L
Certificate No.:
E70188
LR20812
Dimensions mm (in.)
Tool No.
YNT-2622
YNT-2216
YNT-1614
YNT-1210S
YA-1
YA-2
YA-4
BCT-0514L
o o
o
o
o
o
o
o
o
o
o o
o o o o
o o
Material Mating Tab
Thickness Thickness
Color
Qty/box
Applicable Wire
AWG# (mm
2
)
26 to 22
(0.2 to 0.5)
22 to 16
(0.25 to 1.65)
187
16 to 14
(1.04 to 2.63 )
22 to 16
(0.25 to 1.65)
16 to 14
(1.04 to 2.63 )
Part No.
FVDDF0.5 -110A-5 *
FVDDF0.5 -110A-8 *
FVDDF1.25-110A-5
FVDDF1.25-110A-8
FVDDF1.25-187A-5
FVDDF1.25-187A-8
FVDDF2 -187A-5
FVDDF2 -187A-8
FVDDF1.25-205A-5 *
FVDDF1.25-205A-8 *
FVDDF2 -205A-8 *
Standard
W
3.7 (.146)
(Note 2)
L
16.4 (.646)
16.4 (.646)
17.9 (.705)
17.9 (.705)
18.7 (.736)
18.7 (.736)
18.7 (.736)
18.7 (.736)
18.7 (.736)
18.7 (.736)
18.7 (.736)
20.5 (.807)
20.5 (.807)
24.5 (.965)
20.5 (.807)
20.5 (.807)
24.5 (.965)
E
6.4 (.252)
6.4 (.252)
6.4 (.252)
6.4 (.252)
6.0 (.236)
6.0 (.236)
6.0 (.236)
6.0 (.236)
6.4 (.252)
6.4 (.252)
6.4 (.252)
7.8 (.307)
7.8 (.307)
7.8 (.307)
8.0 (.315)
8.0 (.315)
8.0 (.315)
øD
2.2 (.087)
2.2 (.087)
3.5 (.138)
3.5 (.138)
3.5 (.138)
3.5 (.138)
4.3 (.169)
4.3 (.169)
3.5 (.138)
3.5 (.138)
4.3 (.169)
3.5 (.138)
110
3.7 (.146)
3.7 (.146)
3.7 (.146)
5.7 (.224)
5.7 (.224)
5.7 (.224)
5.7 (.224)
6.3 (.248)
6.3 (.248)
6.3 (.248)
7.4 (.291)
7.4 (.291)
7.4 (.291)
7.6 (.299)
7.6 (.299)
7.6 (.299)
11.0 (.433)
11.0 (.433)
8.0 (.315)
0.25(.010)
0.5 (.020)
Yellow o
8.0 (.315)
0.25(.010)
0.8 (.031)
9.5 (.374)
0.25(.010)
0.5 (.020)
9.5 (.374)
0.25(.010)
0.8 (.031)
9.5 (.374)
0.35(.014)
0.5 (.020)
9.5 (.374)
0.35(.014)
0.8 (.031)
9.5 (.374)
0.35(.014)
0.5 (.020)
9.5 (.374)
0.35(.014)
0.8 (.031)
9.5 (.374)
0.4 (.016)
0.5 (.020)
9.5 (.374)
0.4 (.016)
0.8 (.031)
9.5 (.374)
0.4 (.016)
0.8 (.031)
o 1,000
Red
o o o o 1,000
Blue
Red
Blue
o o o o 1,000
o o o o 1,000
o o o o 1,000
205
22 to 16 (0.25 to 1.65)
FVDDF1.25-250A
16 to 14 (1.04 to 2.63)
FVDDF2 -250A
12 to 10 (2.63 to 6.64)
FVDDF5.5-250A
22 to 16 (0.25 to 1.65)
FVDDF1.25-250B *
16 to 14 (1.04 to 2.63)
FVDDF2 -250B *
12 to 10 (2.63 to 6.64)
FVDDF5.5 -250B *
16 to 14 (1.04 to 2.63)
FVDDF2 -375A *
12 to 10 (2.63 to 6.64)
FVDDF5.5 -375A *
250
375
25.2 (.992) 12.0 (.472)
29.2(1.150) 12.0 (.472)
9.5 (.374)
0.4 (.016)
0.8 (.031) Red
4.3 (.169) 9.5 (.374)
0.4 (.016)
0.8 (.031) Blue
6.2 (.244) 13.5 (.531)
0.4 (.016)
0.8 (.031) Yellow
3.5 (.138) 9.5 (.374)
0.45(.018)
0.8 (.031) Red
4.3 (.169) 9.5 (.374)
0.45(.018)
0.8 (.031) Blue
6.2 (.244) 13.5 (.531)
0.45(.018)
0.8 (.031) Yellow
4.3 (.169) 9.5 (.374)
0.5 (.020)
1.1 (.043) Blue
6.2 (.244) 13.5 (.531)
0.5 (.020)
1.1 (.043) Yellow
o o o o 1,000
o
o o o o 1,000
o
o o
500
o
o o o o 1,000
o
o o o o 1,000
500
500
250
Note:1) Products marked with * are without wire-stop.
2)
It's applicable only AWG#22 for UL,CSA.
3)
Delivery lead times may vary depending on the product. Contact JST for details.
46
øD
W
W
