R71MF2220400J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> R71MF2220400J

R71MF2220400J: DescriptionFilm Capacitor, Polypropylene, 420V, 5% +Tol, 5% -Tol, 0.022uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size425KB，5 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

R71MF2220400J Overview

Film Capacitor, Polypropylene, 420V, 5% +Tol, 5% -Tol, 0.022uF, Through Hole Mount, RADIAL LEADED

R71MF2220400J Parametric

Parameter Name	Attribute value
Objectid	1686982479
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.2
capacitance	0.022 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
JESD-609 code	e3
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
positive tolerance	5%
Rated (AC) voltage (URac)	220 V
Rated (DC) voltage (URdc)	420 V
surface mount	NO
Terminal surface	TIN
Terminal shape	WIRE

Preview

Download Datasheet

View All

Loose

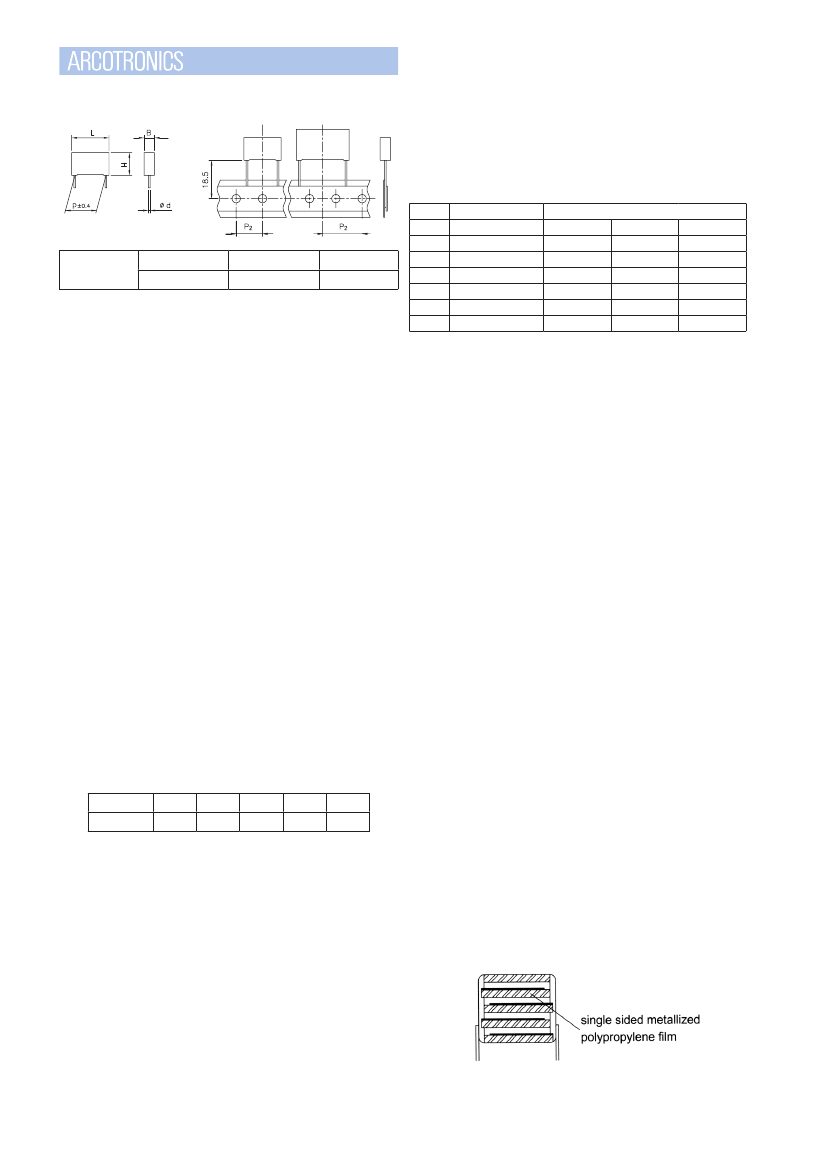

Fig.1

Taped

Fig.2

Typical applications:

P.F.C. (Power Factor Correction)

PRoDUCT CoDe:

R71

MeTAllIZeD POlyPROPylene FIlM

CAPACITOR

MKP series

R71

Ø d ±0.05

≤15

0.6 or 0.8*

22.5

≤

27.5

0.8

p = 37.5

*see size table.

All dimensions are in mm.

MKP Series

geneRAl TeCHnICAl DATA

Dielectric:

polypropylene film.

Plates:

metal layer deposited by evaporation under

vacuum.

Winding:

non-inductive type.

leads:

tinned wire.

Protection:

plastic case, thermosetting resin filled.

Box material is solvent resistant and flame

retardant according to UL94 V0.

Marking:

Manufacturer’s logo, series, capacitance,

tolerance, D.C. rated voltage.

Operating temperature range:

-40 to +110°C

For temperatures between +105°C and 110°C a

decreasing factor of 4% per degree C on the rated

voltage V

has to be applied.

eleCTRICAl CHARACTeRISTICS

Capacitance range:

0.01µF to 22µF

Capacitance tolerances

(measured at 1 kHz):

±5% (J) ±10% (K); ±20% (M);

Tolerance available upon requests

Total self-inductance

(L): (lead length ~2mm)

Pitch (mm)

L(nH)

≈

22.5

27.5

37.5

Pitch Box thickness (B)

(mm)

10.0

All

15.0

<7.5

15.0

≥7.5

22.5

All

27.5

All

37.5

All

Maximum dimensions (mm)

B max

H max

L max

B +0.2

H +0.1

L +0.2

B +0.2

H +0.1

L +0.3

B +0.2

H +0.1

L +0.5

B +0.2

H +0.1

L +0.3

B +0.2

H +0.1

L +0.3

B +0.3

H +0.1

L +0.3

TeST MeTHOD AnD PeRFORMAnCe

Damp heat, steady state:

Test conditions 1st

Temperature:

Relative humidity (RH):

Test duration:

Test conditions 2nd

Temperature:

Relative humidity (RH):

Test duration:

Performance

Capacitance change |∆C/C|:

Insulation resistance:

endurance:

Test conditions

Temperature:

Test duration:

Voltage applied:

Performance

Capacitance change |∆C/C|:

Insulation resistance:

Resistance to soldering heat:

Test conditions

solder bath temperature:

Dipping time (with heat screen):

Performance

Capacitance change |∆C/C|:

≤2%

+260°C±5°C

10 s±1 s

+105°C±2°C

2000 h

1.25xV

≤5%

≥50%

of initial limit.

≤5%

≥50%

of initial limit.

+60°C±2°C

95% ±2%

500 hours

+40°C±2°C

93% ±2%

56 days

Dissipation factor (DF):

tgδx10

-4

at +25°C ±5°C:

≤10

(6)* at 1kHz

Typical value

Insulation resistance:

Test conditions

Temperature:

+25°C±5°C

Voltage charge time:

1 min

Voltage charge:

100 Vdc

Performance

≥1

x 10

MΩ for C

≤0.33

(5 x 10

MΩ)*

≥30000

for C

>0.33

(150000 s)*

*Typical

value

Test voltage between terminations:

1.6xV

applied for 2 s at +25°C±5°C

Winding scheme

09/2008
