REI Datasheet
SN54H55, SN54L55, SN54LS55, SN74H55, SN74LS55
2-Wide 4-Input AND-OR-INVERT Gates

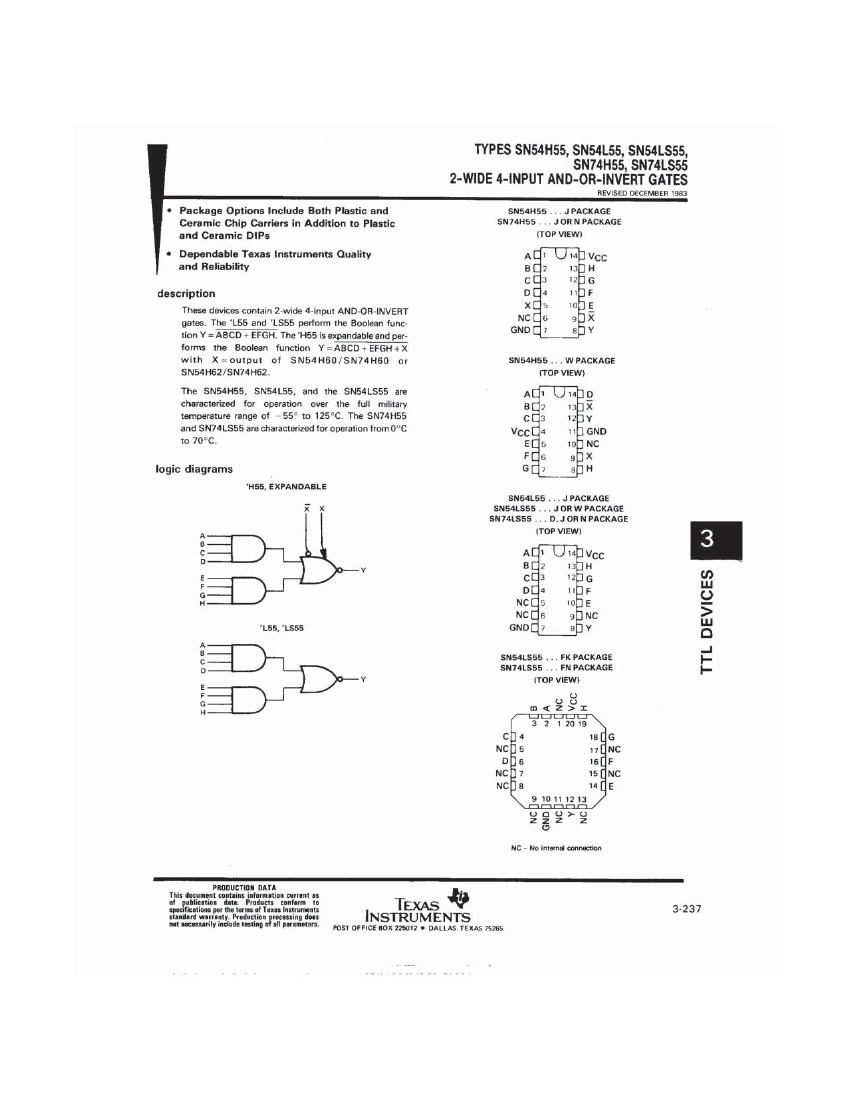

These devices contain 2-wide 4-input AND-OR-INVERT gates. The ‘L55 and ‘LS55 perform the
Boolean function Y=ABCD+EFGH. The ‘H55 is expandable and performs the Boolean function
Y=ABCD+EFGH+X with X=output of SN54H60/SN74H60 or SN54H62/SN74H62. The SN54H55,
SN54L55, and the SN54LS55 are characterized for operation over the full military temperature range of
-55°C to 125°C while the SN74H55 and SN74LS55 are characterized for operation from 0°C to 70°C.
Rochester Electronics
Manufactured Components
Rochester branded components are
manufactured using either die/wafers
purchased from the original suppliers
or Rochester wafers recreated from the
original IP. All recreations are done with
the approval of the OCM.
Parts are tested using original factory
test programs or Rochester developed
test solutions to guarantee product
meets or exceeds the OCM data sheet.
Quality Overview
•
•
•
•
ISO-9001
AS9120 certification
Qualified Manufacturers List (QML) MIL-PRF-38535
•
Class Q Military
•
Class V Space Level
Qualified Suppliers List of Distributors (QSLD)
•
Rochester is a critical supplier to DLA and
meets all industry and DLA standards.
Rochester Electronics, LLC is committed to supplying
products that satisfy customer expectations for
quality and are equal to those originally supplied by
industry manufacturers.

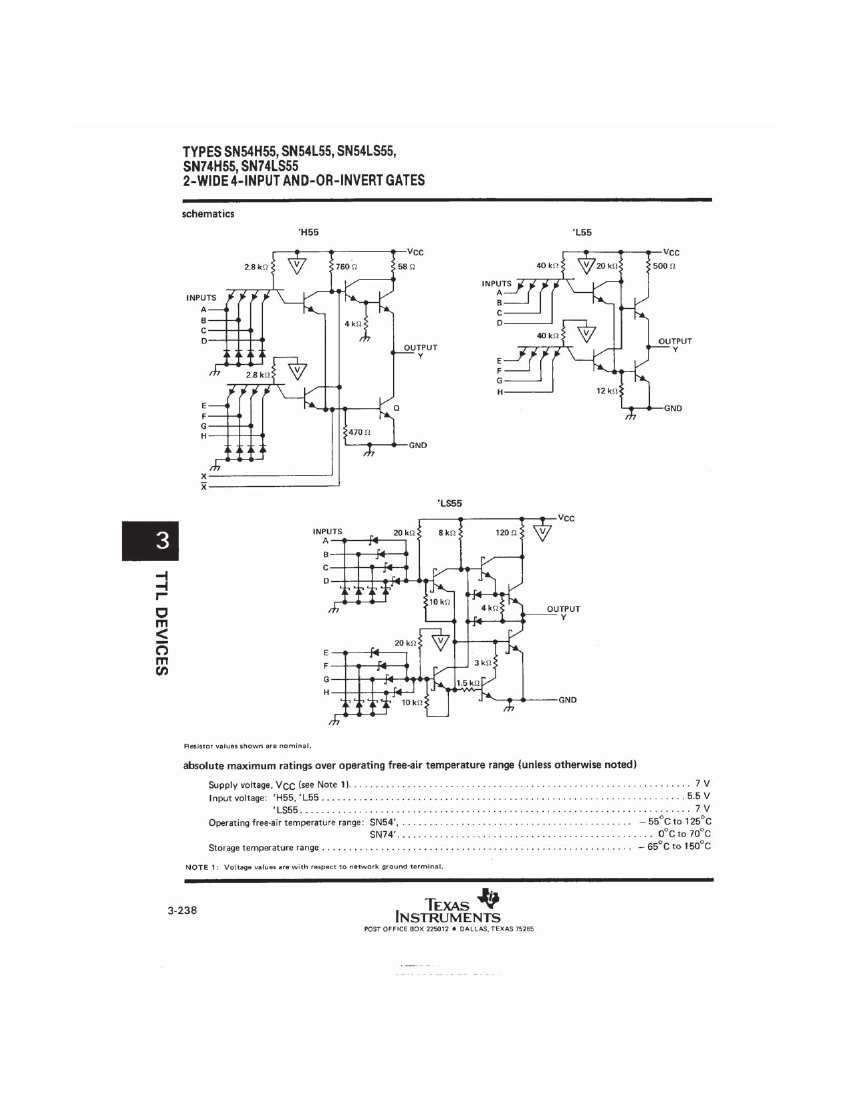

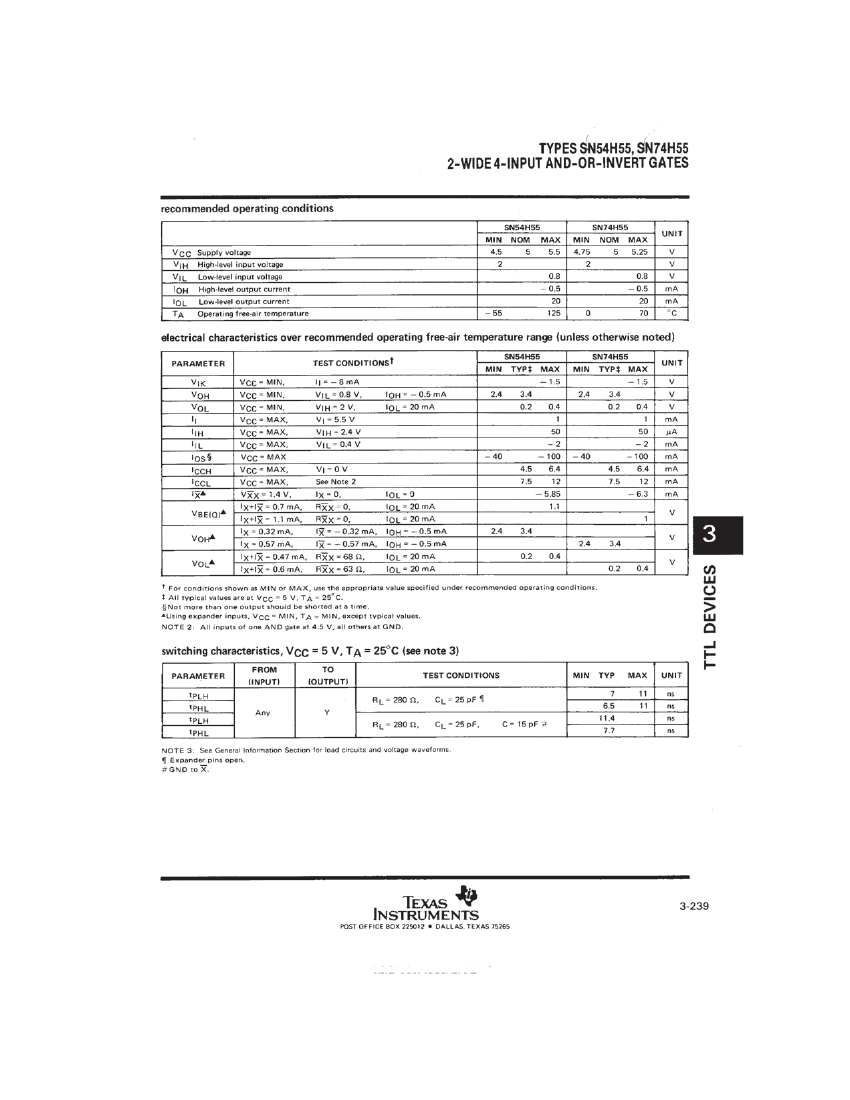

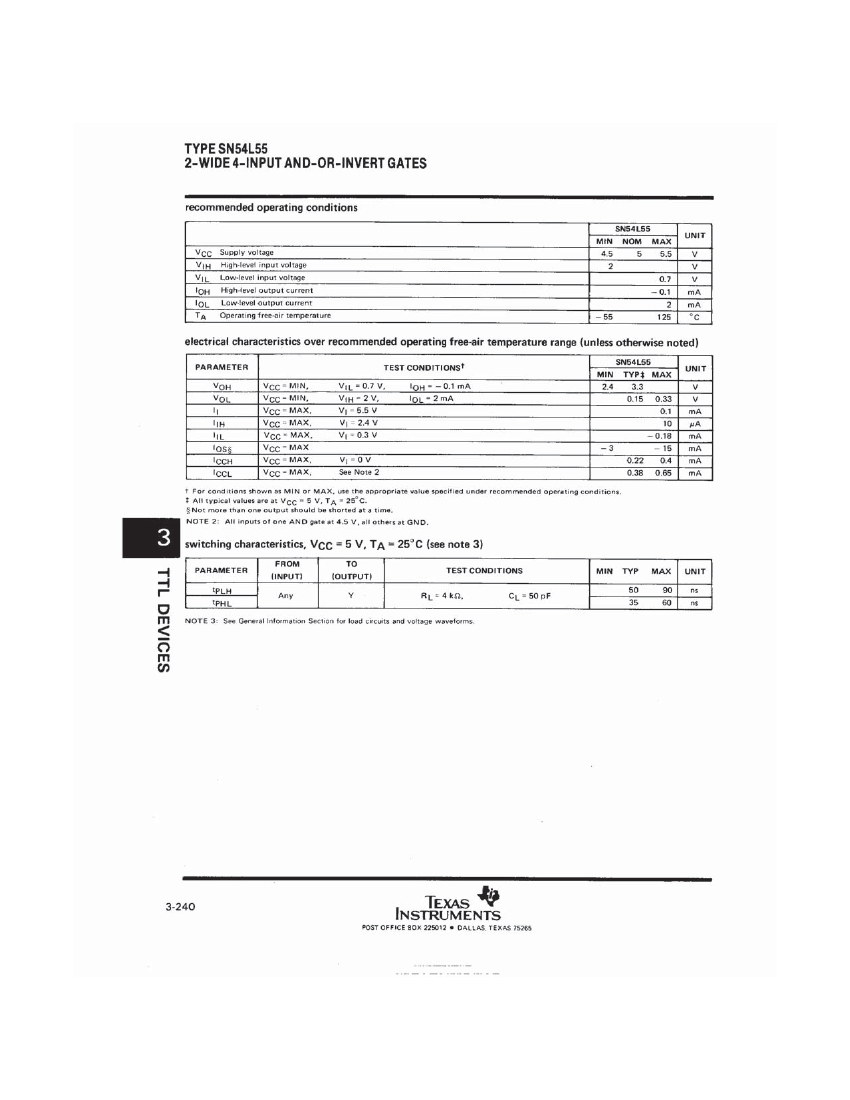

The original manufacturer’s datasheet accompanying this document reflects the performance
and specifications of the Rochester manufactured version of this device. Rochester Electronics
guarantees the performance of its semiconductor products to the original OEM specifications.
‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be
based on product characterization, design, simulation, or sample testing.
© 2013 Rochester Electronics, LLC. All Rights Reserved 11202013
