RC-6-B

Description
inductor 560uh .800a rod core
CategoryPassive components
File Size95KB,1 Pages
ManufacturerTriad Magnetics
Websitehttps://www.triadmagnetics.com/
Environmental Compliance
Download Datasheet Parametric View All

RC-6-B Overview

inductor 560uh .800a rod core

RC-6-B Parametric

Parameter NameAttribute value
Datasheets
RC-6
Standard Package648
CategoryInductors, Coils, Chokes
FamilyFixed Inductors
PackagingBulk
TypeWirewound
Material - Core-
Inductance560µH
Tolerance±10%
Current Rating800mA
Current - Saturati-
ShieldingUnshielded
DC Resistance (DCR)600 mOhm
Q @ Freq-
Frequency - Self Res-
Operating Temperature-
Frequency - Tes-
Mounting TypeThrough Hole
Package / CaseRadial
Size / Dimensi0.600" Dia (15.24mm)
Height - Seated (Max)0.930" (23.62mm)
Supplier Device Package-
Switchmode/ High Frequency
Rod Core Inductors
RC-6
Description:
Triad high current rod core inductors provide cost effective energy storage.
By conditioning the output signal, the inductor smoothes out the current
waveform to provide a more stable current. These low cost inductors are
designed to be compatible with automated P.C.B. installation.

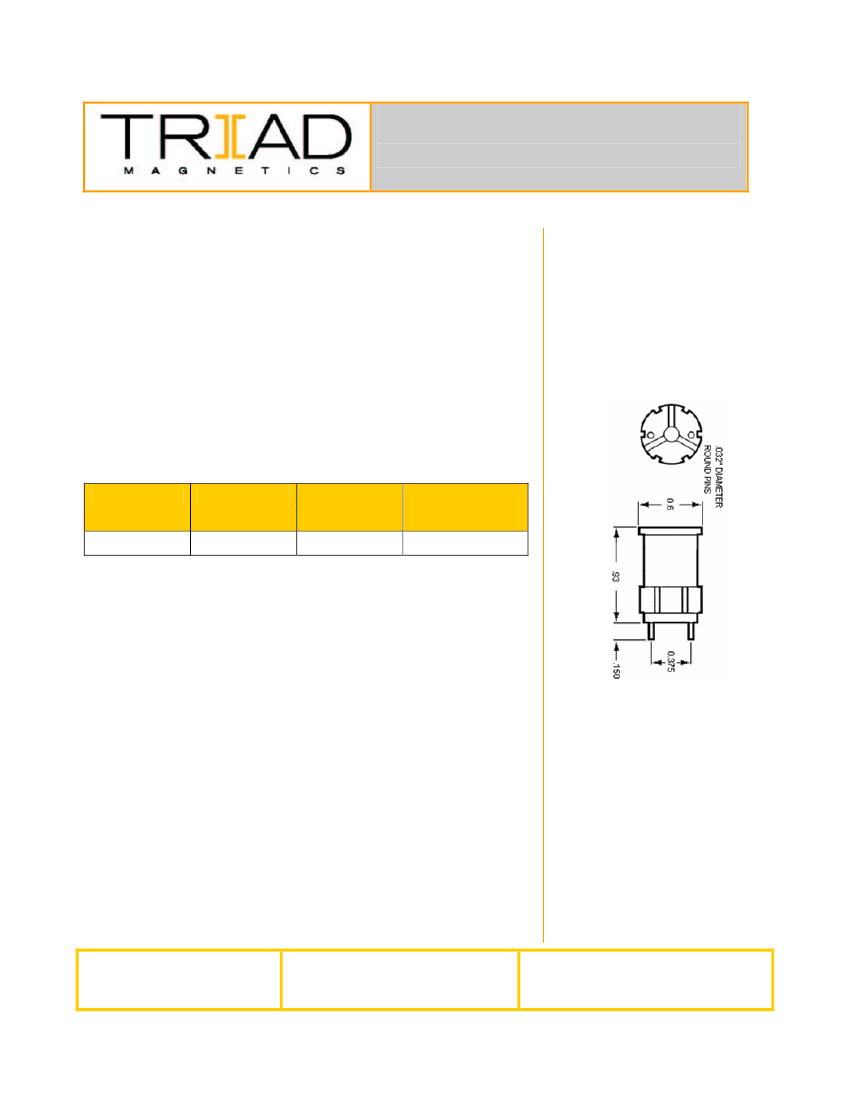

Outline Dimensions:
A. Dimensions: As figure show
B. PIN DIM. : As figure show
C. WT Lbs. : 0.03 Oz
Type No.
Unit: In inch
+/- 10% Inductance
DC Rated Current
+/- 15% DC Resistance
Ohms
RC-6
560.0 uH
0.800A
0.600
Inductance at a frequency range of 20KHz to 200KHz
Rated current 10 amps per pin maximum.
Rated current renders approximately 40C temperature rise.
RoHS Compliance:
As of manufacturing date February 2005, all standard
products meet the requirements of 2011/65/EU, known as the RoHS
initiative.
*Upon printing, this document is considered “uncontrolled”.Please contact
Triad Magnetics‘ website for the most current version.
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: December 4, 2013
