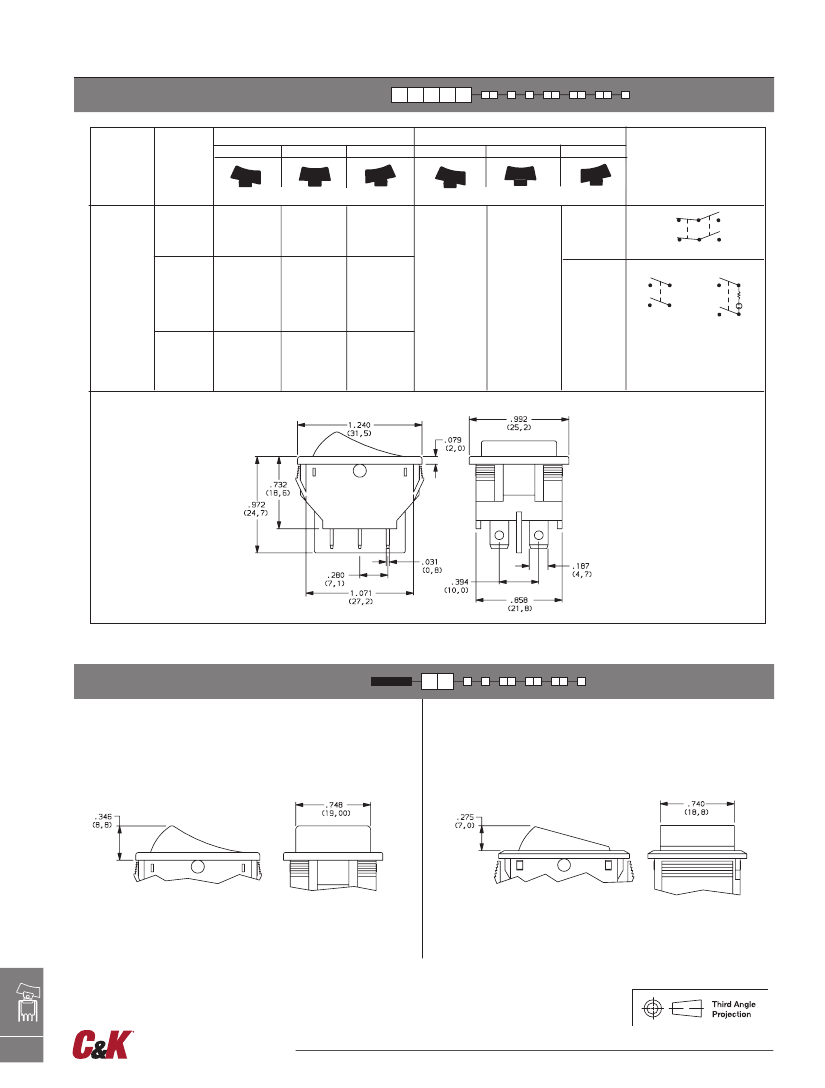

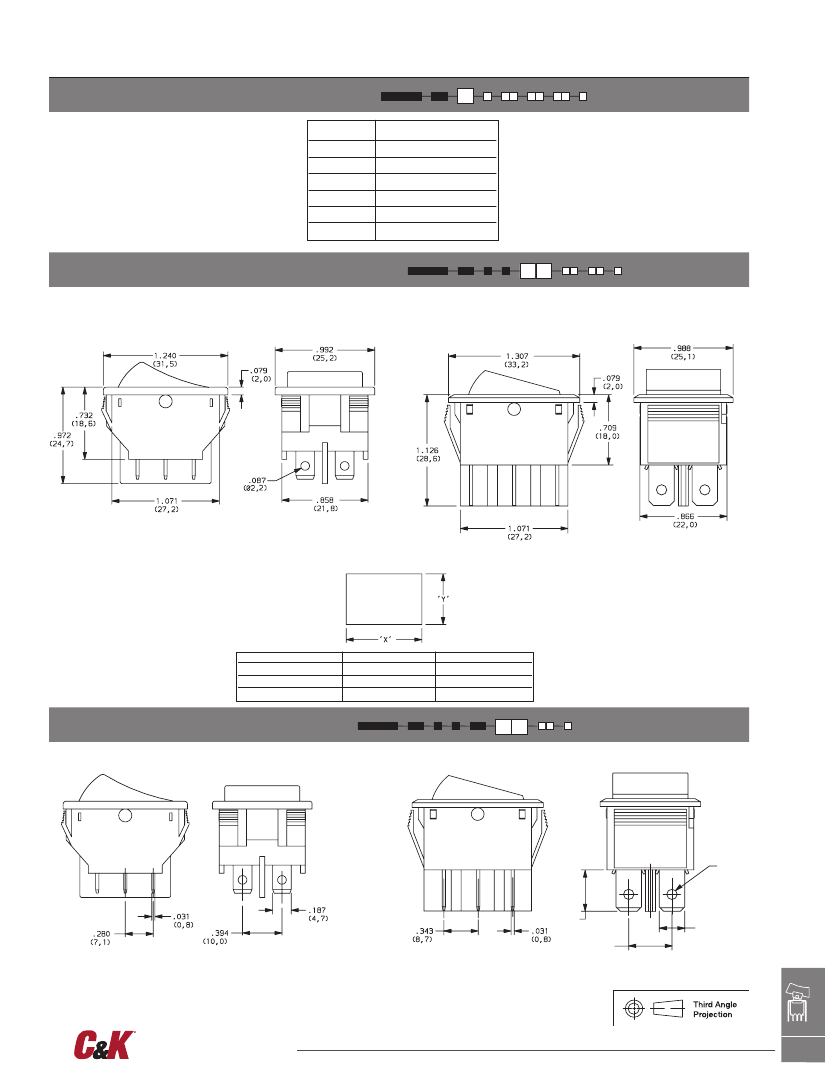

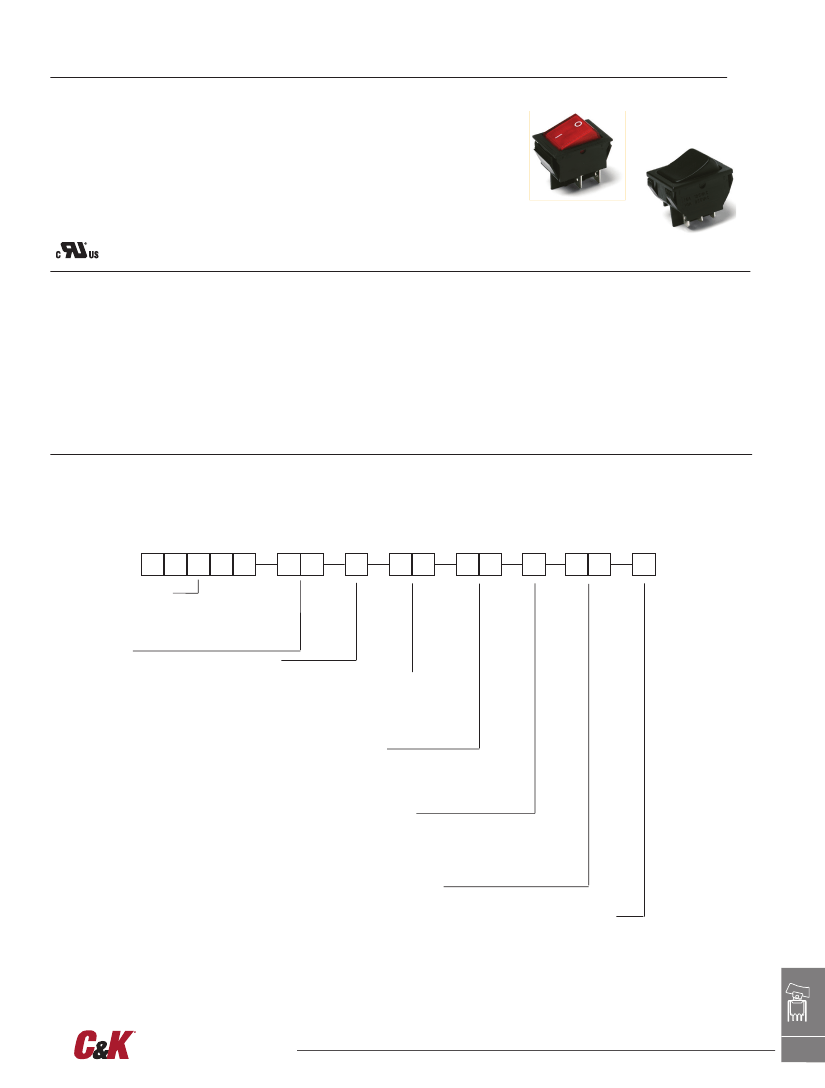

CN Series
Double Pole Power Rocker Switches
Features/Benefits
•
Illuminated versions available
•
Multiple actuator and
termination styles
•
Robust design
•
Custom version upon request
•
RoHS compliant
Typical Applications
•
Appliances
•
Office equipment
•
Computers and peripherals
•
Off-road vehicles
•
Industrial machines
•
HVAC units
•
Transportation
HOUSING AND ACTUATOR: 6/6 nylon (UL94V-2), black, matte finish.
ILLUMINATED ACTUATOR: Polycarbonate, matte finish.
CENTER CONTACTS: Silver plated, copper alloy.
END CONTACTS: Silver plated AgSu02ln03.
ALL TERMINALS: Silver plated, copper alloy.
Note:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Specifications
CONTACT RATING:
See table for Q and QA ratings on the last page of this series.
ELECTRICAL LIFE: 10,000 make and break cycles at full load.
INSULATION RESISTANCE: 108 Ω min.
DIELECTRIC STRENGTH: 1,500 VRMS @ sea level.
OPERATING TEMPERATURE: -20ºC to +85ºC
Materials
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages G–99 through G–101. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
CN201
DPDT On-None-On
CN202
DPST On-None-Off
CN22
*
DPST On-None-Off
Actuator
J1
Rocker
J3
Illuminated rocker
J6
Rocker
J8
Illuminated rocker
Actuator Color
2
Black
1
White
3
Red
R
Red, illuminated
A
Amber, illuminated
G
Green, illuminated
Mounting Style/Color
S2
Snap-in, black
S4
Snap-in, black
S1
Snap-in, white
S3
Snap-in, white
Termination
15
.187” quick connect
05
.250” quick connect
Actuator Marking
(NONE)
No marking
D
ON-OFF
H
”O l” - international ON-OFF
P
”O -” international ON-OFF
Contact Rating
Q
Silver
QA
Silver (with HP rating)
Rocker
* CN22 - for switches with both marking and illumination
Lamp Rating
(NONE)
No lamp
7
125 VAC neon
8
250 VAC neon
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G–95
www.ckswitches.com
G
CN Series
Double Pole Power Rocker Switches
SWITCH FUNCTION
SWITCH FUNCTION
Pos. 1
Pos. 2
Pos. 3
Pos. 1
CONNECTED TERMINALS
Pos. 2
Pos. 3
NO.
POLES
MODEL NO.
C&K marking on opposite side
C&K marking on opposite side
SCHEMATIC
CN201
DP
ON
NONE
ON
2-1
4-5
N/A
2-3
6-5
1A
1B
2A
2B
3A
3B
CN202
ON
NONE
OFF
OPEN
1A
1B
2A
2B
OR
1A
1B
2A
2B
For Illuminated
Version
CN22 *
ON
NONE
OFF
* CN22 - for switches with both marking and illumination
1b
2b
3b
Shown in Pos. 1
ACTUATOR
J1
J3
ROCKER
ILLUMINATED ROCKER
J6
J8
ROCKER
ILLUMINATED ROCKER
Rocker
NOTE:
J1 & J3 actuators available with Q contact rating only.
J3 actuator available with CN202 & CN22 switch function
only.
NOTE:
J6 & J8 actuators available with QA contact rating only.
J6 actuator available with CN201 & CN202 switch functions,
J8 actuator available with CN202 & CN22 switch function only.
G
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G–96
www.ckswitches.com
CN Series
Double Pole Power Rocker Switches
ACTUATOR COLOR
OPTION
CODE
ACTUATOR
COLOR
BLACK
WHITE
RED
RED, ILLUMINATED
AMBER, ILLUMINATED
GREEN, ILLUMINATED
2
1
3
R
A
G
MOUNTING STYLE/COLOR
S2
S1
SNAP-IN, BLACK
SNAP-IN, WHITE
S4
S3
SNAP-IN, BLACK
SNAP-IN, WHITE
1b
2b
3b
1b
2b
3b
NOTE:
Available with 15 termination and Q contact rating only.
Shown in Pos. 1
PANEL MOUNTING
NOTE:
Available with 05 termination and QA contact rating only.
Shown in Pos. 1
PANEL THICKNESS
0.030-0.049 (0,75-1,25)
0.049-0.079 (1,25-2,0)
0.079-0.118 (2,0-3,0)
“X”
1.190-.004 (30,2-0,1)
1.197-.004 (30,4-0,1)
1.213-.004 (30,8-0,1)
“Y”
0.874+.004 (22,2+0,1)
0.874+.004 (22,2+0,1)
0.874+.004 (22,2+0,1)
TERMINATION
TERMINA
15
.187” QUICK CONNECT
05
.250” QUICK CONNECT
1b
2b
3b
.102 DIA.
(ø2,6)
Rocker
.413
(10,5)
.425
(1,8)
NOTE:
Available with S3 & S4 mounting styles and QA contact rating,
CN201 & CN202 switch functions only.
.250
(6,35)
NOTE:
Available with S1 & S2 mounting style and Q contact rating only.
Shown in Pos. 1
Shown in Pos. 1
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G–97
www.ckswitches.com
G
CN Series
Double Pole Power Rocker Switches
ACTUATOR MARKING
NONE
NO MARKING
D
ON-OFF
H
Ol
P
O-
NOTE:
Orientation of actuator marking and terminals.
Shown in Pos. 1
CONTACT MATERIAL
OPTION
CODE
CONTACT AND
TERMINAL MATERIAL
RATINGS
16A @ 125C 1/3 HP @ 125 V AC
10A @ 250 V AC 1/2HP @ 250 V AC
16A @ 125 VAC, 1/8 HP @ 125 V AC;
10 A @ 250 VAC, 1/3 HP @ 250 V AC
Q
QA
SILVER
POWER
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
LAMP RATING
(NONE)
NO LAMP
7
125 VAC 33kΩ NEON
8
250 VAC 150kΩ NEON
Rocker
NOTE:
Lamp rating for J3 & J8 actuator options.
G
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G–98
www.ckswitches.com
1b
2b
3b
