8071-3441 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8071-3441

8071-3441: DescriptionD Type Connector, 44 Contact(s), Male, 0.09 inch Pitch, Solder Lug Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size71KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

8071-3441 Overview

D Type Connector, 44 Contact(s), Male, 0.09 inch Pitch, Solder Lug Terminal, #4-40, Receptacle

8071-3441 Parametric

Parameter Name	Attribute value
Objectid	307793400
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.494 inch
subject depth	0.197 inch
body length	2.088 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	RND PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation option 1	#4-40
Installation option 2	LOCKING
Installation type	PANEL
Number of rows loaded	3
Options	GENERAL PURPOSE
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.11 inch
Termination type	SOLDER LUG
Total number of contacts	44

Preview

Download Datasheet

View All

SOLDER TYPE D-SUB RECEPTACLE

8071 SERIES.

For wire Solder. High Density D-Sub Receptacle

Features





Shell Material: Steel, tin plated as standard

Optional: #4-40 UNC hexagonal standoff or clinch nuts

Other options: Hoods, mounting screw and accessories

For other options consult the Sales Office

Ordering and Dimensional Information



Available in 15, 26, 44, 62 and 78 circuits

Insulator Material: Glass filled polyester UL 94V-0

Contact Material: Phosphor Bronze, Colour: Black

Different plating options are available

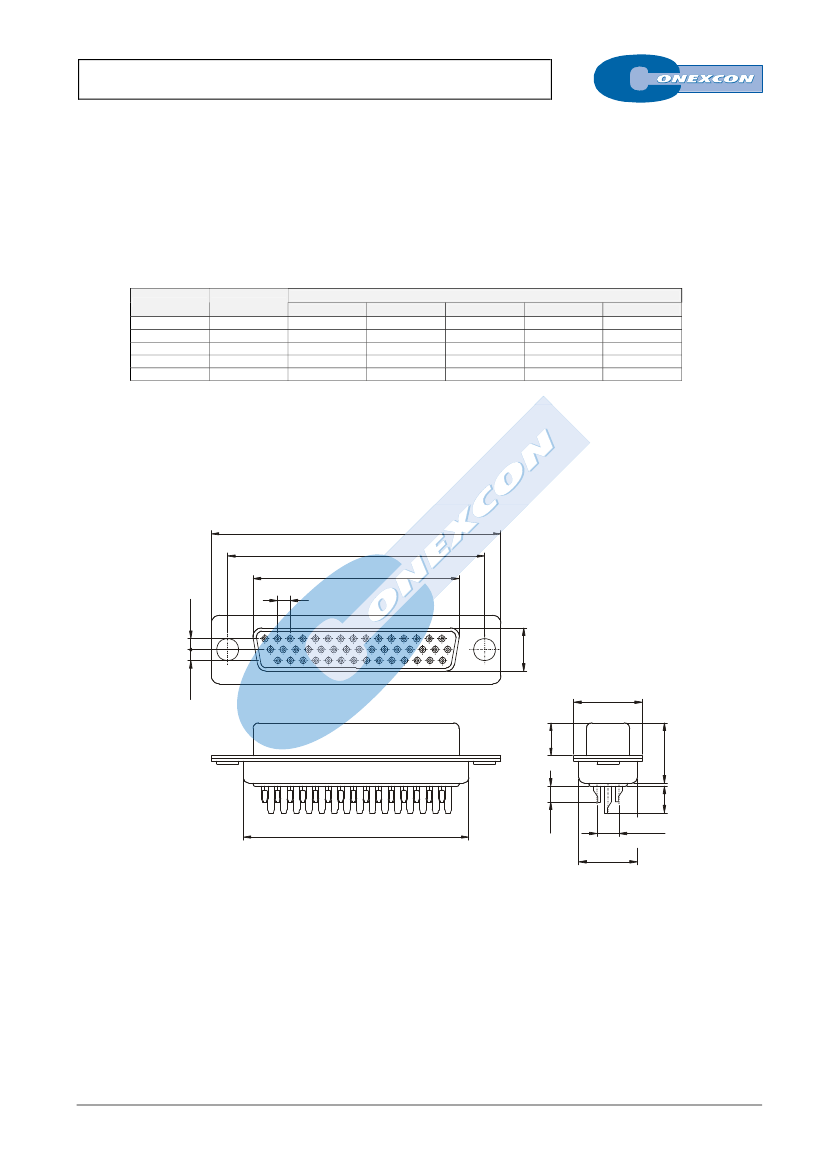

Dimensional Information

Circuit Size

Part Number

8071 –

T151

8071 –

T261

8071 –

T441

8071 –

T621

8071 –

T781

Dimensions

16.33 (0.643)

24.66 (0.971)

38.38 (1.511)

54.84 (2.159)

52.43 (2.064)

24.99 (0.984)

33.32 (1.312)

47.04 (1.852)

63.50 (2.500)

61.11 (2.406)

30.81 (1.213)

39.14 (1.541)

53.04 (2.088)

69.32 (2.729)

66.93 (2.635)

19.23 (0.757)

27.56 (1.085)

41.28 (1.625)

57.73 (2.273)

55.32 (2.178)

2.290 (0.090)

2.410 (0.095)

T = Contact Plating



T =

Gold flash over 50µ” nickel.

T =

10µ” gold over 50µ” nickel



T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

1.98

.078

1.98

.078

7.90

.311

12.55

.494

6.0

.236

11.0

.433

3.96

.156

10.70

.421

4.8

.189

FULL LINE CATALOGUE

2.8

.110

K-XX
