spring-loaded connectors
2.54 mm grid / single roW / double roW / surface mount
WWW.precidip.com
tel +41 32 421 04 00
sales@precidip.com

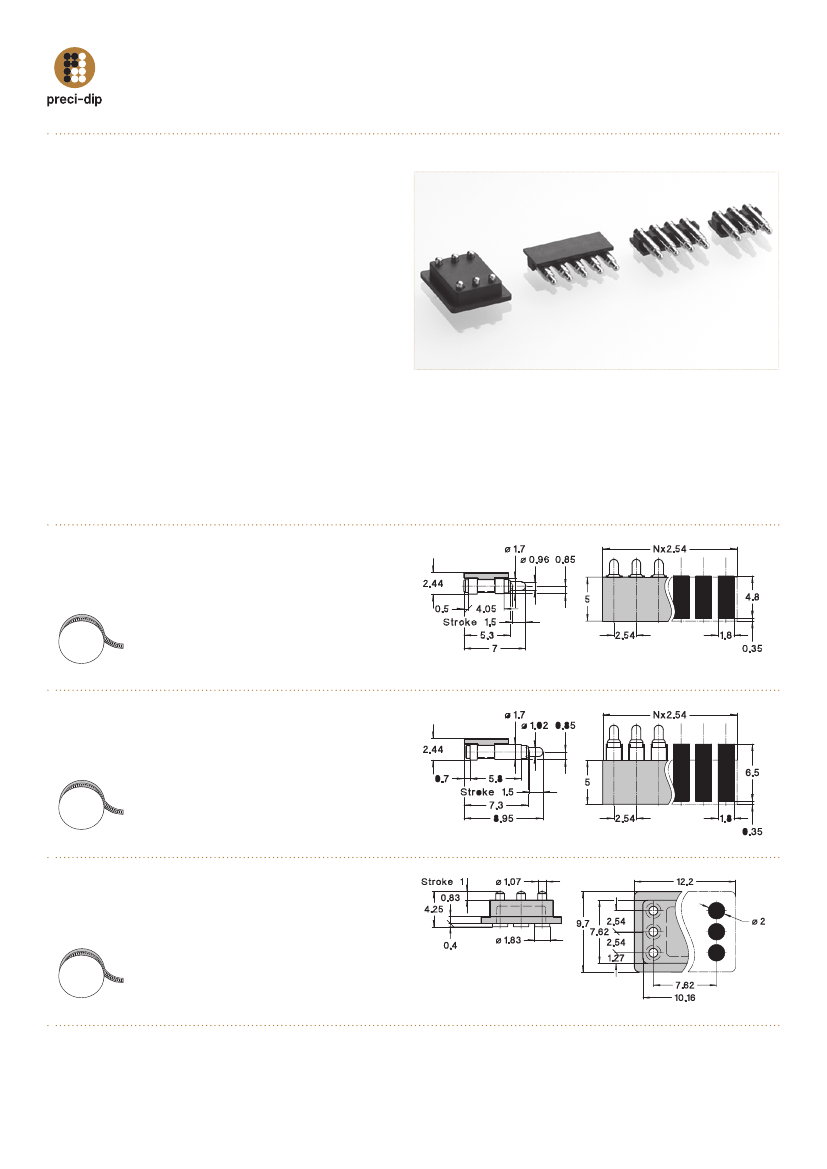

Connectors with spring-loaded contacts (SLC), surface mount.
technical specifications
(for general specs, see page 31)
insul ator
fl ammabilit y
piston
and barrel
Black glass filled polyester PCT-GF30-FR
UL 94V-O
Brass CuZn36Pb3 (C36000)
8pm...131
8pm...219
Music wire
Stainless steel X12
DIN 17723,
CrNi177,
gold plated
DIN 17224
1.5 mm
1 mm
0.2 N initial
0.25 N initial
0.9 N at
1
/
2
stroke 0.95 N at
1
/
2
stroke
50’000 cycles
50’000 cycles
spring
ma x. stroke
forces
mechanical
life
operating
current
contact
resistance
copl anarit y
smd terminations
8pm...260
Stainless steel X12
CrNi177,
DIN 17224
1.5 mm
0.25 N initial
0.6 N at
1
/
2
stroke
100’000 cycles
Other plating on request (see page 178 for plating specs).
nn number of poles.
Replace
nn
with the requested number of poles,
e.g. 8PM-11-00nn-02-131 with 5 pins becomes 8PM-11-0005-02-131.
Max. 3 A
Max. 3 A
Max. 3 A
10 mΩ
10 mΩ
15 mΩ
(static measurement, halfway position)
Max 0.1 mm (measured on 25 mm long connectors)
ordering information rohs compliant parts
pl ating code
barrel
piston
11
SS
0.25 µm gold
0.5 µm gold
0.25 µm gold
0.5 µm gold
8PM-11-00nn-02-260
Parallel surface mount SLC connector for pick & place
automatic assembly
avail abilit y from
2 to 10 contacts
(standard number of contacts: 10)
see
page 31
t & r packaging
8PM-11-00nn-02-131
Parallel surface mount SLC connector for pick & place
automatic assembly
avail abilit y from
2 to 10 contacts
(standard number of contacts: 10)
see
page 31
t & r packaging
8PM-SS-0006-02-219
SLC connector for chipcards with contacting pads
acc. to ISO 7816
Standard number of contacts: 6
see
page 31
t & r packaging
38
Due to technical progress, all information provided is subject to change without prior notice.
GEnERAL InfORMATIOn
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
PART nUMBERS AnD PRODUCT
IDEnTIfICATIOn
PRECI-DIP products are all identified with a unique part number. These numbers are built with up
to 5 groups of digits separated by dashes. Each of these groups has its own signification, making
it possible to identify the major characteristics of the product from the part number.
Please find below a brief explanation of PRECI-DIP identification codes for connectors and sockets:
801
PRODUCT fAMILy
–
87
PLATInG CODE
–
014
nUMBER Of PInS
–
10
–
001101
SPECIfIC InfORMATIOnS
PRODUCT fAMILy
•
81 x, 8P x
•
1 xx, 2 xx
•
3 xx, 4 xx, 8 xx
•
5 xx
•
6 xx, 7 xx
•
9 xx
Spring-loaded connectors
DIL sockets
PCB connectors
BGA, PGA and PLCC sockets
Carriers
Circular connectors, TO sockets
PLATInG CODE
The standard plating codes are listed and specified in the catalog section Contacts under
General technical specifications at page 178.
Tin-plated PRECI-DIP products had to be changed to become RoHS compliant and have
received a new part number to allow clear identification. Tin-lead plating was replaced
by pure tin plating and the old plating code 9x was replaced by 8x.
nUMBER Of PInS
These figures indicate always the total number of contacts of the product.
SPECIfIC InfORMATIOnS
The last two groups of digits can have different significations depending on the product family:
•
Type of terminations (PCB connectors):
10
Straight solder pin
20
Right angle solder pin
30 and 40 SMD
5x
Wire-wrap
6x
Solderless press fit
•
Type
of clip (DIL sockets):
versions:
00
31
no clip
3 finger
4x
6x
4 finger
6 finger
•
Packaging
003101 for box or tube packaging
003191 for Tape and Reel packaging
EXAMPLES
114-87-628-41-134191: DIL socket, 28 pins, 4 finger clip, tape and reel packaging
803-87-014-10-003101: PCB connectors, 14 pins, with straight solder pins, box packaging
ROHS-COMPLIAnT PLATInG
All products displayed in this catalog are compliant with the European Directive 2002/95/EC
on the restriction of the use of certain hazardous substances in electrical and electronic
equipment (RoHS).
Please note that standard PRECI-DIP RoHS-compliant parts are additionally identified with
a green dot on the packaging.
25
GEnERAL InfORAMTIOn
