3965S-18TW-L datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 3965S-18TW-L

Preview

3965S-18TW-L: DescriptionBoard Connector, 18 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size168KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

3965S-18TW-L Overview

Board Connector, 18 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle

3965S-18TW-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amtek Technology Co., Ltd.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.3 inch
subject depth	0.425 inch
body length	2.806 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	3 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	2200VAC V
Insulation resistance	5000000000 Ω
insulator material	NYLON
Manufacturer's serial number	3965
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	18
Base Number Matches	1

Preview

Download Datasheet

View All

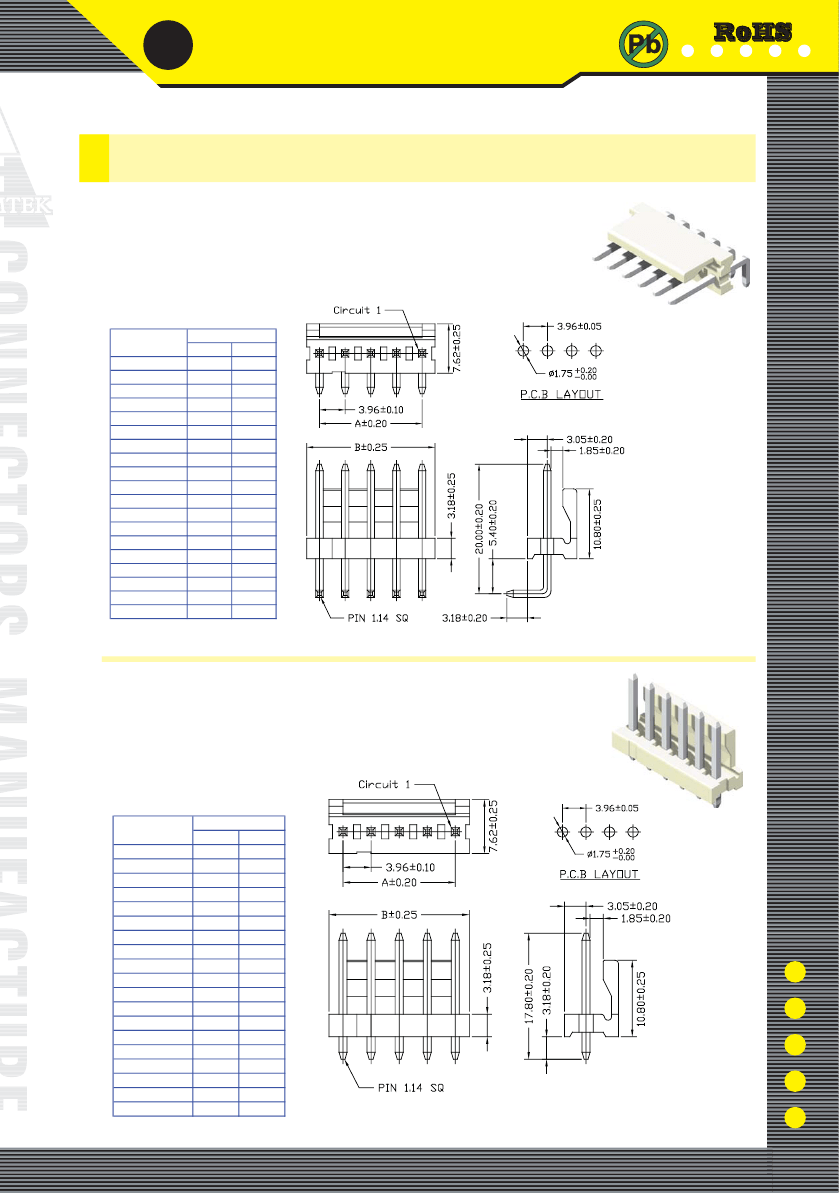

H

ousing Wafer Terminal

3.96mm Wafer Right Angle / Straight Type

Specifications

Current Rating: 7A AC,DC

Voltage Rating: 600V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 3m

Ω

Max

Insulation Resistance: 5000M

Ω

Min

Withstanding Voltage: 2200V AC/minute

Terminal: Brass / Tin Plated

Material: Nylon 66,UL94V-0

P art N o.

3 9 6 5 R -0 2 TW -L

3 9 6 5 R -0 3 TW -L

3 9 6 5 R -0 4 TW -L

3 9 6 5 R -0 5 TW -L

3 9 6 5 R -0 6 TW -L

3 9 6 5 R -0 7 TW -L

3 9 6 5 R -0 8 TW -L

3 9 6 5 R -0 9 TW -L

3 9 6 5 R -1 0 TW -L

3 9 6 5 R -1 1 TW -L

3 9 6 5 R -1 2 TW -L

3 9 6 5 R -1 3 TW -L

3 9 6 5 R -1 4 TW -L

3 9 6 5 R -1 5 TW -L

3 9 6 5 R -1 6 TW -L

3 9 6 5 R -1 7 TW -L

3 9 6 5 R -1 8 TW -L

3 9 6 5 R -1 9 TW -L

3 9 6 5 R -2 0 TW -L

D im e n sio n s

A

B

3 .9 6

7 .9 2

1 1 .8 8

1 5 .8 4

1 9 .8 0

2 3 .7 6

2 7 .7 2

3 1 .6 8

3 5 .6 4

3 9 .6 0

4 3 .5 6

4 7 .5 2

5 1 .4 8

5 5 .4 4

5 9 .4 0

6 3 .3 6

6 7 .3 2

7 1 .2 8

7 5 .2 4

7 9 .2 0

Part No.:3965R-XXTW-L

Specifications

Current Rating: 7A AC,DC

Voltage Rating: 600V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 3m

Ω

Max

Insulation Resistance: 5000M

Ω

Min

Withstanding Voltage: 2200V AC/minute

Terminal: Brass / Tin Plated

Material: Nylon 66,UL94V-0

D im e n sio n s

A

B

3 .9 6

7 .9 2

1 1 .8 8

1 5 .8 4

1 9 .8 0

2 3 .7 6

2 7 .7 2

3 1 .6 8

3 5 .6 4

3 9 .6 0

4 3 .5 6

4 7 .5 2

5 1 .4 8

5 5 .4 4

5 9 .4 0

6 3 .3 6

6 7 .3 2

7 1 .2 8

7 5 .2 4

7 9 .2 0

P art N o.

3 9 6 5 S -0 2 TW -L

3 9 6 5 S -0 3 TW -L

3 9 6 5 S -0 4 TW -L

3 9 6 5 S -0 5 TW -L

3 9 6 5 S -0 6 TW -L

3 9 6 5 S -0 7 TW -L

3 9 6 5 S -0 8 TW -L

3 9 6 5 S -0 9 TW -L

3 9 6 5 S -1 0 TW -L

3 9 6 5 S -1 1 TW -L

3 9 6 5 S -1 2 TW -L

3 9 6 5 S -1 3 TW -L

3 9 6 5 S -1 4 TW -L

3 9 6 5 S -1 5 TW -L

3 9 6 5 S -1 6 TW -L

3 9 6 5 S -1 7 TW -L

3 9 6 5 S -1 8 TW -L

3 9 6 5 S -1 9 TW -L

3 9 6 5 S -2 0 TW -L

Part No.:3965S-XXTW-L

www.amtek-co.com.tw

3-120
