CD54-820KC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CD54-820KC

CD54-820KC: DescriptionGeneral Purpose Inductor, 82uH, 10%, 2320,; CategoryPassive components inductor; File Size167KB，4 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/

Download Datasheet Parametric Compare View All

CD54-820KC Overview

General Purpose Inductor, 82uH, 10%, 2320,

CD54-820KC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SUMIDA
package instruction	2320
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	2320
structure	Coil
DC Resistance	0.6 Ω
Nominal inductance(L)	82 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CD54SERIES
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package height	4.5 mm
Package length	5.8 mm
Package form	SMT
Package width	5.2 mm
method of packing	TR
Maximum rated current	0.58 A
self resonant frequency	10.2 MHz
series	CD54 SERIES
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

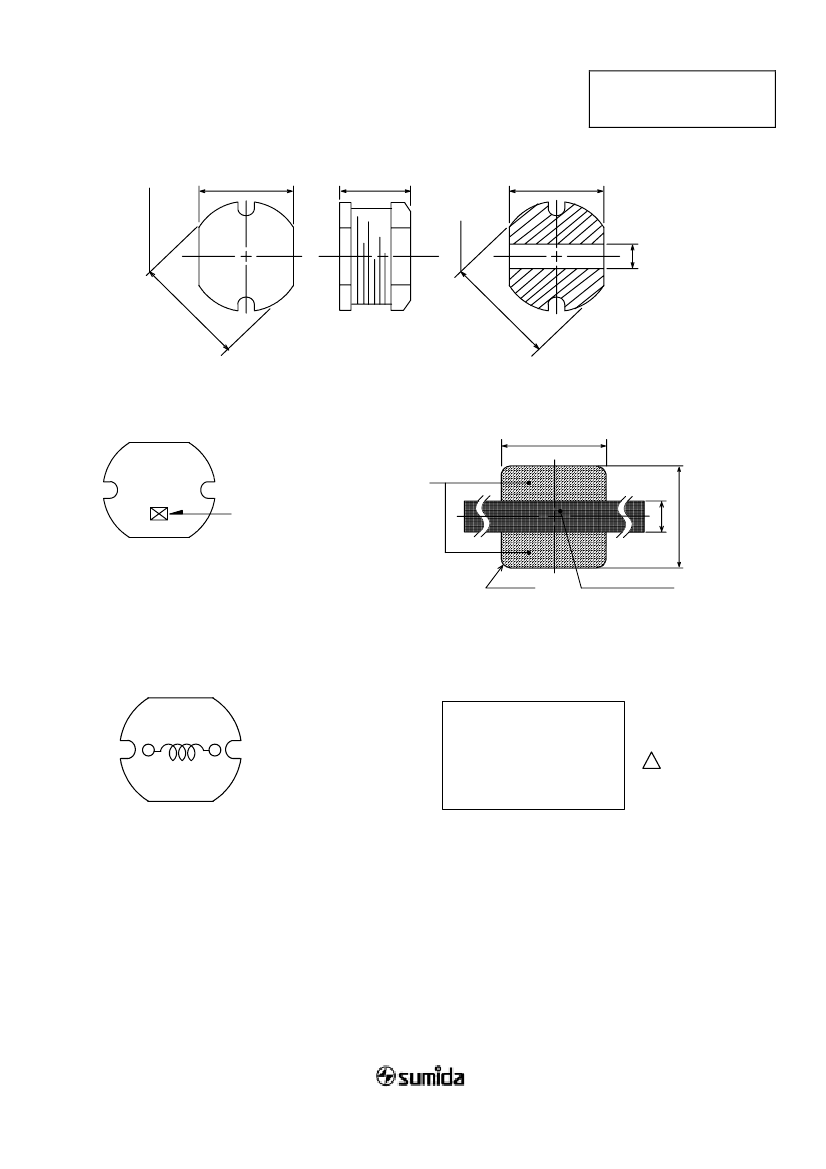

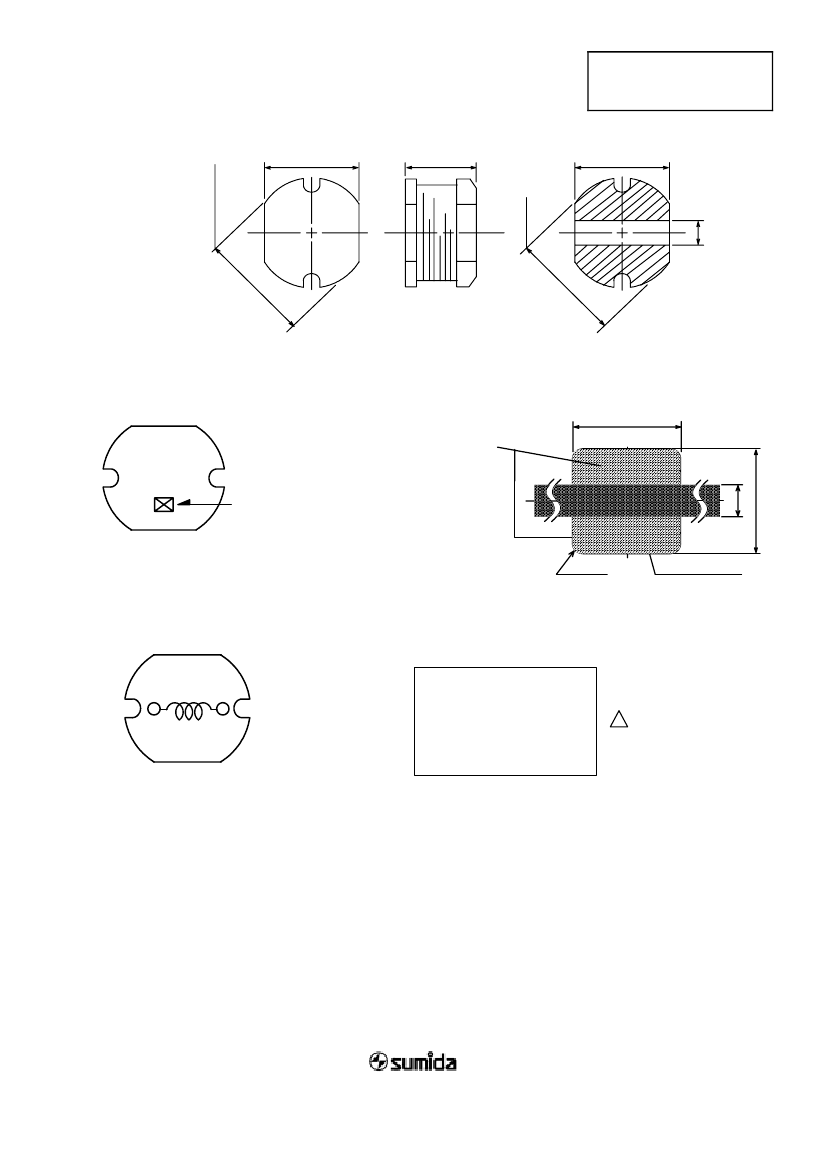

仕様書

１．外½

1-1.寸法図(½½)

5.2±0.3

φ5.8±0.3

名

ＣＤ５４

4.5±0.35

5.2

φ5.8

＊公差のない寸法は、参考値とする。

1-2.捺印表示例

1-3.推奨ランド寸法(½½)

5.5

電極部

捺印・½造密番

頭部直捺印

捺印½½不定

R 1.0

シルク処理部

電極(端子)間の隙間はシルク処理をして御½用下さい。

２．コイル仕様

2-1.端子接続図(裏面図)

RoHS

compliance

Cd:Max.0.01wt%

others:Max.0.1wt%

1.7

6.0

10 0

1.3

CD54-820KC Related Products

	CD54-820KC	CD54-180MB	CD54-181KB	CD54-100MC	CD54-470LC	CD54-180MC	CD54-820KB	CD54-181KC	CD54-330LC	CD54-120MC
Description	General Purpose Inductor, 82uH, 10%, 2320,	General Purpose Inductor, 18uH, 20%, 2320,	General Purpose Inductor, 180uH, 10%, 2320,	General Purpose Inductor, 10uH, 20%, 2320,	General Purpose Inductor, 47uH, 15%, 2320,	General Purpose Inductor, 18uH, 20%, 2320,	General Purpose Inductor, 82uH, 10%, 2320,	General Purpose Inductor, 180uH, 10%, 2320,	General Purpose Inductor, 33uH, 15%, 2320,	General Purpose Inductor, 12uH, 20%, 2320,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	2320	2320	2320	2320	2320	2320	2320	2320	2320	2320
Reach Compliance Code	unknown	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maker	SUMIDA	SUMIDA	-	SUMIDA	SUMIDA	SUMIDA	SUMIDA	-	SUMIDA	-
uppercase and lowercase codes	2320	2320	2320	2320	2320	2320	-	2320	2320	2320
structure	Coil	Coil	Coil	Coil	Coil	Coil	-	Coil	Coil	Coil
DC Resistance	0.6 Ω	0.15 Ω	1.38 Ω	0.1 Ω	0.37 Ω	0.15 Ω	-	1.38 Ω	0.23 Ω	0.12 Ω
Nominal inductance(L)	82 µH	18 µH	180 µH	10 µH	47 µH	18 µH	-	180 µH	33 µH	12 µH
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CD54SERIES	-	-	CD54SERIES	-	CD54SERIES	-	CD54SERIES	CD54SERIES	CD54SERIES
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	-	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C
Package height	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	-	4.5 mm	4.5 mm	4.5 mm
Package length	5.8 mm	5.8 mm	5.8 mm	5.8 mm	5.8 mm	5.8 mm	-	5.8 mm	5.8 mm	5.8 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT	-	SMT	SMT	SMT
Package width	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	-	5.2 mm	5.2 mm	5.2 mm
method of packing	TR	Box	Box	TR	TR	TR	-	TR	TR	TR
Maximum rated current	0.58 A	1.23 A	0.38 A	1.44 A	0.72 A	1.23 A	-	0.38 A	0.88 A	1.4 A
self resonant frequency	10.2 MHz	23.3 MHz	6.42 MHz	30.6 MHz	13.6 MHz	23.3 MHz	-	6.42 MHz	16.3 MHz	27.7 MHz
series	CD54 SERIES	CD54 SERIES	CD54 SERIES	CD54 SERIES	-	CD54 SERIES	-	CD54 SERIES	CD54 SERIES	CD54 SERIES
Tolerance	10%	20%	10%	20%	15%	20%	-	10%	15%	20%
Base Number Matches	1	1	1	1	1	1	1	1	-	-
