REVISION DP
DO NOT
SCALE FROM
THIS PRINT
TSW-XXX-XX-XXX-X-XX-XXX
TERMINAL SPACE SPEC.
(SEE ASSEMBLY INSTRUCTIONS)
-1=.100[2.54] FILL EVERY POSITION
-2= .200[5.08] FILL EVERY OTHER POS.
STARTING W/ 1ST & ENDING
W/ LAST POS. IN BODY)
BODY LENGTH SPEC.
EXPRESSED IN # OF POS
-1: -01 THRU -50 (-S, -D, -T)
"A" = NO. OF POS. x .100[2.54]
-2: -02 THRU -25 (-S, -D, -T)
"A" = NO OF POS. x .200[5.08] - .100[2.54]
TERMINAL SPECIFICATION
SEE TABLE 1
OPTION #2
-POLARIZING SPECIFICATION
XXX INDICATES POS. TO BE OMITTED (SEE FIG 3)
OPTION #1
-BLANK= STRAIGHT
-RA= RIGHT ANGLE (SEE TABLE 3 & 5, FIG 5)
-RE= EXTENDED RIGHT ANGLE (SEE TABLE 3 & 5, FIG 5)(SINGLE ROW ONLY)
-NA= RA OPTION WITH STRAIGHT OPTION BODY
-NE= RE OPTION WITH STRAIGHT OPTION BODY
-LC= LOCKING CLIP (USE LTC-01 FOR -S ROW AND
LTC-02 FOR -D ROW)(STYLES 08 THRU 13 & 22 ONLY) (SEE FIG 2)
(N/A IN -RA OR -RE OPTION AND/OR LESS THAN 4 POSITIONS)
(N/A IN -T OR -Q)
-LA= -RA OPTION WITH -LL OPTION (SEE FIG 5)
-LL= LOCKING LEAD (SEE FIG 4)
(N/A WITH -RE OR -NE OPTION)
(N/A IN SINGLE ROW, 1 OR 2 POSITIONS)

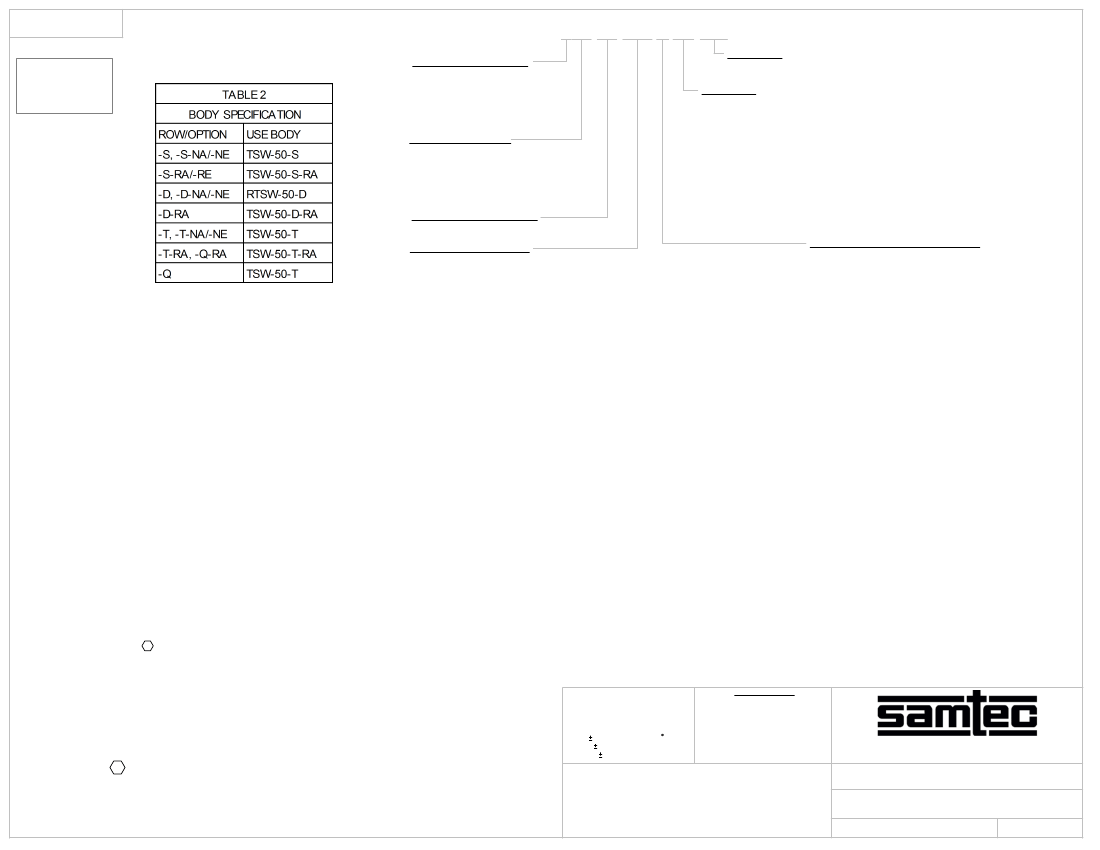

ROW SPECIFICATION (SEE TABLE 2)
PLATING SPECIFICATION
-S: SINGLE
-G: 10µ" GOLD IN CONTACT AREA, 3µ" GOLD ON TAIL
-D: DOUBLE
-T: MATTE TIN CONTACT AND TAIL
-T: TRIPLE
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-Q: TRIPLE ROW, FILL OUTER ROWS ONLY
-H: 30µ" HEAVY GOLD IN CONTACT AREA, 3µ" GOLD ON TAIL
-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-F: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-E: 50µ" EXTRA HEAVY GOLD IN CONTACT AREA, 3µ" GOLD ON TAIL
(-07, -08, -09, -13, -14, -15, -16, -20, -21 ONLY)
-TL: TIN/LEAD (90/10 +/-5%) CONTACT AND TAIL
(AVAILABLE ONLY ON LEAD STYLES -07, -08 & -09)
-STL: 30µ" SELECTIVE GOLD IN CONTACT AREA, TIN/LEAD (90/10 +/-5%) TAIL
(AVAILABLE ONLY ON LEAD STYLES -07, -08, -10, -15, -16, -17, -21, -23 & -24
THROUGH HOLE ONLY)
-TM: MATTE TIN CONTACT AND TAIL
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-LM: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-FM: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-SS: 30µ" STRIPE SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL (SEE NOTE 13)
NOTES:
1.
C
REPRESENTS CRITICAL DIMENSION.
2. MINIMUM TERMINAL PUSHOUT: 3 LBS.
3. MAXIMUM HEIGHT VARIATION: .005[0.13](-RA TAIL N/A).
4. ASSEMBLE GOLD PLATE END AS SHOWN.
5. STYLE -26: ROUND END TO APPEAR ON BOTTOM.
6. 'C'±
.005[0.13]
FOR STYLE -08, OPTION -LA & -RA ONLY.
.008[0.20]
7. TOW & SWAY SPEC. OF 2° APPLIES TO ALL
POSITIONS, POST & TAIL, IN ALL DIRECTIONS.
8. ALL DIMENSIONS TO BE ABOUT CL WITHIN ±.005[0.13].
9. MEASURE FROM THE BEND RADIUS OF THE TERMINALS .
10. TSW-50-D BODY CAN BE USED IF RTSW-50-D IS UNAVAILABLE
C 11. ORIENTATE PINS TO PREVENT BANDOLIER MARKS FROM SHOWING
IN THE POST AREA. (SEE TABLE 7)
12. MAXIMUM CUT FLASH: .020[0.50]
13. -SS OPTION ONLY AVAILABLE IN STRAIGHT LEAD STYLES -07, -08 &
-09, -RA STYLE -08 ONLY. CAN ONLY MATE WITH SSW, SSQ, SSM,
ESW, ESQ AND BCS.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
ANGLES
.XX: .01[0.3]
2
.XXX: .005[0.13]
.XXXX: .0020[0.051]
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
BODIES: DUPONT PBT, UL 94 VO, COLOR: BLACK
TERMINALS: PHOS BRONZE
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
.025[0.64] SQ. POST TERMINAL STRIP ASSEMBLY
F:\DWG\MISC\MKTG\TSW-XXX-XX-XXX-X-XX-XXX-MKT.SLDDRW
BY:
KOLB
TSW-XXX-XX-XXX-X-XX-XXX
08/24/1988
SHEET
1
OF
6
REVISION DP
C
SEE TABLE 8
(SEE CALLOUT)
-1XX=.100[2.54]
-2XX=.200[5.08]
2 MAX SWAY
(EITHER DIRECTION)
C
"C"±.008[0.20]
(SEE TABLE 1, SHT 6)
(SEE NOTE 3 AND 6)
.100 2.54
2 MAX SWAY
(EITHER DIRECTION)
.100 2.54
.200 5.08
.200 5.08
.100 2.54
REF
"L"
(SEE TABLE 4, SHT 5)
.100 2.54
REF
.200 5.08
REF
.300 7.62
REF
.300 7.62
REF
SEE NOTE 5
2 MAX SWAY
(EITHER DIRECTION)
2 MAX SWAY
(EITHER DIRECTION)
(TSW-1XX-XX-XX-S SHOWN)

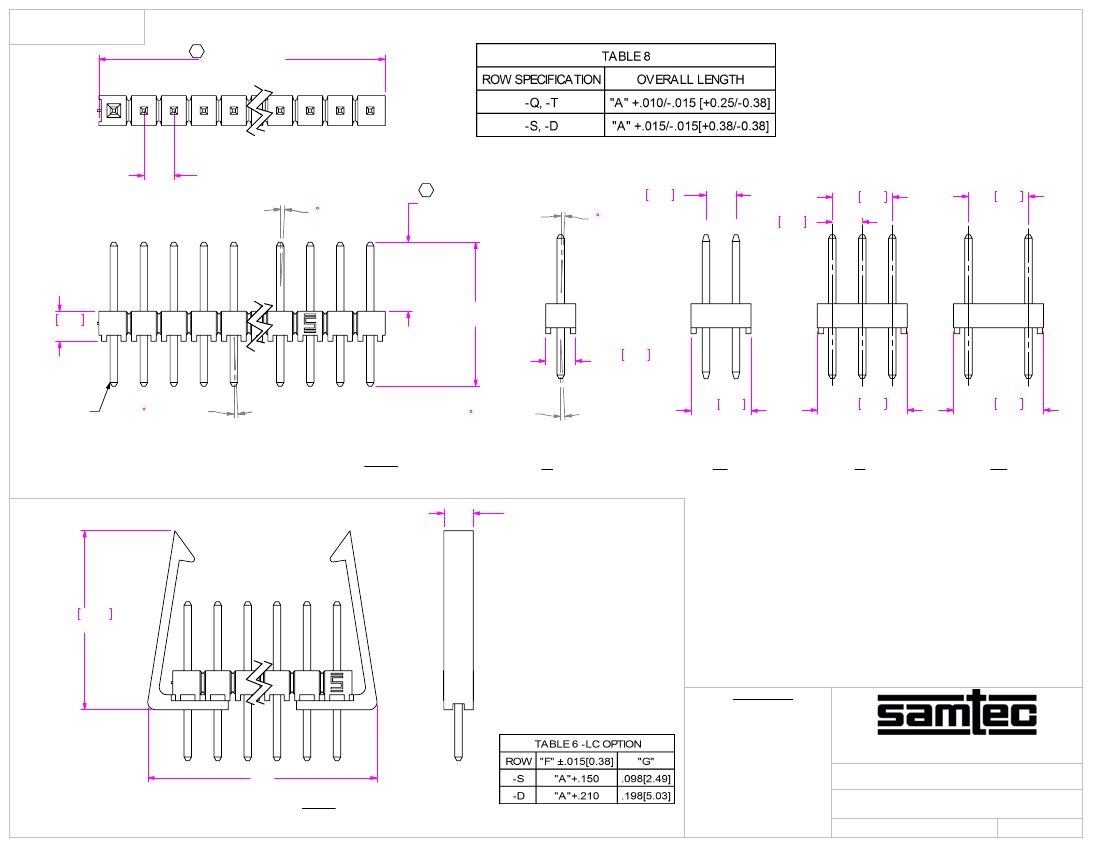

FIG 1
-S
"G" REF
-D
-T
-Q
.596 15.15
REF
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
"F"
(TSW-1XX-XX-XX-S-LC SHOWN)
(SAME AS FIG 1, DIFFERENT AS SHOWN)
DO NOT SCALE DRAWING
.025[0.64] SQ. POST TERMINAL STRIP ASSEMBLY
FIG 2
SHEET SCALE: 3:1
F:\DWG\MISC\MKTG\TSW-XXX-XX-XXX-X-XX-XXX-MKT.SLDDRW
BY:
KOLB
TSW-XXX-XX-XXX-X-XX-XXX
08/24/1988
SHEET
2
OF
6
REVISION DP
50
01
-1: .100[2.54] TERMINAL SPACING
(SAME AS FIG 1, DIFFERENT AS SHOWN)
02
01
03
01
03

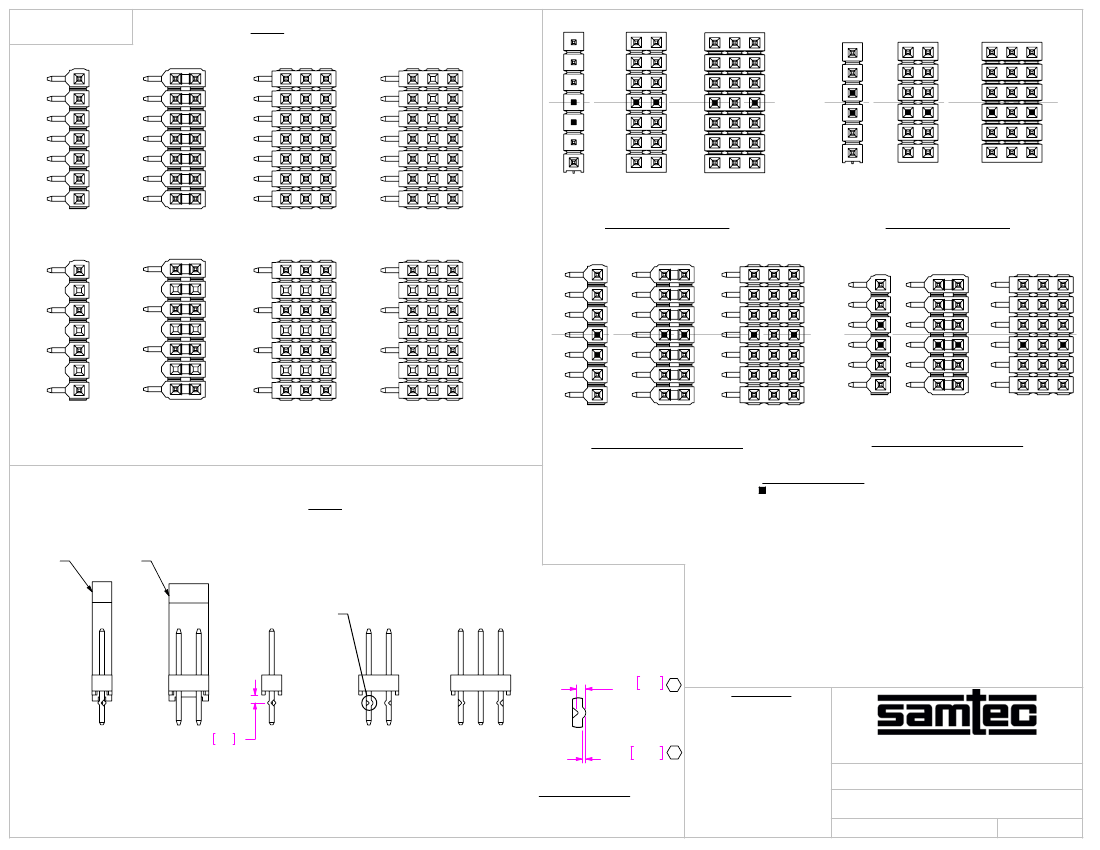

FIG 3
01
01
01
01
C
L
C
L
02
01
SINGLES
99
DOUBLES
100 148
TRIPLES
150 148
150
01
SINGLES
DOUBLES
TRIPLES
01
SINGLES
DOUBLES
TRIPLES
-Q:
(FILL OUTER ROWS ONLY)
03
01
04
03
STRAIGHT VERSION
ODD POSITIONS
01
01
STRAIGHT VERSION
EVEN POSITIONS
01
25
01
03
02
01
04
01
02
01
SINGLES
49
DOUBLES
50
73
TRIPLES
75
73
75
01
SINGLES
DOUBLES
ODD POSITIONS
TRIPLES
C
L
C
L
-Q:
(FILL OUTER ROWS ONLY)
01
SINGLES
DOUBLES
EVEN POSITIONS
TRIPLES
-2: .200[5.08] TERMINAL SPACING
RIGHT ANGLE VERSION
LOCKING LEAD
RIGHT ANGLE VERSION
LOCKING LEAD
(NOTE: END VIEWS SHOWN)
(SAME AS FIG 1, DIFFERENT AS SHOWN)
LTC-01
LTC-02
FIG 4
= CRIMP LOCATION
TWO CENTER MOST PINS TO BE CRIMPED.
ODD POSITIONS, CRIMP CENTER POSITION AND POSITION CLOSEST TO PIN ONE.
IF CRIMP POSITION IS POLARIZED, MOVE ONE POSITION TOWARDS PIN ONE.
SEE CRIMP DETAIL
.017 0.43
C
MIN
.04 1.0
SINGLE
-LC-LL
DOUBLE
-LC-LL
SINGLE STRAIGHT
-LL
DOUBLE STRAIGHT
-LL
TRIPLE STRAIGHT
-LL
.0080 0.203
C
(TYP)
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
CRIMP DETAIL
SCALE: 4:1
(TYP ALL CRIMPS)
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.025[0.64] SQ. POST TERMINAL STRIP ASSEMBLY
F:\DWG\MISC\MKTG\TSW-XXX-XX-XXX-X-XX-XXX-MKT.SLDDRW
BY:
KOLB
TSW-XXX-XX-XXX-X-XX-XXX
08/24/1988
SHEET
3
OF
6
REVISION DP

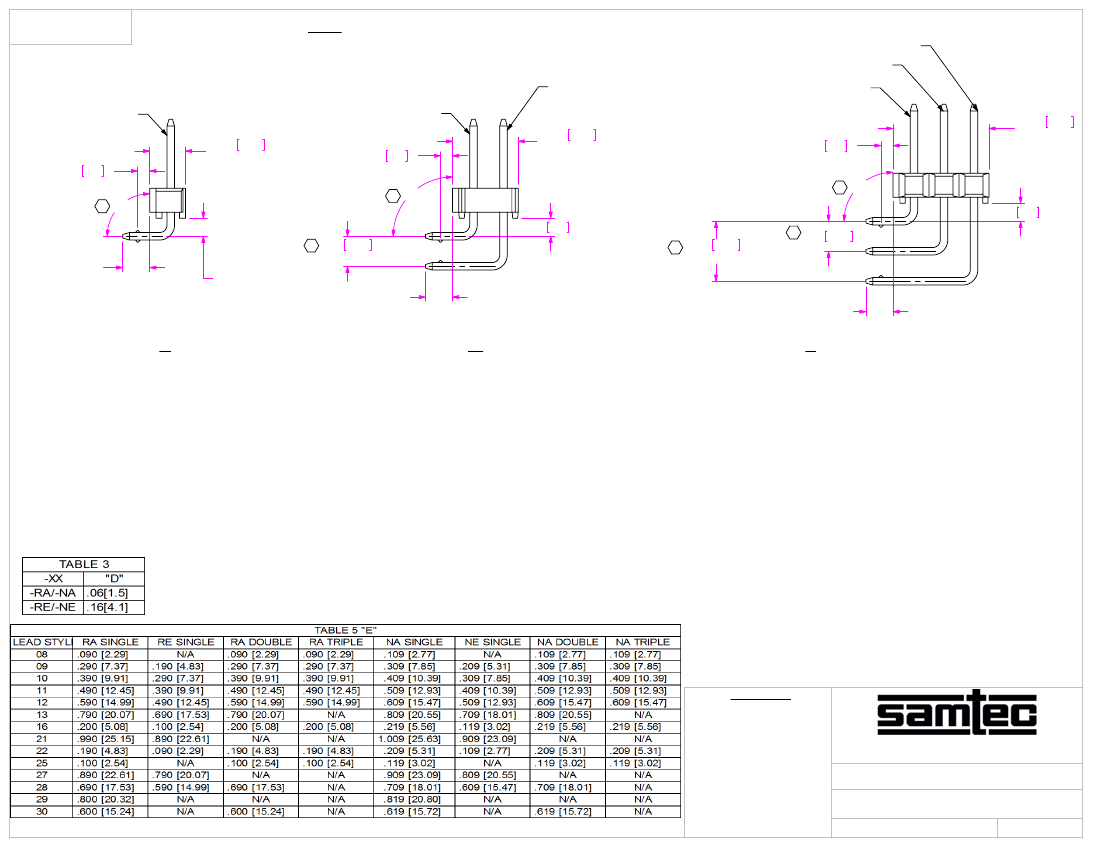

(RIGHT ANGLE)
(-LA OPTION IS SHOWN ON ALL RIGHT ANGLES
FOR DIMENSIONAL AND LOCATION PURPOSES.)
(SEE CRIMP DETAIL VIEW, SHT 3)
(SAME AS FIG 1, DIFFERENT AS SHOWN)
PIN #1
.119 3.02
REF
FIG 5
PIN #3
PIN #2
PIN #2
PIN #1
.320 8.13
REF
PIN #1
.04 1.0
C
90°
.219 5.56
REF
.04 1.0
C
90°
.04 1.0
C
90°
.06 1.5
.06 1.5
C
.100 2.54
(SEE NOTE 9)
"D"
(SEE TABLE 3)
"E" REF
(SEE TABLE 5)
C
.200 5.08
(SEE NOTE 9)
C
.100 2.54
"E" REF
(SEE TABLE 5)
"E" REF
(SEE TABLE 5)
-S
-D
-T
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
.025[0.64] SQ. POST TERMINAL STRIP ASSEMBLY
F:\DWG\MISC\MKTG\TSW-XXX-XX-XXX-X-XX-XXX-MKT.SLDDRW
BY:
KOLB
TSW-XXX-XX-XXX-X-XX-XXX
08/24/1988
SHEET
4
OF
6
REVISION DP
POST AREA
BANDOLIER (REF)
TAIL AREA
(SAME AS FIG 1, DIFFERENT AS SHOWN)

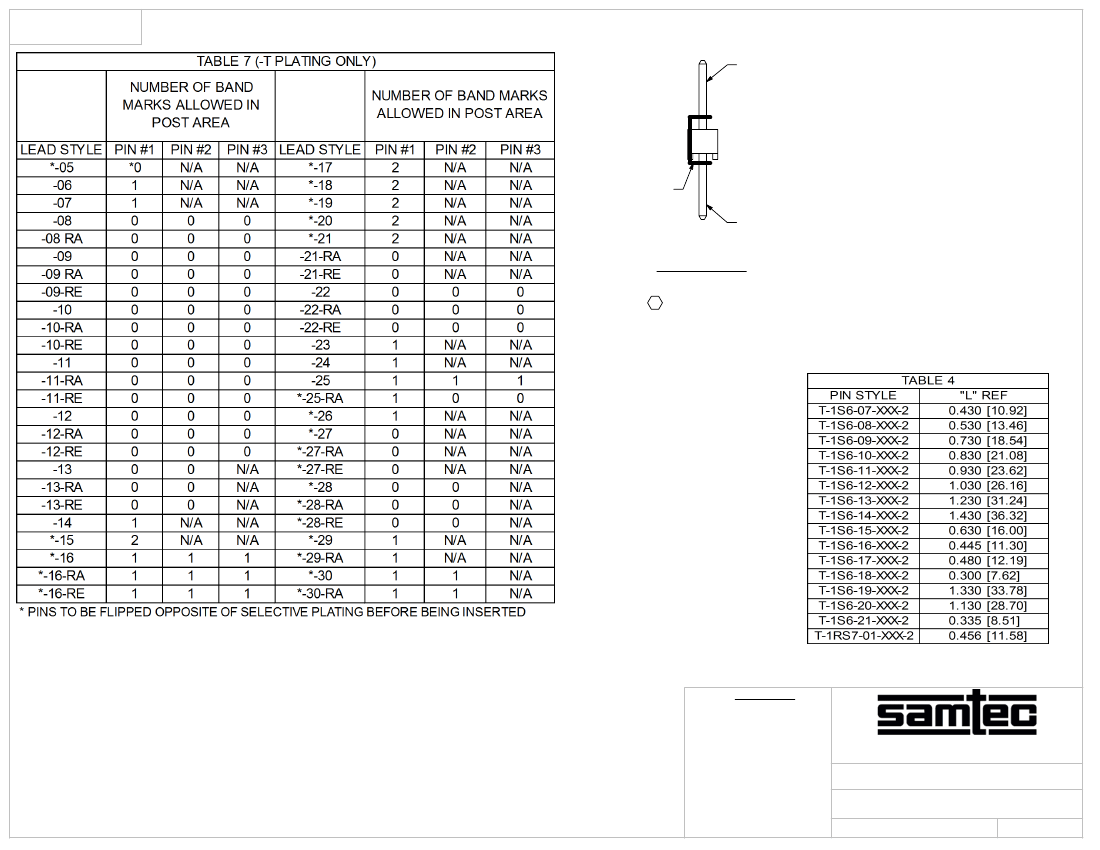

-T PLATING ONLY
C (SEE NOTE 11)
(SEE TABLE 7)
IN PROCESS 1
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
.025[0.64] SQ. POST TERMINAL STRIP ASSEMBLY
F:\DWG\MISC\MKTG\TSW-XXX-XX-XXX-X-XX-XXX-MKT.SLDDRW
BY:
KOLB
TSW-XXX-XX-XXX-X-XX-XXX
08/24/1988
SHEET
5
OF
6
