NTE74LS126A datasheet, PDF - EEWORLD Datasheet

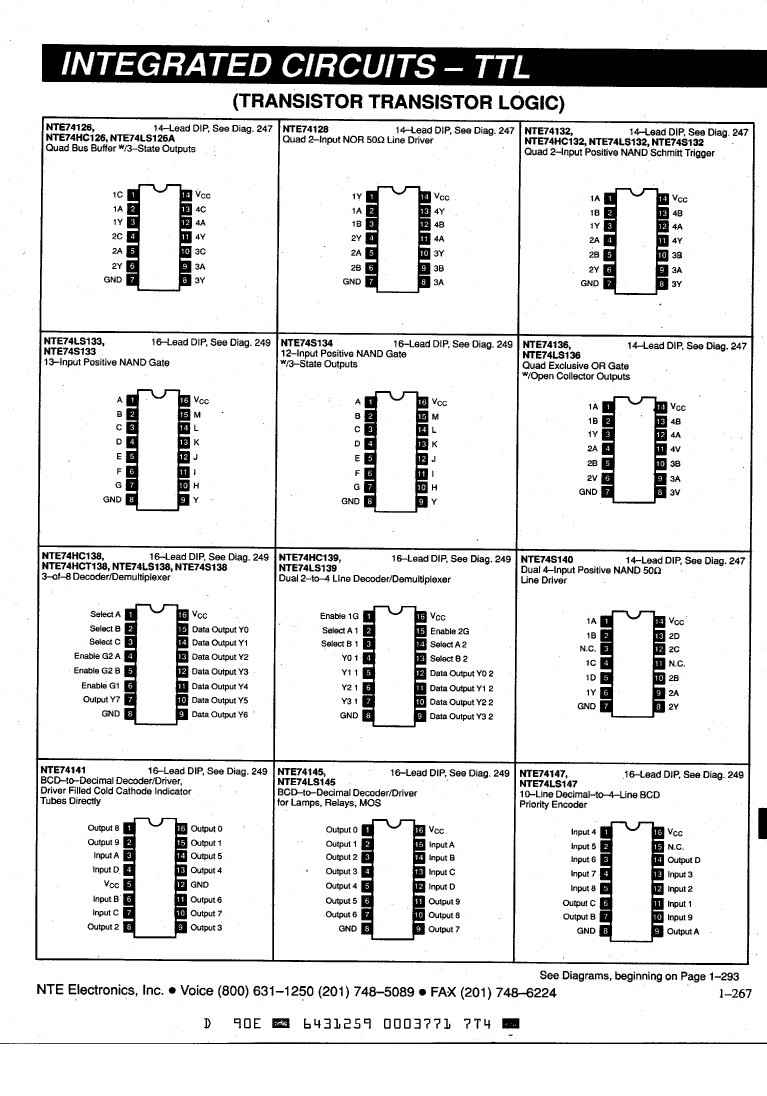

NTE74LS126A: DescriptionLogic Circuit,; Categorylogic logic; File Size52KB，1 Pages; ManufacturerNTE; Websitehttp://www.nteinc.com

Download Datasheet Parametric View All

NTE74LS126A Overview

Logic Circuit,

Parameter Name	Attribute value
Maker	NTE
package instruction	DIP,
Reach Compliance Code	unknown
Other features	LG_MAX
series	LS
JESD-30 code	R-PDIP-T14
length	19.95 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	1
Number of functions	4
Number of ports	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	18 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1
