Document No.: FT_000173

FT2232D DUAL USB TO SERIAL UART

/FIFO IC

Datasheet

Version 2.05

Clearance No.: FTDI# 127

Future Technology

Devices International Ltd

FT2232D

Dual USB to

Serial UART/FIFO IC

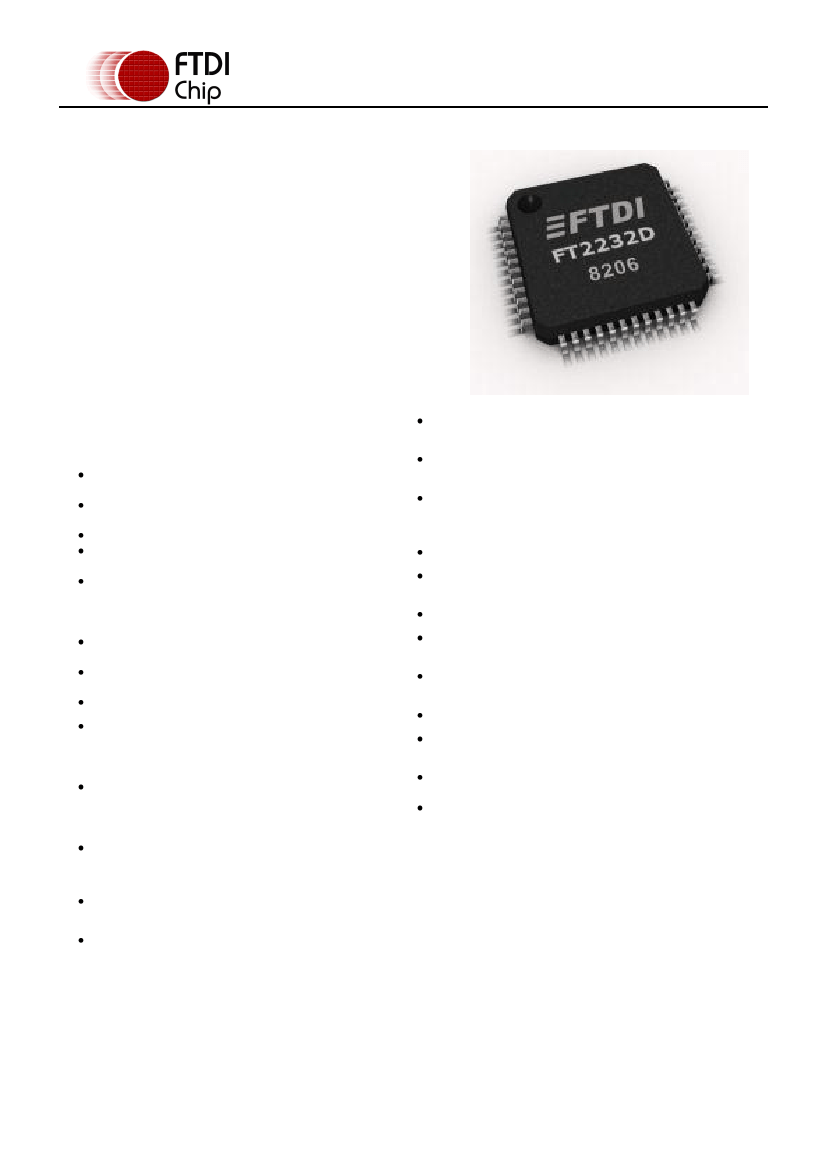

The FT2232D is a dual USB to serial UART or

FIFO interface with the following advanced

features:

Single chip USB to dual channel serial / parallel

ports with a variety of configurations.

Entire USB protocol handled on the chip. No

USB specific firmware programming required.

Transfer Data Rate 300 to 3 Mbaud.

USB to parallel FIFO transfer data rate up to 1

megabyte / second.

Multi-Protocol Synchronous Serial Engine

(MPSSE) to simplify synchronous serial

protocol (USB to JTAG, USB to I

C, USB to

SPI) design.

CPU-style FIFO interface mode simplifies CPU

interface design.

MCU host bus emulation mode configuration

option.

Fast Opto-Isolated serial interface option.

FTDI‟s royalty-free Virtual Com Port (VCP) and

Direct

(D2XX)

drivers

eliminate

the

requirement for USB driver development in

most cases.

Highly integrated design includes 3.3V LDO

regulator for USB I/O, integrated POR function

and on chip clock multiplier PLL (6MHz –

48MHz).

Asynchronous serial UART interface option with

full hardware handshaking and modem

interface signals.

Enhanced bit-bang Mode interface option with

RD# and WR# strobes.

Configurable I/O drive strength.

Neither the whole nor any part of the information contained in, or the product described in this manual, may be adapted or reproduced

in any material or electronic form without the prior written consent of the copyright holder. This product and its documentation are

supplied on an as-is basis and no warranty as to their suitability for any particular purpose is either made or implied. Future Technology

Devices International Ltd will not accept any claim for damages howsoever arising as a result of use or failure of this product. Your

statutory rights are not affected. This product or any variant of it is not intended for use in any medical appliance, device or system in

which the failure of the product might reasonably be expected to result in personal injury. This document provides preliminary

information that may be subject to change without notice. No freedom to use patents or other intellectual property rights is implied by

the publication of this document. Future Technology Devices International Ltd, Unit 1, 2 Seaward Place, Centurion Business Park,

Glasgow, G41 1HH, United Kingdom. Scotland Registered Number: SC136640

Fully assisted hardware

software handshaking.

X-On

X-Off

UART Interface supports 7/8 bit data, 1/2 stop

bits, and Odd/Even/Mark/Space/No Parity.

Operational configuration mode and USB

Description strings configurable in external

EEPROM over the USB interface.

Low operating and USB suspend current.

Supports bus powered, self powered and high-

power bus powered USB configurations.

UHCI/OHCI/EHCI host controller compatible.

USB

2.0

compatible.

Full

Speed

(12Mbits/Second)

Extended -40°C to 85°C industrial operating

temperature range.

Compact 48-LD Lead Free LQFP package

+4.35V to +5.25V single supply

voltage range.

operating

Dedicated Windows DLLs available for USB to

JTAG, USB to SPI, and USB to I

C applications.

ESD protection for FT2232D IO‟s:

Human Body Model (HBM) ±2kV,

Machine Mode (MM) ±100V,

Charge Device Model (CDM) ±500V,

Latch-up free..

Document No.: FT_000173

FT2232D DUAL USB TO SERIAL UART

/FIFO IC

Datasheet

Version 2.05

Clearance No.: FTDI# 127

Table of Contents

Typical Applications ........................................................................ 2

1.0

1.1

1.2

Driver Support .................................................................................... 2

Part Numbers...................................................................................... 2

USB Compliant .................................................................................... 3

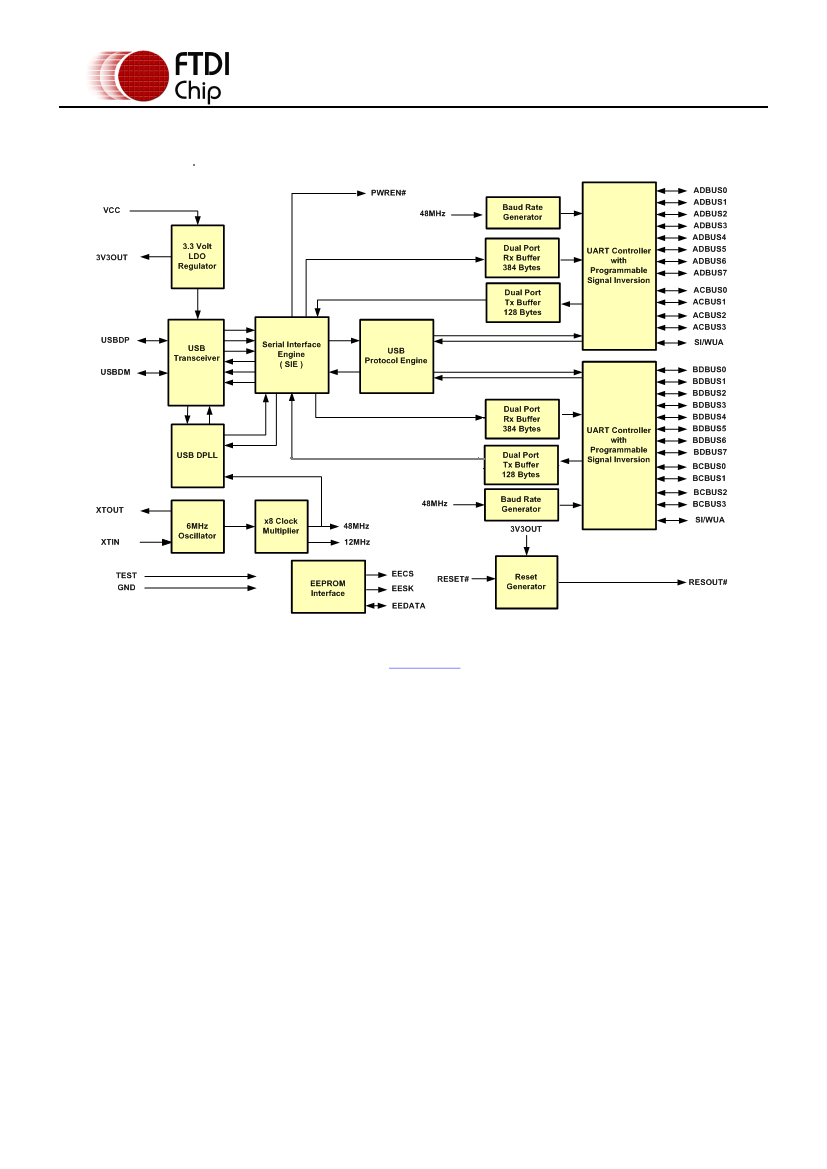

FT2232D Block Diagram .................................................................. 4

Device Pin Out and Signal Description ............................................ 7

3.0

3.1

3.2

3.3

3.4

48-Pin LQFP Package .......................................................................... 7

Pin Out Description ............................................................................. 8

Common Pins ...................................................................................... 8

IO Pin Definitions by Chip Mode .......................................................... 10

IO Mode Command Hex Values .......................................................... 12

Key Features ..................................................................................... 13

Functional Block Descriptions ........................................................... 15

Absolute Maximum Ratings............................................................... 16

DC Characteristics............................................................................. 17

ESD Tolerance ................................................................................... 20

USB Bus Powered Configuration ...................................................... 21

USB Self Powered Configuration ...................................................... 22

Interfacing to 3.3V Logic ................................................................... 23

Power Switching Configuration ......................................................... 25

Oscillator Configurations .................................................................. 27

EEPROM Configurations .................................................................... 29

Function Description ..................................................................... 13

4.0

4.1

Devices Characteristics and Ratings.............................................. 16

5.0

5.1

5.2

USB Power Configurations ............................................................ 21

6.0

6.1

6.2

6.3

Standard Device Configuration Examples ...................................... 27

7.0

7.1

8 Signal Descriptions by IO Mode and Interface Channel

Configurations .................................................................................... 31

8.0 232 UART Interface Mode Signal Descriptions and Interface

Configurations ........................................................................................... 31

8.1

232 UART Mode LED Interface ........................................................... 35

8.2 245 FIFO Interface Mode Signal Descriptions and Interface

Configurations ........................................................................................... 37

8.3

245 FIFO Mode Timing Diagram ........................................................ 38

8.4 Enhanced Asynchronous and Synchronous Bit-Bang Modes - Signal

Description and Interface Configuration .................................................... 40

V-EVAL-1 (JAP) Related Products
