S4x Series
Features
Sulfur Resistant Chip Resistor Arrays
Anti-Sulfur Design Structure
Leadless Surface Mount Construction
Concave or Convex Terminations
Solder Coated Nickel Barrier Pads
Isolated Circuit Configurations
Improved TCR Tracking vs. Discrete Resistors
Fewer Placements Than Discrete Components
Tape and Reel Packaging
RoHS Compliant in Accordance with EU Directive 2011/65/EU
- Lead-Free Termination Finish
- Exemption 7(c)-I, Electrical and electronic components containing
lead [Pb] in glass
Applications
Harsh Environments
Automotive Electronics
Medical Equipment
Communications/Networking
Portable Test Equipment
Pull-Up/Pull-Down Logic Gates
Image Processing
DDR SDRAM, MDDR, DRAM
Low Profile High Density Designs
Description
S4x Series Chip Arrays are designed to resist sulfurization which occurs in high-sulfur environments. Arrays are
typically used for convenience when several resistors occupy the same area in a layout. Multiple package sizes
and circuit configurations help save placement costs by reducing application component count.
Ordering Information
Model
S41X083
Resistor
Value
103
Resistor
Tolerance
J
RoHS
Compliant
P
Package Code
S40X043
S41X043
S41X083
S41C083
Package Code
S42C043
S42X083
S42C083
S42C163
Code Resistor Value *
10k ohm
103
* See Addendum for Standard
EIA Values and Codes
Code
J
G
F
X
Tolerance
±5%
1
±2%
2
±1%
3, 4
Zero Ohm
Code Termination
P Matte Sn Finish
Notes:
1.
2.
3.
4.
Standard tolerance is ±5% and available for all S40, S41 and S42 package codes; 3-digit resistor codes.
Optional tolerance at ±2% is available for all S41 and S42 package codes; 3-digit resistor codes.
Optional tolerance at ±1% is available for all S41, S42C043, S42X083 and S42C083 package codes; 3-digit resistor codes.
Consult factory for availability with S42C163 package code.
Not all performance combinations and resistor values may be available.
Contact your local CTS Representative or CTS Customer Service for availability.
This product is specified for use only in standard commercial applications. Supplier disclaims all express and implied warranties and liability in connection with any use
of this product in any non-commercial applications or in any application that may expose the product to conditions that are outside of the tolerances provided in its specification.
DOC# 008-0546-0 Rev. A
Page 1 of 6
©2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
Sulfur Resistant Chip Resistor Arrays
S4x Series
Ordering Information
Part Number Examples
Toleranc e /
Value
1 0 O hms
1 2 0 O hms
1 k O hms
6 8 k O hms
J
[±5 %]
S42C083100JP
S42C083121JP
S42C083102JP
S42C083683JP
3 -Digit Code
G
[±2 %]
S42C083100GP
S42C083121GP
S42C083102GP
S42C083683GP
F
[±1 %]
S42C083100FP
S42C083121FP
S42C083102FP
S42C083683FP
3-Digit Resistor Code
st
nd
rd
1 and 2 digits are resistor value, 3 digit is number of zeros.
Ex. 102 = 1,000 ohm = 1k ohm
Ex. 683 = 68,000 ohm = 68k ohm
Electrical & Environmental Specifications
Operating Conditions
P ac kage
S4 0
S4 1 X 0 4 3
S4 1 X 0 8 3
S4 1 C0 8 3
S4 2
P CB Area
P er Resistor
[Sq. Inc h]
0.0008
0.0015
0.0015
0.0015
0.0037
Circ uit
Type
Isolated
Isolated
Isolated
Isolated
Isolated
Resistanc e
Range
[ohm]
10 - 1M
10 - 1M
10 - 1M
10 - 1M
10 - 1M
±5% Std.
or
0.5 ohm
[whichever is greater]
-55°C to +125°C
±200ppm/°C
Resistanc e
Toleranc e
[%]
1
O perating
Temperature
Range
Temperature
Coeffic ient
+7 0 °C P ower
P er Resistor
[Watts]
0.031
0.063
0.031
0.03125
0.063
2
Maximum
O perating
Voltage
12.5V
50V
50V
50V
50V
Maximum
O verload
Voltage
25V
100V
100V
100V
100V
1. Standard product tolerance is ±5%. Reference Ordering Information for availability of ±2% and ±1% tolerances.
2. Total Rated Package Power equals total number of resistors times rated Power Per Resistor.
Derating Curve – Typical
With the rated ambient temperature set to +70°C, the maximum power [maximum current for 0Ω product] at a temperature of no more
than rated ambient temperature shall be equal to the rated power [rate current for 0Ω product]. The maximum power at a temperature
exceeding the rated ambient temperature shall be a value determined by reducing the rated power according to the power reduction
curve in the figure below.
100
Rated Power Ratio [%]
80
60
40
20
0
-55
0
+70
+125
Ambient Temperature [°C]
DOC# 008-0546-0 Rev. A
Page 2 of 6
©2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
Sulfur Resistant Chip Resistor Arrays
S4x Series
Electrical & Environmental Specifications
Rated Voltage
The rated voltage shall be the DC or AC [effective power frequency] voltage corresponding to the rated power and shall be determined
with the formula shown below. If the determined rated voltage exceeds the maximum operating voltage specified in Operating Conditions
table, the maximum operating voltage shall be the rated voltage.
E = Rated Voaltge [V]
E =
√
PxR

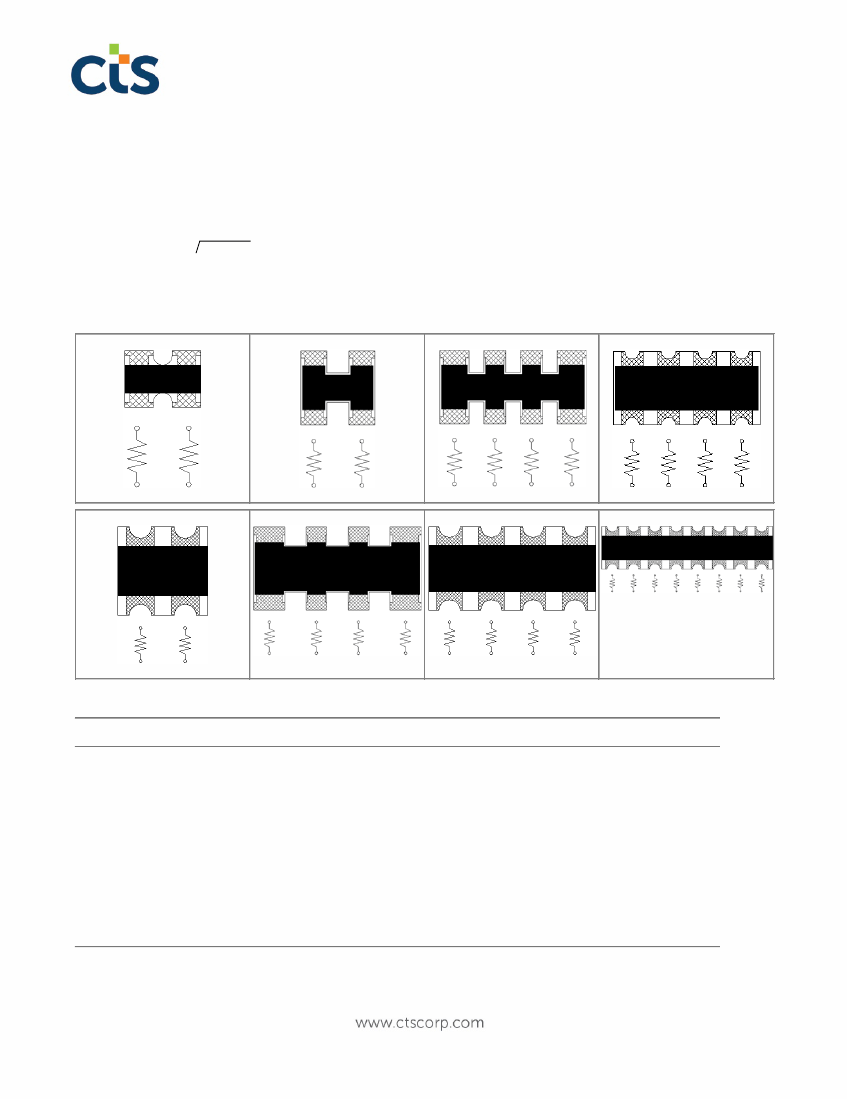

Circuit Types
S40X043
P = Rated Power [W]
R = Nomimal Resistance [Ω]
S41X043
S41X083
S41C083
2 Resistors
4 Terminations
S42C043
2 Resistors
4 Terminations
S42X083
4 Resistors
8 Terminations
S42C083
4 Resistors
8 Terminations
S42C163
2 Resistors
4 Terminations
4 Resistors
8 Terminations
4 Resistors
8 Terminations
8 Resistors
16 Terminations
Environmental Parameters
Test
Thermal Cyc le
Short Time O verload
Moisture Resistanc e, Steady State
Moisture Resistanc e, Rated Load
High Temperture Exposure
Load Life
Resistanc e to Solder Heat
Sulfuration-P roof Charac teristic s
Resistanc e to Solvents
Solderability
Maximum Delta R [%]
S4 0
S4 1
S4 2
1.0
2.0
1.0
3.0
3.0
3.0
1.0
5.0
---
---
1.0
2.0
1.0
3.0
3.0
3.0
1.0
5.0
---
---
1.0
2.0
1.0
3.0
3.0
3.0
1.0
5.0
---
---
Test Desc ription
5 cycles -55°C to +125°C, 30 minute dwell time
2½ times rated working voltage for 5 seconds
1,000 hours, no load, +40°C, 90% - 95% R.H.
1,000 hours, +40°C, 90% - 95% R.H., rated voltage
90 minutes on/30 minutes off, 1,000 cycles
1,000 hours, no load, +125°C
1,000 hours @ +70°C, rated load
10 seconds @ +260°C solder
5,000 hours, +50°C, 90% - 95% R.H., H
2
S Gas [3ppm]
Dip in Isopropyl alcohol @ +25°C for 60 seconds
RMA Flux, +245°C, 2 seconds dip, 95% coverage
DOC# 008-0546-0 Rev. A
Page 3 of 6
©2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
Sulfur Resistant Chip Resistor Arrays
S4x Series
Mechanical Specifications

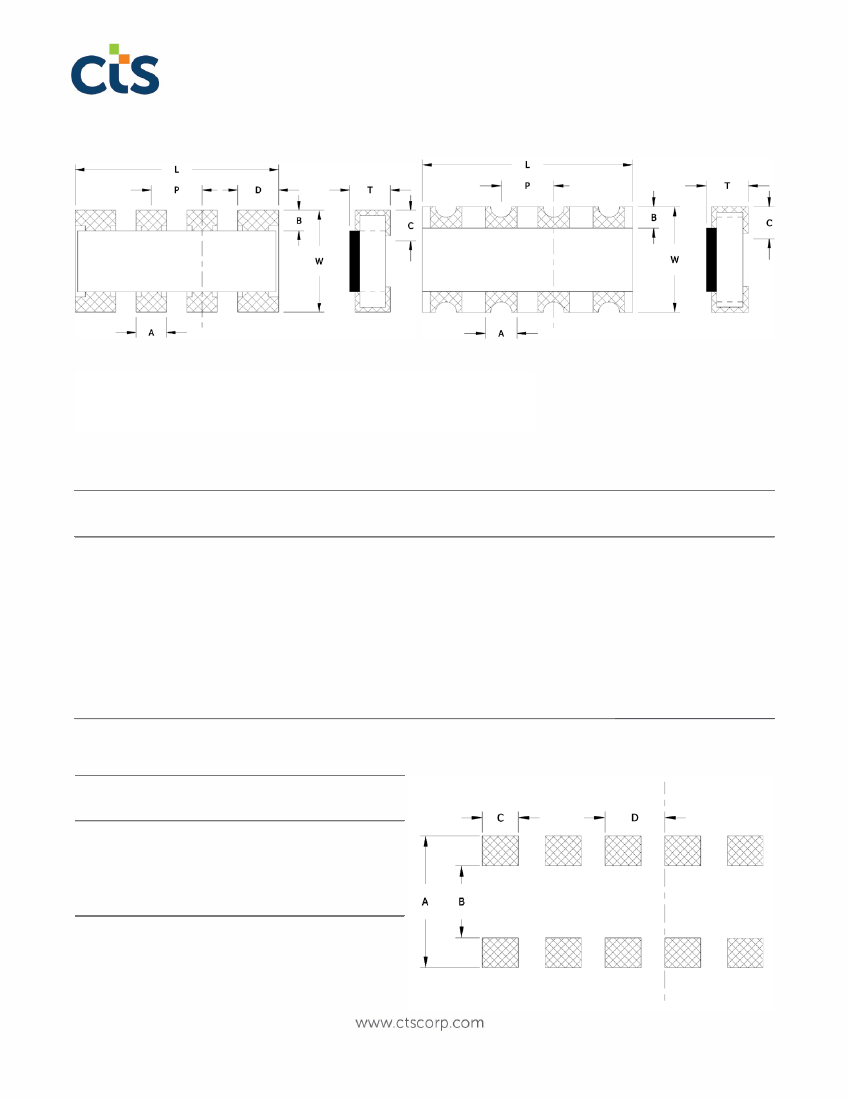

Package Drawing – Convex, Type X
Package Drawing – Concave, Type C
Notes
1. JEDEC termination code (e3). Barrier-plating is nickel [Ni] with Matte tin [Sn] finish.
2. Reflow conditions per JEDEC J-STD-020; +260°C maximum, 20 seconds.
3. MSL = 1.
Package Configuration/Dimensions
P ac kage
Code
S4 0 X 0 4 3
S4 1 X 0 4 3
S4 1 X 0 8 3
S4 1 C0 8 3
S4 2 C0 4 3
S4 2 X 0 8 3
S4 2 C0 8 3
S4 2 C1 6 3
Resistor Size/ Termination
# Resistors
Configuration
P ads
0201 X 2
0402 X 2
0402 X 4
0402 X 4
0603 X 2
0603 X 4
0603 X 4
0603 X 8
4
4
8
8
4
8
8
16
2
2
4
4
2
4
4
8
Circ uit
Type
Isolated
Isolated
Isolated
Isolated
Isolated
Isolated
Isolated
Isolated
Dimensions
[mm]
L
0.85 ±0.05
1.00 ±0.20
2.00 ±0.20
2.00 ±0.10
1.60 ±0.15
3.20 ±0.10
3.20 ±0.15
6.40 ±0.20
W
0.60 ±0.05
1.00 ±0.20
1.00 ±0.15
1.00 ±0.10
1.60 ±0.15
1.60 ±0.10
1.60 ±0.15
1.60 ±0.20
P
[Typ.]
0.50
0.65
0.50
0.50
0.80
0.80
0.80
0.80
T
0.35 ±0.05
0.35 ±0.05
0.35 ±0.10
0.35 ±0.10
0.45 ±0.10
0.50 ±0.10
0.45 ±0.10
0.45 ±0.15
A
N/A
N/A
0.30 ±0.15
0.28 ±0.10
N/A
0.40 ±0.15
0.50 ±0.15
0.50 ±0.15
B
0.11 ±0.05
0.20 ±0.15
0.20 ±0.15
0.20 ±0.10
0.35 ±0.15
0.30 ±0.20
0.35 ±0.15
0.35 ±0.15
C
0.17 ±0.05
0.25 ±0.10
0.20 ±0.15
0.28 ±0.10
0.40 ±0.15
0.25 ±0.15
0.40 ±0.15
0.40 ±0.15
D
0.37 ±0.05
0.33 ±0.15
0.40 ±0.15
N/A
0.50 ±0.15
0.60 ±0.15
N/A
N/A
Recommended Pad Layout
P ac kage
Code
S4 0
S4 1 X 0 4 3
S4 1 X 0 8 3
S4 1 C0 8 3
S4 2
Dimensions
[mm]
A
0.90
1.60
1.80
1.80
3.00
B
0.30
0.50
0.60
0.45
0.80
C
0.30
0.40
0.25
0.30
0.50
D
0.50
0.65
0.50
0.50
0.80
DOC# 008-0546-0 Rev. A
Page 4 of 6
©2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
Sulfur Resistant Chip Resistor Arrays
S4x Series
Mechanical Specifications
Marking Information
P ac kage
Code
S4 0 X 0 4 3
S4 1 X 0 4 3
S4 1 X 0 8 3
S4 1 C0 8 3
S4 2 C0 4 3
S4 2 X 0 8 3
S4 2 C0 8 3
S4 2 C1 6 3
J, G & F
Toleranc e
E-2 4 Value
1 Dot
1 Dot
2 Dots
2 Dots
1 Dot
2 Dots 3-Digits
2 Dots 3-Digits
3-Digits
Marking
Color
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow

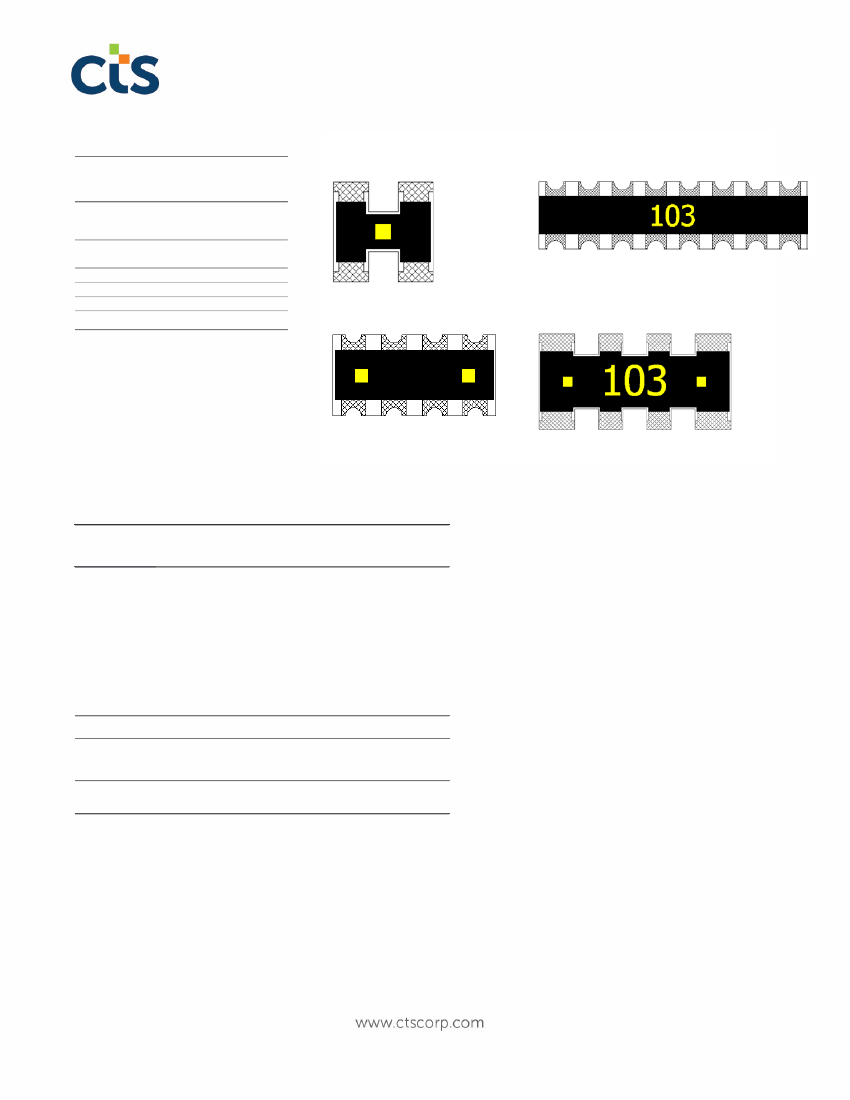

Marking Examples
1 Dot
3-Digits
2 Dots
2 Dots 3-Digits
Packaging
Tape and Reel Information
TAP E
DETAILS
P oc ket Length
1mm
P oc ket Width
0.7mm
P oc ket P itc h
Tape Width
Material
2mm
8mm
Paper
S4 0 X 0 4 3
S4 1 X 0 4 3
S4 1 X 0 8 3
S4 1 C0 8 3
1.14mm
2.2mm
2.2mm
1.14mm
1.2mm
1.25mm
2mm
8mm
Paper
S4 1 X 0 4 3
S4 1 X 0 8 3
S4 1 C0 8 3
7"
10,000
S4 2 C0 4 3
S4 2 X 0 8 3
S4 2 C0 8 3
1.85mm
3.5mm
3.57mm
1.85mm
2mm
2mm
4mm
8mm
Paper
S4 2 C0 4 3
S4 2 X 0 8 3
S4 2 C0 8 3
7"
5,000
S4 2 C1 6 3
6.9mm
2mm
4mm
12mm
Plastic
REEL
DETAILS
Diameter
P arts P er Reel
S4 0 X 0 4 3
7"
10,000
S4 2 C1 6 3
7"
4,000
DOC# 008-0546-0 Rev. A
Page 5 of 6
©2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
