EVFT170EN10KJE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> EVFT170EN10KJE

EVFT170EN10KJE: Descriptionres chas mnt 10k ohm 5% 160w; CategoryPassive components The resistor; File Size422KB，2 Pages; ManufacturerOhmite; Websitehttps://www.ohmite.com; Environmental Compliance

Download Datasheet Parametric View All

EVFT170EN10KJE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EVFT170EN10KJE	-	-	View	Buy Now

EVFT170EN10KJE Overview

res chas mnt 10k ohm 5% 160w

EVFT170EN10KJE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Ohmite
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Installation features	CHASSIS MOUNT
Number of terminals	2
Package shape	TUBULAR PACKAGE
Rated power dissipation(P)	160 W
Rated temperature	25 °C
resistance	10000 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	WIRE WOUND
Temperature Coefficient	260 ppm/°C
Terminal shape	LUG
Tolerance	5%
Operating Voltage	2100 V
Base Number Matches	1

Preview

Download Datasheet

View All

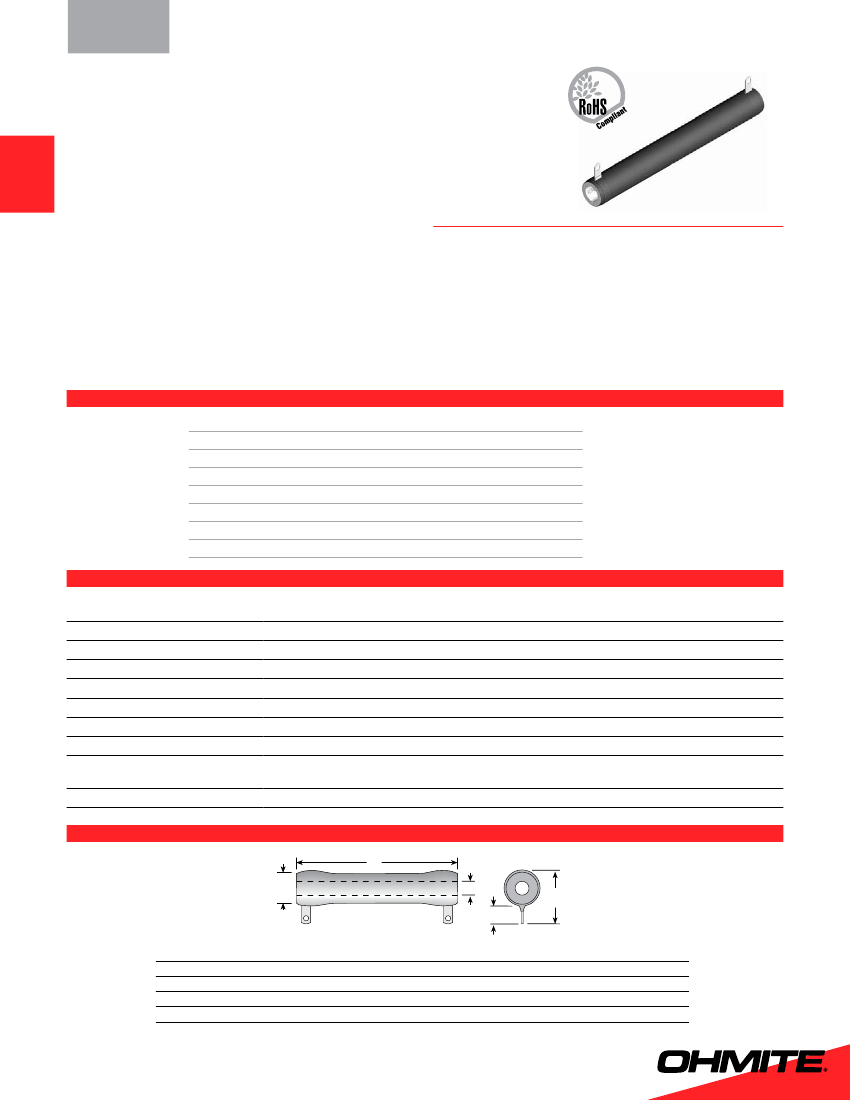

wIrewound

Tubular

Euro-Power

Wirewound Series

HIgH

Power

Vitreous Enamel Power

Select Euro series fixed resistors for applications

requiring wattage ratings from 72 to 1000 watts.

Suitable for rugged applications, Euro-Power resis-

tors are spot welded producing stronger mechani-

cal and electrical connections. The vitreous enamel

coating was specifically developed and provides

protection against moisture and mechanical damage.

Euro-Power resistors are equipped with lug termi-

nals suitable for soldering or sturdy bolt connection.

Mounting brackets not included with resistors.

F E AT u R E S

• Terminals suitable for soldering or bolt connection

• High wattage applications

• Rugged lead free virtreous enamel coating

• Flame resistant coating

• All-welded construction

• "Live" mounting option

S E R I E S S P E C I F I C AT I O N S

Series

Wattage

EVFT119

EVFT170

160

EVFT252

280

ESFT375

700

EVRT170

200

EVRT252

350

ESRT375

1000

Ohms

0.4Ω-250K

0.5Ω-100K

0.2Ω-125K

0.2Ω-200K

0.10-18Ω

0.22-33Ω

0.33-56Ω

Voltage

1400

2100

3300

5000

Construction

Round wire

Ribbon wire

Non-Inductive

versions avail-

able; Other sizes

available; Also

available in low

cost Centohm or

Silicone coating;

Consult Ohmite.

ChARACTERISTICS

Coating

Lead free vitreous enamel. Very large models (700 watts and up) are supplied in Silicone Ceramic. Also

available in low-cost Centohm coating; Consult factory.

Core

Tubular ceramic.

Terminals

solder coated radial lug with RoHS composition solder

Derating

Linearly from 100% @ +25°C to 0% @ +350°C.

Tolerance

±5% 1Ω and over (J); ±10% under 1Ω (K)

Power rating

Based on 25°C free air rating.

Overload

10 times rated wattage for 5 seconds.

Temperature coefficient

1 to 20Ω: ±400 ppm/°C; Above 20Ω: ±260 ppm/°C; Ribbon wire: 400ppm/°C

Dielectric withstanding voltage

1000 VAC: 72 to 160 watt rating. 3000 VAC: 280 to 700 watt rating (Measured from terminal to mount-

ing bracket)

To calculate max. amps

use the formula √P/R

S O l d E R TA b d I M E N S I O N S

(mm)

H ref.

Wattage

Round wire Ribbon wire

160

700

280

200

350

N/A

170

375

252

119

20.3

25.5

51.0

30.6

12.4

27.9

17.5

9.2

H ref.

14.3

15.9

19.1

J max.

39.4

45.9

74.1

54.1

Core Code

J max.

1000
