15 Watt -2.56x3 Inch - Package E - 2:1 Input Range
S P E C I F I C AT I O N S
All Specifications Typical At Nominal Line, Full Load, and 25°C Unless Otherwise Noted
2/3
INPUT SPECIFICATIONS
Input Voltage Range
Input Filter
2:1
Pi Type
OUTPUT SPECIFICATIONS
Single & Dual +Output
Dual -Output
Triple 5V Output
Triple 12V/15V Output
±1% max.
±3% max.
±2% max.
±3% max.
±1% max.
<500 µsec.
±10%
10 mV RMS max.
75 mV p-p max.
±0.02%/°C max.
Continuous
Single & Dual Output
Triple Output
Single & Dual Output
Triple Output
±0.2% max.
±1.0% max.
±1.0% max.
±5.0% max.
Voltage Accuracy
Voltage Balance, Dual Output at Full Load
Transient Response
Single, 25% Step Load Change
Dual, Full Load to Half Load ±1% Error Band
External Trim Adj. Range
Ripple and Noise, 20MHz BW
Temperature Coefficient
Short Circuit Protection
Line Regulation
1)
Load Regulation
2)
1. Line Regulation measured from High Line to Low Line.
2. Load Regulation measured from Full Load to 1/4 Load.
GENERAL SPECIFICATION
Efficiency
Isolation Voltage
Isolation Resistance
Switching Frequency
Operating Temperature Range
Case Temperature
Storage Temperature Range
Cooling
Derating >+71°C
EMI/RFI
Dimensions
Case Material
MTBF (MIL-HDBK-217F)
see table
500 VDC min.
1000 Mohms
200 kHz
-25°C to +71°C
+100°C max.
-55°C to +105°C
Free Air Convection
-3.5%/°C
Six-Sided Continuous Shield
2.56 x 3.0 x 0.83 Inches (65 x 76.2 x 21.1 mm)
Black Coated Copper with Non-Conductive Base
min. 606.000 hrs
M + R Multitronik GmbH
Kaninchenbergweg 78 • 23564 Lübeck • Germany
Tel. (+49) 0451 - 60 99 50 • Fax (+49) 0451 - 60 46 95
www.multitronik.com
info@multitronik.com
vertrieb@mrmultitronik.de
15 Watt -2.56x3 Inch - Package E - 2:1 Input Range
S P E C I F I C AT I O N S
All Specifications Typical At Nominal Line, Full Load, and 25°C Unless Otherwise Noted
3/3

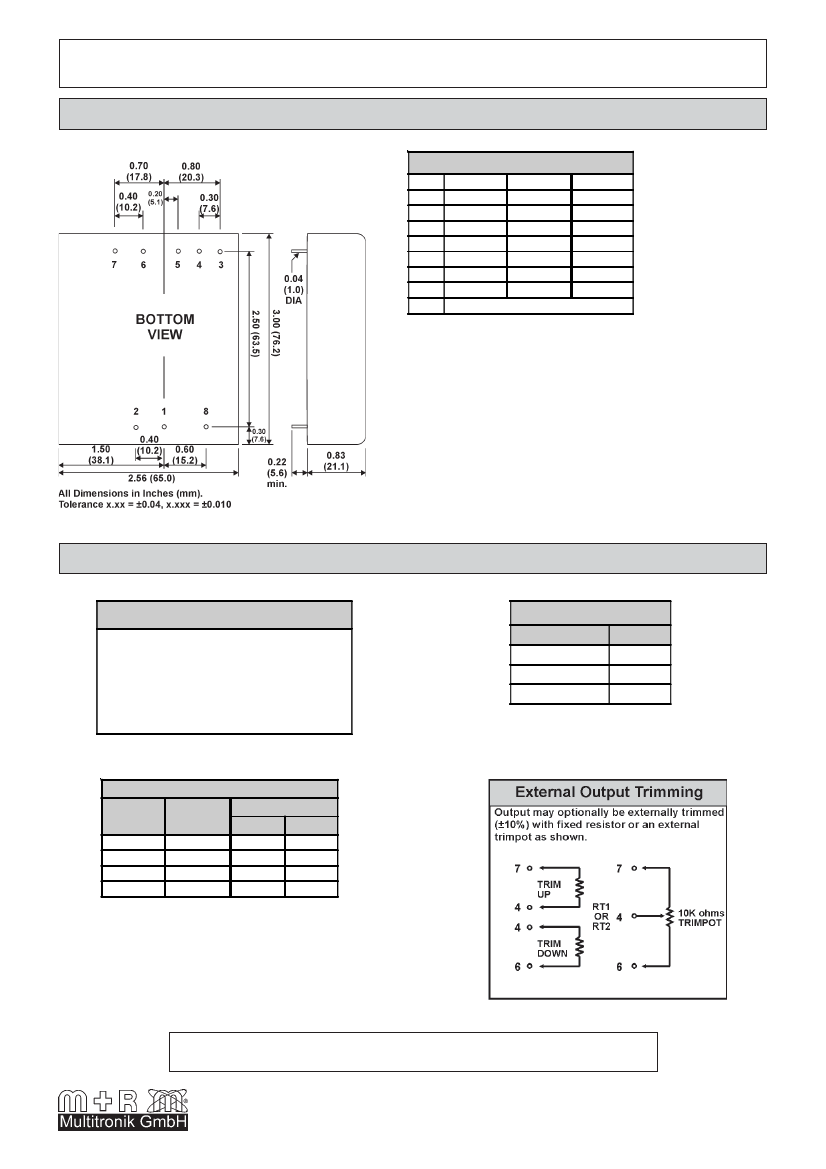

MECHANICAL SPECIFICATIONS
CASE "E"
PIN
1
2
3
4
5
6
7
8
PIN CONNECTIONS
SINGLE
+INPUT
-INPUT
NO PIN
OUTPUT TRIM
NO PIN
+OUTPUT
-OUTPUT
DUAL
+INPUT
-INPUT
+OUTPUT
COMMON
-OUTPUT
NO PIN
NO PIN
TRIPLE
+INPUT
-INPUT
+OUTPUT
COMMON
-OUTPUT
+5V OUTPUT
NO PIN
REMOTE ON/OFF CONTROL
APPLICATION NOTES & DIAGRAMS
REMOTE ON/OFF CONTROL
Logic Compatibility
Ec-ON
Ec-OFF
Shutdown Idle Current
Control Common
CMOS or Open Collector TTL
>+5.5VDC or Open Circuit
<1.8VDC
10mA
Referenced to Input Minus
OVER VOLTAGE PROTECTION
OUTPUT VOLTAGE
5VDC
12VDC
15VDC
O.V.P.
6.8V
15V
18V
TRIPLE OUTPUT LOADING
1)
OUTPUT
(PIN NO.)
6
3&5
3&5
3&5
AMPERES
VOLTAGE
MIN.
2)
+5 VDC
±12 VDC
±15 VDC
+12 & -5 VDC
0.25 A
0.10 A
0.10 A
0.10/0.10 A
NOM.
1.5 A
0.31 A
0.25 A
0.31/0.50 A
NOTE:
1) Maximum total power from all outputs is limited to 15 watts but no output
should be allowed to exceed its maximum current.
2) Minimum current on each output is required to maintain specified
regulation.
N O T I C E:
The information in this document has been carefully checked. However, no responsibility is assumed for inaccuracies!
Specifications can be changed without notice. The latest and most complete information can be found on our website.
M + R Multitronik GmbH
Kaninchenbergweg 78 • 23564 Lübeck • Germany
Tel. (+49) 0451 - 60 99 50 • Fax (+49) 0451 - 60 46 95
www.multitronik.com
info@multitronik.com
vertrieb@mrmultitronik.de
