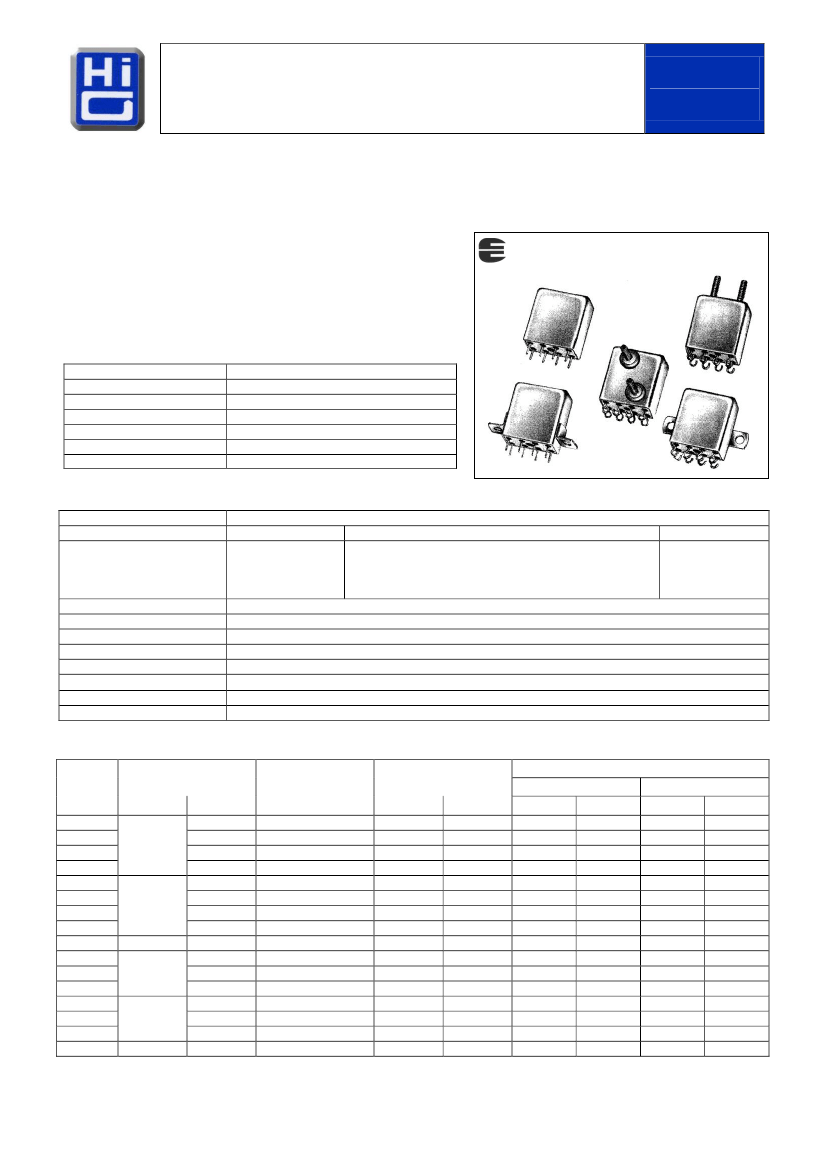

FULL SIZE CRYSTAL CAN RELAY
Series
3 AMPERE DPDT
2B-6660
Product Description
This standard size crystal can hermetically sealed relay series, offers switching capability of low level signals up to 3 amperes under the
most extreme environmental conditions, manufactured and qualified to the referenced CECC specifications.
The following construction features ensure the highest reliability in extreme environments:
-
All welded relay construction
-
Cleaning and sealing techniques ensures maximum internal cleanliness
-
Low level to 3 amperes switching
CECC 16101 – 008
-
2 form C, DPDT contacts, special metal alloy with gold plating
Series Type
-
2B-6660
2 form C, DPDT
Environmental and Physical Specifications
Temperature (Ambient)
Shock
Vibration (sinusoidal)
Bump
Sealing
Weight
Finish
- 65°C to + 125°C
50 g, 11 ms., half sine wave
20 g, 10 to 2000 Hz, 1,5 amplitude peak
40 g, 6 ms.
All welded, Hermetic
0,70 oz. (20,0 grams) max.
Bright tin lead plated terminals and case
Electrical Characteristics
(over the Temperature range. Unless otherwise noted)
Coil Data
Contact Rating
(Note: All ratings with grounded
case)
See Typical Characteristics chart
Type Load
Contact Load
Low Level
10 mA / 30 mV
Resistive
3 A / 28 Vdc
Overload
6 A / 28 Vdc
Inductive
0,75 A / 28 Vdc (200 mH)
0,05
max. initial, 0,2
max. after life
Cycles min.
1.000.000
100.000
100
100.000
Contact Resistance
Operate Time
Release Time
Contact Bounce
Dielectric Strength
Insulation Resistance
Intercontact Capacitance
Sensitivity
6,5 ms. max. at 25°C
3,0 ms. max. at 25°C
3,0 ms. max. at 25°C
1.000 Vrms min., 60 Hz, all points, at sea level
1.000 M min. all points at 500 Vdc
2,5 pF typical
250 mW at pick-up, 1,2 W max., at nominal rated coil voltage, at 25 °C
Typical Characteristics
Coil
Variant
Code
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
Coil Voltage
Vdc
Rated
Max.
6,0
7,0
7,2
7,2
7,3
14,0
14,4
14,7
14,4
32,0
32,0
32,0
30,0
55,0
57,6
58,0
90,0
Coil resistance
10% at 25°C
30
35
40
44
145
160
194
200
675
675
675
700
2300
2450
2500
5000
Operate Voltage
V dc Max. at
25°C
125°C
-
3,6
3,1
-
-
6,3
-
7,2
14,4
-
13,0
-
-
28,3
25,0
35,0
5,0
-
-
4,2
10,0
-
8,9
-
-
18,0
-
22,0
40,0
-
-
-
Release Voltage Vdc
Non-release at
Must-release at
25°C
125°C
25°C
-65°C
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
2,5
-
-
-
5,0
-
-
-
-
14,0
-
12,0
20,0
-
-
-
-
0,30
0,50
-
-
0,75
-
0,60
1,2
-
1,5
-
-
2,4
2,5
3,0
0,4
-
-
0,14
0,8
-
0,32
-
-
1,5
-
1,5
2,9
-
-
-
12,0
24,0
26,5
48,0
76,0
High Generation S.r.l.
Tel: + 39 06 96873136
Fax: + 39 06 94443060
42
REV. 0/2012
FULL SIZE CRYSTAL CAN RELAY
Series
3 AMPERE DPDT
2B-6660

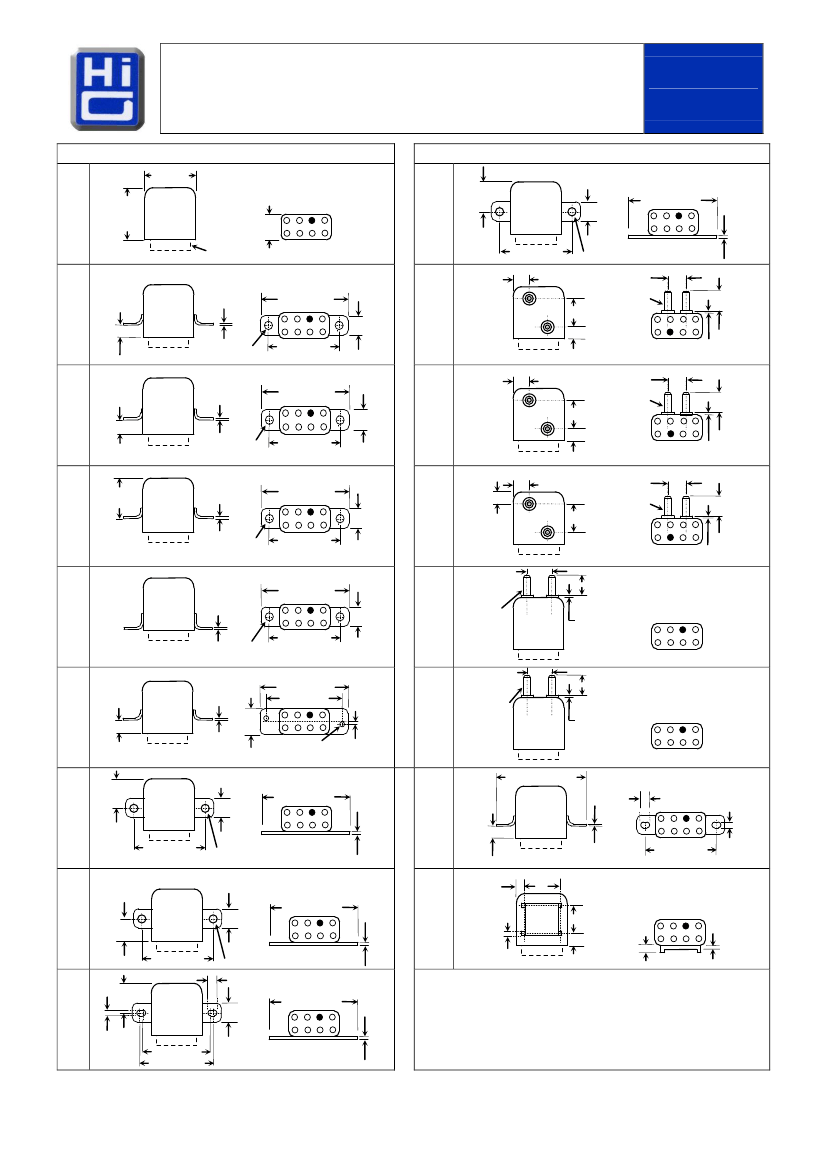

Terminal Variants
01
02
03
04
05
06
.200
(5,08)
.190
(4,82)
.187 (4,75)
± .020 (0,50)
.124 (3,15)
± .001 (0,25)
max.
1.500
(38,0)
min.
3.0 (76,0)
min.
.250
(6,35)
.200 (5,08) Typ.
Note:
- Dimensions are shown in inches (millimetres)
- Terminal diameter is .030 (0,76) + .003 (0,07) – .002 (0,05)

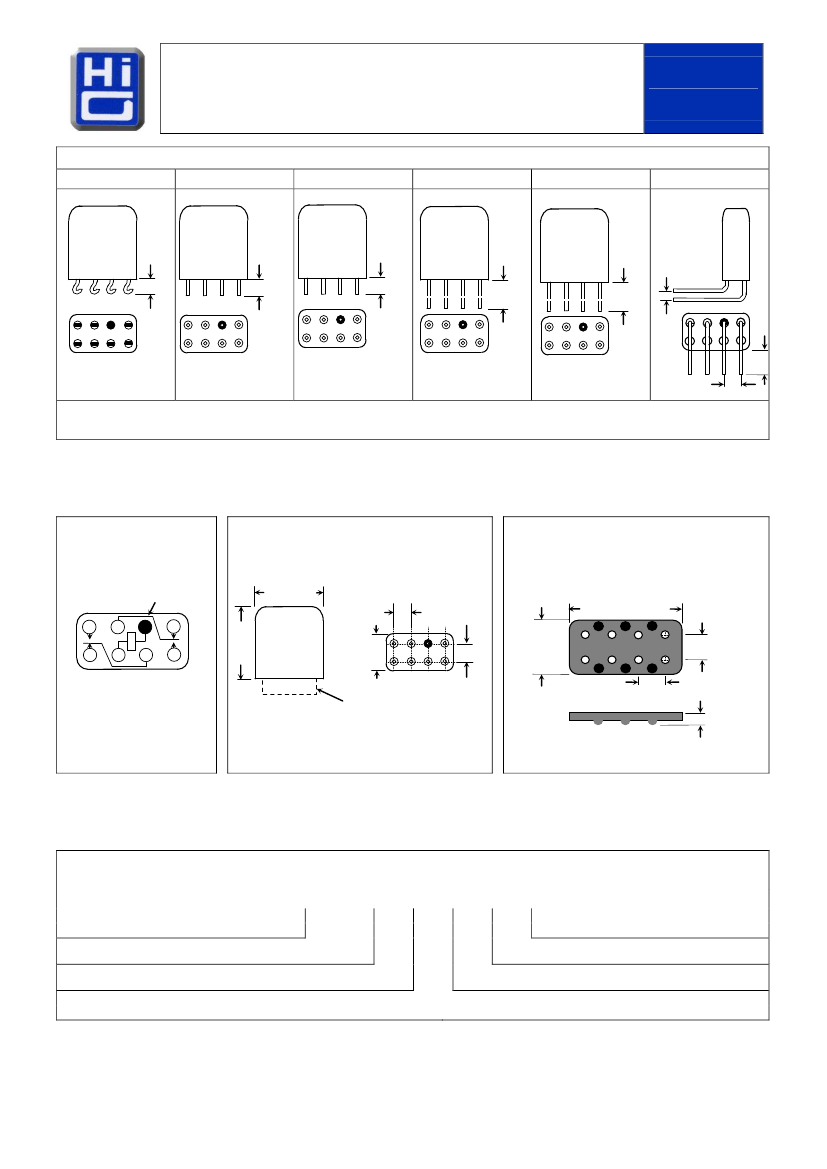

Schematic Diagram
Outline Dimensions
Spacer Pad
Relays can be supplied with a spacer pad epoxied to the
relay header, to prevent the possible shorting of printed
circuit board land lines and to facilitate circuit board
cleaning.
.200 (5,08) Typ.
.200
(5,08)
Blue Bead
.900
(22,86)
max.
.810 (20,57)
max.
.805 (20,45) max.
.400
(10,16)
max.
.200 (5,08)
Typ.
.410 (10,41)
max.
.200 (5,08)
Typ.
Terminal Variants
Note:
- Schematics are viewed from
terminals
.055
(1,40)
max.
Note:
- Dimensions are shown in inches (millimetres)
Note:
- Dimensions are shown in inches (millimetres)
How to Order
CECC 16101
CECC Specification No.
Type Code (CECC registration No.)
Coil Variant Code
- 008 - 16 - 09 - 01
P
Spacer Pad (optional)
Terminal Variant
Mounting Variant
High Generation S.r.l.
Tel: + 39 06 96873136
Fax: + 39 06 94443060
44
REV. 0/2012
