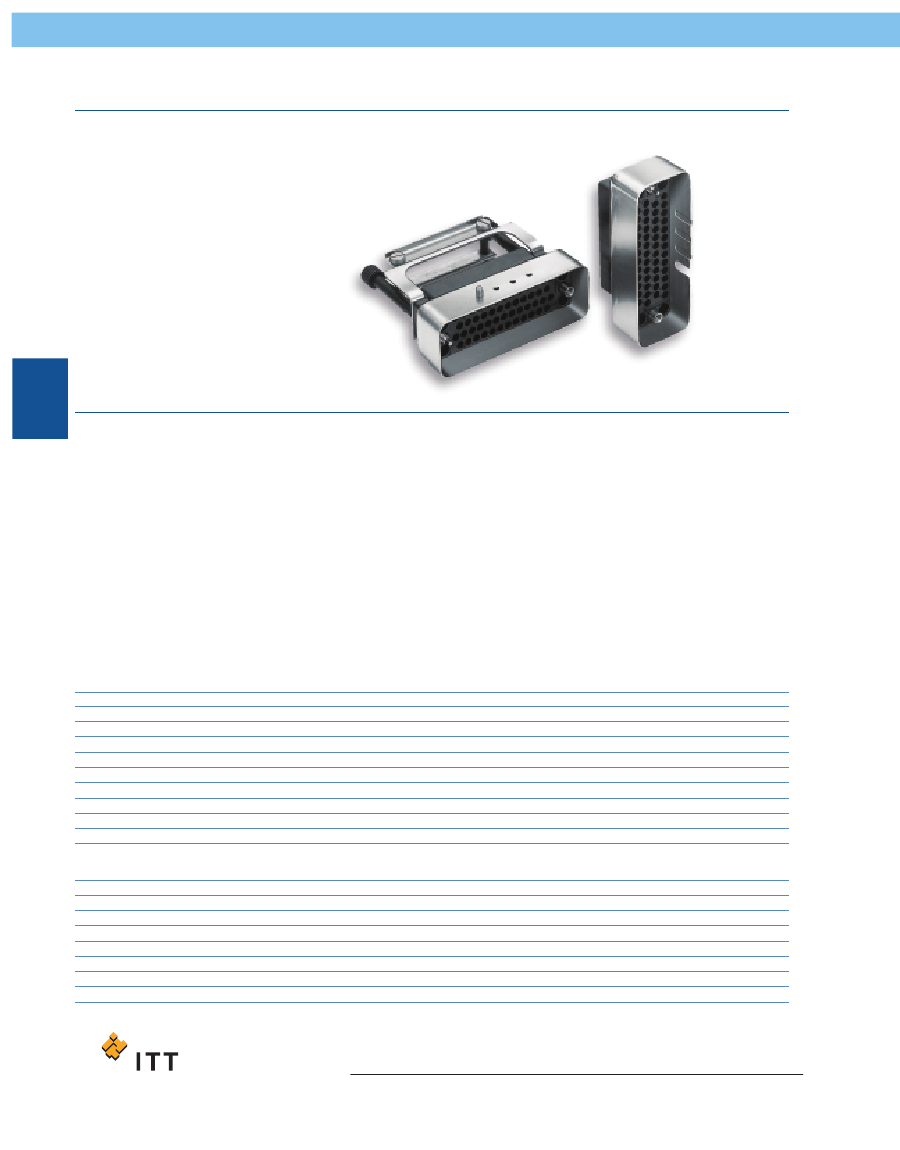

Cannon Trident Connector System
The Multiway Range has six plan forms
available and offers an extremely reliable,
robust and versatile connector system, in
which any of the Trident signal or coaxial
contacts can be used.
Multi Rack & Panel Connectors
Applications:
•
Inflight entertainment systems.
•
Rail equipment.
•
Test equipment.
Multiway
Rack & Panel
Product Features
•
Fully tested to MIL-STD-202 and now
IEC 512.
•
Wide range of accessories, jacking and
mounting hardware.
•
Polarizing between connectors available,
by contact position, use of shrouds or
additional guide pin and socket sets.
•
Recognized under the component
program of UL Inc. and CSA.
•
Complete range of contact options
available, see page 47.
Performance Specifications
Temperature Range
Test Voltage
Insulation Resistance
Flammability
Rated Current
-55°C to 125°C (-67°F to 257°F), Plastic Hood
assemblies limited to 105°C (221°F)
200 V ac rms for 60 seconds
5000 MV min. at 500 V dc
UL 94V-0 (Insulators), UL 94V-1
(Plastic Hoods)
Dependent on choice of contact and
application (usually limited by cable
bundle factor)
Materials and Finishes
Description
Insulator
Intermating Hardware
Jackscrew Knobs
Cable Clamps
Pin Protection Shrouds, 14-34 Way
Pin Protection Shrouds, 50 & 75 Way
Formed Hoods
Plastic Hoods
Die Cast Hoods
Material
Glass-Filled Phenolic
Brass and Stainless Steel
Thermoplastic
Stainless Steel
Aluminum
Stainless Steel
Aluminum
Unfilled Thermoplastic - PPO
Zinc Alloy
Finish/Treatment
—
—
—
—
Anodized
—
Anodized
—
Grey Paint
Test Data
Test Description
Test Voltage
Insulation Resistance
Vibration
Shock
Humidity
Corrosion (Salt Spray)
Dry Heat
IEC Test
512-2 Test 4a
512-2 Test 3a
512-4 Test 6d
512-4 Test 6c
512-6 Test 11c
512-6 Test 11f
512-6 Test 11i
Military Standard
MIL-STD-202
MIL-STD-202
MIL-STD-202
MIL-STD-202
MIL-STD-202
MIL-STD-202
MIL-STD-202
Test Method
301
302
204, Condition A
213
103, Condition C
101, Condition B
108A, Condition D
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
www.ittcannon.com
16
Cannon Trident Connector System

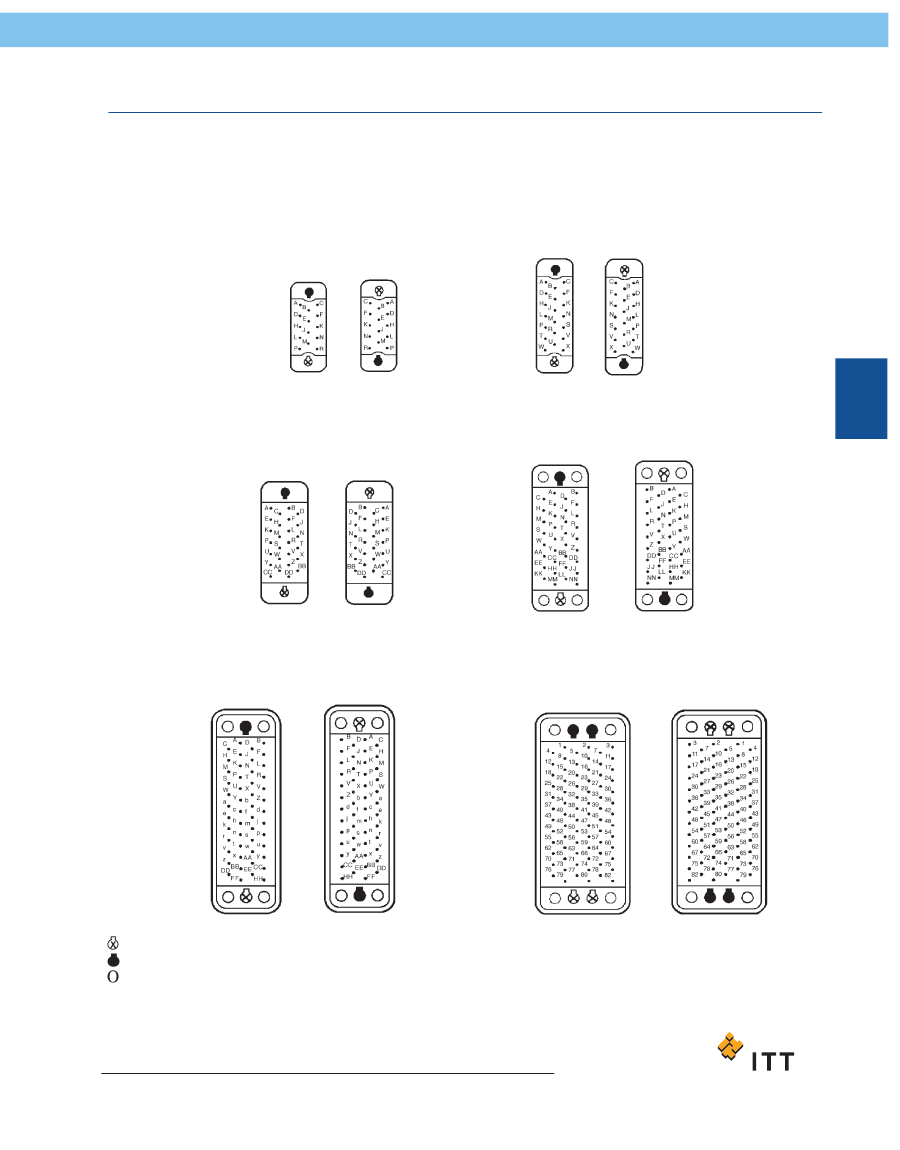

Contact Cavity Arrangements — Mating Face View
14 Way
Plug
Receptacle
Multi Rack & Panel Connectors
20 Way
Plug
Receptacle
26 Way
Plug
Receptacle
34 Way
Plug
Receptacle
50 Way
Plug
Receptacle
75 Way
Plug
Receptacle
KEY
= Guide pin or male jack screw
= Guide socket or female jack screw
= Fixing holes can be fitted with additional
guide pins and sockets for discrimination
www.ittcannon.com
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
17
Multiway
Rack & Panel
Cannon Trident Connector System
How to Order
Multi Rack & Panel Connectors
Multiway
Rack & Panel
Series Prefix
TM – Trident Multiway
Contact Arrangement
or Accessory
16, 22, 28, 36, 52, 77
A – Accessory
Contact Type
P – Plug
R – Receptacle
Hardware Style
N – Normal Hardware
R – Reversed Hardware
Style Selector
See Hardware Selection Guide,
page 19.
Series Identification
1 – For all items in this
publication
Shroud Polarizing Code
leave blank, if not required.
Contact Cannon for other options.
For more information, please
contact your local Cannon sales
office.
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
www.ittcannon.com
18
Cannon Trident Connector System

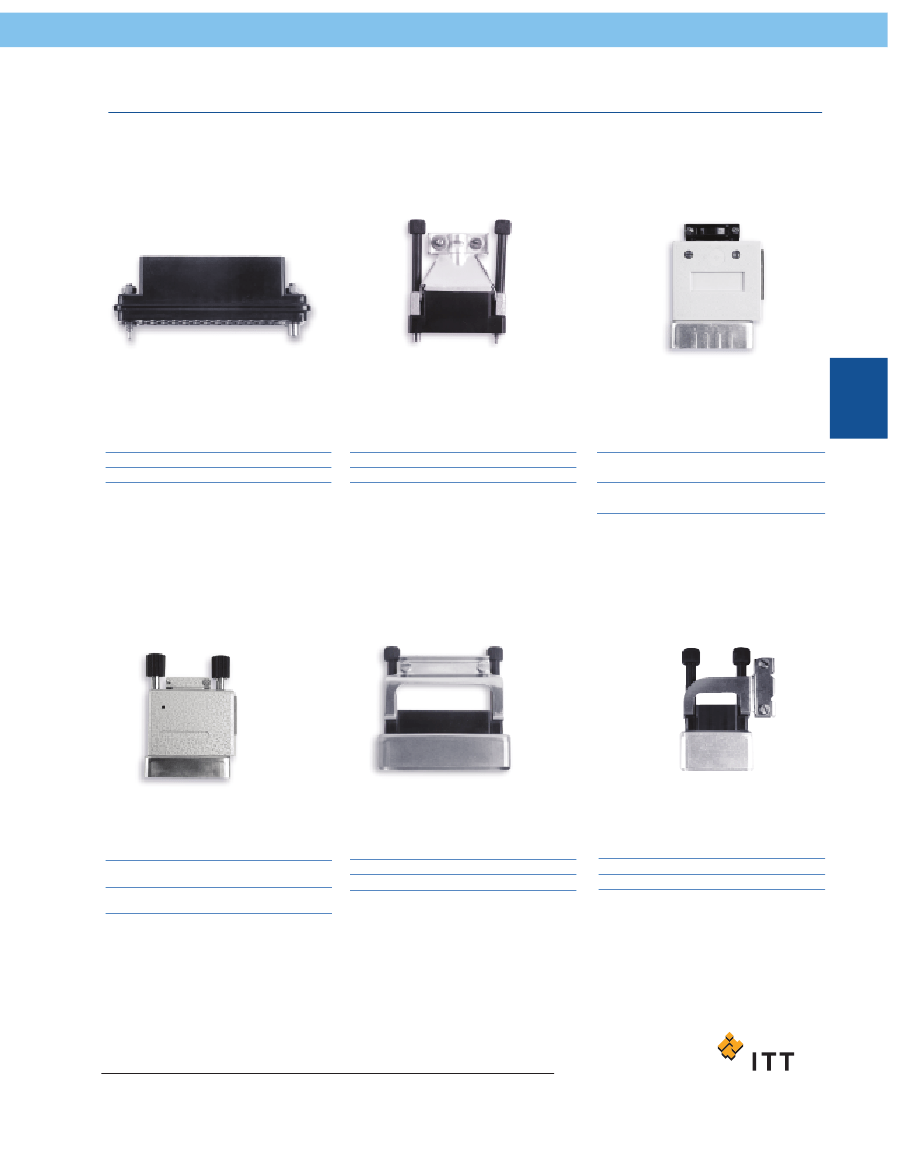

Style Selector — Hardware Selection Guide
Plain, No Accessories
Formed Hood
Multi Rack & Panel Connectors
Plastic Hood
•
Specify receptacle first.
Plug or Receptacles
Jackscrews
007
207
Guide Pins
& Sockets
001
201
Plugs
Jackscrews
No Shrouds
150
Shrouds
250
Guide Pins
& Sockets
120
220
•
Jackscrews available on 34 Way only.
Plugs
Jackscrews
No Shrouds
155
(34 Way Only)
Shrouds
255
(34 Way Only)
Guide Pins
& Sockets
159
(14, 20, 26, & 34 Way Only)
259
(14, 20, 26, & 34 Way Only)
No Shrouds
Shrouds
Note:
1. Connectors with Jackscrews will not mate with
connectors with Guide Pins or Sockets.
2. Normal Hardware: Plugs have rotating
jackscrews.
3. Reversed Hardware: Receptacles have rotating
hardware.
Note:
1. Connectors with Jackscrews will not mate with
connectors with Guide Pins or Sockets.
2. Normal Hardware: Plugs have rotating
jackscrews.
3. Reversed Hardware: Receptacles have rotating
hardware.
Note:
1. Connectors with Jackscrews will not mate with
connectors with Guide Pins or Sockets.
2. Normal Hardware: Plugs have rotating
jackscrews.
3. Reversed Hardware: Receptacles have rotating
hardware.
Die-Cast Hood
Straight Cable Clamp
90° Cable Clamp
Plugs
Plugs
Plugs
Guide Pins
& Sockets
180
280
Reversed
Standard
Cable Exit to Left
Cable Exit to Right
Guide Pins
Guide Pins
Jackscrews & Sockets Jackscrews & Sockets
No Shrouds
Shrouds
Jackscrews
157
(50 & 75 Way Only)
257
(50 & 75 Way Only)
Guide Pins
& Sockets
N/A
N/A
Jackscrews
No Shrouds
118
Shrouds
218
No Shrouds 138
Shrouds
238
136
236
137
237
135
235
Note:
1. Connectors with Jackscrews will not mate with
connectors with Guide Pins or Sockets.
2. Normal Hardware: Plugs have rotating
jackscrews.
3. Reversed Hardware: Receptacles have rotating
hardware.
Note:
1. Connectors with Jackscrews will not mate with
connectors with Guide Pins or Sockets.
2. Normal Hardware: Plugs have rotating
jackscrews.
3. Reversed Hardware: Receptacles have rotating
hardware.
Note:
1. Connectors with Jackscrews will not mate with
connectors with Guide Pins or Sockets.
2. Normal Hardware: Plugs have rotating
jackscrews.
3. Reversed Hardware: Receptacles have rotating
hardware.
www.ittcannon.com
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
19
Multiway
Rack & Panel
Note: Shown without Pin Protection Shroud.
Note: Shown without Pin Protection Shroud.
