Type R, R/2, R/3 and R Extended Male Connectors
DIN 41612

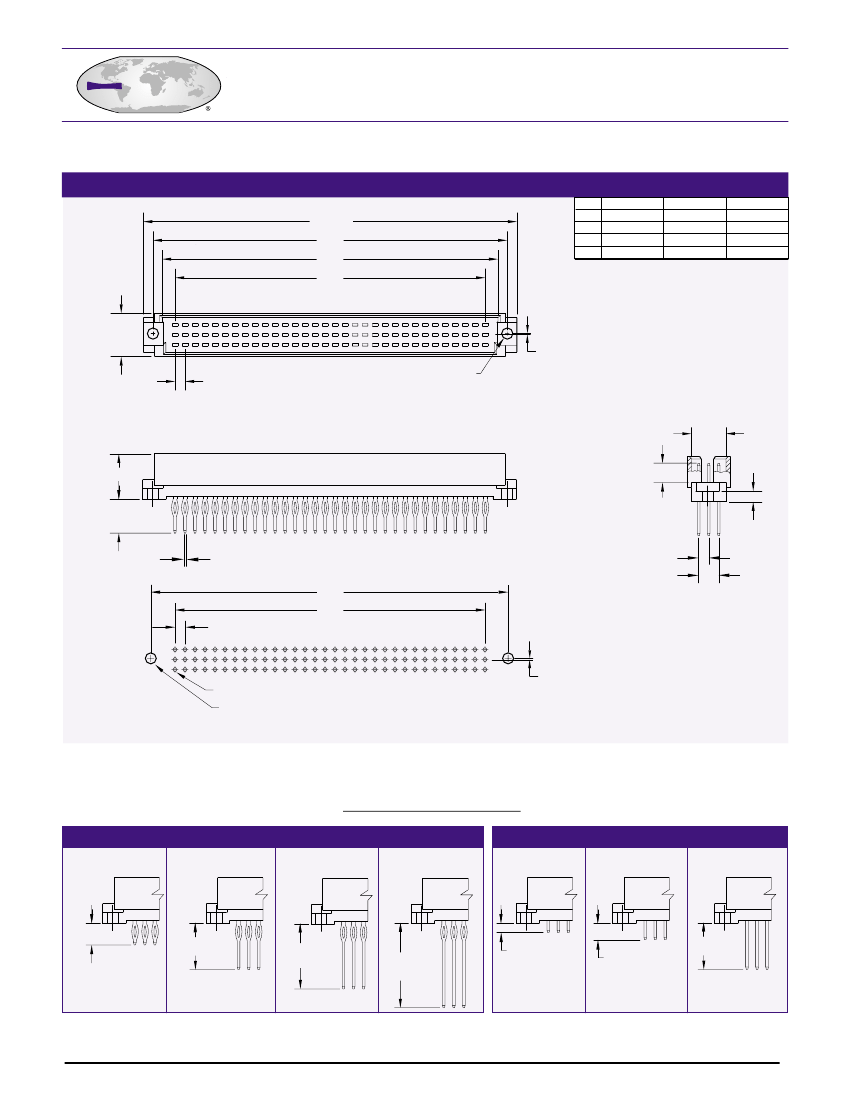

Type R (96 Positions), R Extended (120 and 150 Positions)
D max.
C
B
A
Dim.
A
B
C
D
96 Positions 120 Positions 150 Positions
78.74 [3.100]
85.20 [3.354]
90.00 [3.543]
95.00 [3.740]
99.06 [3.900]
105.51 [4.154]
110.31 [4.343]
115.32 [4.540]
124.46 [4.900]
130.91 [5.154]
135.71 [5.343]
140.72 [5.540]
11.10
[.437 ]
Ø 2.80 [.110]
1a
1b
1c
0.30 [.012]
2.54 [.100] Typical
8.71
[.343]
11.60 [.457]
4.80 [.189]
2.90 [.114]
TAIL LENGTH
2.54 [.100]
.64 [.025] Typical
5.08 [.200]
C
A
2.54 [.100] Typical
1a
1b
1c
0.30 [.012]
Ø 1.02 [.040]
Ø 2.80 [.110]
Recommended P. C. Board Layout
Dimensions are in mm [inches]
TAIL LENGTH OPTIONS
Press Fit
Solder and Wire Wrap
1
2
3
4
5
6
7
4.67 [.184]
13.00
[.512]
17.0
[.669]
20.90
[.823]
2.90 [.114]
4.50 [.177]
13.00
[.512]
WWW.ECSCONN.COM

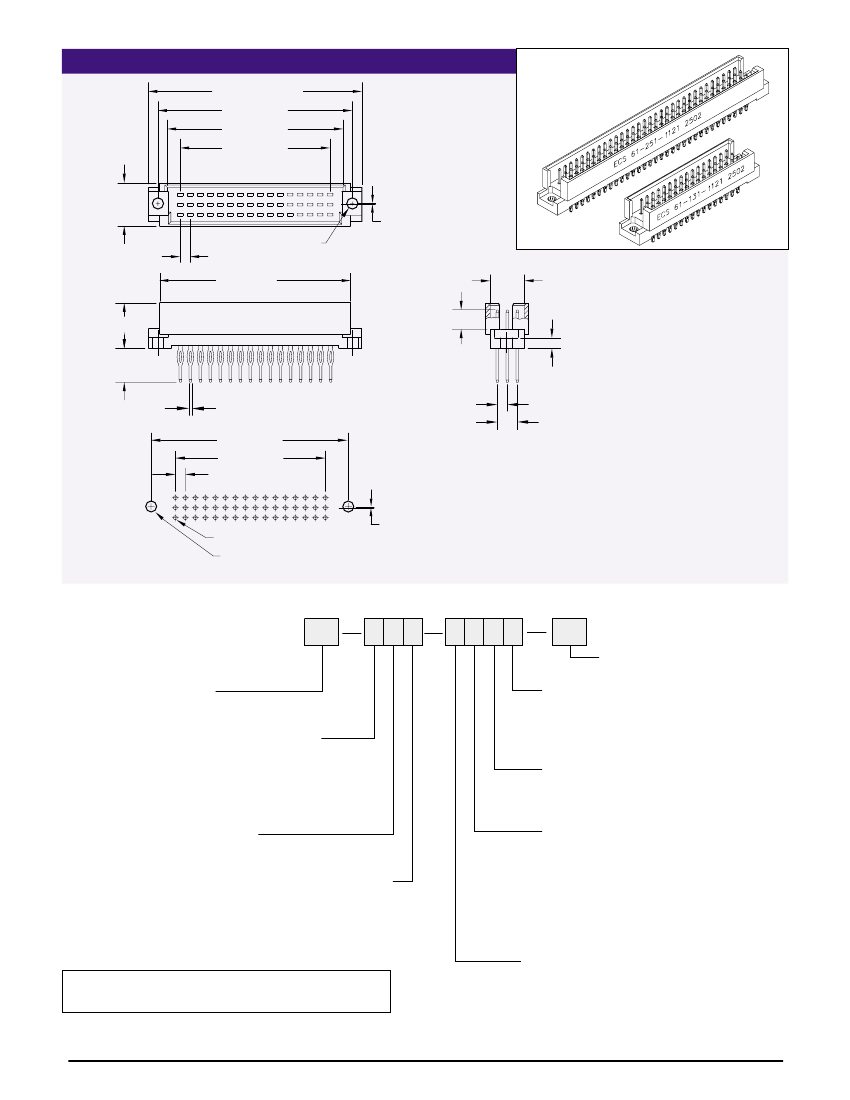

Type R/2, 48 Positions
55.00 [2.165] max
50.00 [1.969]
44.60 [1.756]
38.10 [1.500]
11.10
[.437 ]
Ø
2.80 [
.110
]
1a
1b
1c
0.30 [.012]
2.54 [.100] Typical
46.74 [1.840]
8.71
[.343]
4.80 [.189]
2.90 [.114]
TAIL LENGTH
11.60 [.457]
.64 [.025] Typical
2.54 [.100]
5.08 [.200]
50.00 [1.969]
38.10 [1.500]
2.54 [.100] Typical
1a
1b
1c
0.30 [.012]
Ø 1.02 [.040]
Recommended P. C. Board Layout
Ø 2.80 [.110]
Dimensions are in mm [inches]
PART NUMBERING
61
XXX
XX XX
XX
SERIES CODE
Type R, R/2, R/3 and R Extended
0
= R/3 (30 positions) not shown
1
= R/2 (48 positions)
2
= R (96 positions)
3
= R Extended (150 positions)
4
= R Extended (120 positions)
NO. CONTACT POSITIONS
1
= Class 1
2
= Class 2
3
= Class 3
MATING AREA PLATING
TAIL LENGTH
1
= Tin Lead
2
= Gold flash (.200" from pin tip)
3
= Gold plate 30µ” (.200" from pin tip)
4
= Gold plate 15µ” (.200" from pin tip)
TAIL PLATING
MC
= Mounting Clip
Blank
= No Mounting Clip
NUMBER OF CONTACTS
0
= 30
1
= 16
2
= 32
3
= 48
4
= 64
5
= 96
6
= 150
7
= 120
1
= Row A, B, and C fully populated
2
= Row A and B fully populated, Row C not populated
3
= Row A and C fully populated, Row B not populated
4
= Row B and C fully populated, Row A not populated
Consult Factory for other Loading Options
CONTACT ARRANGEMENT
1
= 4.67 [.184]
2
= 13.00 [.512]
3
= 17.00 [.669]
4
= 20.90 [.823]
5
= 2.90 [.114]
6
= 4.50 [.177]
7
= 13.00 [.512]
Press-Fit
Press-Fit
Press-Fit
Press-Fit
Dip Solder
Dip Solder
Dip Solder Wire Wrap
CONTACT TYPE
(Consult Factory)
Note: Press Fit Connectors required a press in tool.
See page C-48 for Press In Tool information.
1
= For all Press Fit Connectors
1
= Solder Version Requiring EM/LB Contacts
2
= Solder Versions (Standard Contacts)
(Consult Factory if EM/LB Contact Required)
CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR DESIGN
WWW.ECSCONN.COM
