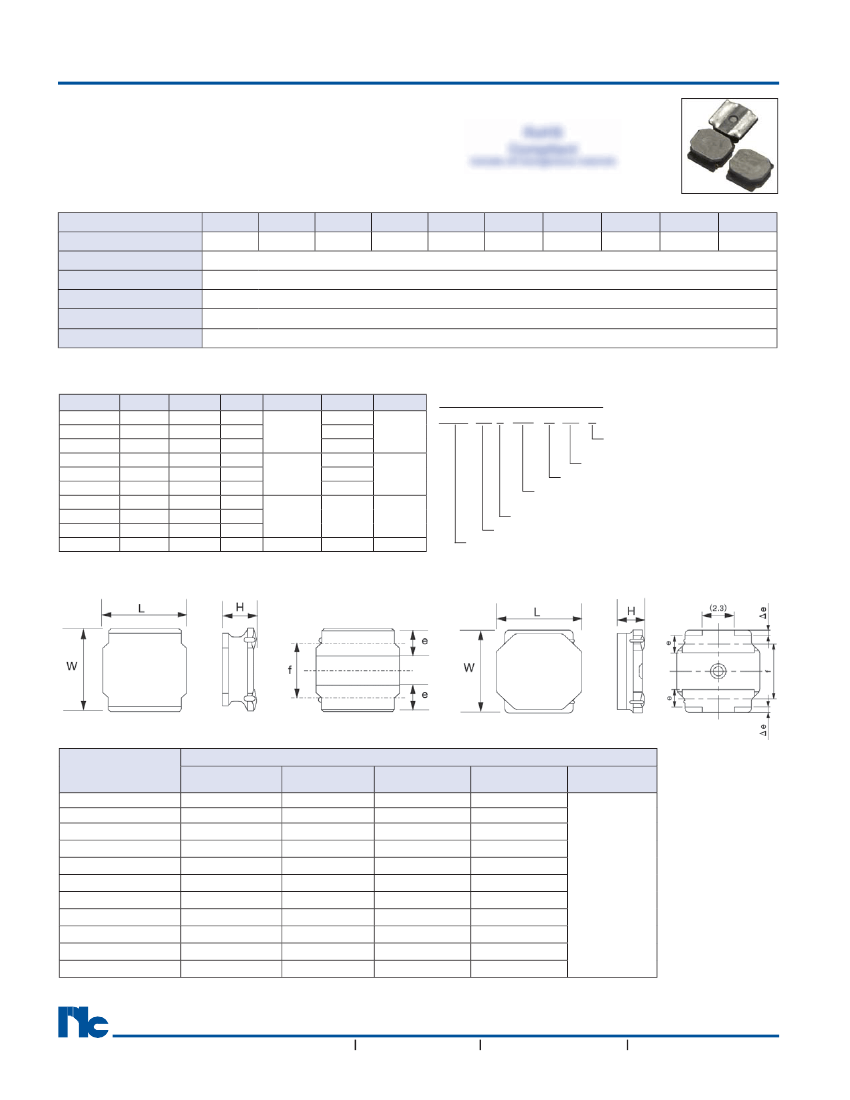

NPIS Shielded Power Inductors
FEATURES
• SHIELDED POWER INDUCTOR
• ULTRA LOW PROFILE (1.0 ~ 4.5mm MAX. HEIGHT)
• SURFACE MOUNTABLE CONSTRUCTION
• INDUCTANCE VALUES UP TO 220μH
• TAPED AND REELED FOR AUTOMATIC INSERTION
CHARACTERISTICS
Case Size
Inductance Range
Temperature Range
Temperatrue Rise at I rms
Inductance Change at I sat
Inductance Tolerance
Resistance to Solder Heat
NPIS30L
NPIS32L
NPIS35L
NPIS40L
NPIS42L
NPIS48L
NPIS62L
NPIS60L
NPIS_L Series
RoHS
Compliant
includes all homogeneous materials
*See Part Number System for Details
NPIS65L
NPIS80L
1.0 ~ 47μH 1.0 ~ 47μH 1.0 ~ 47μH 1.0 ~ 47μH 1.0 ~ 47μH
1.0 ~ 220μH 2.5 ~ 100μH 0.8 ~ 10μH 1.0 ~ 100μH 0.9 ~ 100μH
-25°C ~ +120°C*
+40°C max.
- 30% max.
±20% (M), ±30% (Y)
255°C for 10 seconds
*Ambient plus temperature rise
DIMENSIONS (mm)
Case Size
NPIS30L
NPIS32L
NPIS35L
NPIS40L
NPIS42L
NPIS48L
NPIS62L
NPIS60L
NPIS65L
NPIS80L
L
3.0 ±0.1
3.0 ±0.1
3.0 ±0.1
4.0 ±0.2
4.0 ±0.2
4.0 ±0.2
6.0 ±0.2
6.0 ±0.2
6.0 ±0.2
8.0 ±0.2
W
H max.
e
eΔ
3.0 ±0.1
1.0
-
3.0 ±0.1
1.2
0.9 ± 0.2
-
3.0 ±0.1
1.5
-
4.0 ±0.2
1.0
-
4.0 ±0.2
1.2
1.1 ± 0.2
-
4.0 ±0.2
1.8
-
6.0 ±0.2
1.2
6.0 ±0.2
2.0
1.35 ± 0.2 0.3 ± 0.2
6.0 ±0.2
4.5
8.0 ±0.2
4.0*
1.6 ± 0.3
-
f
1.9 ± 0.2
PART NUMBER SYSTEM
NPIS 30 L 150 M TR F
Termination Finish:
F = RoHS Compliant (SnAgCu)
Packaging: TR = Tape & Reel
Inductance Tolerance Code: M=±20%, Y=±30%
Inductance Code (μH): 1st two digits are significant, 3rd
digit is multiplier.
Construction Code (see drawing for details)
Size Code (see table for details)
Series
2.5 ± 0.2
4.0 ± 0.2
5.6 ± 0.3
*NPIS80L 0.9μH - 6R8μH is 4.2mm height
NPIS30L, 32L, 35L, 40L, 42L, 48L & 80L
NPIS62, 60L & 65L
Part Number
NPIS30L1R0YTRF
NPIS30L1R5YTRF
NPIS30L2R2MTRF
NPIS30L3R3MTRF
NPIS30L4R7MTRF
NPIS30L6R8MTRF
NPIS30L100MTRF
NPIS30L150MTRF
NPIS30L220MTRF
NPIS30L330MTRF
NPIS30L470MTRF
®
STANDARD VALUES - CASE SIZE
Inductance Value
DC Resistance
DC Current
(μH)
(Ω) ±20%
Isat (Amps)
1.0 ± 30%
0.065
1.30
1.5 ± 30%
0.080
1.20
2.2 ± 20%
0.095
1.10
3.3 ± 20%
4.7 ± 20%
6.8 ± 20%
10 ± 20%
15 ± 20%
22 ± 20%
33 ± 20%
47 ± 20%
0.14
0.19
0.30
0.45
0.74
1.03
1.55
2.05
0.87
0.75
0.61
0.50
0.40
0.35
0.26
0.22
(3.0 x 3.0 x 1.0mm)
DC Current
Test Frequency
Irms (Amps)
1.40
1.30
1.10
0.94
0.78
0.63
0.51
0.40
0.35
0.275
0.235
100KHz
Maximum +40°C temperature rise at Irms. Maximum -30% inductance change at Isat.
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
1
NPIS Shielded Power Inductors
STANDARD VALUES - CASE SIZE 30 (3.0 x 3.0 x 1.2mm)
Inductance Value
DC Resistance
DC Current
DC Current
Test Frequency
(μH)
(Ω) ±20%
Isat (Amps)
Irms (Amps)
1.0 ± 30%
0.05
1.50
1.49
1.5 ± 30%
2.2 ± 20%
3.3 ± 20%
4.7 ± 20%
6.8 ± 20%
10 ± 20%
15 ± 20%
22 ± 20%
33 ± 20%
47 ± 20%
0.06
0.08
0.10
0.13
0.19
0.29
0.45
0.63
1.03
1.45
1.36
1.10
0.91
0.77
0.67
0.54
0.44
0.375
0.31
0.25
1.40
1.20
1.05
0.98
0.74
0.63
0.485
0.42
0.33
0.28
100KHz
NPIS_L Series
Part Number
NPIS32L1R0YTRF
NPIS32L1R5YTRF
NPIS32L2R2MTRF
NPIS32L3R3MTRF
NPIS32L4R7MTRF
NPIS32L6R8MTRF
NPIS32L100MTRF
NPIS32L150MTRF
NPIS32L220MTRF
NPIS32L330MTRF
NPIS32L470MTRF
Maximum +40°C temperature rise at Irms. Maximum -30% inductance change at Isat.
Part Number
NPIS35L1R0YTRF
NPIS35L1R5YTRF
NPIS35L2R2MTRF
NPIS35L3R3MTRF
NPIS35L4R7MTRF
NPIS35L6R8MTRF
NPIS35L100MTRF
NPIS35L150MTRF
NPIS35L220MTRF
NPIS35L330MTRF
NPIS35L470MTRF
STANDARD VALUES - CASE SIZE
Inductance Value
DC Resistance
DC Current
(μH)
(Ω) ±20%
Isat (Amps)
1.0 ± 30%
0.03
2.10
1.5 ± 30%
2.2 ± 20%
3.3 ± 20%
4.7 ± 20%
6.8 ± 20%
10 ± 20%
15 ± 20%
22 ± 20%
33 ± 20%
47 ± 20%
0.04
0.06
0.08
0.12
0.16
0.23
0.36
0.52
0.84
1.34
1.80
1.48
1.21
1.02
0.87
0.70
0.56
0.47
0.39
0.32
(3.0 x 3.0 x 1.5mm)
DC Current
Test Frequency
Irms (Amps)
2.10
1.82
1.50
1.23
1.04
0.88
0.71
0.56
0.47
0.37
0.30
100KHz
Maximum +40°C temperature rise at Irms. Maximum -30% inductance change at Isat.
Part Number
NPIS40L1R0YTRF
NPIS40L2R2YTRF
NPIS40L3R3MTRF
NPIS40L4R7MTRF
NPIS40L6R8MTRF
NPIS40L100MTRF
NPIS40L150MTRF
NPIS40L220MTRF
NPIS40L330MTRF
NPIS40L470MTRF
STANDARD VALUES - CASE SIZE
Inductance Value
DC Resistance
DC Current
(μH)
(Ω) ±20%
Isat (Amps)
1.0 ± 30%
0.10
1.80
2.2 ± 30%
3.3 ± 20%
4.7 ± 20%
6.8 ± 20%
10 ± 20%
15 ± 20%
22 ± 20%
33 ± 20%
47 ± 20%
0.15
0.18
0.21
0.30
0.38
0.51
0.87
1.54
1.81
1.15
1.10
0.90
0.74
0.56
0.47
0.36
0.28
0.24
(4.0 x 4.0 x 1.0mm)
DC Current
Test Frequency
Irms (Amps)
1.05
0.89
0.82
0.75
0.62
0.60
0.51
0.40
0.30
0.28
100KHz
Maximum +40°C temperature rise at Irms. Maximum -30% inductance change at Isat.
®
2
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
NPIS Shielded Power Inductors
Part Number
NPIS42L1R0YTRF
NPIS42L2R2MTRF
NPIS42L3R3MTRF
NPIS42L4R7MTRF
NPIS42L6R8MTRF
NPIS42L100MTRF
NPIS42L150MTRF
NPIS42L220MTRF
NPIS42L330MTRF
NPIS42L470MTRF
STANDARD VALUES - CASE SIZE
Inductance Value
DC Resistance
DC Current
(μH)
(Ω) ±20%
Isat (Amps)
1.0 ± 30%
0.06
2.50
2.2 ± 20%
3.3 ± 20%
4.7 ± 20%
6.8 ± 20%
10 ± 20%
15 ± 20%
22 ± 20%
33 ± 20%
47 ± 20%
0.09
0.13
0.14
0.18
0.24
0.40
0.48
0.81
1.00
1.65
1.20
1.05
0.90
0.74
0.56
0.51
0.40
0.35
(4.0 x 4.0 x 1.2mm)
DC Current
Test Frequency
Irms (Amps)
1.50
1.20
0.98
0.96
0.84
0.77
0.60
0.54
0.42
0.37
100KHz
NPIS_l Series
Maximum +40°C temperature rise at Irms. Maximum -30% inductance change at Isat.
Part Number
NPIS48L1R0YTRF
NPIS48L2R2MTRF
NPIS48L3R3MTRF
NPIS48L4R7MTRF
NPIS48L6R8MTRF
NPIS48L100MTRF
NPIS48L150MTRF
NPIS48L220MTRF
NPIS48L330MTRF
NPIS48L470MTRF
NPIS48L680MTRF
NPIS48L101MTRF
NPIS48L151MTRF
NPIS48L221MTRF
STANDARD VALUES - CASE SIZE
Inductance Value
DC Resistance
DC Current
(μH)
(Ω) ±20%
Isat (Amps)
1.0 ± 30%
0.03
4.00
2.2 ± 20%
3.3 ± 20%
4.7 ± 20%
6.8 ± 20%
10 ± 20%
15 ± 20%
22 ± 20%
33 ± 20%
47 ± 20%
68 ± 20%
100 ± 20%
150 ± 20%
220 ± 20%
0.06
0.07
0.09
0.11
0.18
0.25
0.36
0.53
0.65
1.00
1.50
2.50
4.00
2.70
2.00
1.70
1.45
1.20
0.94
0.80
0.65
0.57
0.47
0.40
0.31
0.27
(4.0 x 4.0 x 1.8mm)
DC Current
Test Frequency
Irms (Amps)
1.83
1.44
1.23
1.20
1.06
0.84
0.65
0.59
0.49
0.42
0.32
0.27
0.22
0.17
100KHz
Maximum +40°C temperature rise at Irms. Maximum -30% inductance change at Isat.
Part Number
NPIS62L2R5YTRF
NPIS62L4R0YTRF
NPIS62L5R3MTRF
NPIS62L6R8MTRF
NPIS62L100MTRF
NPIS62L150MTRF
NPIS62L220MTRF
NPIS62L330MTRF
NPIS62L470MTRF
NPIS62L680MTRF
NPIS62L101MTRF
STANDARD VALUES - CASE SIZE
Inductance Value
DC Resistance
DC Current
(μH)
(Ω) ±20%
Isat (Amps)
2.5 ± 30%
0.090
2.10
4.0 ± 30%
5.3 ± 20%
6.8 ± 20%
10 ± 20%
15 ± 20%
22 ± 20%
33 ± 20%
47 ± 20%
68 ± 20%
100 ± 20%
0.105
0.125
0.165
0.235
0.33
0.53
0.70
1.05
1.35
2.18
1.80
1.50
1.30
1.00
0.80
0.76
0.59
0.52
0.44
0.35
(6.0 x 6.0 x 1.2mm)
DC Current
Test Frequency
Irms (Amps)
1.60
1.57
1.40
1.18
1.00
0.79
0.63
0.53
0.46
0.41
0.32
100KHz
Maximum +40°C temperature rise at Irms. Maximum -30% inductance change at Isat.
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
3
NPIS Shielded Power Inductors
Part Number
NPIS60L0R8YTRF
NPIS60L1R5YTRF
NPIS60L2R2YTRF
NPIS60L3R3YTRF
NPIS60L4R7YTRF
NPIS60L6R8YTRF
NPIS60L100MTRF
STANDARD VALUES - CASE SIZE
Inductance Value
DC Resistance
DC Current
(μH)
(Ω) ±30%
Isat (Amps)
0.8 ± 30%
0.02
5.50
1.5 ± 30%
2.2 ± 30%
3.3 ± 30%
4.7 ± 30%
6.8 ± 30%
10 ± 20%
0.026
0.034
0.040
0.058
0.085
0.125
4.00
3.20
2.80
2.40
2.00
1.70
(6.0 x 6.0 x 2.0mm)
DC Current
Test Frequency
Irms (Amps)
3.80
3.20
2.70
2.60
2.00
1.80
1.40
100KHz
NPIS_L Series
Maximum +40°C temperature rise at Irms. Maximum -30% inductance change at Isat.
STANDARD VALUES - CASE SIZE
Inductance Value
DC Resistance
DC Current
(μH)
(Ω) ±30%
Isat (Amps)
1.0 ± 30%
0.014
8.50
1.3 ± 30%
1.8 ± 30%
2.3 ± 30%
3.0 ± 30%
4.5 ± 20%
6.3 ± 20%
10 ± 20%
15 ± 20%
22 ± 20%
33 ± 20%
47 ± 20%
68 ± 20%
100 ± 20%
0.016
0.018
0.021
0.024
0.031
0.038
0.047
0.077
0.115
0.145
0.220
0.330
0.500
8.00
7.00
6.00
5.00
4.00
3.80
3.00
2.30
1.90
1.50
1.30
1.00
0.80
(6.0 x 6.0 x 4.5mm)
DC Current
Test Frequency
Irms (Amps)
4.20
4.00
3.70
3.50
3.20
3.00
2.80
2.50
1.90
1.50
1.40
1.10
0.90
0.70
100KHz
Part Number
NPIS65L1R0YTRF
NPIS65L1R3YTRF
NPIS65L1R8YTRF
NPIS65L2R3YTRF
NPIS65L3R0YTRF
NPIS65L4R5MTRF
NPIS65L6R3MTRF
NPIS65L100MTRF
NPIS65L150MTRF
NPIS65L220MTRF
NPIS65L330MTRF
NPIS65L470MTRF
NPIS65L680MTRF
NPIS65L101MTRF
Maximum +40°C temperature rise at Irms. Maximum -30% inductance change at Isat.
Part Number
NPIS80L0R9YTRF
NPIS80L1R4YTRF
NPIS80L2R0YTRF
NPIS80L3R6YTRF
NPIS80L4R7YTRF
NPIS80L6R8YTRF
NPIS80L100MTRF
NPIS80L150MTRF
NPIS80L220MTRF
NPIS80L330MTRF
NPIS80L470MTRF
NPIS80L680MTRF
NPIS80L101MTRF
STANDARD VALUES - CASE SIZE
Inductance Value
DC Resistance
DC Current
(μH)
(Ω) ±30%
Isat (Amps)
0.9 ± 30%
0.006
11.0
1.4 ± 30%
2.0 ± 30%
3.6 ± 30%
4.7 ± 30%
6.8 ± 30%
10 ± 20%
15 ± 20%
22 ± 20%
33 ± 20%
47 ± 20%
68 ± 20%
100 ± 20%
0.007
0.009
0.015
0.018
0.025
0.034
0.050
0.066
0.100
0.150
0.230
0.290
9.00
7.40
5.30
4.70
4.00
3.40
2.70
2.20
1.90
1.50
1.20
1.00
(8.0 x 8.0 x 4.0mm)
DC Current
Test Frequency
Irms (Amps)
7.80
7.00
6.30
4.90
4.10
3.70
3.10
2.40
2.20
1.70
1.40
1.10
1.00
100KHz
Maximum +40°C temperature rise at Irms. Maximum -30% inductance change at Isat.
®
4
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
NPIS Shielded Power Inductors
Case Size
NPIS30L
NPIS32L
NPIS35L
NPIS40L
NPIS42L
NPIS48L
NPIS62L
NPIS60L
NPIS65L
NPIS80L
5,000
4,500
3,500
1,000
2,500
1,500
1,000
1.75mm
±0.1
16.0 ± 0.30
8.3 ± 0.10
4.0mm
±0.1
8.3 ± 0.10
Po
7.5 ± 0.10
12.0 ± 0.30
6.3 ± 0.10
6.3 ± 0.10
4.3 ± 0.10
4.3 ± 0.10
5.5 ± 0.10
2,000
8.0 ± 0.20
3.2 ± 0.10
3.2 ± 0.10
3.5 ± 0.10
Reel Qty

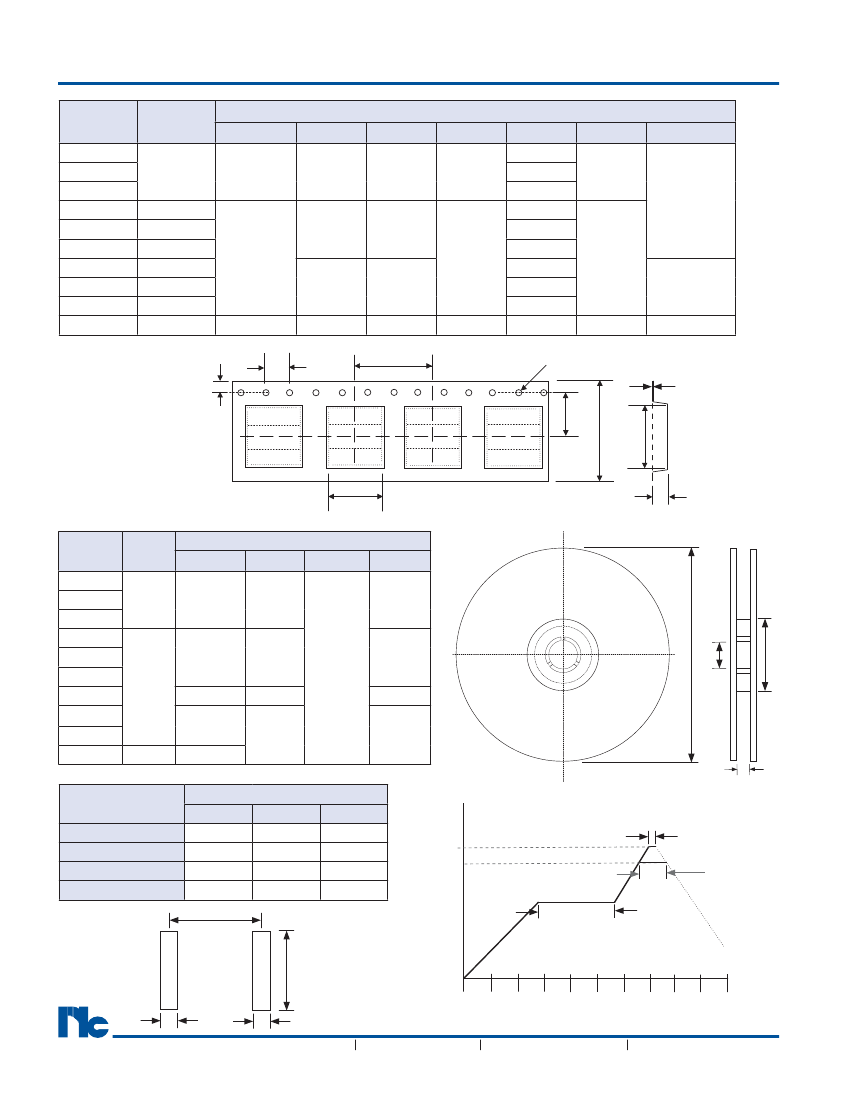

CARRIER TAPE DIMENSIONS (mm)
W
A0
B0
Co
K0
1.4 ± 0.10
1.6 ± 0.10
1.9 ± 0.10
1.4 ± 0.10
1.6 ± 0.10
2.1 ± 0.10
1.6 ± 0.10
2.3 ± 0.10
4.7 ± 0.10
4.5 ± 0.10
12.0 ± 0.10
8.0 ± 0.10
4.0 ± 0.10
Po
NPIS_L Series
t
0.3 ± 0.05
0.4 ± 0.10
0.5 ± 0.10
1.5mm ± 0.1
t
Co
W
Bo
Ao
Case
Size
NPIS30L
NPIS32L
NPIS35L
NPIS40L
NPIS42L
NPIS48L
NPIS62L
NPIS60L
NPIS65L
NPIS80L
16.0
12.0
13.5 ±1.0
14.0 ± 1.5
13.5 ± 1.0
17.5 ± 1.0
80 ± 2.0
60 ± 2.0
80 ± 2.0
13.0 ± 0.5
330 ± 3.0
180 ± 3.0
330 ± 3.0
D
Ko
Tape
Width
REEL DIMENSIONS (mm)
A(mm)
10.0 ± 1.5
B(mm)
60 ± 1.0
C(mm)
D(mm)
180 ± 3.0
8.0
C
B
A
Case Size
NPIS30L, 32L & 35L
NPIS40L, 42L & 48L
NPIS62L, 60L & 65L
NPIS80L
LAND PATTERN DIMENSIONS (mm)
L
2.2
2.8
4.7
5.6
L
G
0.8
1.2
1.6
1.8
H
2.7
3.7
Temperature °C
5.7
7.5
300
250
200
150
100
50
H
25
30
G
G
60
90 120 150 180 210 240 270 300
Time - Seconds
Pre-Heat
150°C ~ 180°C
60 ~ 120 sec.
Time above 230°C
40 seconds max.
Cool Down
REFLOW SOLDERING PROFILE
Soldering 255°C max.
5 seconds max.
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
5
京公网安备 11010802033920号
EEWORLD
