50118-01001N-001 datasheet, PDF

50118-01001N-001: DescriptionBoard Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size134KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

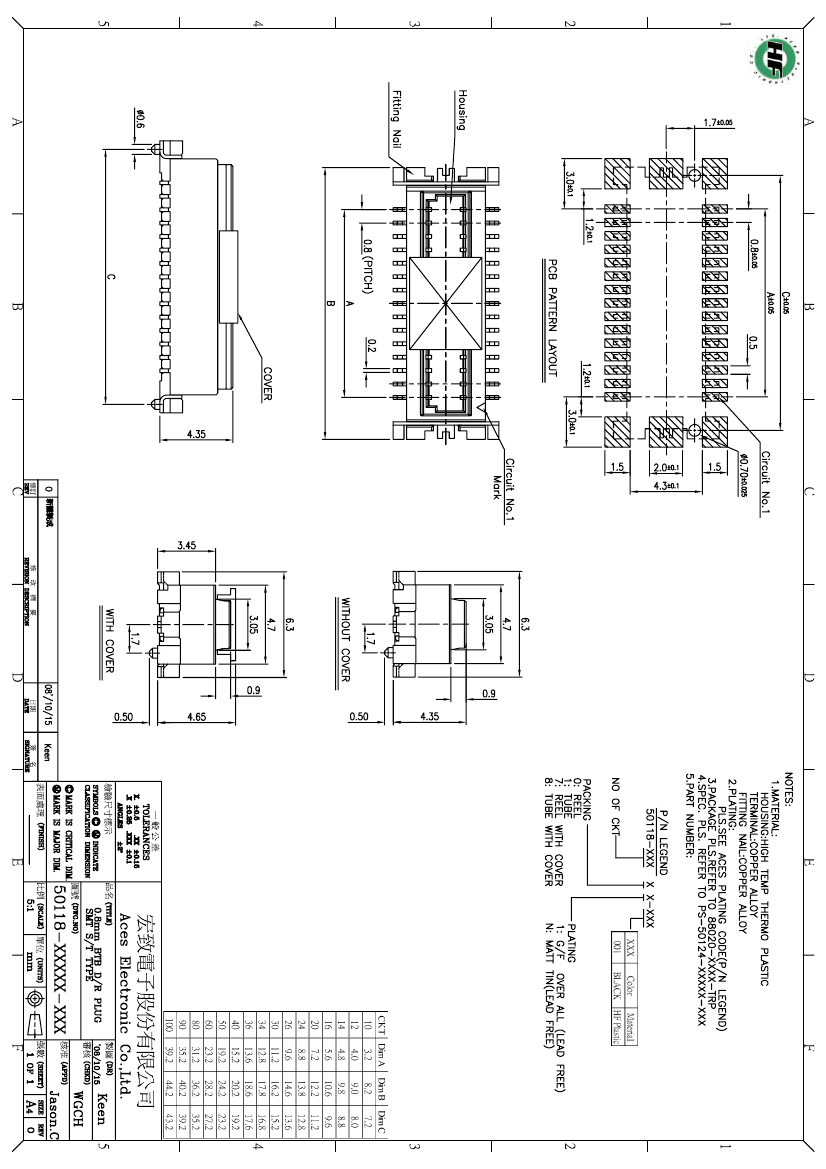

Download Datasheet Parametric View All

50118-01001N-001 Overview

Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305551494
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	FITTING NAIL
body width	0.248 inch
subject depth	0.171 inch
body length	1.74 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Dielectric withstand voltage	250VAC V
Durability	30 Cycles
maximum insertion force	.695 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	50118
Plug contact pitch	0.031 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	100
Evacuation force-minimum value	.1112 N
