General Purpose Metallized Polyester Film Capacitors
RSB Series, 5 mm Lead Spacing, 50 – 630 VDC
(Automotive Grade)
Overview
The RSB Series is constructed of metallized polyester film
(stacked technology) with radial leads of tinned wire. Radial leads
are electrically welded to the contact metal layer on the ends of
the capacitor winding. The capacitor is encapsulated in a self-
extinguishing solvent resistant plastic case with thermosetting
resin material meeting the UL 94V–0 requirements.
Automotive grade devices are available and meet the demanding
Automotive Electronics Council's AEC–Q200 qualification
requirements.
Applications
Typical applications include high performance, high temperature,
blocking, coupling, decoupling for a signal from DC to high
frequency, pulse, logic and timing circuit, lamp capacitor for
electronic compact lamps, inverter for LCD monitors, automotive
DC motor suppression. Not suitable for across-the-line
application (see Suppressor Capacitors).
Benefits
•
•
•
•
•
•
•
•
•
•
Voltage range: 50 – 630 VDC
Capacitance range: 0.001 – 2.2 µF
Lead spacing: 5 mm
Capacitance tolerance: ±20%, ±10% standard,
±5% on request
Climatic category: 55/125/56
Operating temperature range of -55˚C to +125˚C
RoHS Compliant and lead-free terminations
Tape and reel packaging in accordance with IEC 60286–2
Self-healing
Automotive (AEC–Q200) grades available
Part Number System
RSB
Series
Metallized
Polyester
Rated Voltage
(VDC)
C = 50
D = 63
E = 100
I = 250
M = 400
W = 500
P = 630
D
C
Length (mm)
C = 5.0
3100
Capacitance Code (pF)
Digits 2-4 indicate the first three
digits of the capacitance value.
First digit indicates the number of
zeros to be added.
Lead and
Packaging Code
See Ordering
Options Table
AA
00
Internal Use
30
50
60
70
Capacitance
Tolerance
J = ±5%
K = ±10%
M = ±20%
K
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3067_RSB • 5/20/2014
1
Film Through-Hole Capacitors – General Purpose Metallized Polyester Film Capacitors
RSB Series, 5 mm Lead Spacing, 50 – 630 VDC (Automotive Grade)
Ordering Options Table
Lead Spacing
Nominal (mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Bulk (Bag)–Short Leads
Ammo Pack
Other Lead and Packaging Options
Tape & Reel (Standard Reel)
Bulk (Bag)–Short Leads
Bulk (Bag)–Short Leads
Bulk (Bag)–Short Leads
Bulk (Bag)–Short Leads
Bulk (Bag)–Long Leads
Bulk (Bag)–Long Leads
Bulk (Bag)–Long Leads
4 +1.5/-0
H
0
=18.5 +/- 0.5
H
0
=18.5 +/- 0.5
2.7 +0.5/-0
3.5 +0.5/-0
10 +/- 1
3.2 +0.3/-0.2
21 +/- 1
17 +1/-2
30 +5/-0
AA
DQ
CK
JA
JB
JC
JH
JG
Z3
40
LL Lead Length
(mm)
Lead and
Packaging
Code
5

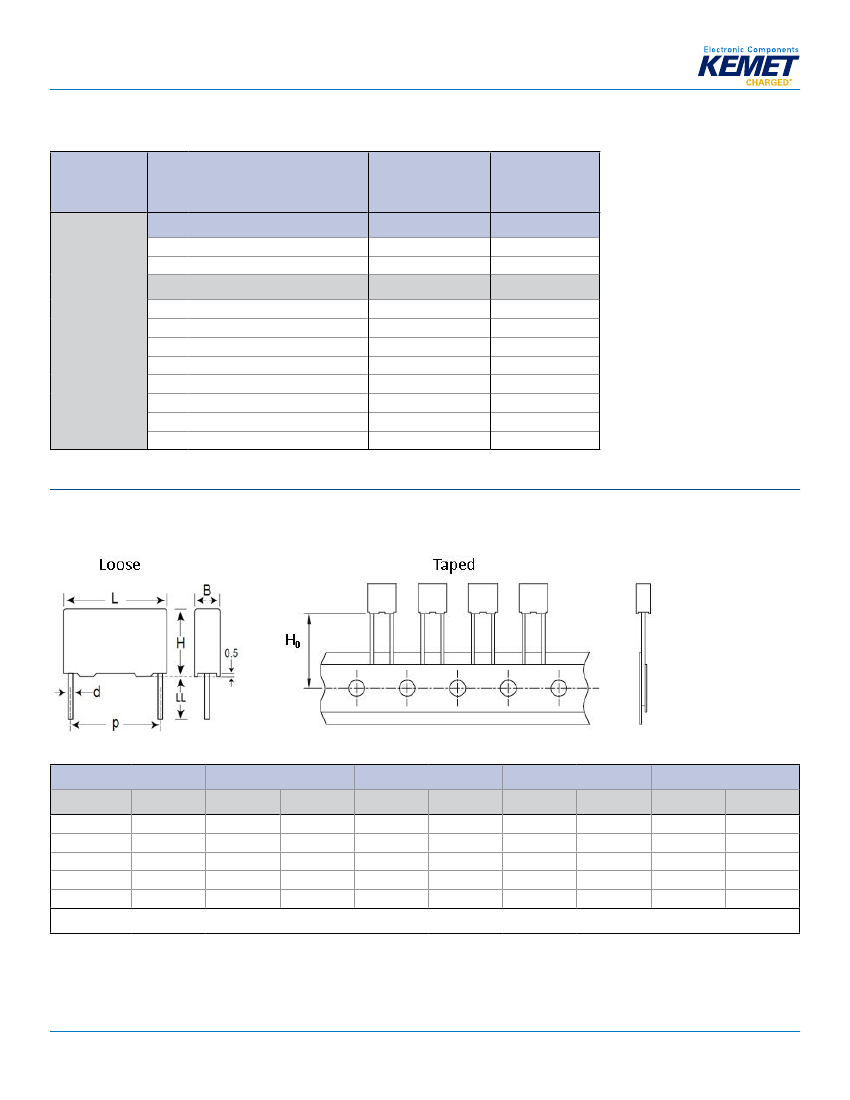

Dimensions – Millimeters
p
Nominal
5.0
5.0
5.0
5.0
5.0
Tolerance
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
Nominal
2.5
3.5
4.5
5.0
6.0
B
Tolerance
+0.1
+0.1
+0.1
+0.1
+0.1
Nominal
6.5
7.5
9.5
10.0
11.0
H
Tolerance
+0.1
+0.1
+0.1
+0.1
+0.1
Nominal
7.2
7.2
7.2
7.2
7.2
L
Tolerance
+0.2
+0.2
+0.3
+0.3
+0.3
Nominal
0.6
0.6
0.6
0.6
0.6
d
Tolerance
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
Note: See Ordering Options Table for lead length (LL/H
0
) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3067_RSB • 5/20/2014
2
Film Through-Hole Capacitors – General Purpose Metallized Polyester Film Capacitors
RSB Series, 5 mm Lead Spacing, 50 – 630 VDC (Automotive Grade)
Performance Characteristics
Dielectric
Plates
Winding
Leads
Protection
Related Documents
Rated Voltage V
R
(VDC)
Rated Voltage V
R
(VAC)
Capacitance Range (µF)
Capacitance Values
Capacitance Tolerance
Operating Temperature Range
Rated Temperature T
R
Voltage Derating
Polyester film (polyethylene terephthalate).
Metal layer deposited by evaporation under vacum.
Non-inductive type.
Tinned wire.
Plastic case, thermosetting resin filled. Box material is solvent resistant and flame retardant according to UL94.
IEC 60384-2
50
30
2.2
63
40
0.1 – 1.5
100
63
0.0047 –
0.47
250
160
0.001 – 0.15
400
200
0.001 –
0.047
500
220
0.001 –
0.015
630
220
0.001 – 0.01
E6 series (IEC 60063) measured @ 1 kHz and +20 ±1°C
±5% on request, ±10%, ±20%
-55°C to 125°C
+85°C
Above +85°C DC and AC voltage derating is 1.25%/°C
55/125/56 IEC 60068-1
Climatic Category
Average relative humidity ≤75%
RH = 95% for 30 days per year
RH = 85% for further days limited by average value per year
Test Voltage
Capacitance Drift
Reliability
(Reference MIL-HDBK-217)
1.6 x V
R
VDC for 2 seconds (between terminations) @ +25°C ±5°C
Maximum 3% after a 2 year storage period at a temperature of +10°C to +40°C and a relative humidity of 40% to 60%
Operational life >200,000 hours
Failure rate ≤ 1 FIT, T = +40°C, V = 0.5 x V
R
Failure criteria: open or short circuit, cap. change > 10%, DF 2 times the catalog limits, IR < 0.005 x initial limit
dV/dt according to Table 1. For peak to peak voltages lower than rated voltage (Vpp <V
R
), the specified dv/dt
can be multiplied by the factor V
R
/Vpp
+400 (±200)ppm/°C at 1 kHz
Approximately 7 nH. Maximum 1nH per 1 mm lead and capacitor length.
Maximum Pulse Steepness
Temperature Coefficient
Self Inductance
(Lead Length ~ 2 mm)
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3067_RSB • 5/20/2014
3
Film Through-Hole Capacitors – General Purpose Metallized Polyester Film Capacitors
RSB Series, 5 mm Lead Spacing, 50 – 630 VDC (Automotive Grade)
Performance Characteristics cont'd
Maximum Values @ 25°C ±5°C
Frequency
Dissipation Factor tanδ
1 kHz
10 kHz
100 kHz
C ≤ 0.1 μF
0.80%
1.20%
2.50%
Measured @ +25°C ±5°C, according to IEC 60384–2
Minimum Values Between Terminals
Insulation Resistance
Voltage Charge/Time
50 VDC for V
R
≤ 100 VDC
1 minute
100 VDC for V
R
> 100 VDC
1 minute
C ≤ 0.33 μF
≥ 15,000 MΩ
0.33 µF < C ≤ 1.0 μF
≥ 5,000 MΩ • µF
≥ 30,000 MΩ
C > 1.0 μF
≥ 1,000 MΩ • µF
C > 1 µF
0.80%
1.20%
–
Qualification
Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details regarding test
methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive Components. For additional
information regarding the Automotive Electronics Council and AEC–Q200, please visit their website at www.aecouncil.com.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3067_RSB • 5/20/2014
4
Film Through-Hole Capacitors – General Purpose Metallized Polyester Film Capacitors
RSB Series, 5 mm Lead Spacing, 50 – 630 VDC (Automotive Grade)

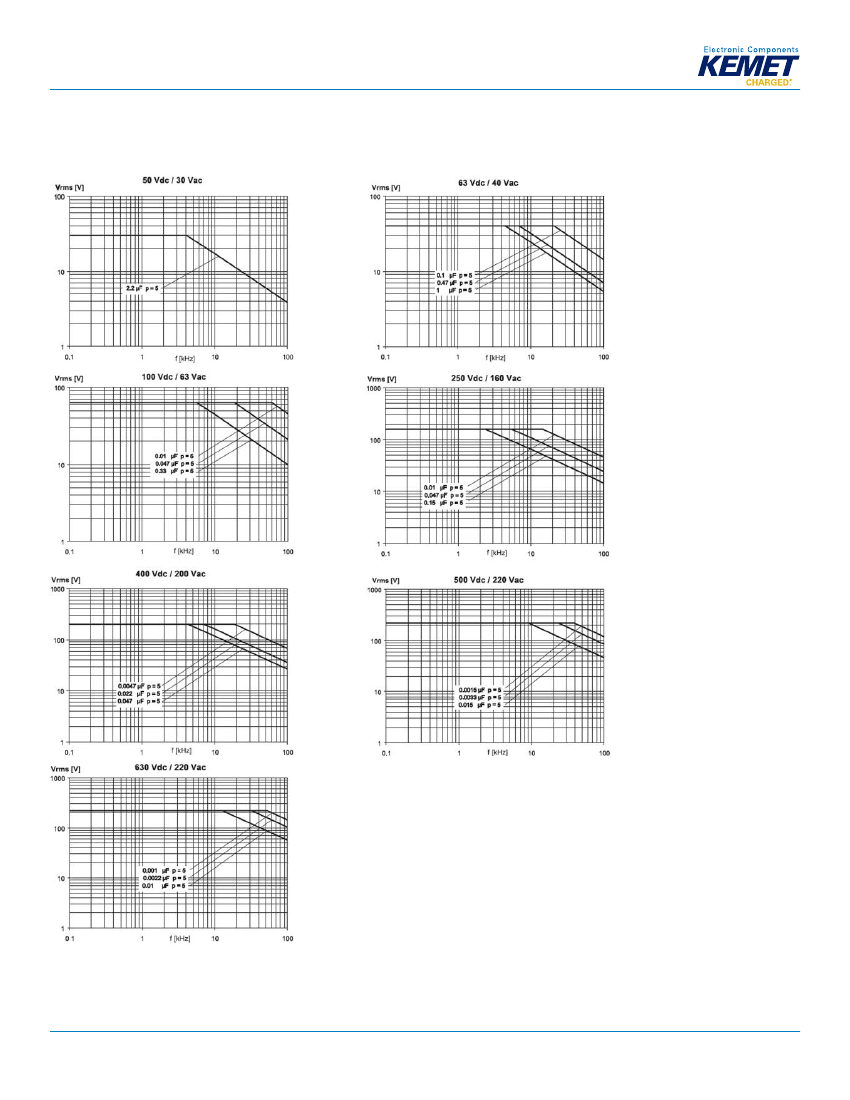

Maximum Voltage (V
rms
) vs. Frequency (Sinusoidal Waveform/Th ≤ 40°C)
Lead Spacing 5 mm
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3067_RSB • 5/20/2014
5
