PCA.3S.250.CTLC11
SUMMARY
# Wires
Low
High
Coax
Triax
Quad
Fiber
Fluidic
Series
Termination type
IP rating
Cable Ø
Matching parts
Status
Alternative part
0
0
1
0
0
0
0
3S
Female solder
50
9.80 - 10.50 mm
FFA.3S.250.CTAC11
active
Image is for illustrative purpose only
Download
Request a quote
Catalog
TECHNICAL DETAILS
Mechanics
Shell Style/Model
Keying
Housing Material
Cable Fixing
Variant
Weight
56.51 g
PCA*: Free receptacle, cable collet
Circular (can rotate), plug has male contact(s)
Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
: 9.8 - 10.5 mm
Performance
Configuration
Insulator
Rated Current
3S.250 : 1 Coax (50 Ohm)
T: PTFE
26 Amps
Specifications
Contact Type: Coaxial 50 Ohm (Solder)
Max. Matings: 1000
Contact Dia.: 3 mm (0.118in)
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Bucket Dia.: 2.7 mm (0.106in)
Vtest: 3000 V (AC), 4200 V (DC)
Impedance: 50 Ohm
VSWR: 1.06 + 0.5 * f/GHz
Cable type: RG 213/U, RG 115 A/U, RG 11 A/U, RG 144/U, RG 165 /U
Others
Endurance (Shell): 5000 mating cycles
Temp (min / max): -55°C / +250°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >144 hr
Climatical Category: 50/175/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
IP Rating: 50

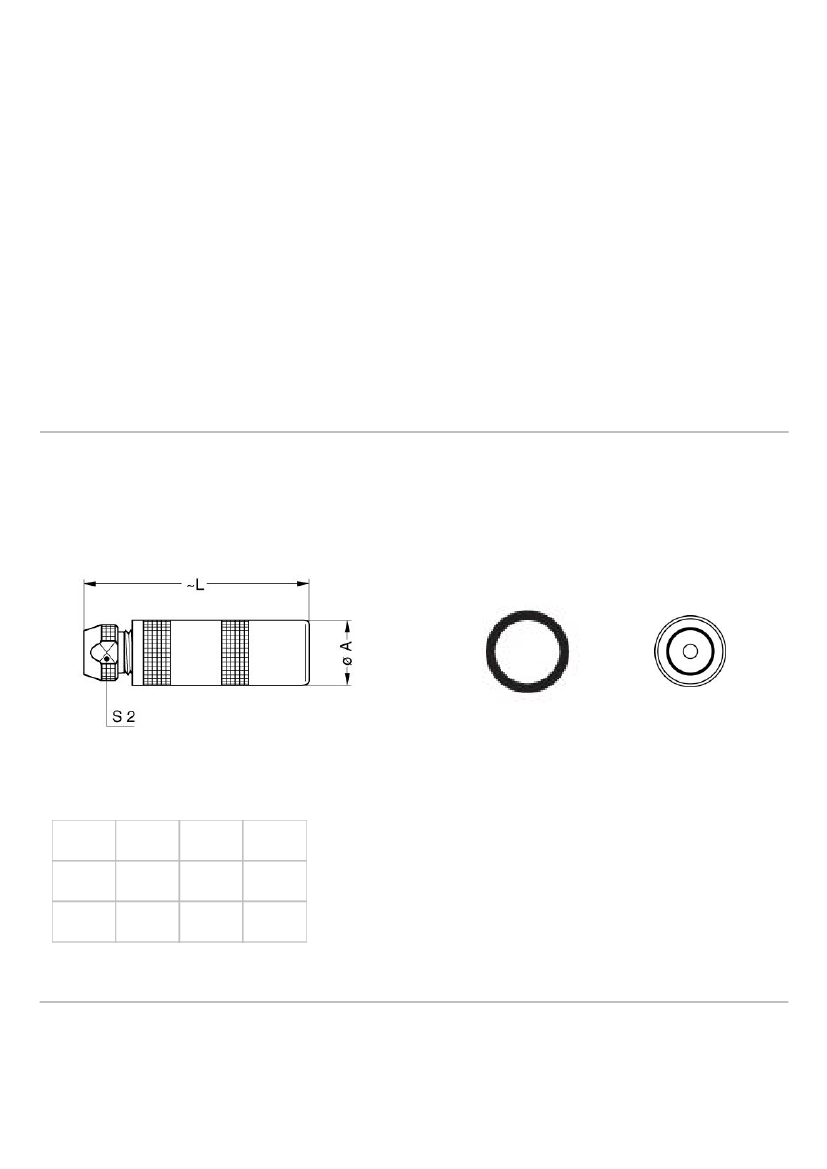

DRAWINGS
Draws
Dimensions
A
mm.
in.
17.8
0,70
L
59
2,32
S2
14
0,55
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
RECOMMENDED BY LEMO
Tools
Spanner wrench: MTZ.3S.500.014
Cables
213 000
311 100
CCX.50.RG2.13U10N
CCX.75.RG0.11AU10N
PE
PVC
PE
PVC
Black
Black
Black
Black
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
3/3
