BRS-02-60-A-GD0 datasheet, PDF

Datasheet> All Categories > The connector> The connector> BRS-02-60-A-GD0

BRS-02-60-A-GD0: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size125KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BRS-02-60-A-GD0 Overview

Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Plug

BRS-02-60-A-GD0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304474148
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.181 inch
subject depth	0.169 inch
body length	2.382 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2000VAC V
Durability	500 Cycles
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	60

Preview

Download Datasheet

View All

SPECIFICATIONS

Insulator:

PBT, glass reinforced, UL94V-O

Contacts:

Phosphor Bronze

Contact plating options: Gold over nickel

Tin over Copper

Duplex

Operating voltage:

250 VAC max

Current Rating:

3 Amps max

Insulation Resistance: 1000 Meg Ohms min

Dielectric Withstand:

14000 VAC min. RMSS

Life cycle:

500 cycles min

Ordering Information

Series

BRS

2 mm

receptacle

Rows

1, 2

Positions

1 row: 1-40

2 rows: 2-80

Tail length

A=Standard 0.125”

B=Custom tail

Finish

Options

TN=Tin

Blank=none

GD=Gold

SM=surface mount

GD15=15u”

GD30=30u”

GD0=50u”

Rev.

Description

Date Approved

Drawing

Approved Howard

Checked Lizzy

Drawn Tina

Name

Date

11/99

Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

BRS-02-XX-X-XX

0.0 ± 0.35

0.00 ± 0.20

Angles ± 3’

UNIT: mm

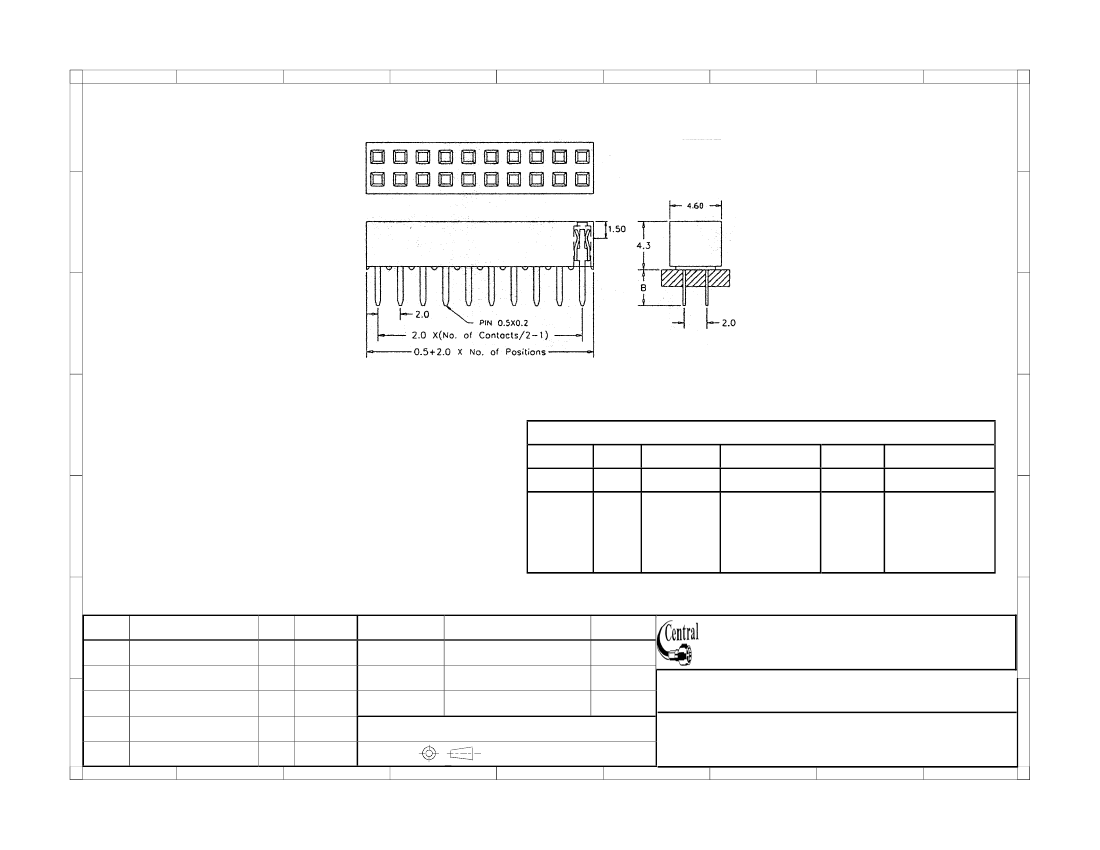

Description: Double row receptacle strip, .079” (2.00mm) centerline,

top entry
