IEC Inlet Filters
FN 9222E
General Performance IEC Inlet Filter
with Earth Line Choke
n
n
n
n
n
n
Rated currents up to 15A
Excellent performance/size ratio
Integrated earth line choke
Optional medical versions (B type)
according to IEC/EN 60601-1
Snap-in versions (S and S1 type)
Optional wide mounting flanges
Approvals
except HI-types
Technical specifications
Maximum continuous operating voltage:
Operating frequency:
Rated currents:
Approvals by rated current:
High potential test voltage:
250VAC, 50/60Hz
dc to 400Hz
1 to 15A @ 50°C
1 to 10A (ENEC, CQC)
1 to 15A (UL, CSA)
P –> PE 2000VAC for 2 sec (standard types)
P –> PE 2500VAC for 2 sec (B types)
P –> N 1000VAC for 2 sec
IP40 according to IEC 60529
-25°C to +85°C (25/85/21)
UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939
UL 94V-2 or better
1,610,000 hours
Typical electrical schematic
Cx
N
PE
P
Line
L2
Load
R
2xL1
2xCy
N‘
PE
P‘
Protection category:
Temperature range (operation and storage):
Design corresponding to:
Flammability corresponding to:
MTBF @ 40°C/230V (Mil-HB-217F):
Features and benefits

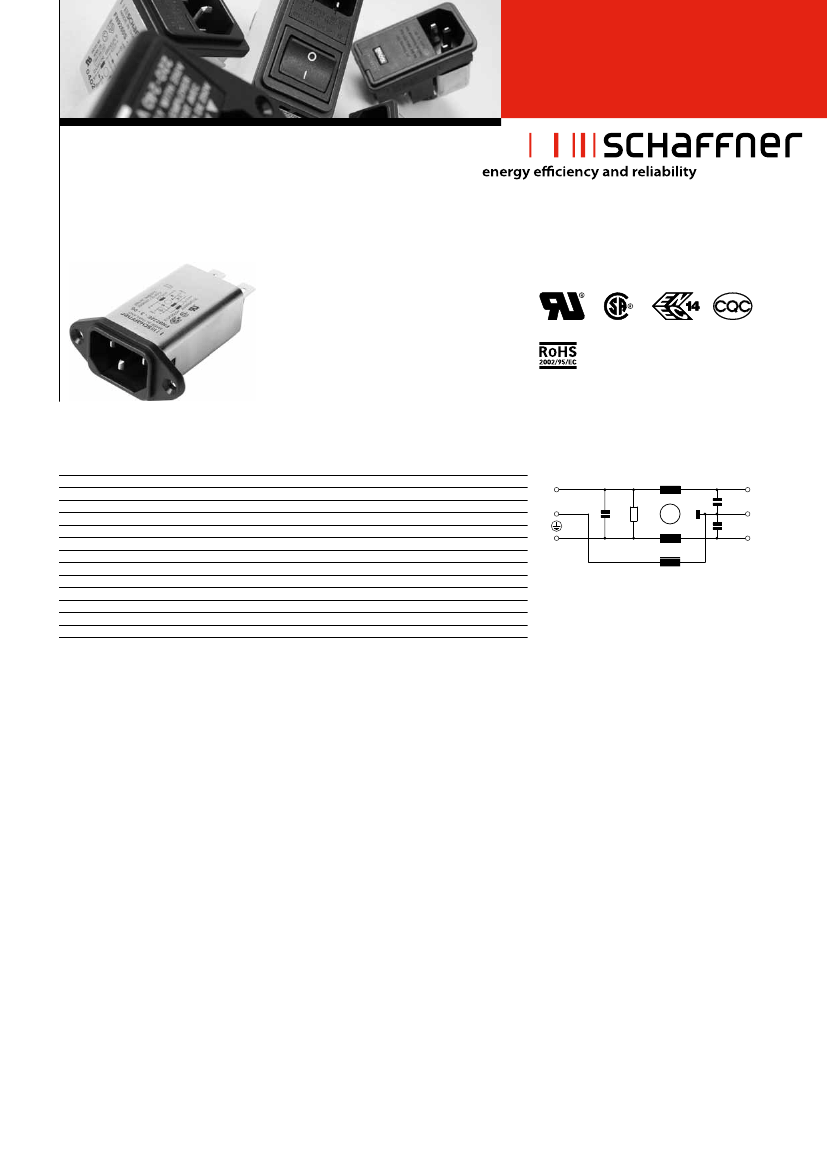

The FN 9222E IEC inlet filter combines an
IEC inlet and mains filter with excellent filter
attenuation in a small form factor and
integrated earth line choke. Choosing the
FN 9222E product line brings you the rapid
availability of a standard filter associated with
the necessary safety acceptances. Standard
IEC connector filters are a practical solution
helping you to pass EMI system approval in
a short time. A wide selection on amperage
ratings, output connections, mounting
possibilities and filters for medical appli-
cations are designed to offer you the desired
solution.
n
n
n
n
n
n
n
Typical applications
n
Exceptional conducted attenuation
performance, based on chokes with high
saturation resistance and excellent thermal
behavior.
Rear/front or snap-in mounting.
Optional medical versions (B type) comply
with the requirements of IEC/EN 60601-1
for creepage and clearance, leakage
current and high potential testing.
Wide mounting flanges available.
Different output connections offering
maximum flexibility for assembly.
Without earth line choke see FN 9222
data sheet.
Custom-specific versions are available on
request.
Portable electrical and electronic
equipment
n
Small to medium-sized machines and
household equipment
n
Single-phase power supplies, switch-mode
power supplies
n
n
n
Test and measurement equipment
Medical equipment
Rack mounting equipment
> Components
> FN 9222E
Filter selection table
Filter
Rated current
@ 50°C (25°C)
[A]
1 (1.2)
3 (3.5)
6 (7.2)
8 (10.6)
10 (11.6)
12 (12)
15 (15)
12 (12)
15 (15)
1 (1.2)
3 (3.5)
6 (7.2)
8 (10.6)
10 (11.6)
12 (12)
15 (15)
12 (12)
15 (15)
1 (1.2)
3 (3.5)
6 (7.2)
8 (10.6)
10 (11.6)
12 (12)
15 (15)
12 (12)
15 (15)
Leakage current*
@ 250VAC/50Hz
[µA]
373
373
373
373
373
373
373
373
373
373
373
373
373
373
373
373
373
373
2
2
2
2
2
2
2
2
2
Inductance
L1
L2
[mH]
12
2.5
0.78
0.5
0.225
0.11
0.075
0.11
0.075
12
2.5
0.78
0.5
0.225
0.11
0.075
0.11
0.075
12
2.5
0.78
0.5
0.225
0.11
0.075
0.11
0.075
[mH]
0.4
0.4
0.4
0.4
0.1
0.1
0.1
0.1
0.1
0.4
0.4
0.4
0.4
0.1
0.1
0.1
0.1
0.1
0.4
0.4
0.4
0.4
0.1
0.1
0.1
0.1
0.1
Capacitance
Cx
Cy
[µF]
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
[nF]
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
Resistance Output connections
R
[kΩ]
-06
-06
-06
-06
-06
-06
-06
-06
-06
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
Weight
FN 9222Ex-1-06
FN 9222Ex-3-06
FN 9222Ex-6-06
FN 9222Ex-8-06
FN 9222Ex-10-06
FN 9222Ex-12-06
FN 9222Ex-15-06
FN 9222Ex-12-06HI
FN 9222Ex-15-06HI
FN 9222ExR-1-06
FN 9222ExR-3-06
FN 9222ExR-6-06
FN 9222ExR-8-06
FN 9222ExR-10-06
FN 9222ExR-12-06
FN 9222ExR-15-06
FN 9222ExR-12-06HI
FN 9222ExR-15-06HI
FN 9222ExB-1-06
FN 9222ExB-3-06
FN 9222ExB-6-06
FN 9222ExB-8-06
FN 9222ExB-10-06
FN 9222ExB-12-06
FN 9222ExB-15-06
FN 9222ExB-12-06HI
FN 9222ExB-15-06HI
*
[g]
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
Maximum leakage under normal operating conditions. Note: if the neutral line is interrupted, worst case leakage could reach twice this level.
Product selector
FN 9222Exx-yy-..HI-zz
Snap-in range for S version only
Blank:
20:
Snap-in range 0.7 to 1.5mm
Snap-in range 1.5 to 2.2mm
Blank:
HI:
Standard IEC inlet type C14
Hot IEC inlet type C16 (12 and 15A types only)
06:
Faston 6.3 x 0.8mm (spade/soldering)
1 to 15:
Rated current
Blank:
R:
B:
Standard version
Bleed resistor
Medical version (with bleed resistor and without Y2-capacitor)
Blank:
U:
S:
S1:
Standard housing with mounting flanges
Housing with wider mounting flanges
Snap-in version, snapper on vertical side
Snap-in version, snapper on horizontal side
For example: FN 9222E-15-06, FN 9222ES1B-10-06-20, FN 9222ER-12-06HI, FN 9222EUB-8-06-20
> Components
> FN 9222E
Typical filter attenuation
Per CISPR 17; A = 50Ω/50Ω sym; B = 50Ω/50Ω asym; C = 0.1Ω/100Ω sym; D = 100Ω/0.1Ω sym
1 and 3A types
6 to 10A types
12 and 15A types

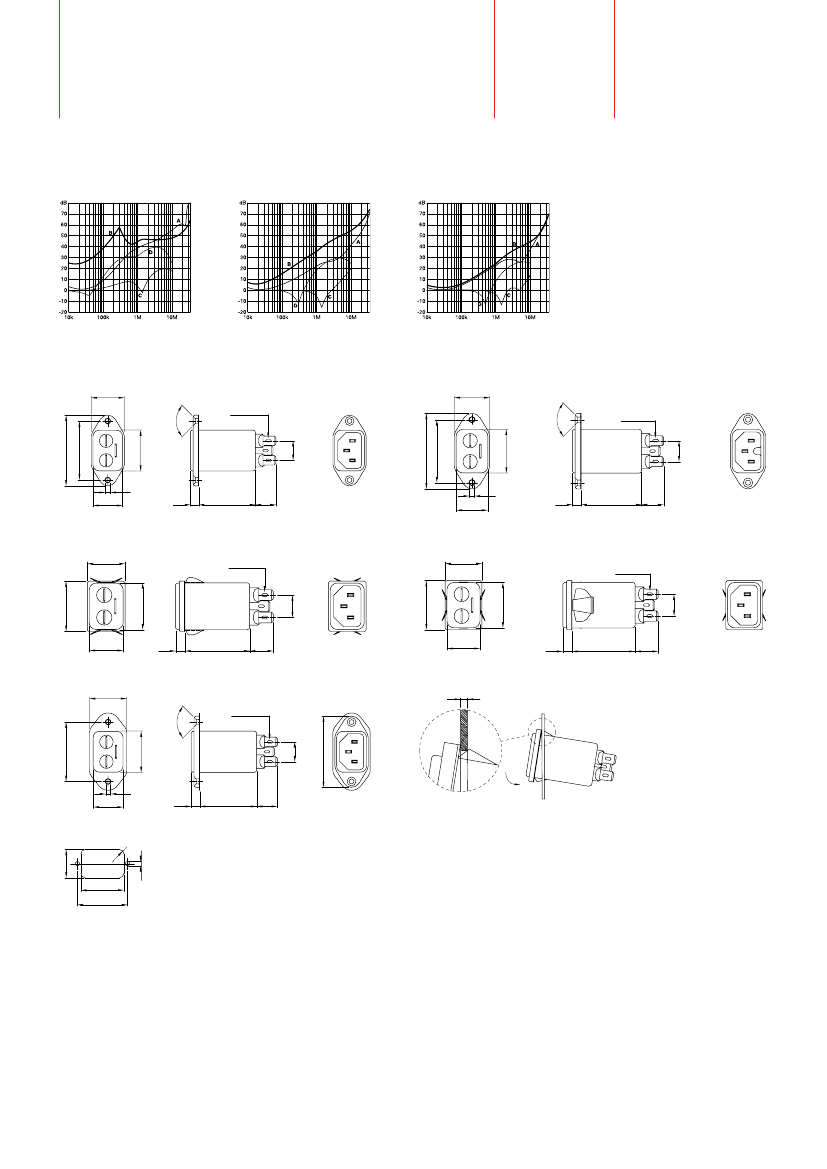

Mechanical data
FN 9222E
B
6.3 x 0.8
S
A C
E
J
A C
E
IEC plug type
C14
FN 9222E-HI
B
S
6.3 x 0.8
IEC plug type
C16
J
H
G
F
D
I
G
H
F
D
I
FN 9222ES
B
6.3 x 0.8
C14
FN 9222ES1
B
6.3 x 0.8
C14
A
E
J
A
E
J
G
F
D
I
G
F
D
I
FN 9222EU
B
6.3 x 0.8
S
C
E
J
A
C14
Installation
T
H
G
F
D
I
Panel cut out
N
P
C
M
R
> Components
> FN 9222E
Dimensions
FN 9222E
FN 9222EU
FN 9222ES
FN 9222ES1
FN 9222E-HI
A
B
C
D
E
F
G
H
I
J
M
N
P
R
S
T*
T*
*
48
22.5
40 ±0.2
46.8
27.8
5.5
20.1
Ø3.3
14
13.3
R≤3
21.5
28.5
M3
90°
53
30
40 ±0.2
46.8
27.8
5.5
20.1
Ø3.3
14
13.3
R≤3
21.5
28.5
M3
90°
29.9
22.4
46.8
27.8
5.5
20.1
14
13.3
R ≤ 1.5
20.8
29.4
29.9
22.4
46.8
27.8
5.5
20.1
14
13.3
R ≤ 1.5
21.9
28.5
48
22.5
40 ±0.2
46.8
27.8
5.5
20.1
Ø3.3
14
13.3
R≤3
21.5
28.5
M3
90°
0.7 - 1.5
1.5 - 2.2
For selecting the panel thickness, please refer to the filter selector table.
0.7 - 1.5
1.5 - 2.2
All dimensions in mm; 1 inch = 25.4mm
Tolerances according: ISO 2768-m / EN 22768-m
