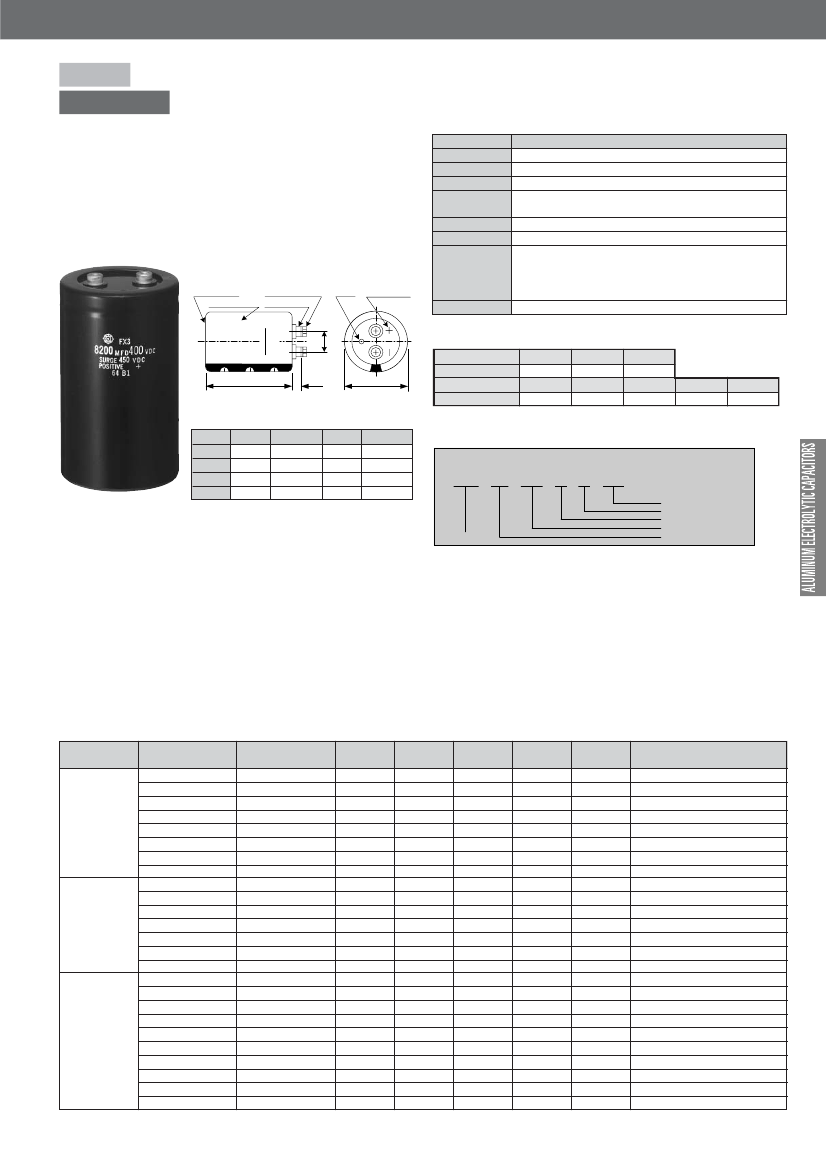

SCREW TERMINAL TYPE ALUMINUM ELECTROLYTIC CAPACITORS
New
FX3 Series
• Conform RoHS
Features
• FX3 series is the product developed
for the purpose of the miniaturization
as a capacitor for primary side filters
of an inverter, DC servo, and a
chopper control circuit.
Useful of 8,000 hours at 85°C (Warranty of 5,000 hours at 85°C)
Product Specifications
Items
Specifications
Temperature range –40°C ~ +85°C
Rated voltage 400~500V.DC
Capacitance tolerance ±20% (20°C,120Hz)
0.01CV (µA) or 5 mA, whichever is smaller or less(20℃, after 5 minutes)
Leakage current
[C = nominal capacitance (µF), V = rated voltage (V)]
Dissipation factor Less than the value specified in the standard products table. (20˚C,120Hz)
Permissible ripple current As specified in the standard products table. (85˚C,120Hz)
After the rated voltage with specified ripple current is applied at 85°C for 5000 hours:
Capacitance tolerance: ±15% or less of the initial value
High-temperature load
Dissipation factor: 175% or less of the specified initial value
Leakage current: Specified initial value or less
Others
P
±1
Insulation plate
Insulation sleeve
Hexagon-head bolt
Screw terminal
Vent
Anode marking
JIS C 5101-4.
Marking
L
±2
Ripple current correction coefficient
Temperature (°C)
Correction coefficient
Frequency (Hz)
Correction coefficient
40
1.89
50/60
0.7
60
1.67
120
1.0
85
1.00
300
1.1
T
±1
D
±2
1K
1.3
≧10K
1.4
(unit：mm)
Terminal permissible current : 60Arms for M5
φD
51
64
77
90
P
22.0
28.6
32.0
32.0
S
M5×10
M5×10
M5×10
M5×10
T
5.5
5.5
5.0
5.0
Cap material
Phenol
Phenol
Phenol
Phenol
Product code : (Example) FX3 type 400V 8,200µF±20%
FX3 2G 822 Y
E 130
E case (øD : 77mm) product
The L dimension (mm)
Case code
Type of bracket code
Capacitance code
Rated voltage code
Type of series
Bracket
• See page 55 for shapes and dimensions.
• Product names in the Standard Products Table correspond to the
bracket for Type Y, but Type
Ι
bracket may be used (Type of bracket
Code =
Ι
).
• If bracket are not necessary, enter "N" for the type of bracket code.
• Bracket will be delivered separately.
Standard Products Table
Rated Voltage
Code
(Surge Voltage)
(V. DC)
Capacitance
(µF)
2200
2700
3300
3900
4700
5600
6800
8200
1800
2200
3300
4700
5600
6800
8200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
Case size
øDXL(mm)
51×96
51×115
51×130
64×96
64×115
64×130
77×115
77×130
51×96
51×115
51×155
64×155
64×171
64×195
77×171
51×115
51×130
64×96
64×130
77×115
77×130
77×155
77×171
90×157
90×171
Ripple current
tanδ
20°C,120Hz
85°C,120Hz
(Arms)
ESR(typ.)
20°C,100Hz
(m
Ω
)
Z max
20°C,10kHz
(m
Ω
)
ESL(typ.)
(nH)
21
21
21
22
22
22
24
24
21
21
21
22
22
22
24
21
21
22
22
24
24
24
24
24
24
Product name
FX32G222YC096
FX32G272YC115
FX32G332YC130
FX32G392YD096
FX32G472YD115
FX32G562YD130
FX32G682YE115
FX32G822YE130
FX32W182YC096
FX32W222YC115
FX32W332YC155
FX32W472YD155
FX32W562YD171
FX32W682YD195
FX32W822YE171
FX32H152ＹC115
FX32H182ＹC130
FX32H222ＹD096
FX32H272ＹD130
FX32H332ＹE115
FX32H392ＹE130
FX32H472ＹE155
FX32H562ＹE171
FX32H682ＹF157
FX32H822ＹF171
400
2G
(450)
450
2W
(500)
500
2H
(550)
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
8.4
10.0
11.6
12.3
14.5
16.5
17.5
20.1
7.2
8.6
11.9
15.5
15.9
18.4
22.5
7.6
8.7
9.4
11.7
13.1
14.9
17.5
19.9
22.5
25.5
46
38
30
26
21
18
15
12
71
58
39
27
23
19
16
74
53
40
37
36
27
25
23
20
17
48
40
32
28
22
19
15
15
73
60
41
29
25
21
18
80
50
35
33
32
29
25
21
18
16
79
