CLT-110-01-G-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> CLT-110-01-G-D

CLT-110-01-G-D: Descriptionconn rcpt 20pos dual 2mm T/H; CategoryThe connector The connector; File Size126KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

CLT-110-01-G-D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CLT-110-01-G-D	-	-	View	Buy Now

CLT-110-01-G-D Overview

conn rcpt 20pos dual 2mm T/H

CLT-110-01-G-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Samacsys Description	20 Position, Low Profile Dual-Wipe Socket, 2.00mm Pitch
Other features	E.L.P., TIGER CLAW CONTACT, LOW PROFILE
body width	0.157 inch
body length	0.787 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.5004 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	CLT
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.064 mm
Plating thickness	10u inch
Rated current (signal)	4.1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.085 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	20
Evacuation force-minimum value	.1668 N

Preview

Download Datasheet

View All

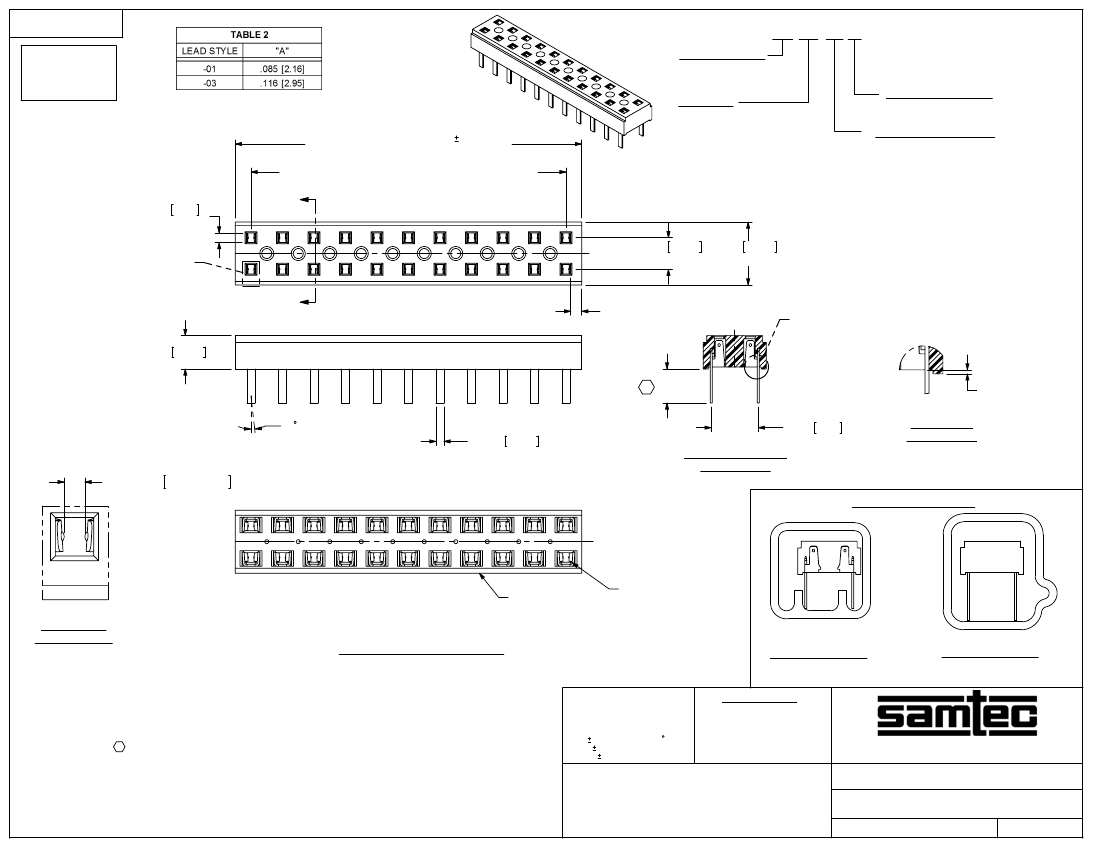

REVISION X

DO NOT

SCALE FROM

THIS PRINT

CLT-1XX-XX-XX-D

No OF POSITIONS

-02 THRU -50

(PER ROW)

LEAD STYLE

-01: THROUGH HOLE

(USE C-114-02-XX)

(SEE NOTE 7)

-03: THROUGH HOLE

(USED C-114-03-XX)

BODY SPECIFICATION

-D: DOUBLE ROW

PLATING SPECIFICATION

(VALUES GIVEN ARE IN MICRO-INCHES)

-G: GOLD, 10 Au / 50 Ni MIN ON CONTACT,

3 Au / 50 Ni MIN ON TAIL.

-S: SELECTIVE, 30 Au / 50 Ni MIN

ON CONTACT, MATTE TIN TAIL.

-F: FLASH SELECTIVE, 3 Au / 50 Ni MIN

ON CONTACT, MATTE TIN TAIL.

-SM: SELECTIVE, 30 Au / 50 Ni MIN

ON CONTACT, MATTE TIN TAIL.

-FM: FLASH SELECTIVE, 3 Au / 50 Ni MIN

ON CONTACT, MATTE TIN TAIL.

-L: LIGHT SELECTIVE, 10 Au / 50 Ni MIN

ON CONTACT, MATTE TIN TAIL.

-LM: LIGHT SELECTIVE, 10 Au / 50 Ni MIN

ON CONTACT, MATTE TIN TAIL.

(NO OF POS x .0787 [2.00]) .005 [.13]

(CUT TO POSITION) SEE NOTES 3 & 6)

(NO OF POS x .07874 [2.000]) -.07874 [2.000] REF

.024 0.61

SQ REF

"A"

'C'

"A"

.07874 2.000

REF

.1575 4.001

REF

SEE NOTE 6

'B'

.0835 2.121 REF

"A"

.002 [.051] MIN

.119 3.02 REF

2 MAX SWAY

(EITHER DIRECTION)

.0200 0.508 X .0050 [.127] REF

SECTION "A"-"A"

SCALE 4 : 1

DETAIL 'B'

SCALE 8 : 1

.0130±.0015 0.330±0.038

PACKAGING VIEW

CLT-XX-D

C-114-XX-XX

DETAIL 'C'

SCALE 16 : 1

CLT-111-XX-XX-D SHOWN

LEAD STYLE -01

PT-1-24-01-62

TP-12

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

LEAD STYLE -03

PT-1-24-01-37

TP-24-02

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. MINIMUM PUSHOUT FORCE: .5 LB.

3. PARTS TO BE SYMMETRICAL ABOUT C .

4. WILL LOSE A POSITION FOR EVERY CUT MADE ON A SOCKET STRIP.

5. PACKAGE POSITIONS -04 THRU -50 IN TUBES,

LAYER PACKAGE POSITION -02 THRU -03.

6. ENDWALL AFTER CUTTING: .0215 MIN.

7. C-114-22-XX CAN BE USED FOR C-114-02-XX. C-114-22-XX IS FOR

AUTOMATED ASSEMBLY PROCESSES ONLY.

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 4:1

INSULATOR: LCP, UL 94 VO, COLOR: BLACK

CONTACT: PHOS BRONZE

2MM LOW PROFILE SOCKET STRIP

CLT-1XX-XX-XX-D

11-02-95

SHEET

F:\DWG\MISC\MKTG\CLT-1XX-XX-XX-D-MKT.SLDDRW

BY:

PURVIS
