THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
ALL RIGHTS RESERVED.
20
3
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
COPYRIGHT
20
BY -
0.5
0.1
NOTES
1. MATERIALS
HOUSING
SCREW M3
CLAMP :
CONTACT
& FINISH
: PA 6-6 , UL94 V0, COLOR -GREEN
: BRASS, NICKEL PLATED
BRASS, NICKEL PLATED
: BRASS, TIN PLATED
C1
DIM (12.1,12.3,9.3)
ADDED IN ZONE D4
20OCT2015
FP
GN
12.1
D
2. MECHANICAL
RECOMMENDED/ HIGHEST TIGHTENING TORQUE : 0.5/0.6 Nm
PCB THICKNESS: MAX 2.4 mm
WIRE STRIPPING LENGTH: 5.5 - 6.5 mm
3. ELECTRICAL
WIRE RANGE : 30 - 12 AWG
MAX. VOLTAGE
: 300 V
MAX CURRENT : 17.5 A
CONTACT RESISTANCE : <15 m Ohm
INSULATION RESISTANCE : > 1000 M Ohm (500V DC)
4. OPERATING TEMPERATURE RANGE: -40°C TO +110°C
5. END-TO-END STACKABLE W/INTERLOCK WITHOUT LOSS OF CENTERLINE SPACING.
D
33.7 REF
TEST FACILITY
12.3
6
TOLERANCE NOT CUMULATIVE.
INTERLOCKING FEATURE
9.3
CLAMPING SCREW
C
B
A
C
35.6
14.8
B
25.2
282897-3 AS SHOWN
WIRE ENTRY
B
2.54±0.05
5.08±0.10
6
4.5 REF
15.24±0.10
10.16±0.10 3.8
3.8
2.54 REF
1
0.1
0.8
0.05
0.3
2.54
+0.1
-0
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
17.78
12.70
17DEC2001
E. ZANOLINI
CHK
17DEC2001
D. BIEVENOUR
APVD
17DEC2001
D. BIEVENOUR
PRODUCT SPEC
APPLICATION SPEC
DIM. B DIM. A N $
10.16
15.24
3
2
282897-3
OF POS.
PART NUMBER
TE Connectivity
282897-2
15.24
A
DIMENSIONS:
10.16
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
NAME
A
5.08
1471-9 (3/13)
RECOMMENDED PC BOARD LAYOUT
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
.2
.15
-
-
-
1 $
SEE NOTES
-
-
-
WEIGHT
-
-
CUSTOMER DRAWING
A2
SIZE

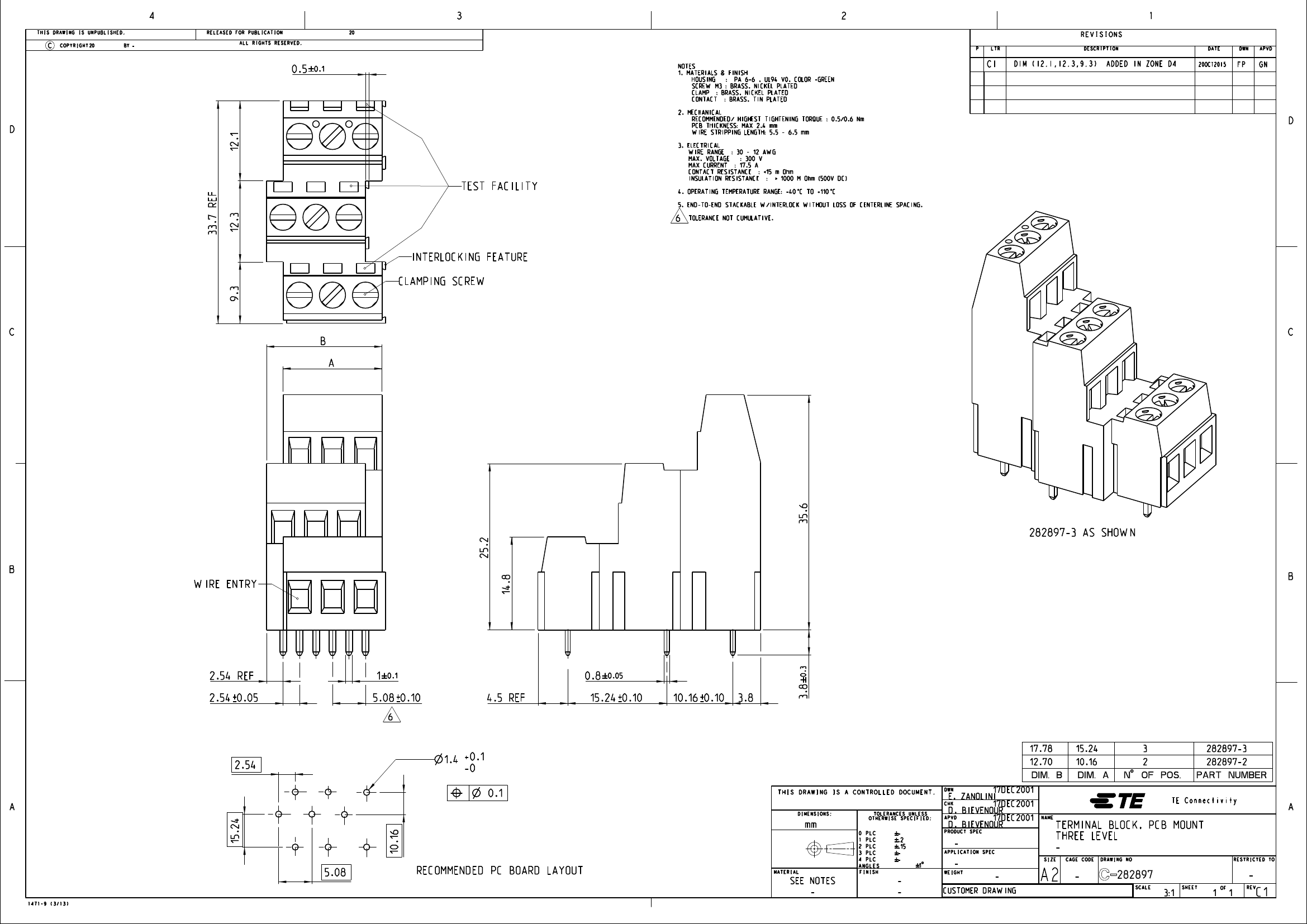

TERMINAL BLOCK, PCB MOUNT
THREE LEVEL
-
CAGE CODE DRAWING NO
RESTRICTED TO
-
282897
SCALE
3:1
SHEET
1
OF
1
REV
-
C1
