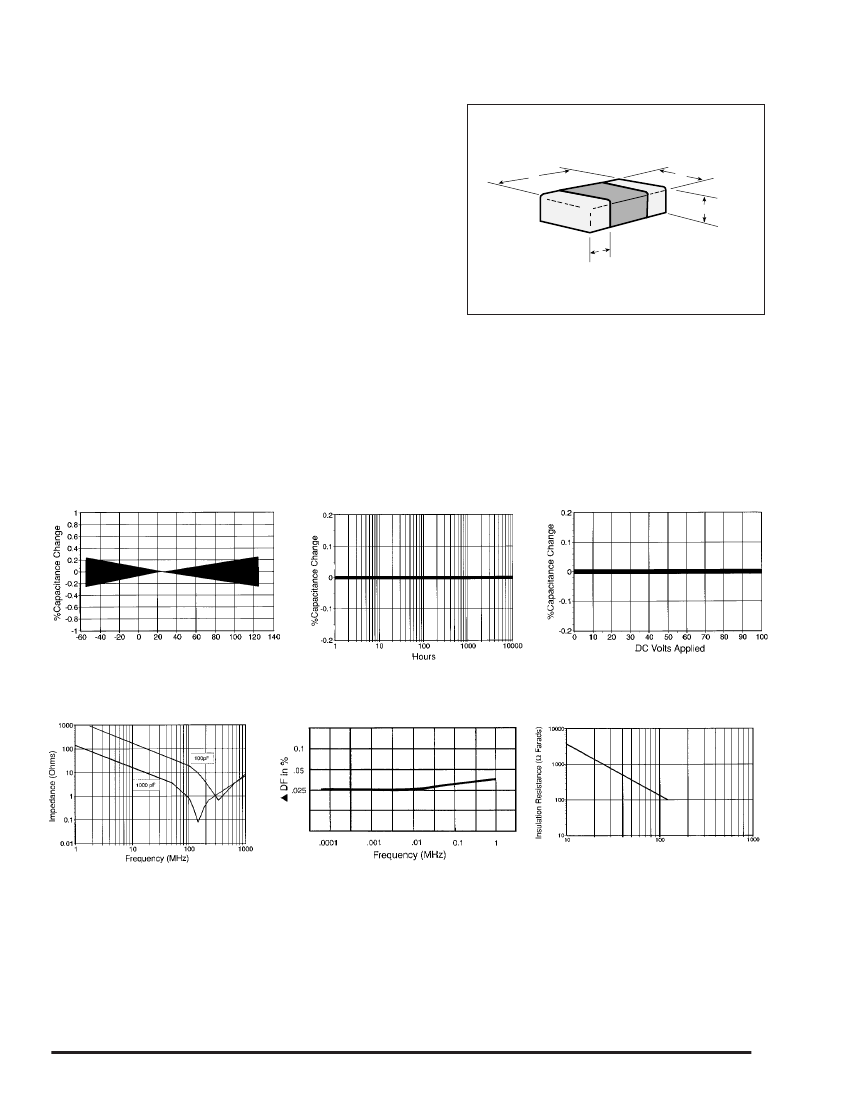

ATC GENERAL PURPOSE CAPACITORS: NPO (COG) DIELECTRIC
ELECTRICAL CHARACTERISTICS
CAPACITANCE RANGE:
0.5 pF to 0.10 µF.
TEMPERATURE CHARACTERISTIC:
0 ± 30ppm/°C.
L
W
OPERATING TEMPERATURE RANGE:
-55°C to +125°C.
DISSIPATION FACTOR:
0.1% (max.) @ + 25°C,
@1 MHz
≤
1000 pF; @1 KHz >1000 pF
INSULATION RESISTANCE
@ + 25°C and rated Vdc:
100,000 megohms (min.) or 1000 ohm-farads (min.),
whichever is less.
DIELECTRIC WITHSTANDING VOLTAGE:
250% of rated voltage for 5 ± 1 seconds, 50 milliamps (max.).
Unless otherwise specified all test data is at + 25°C.
T (MAX.)
MB

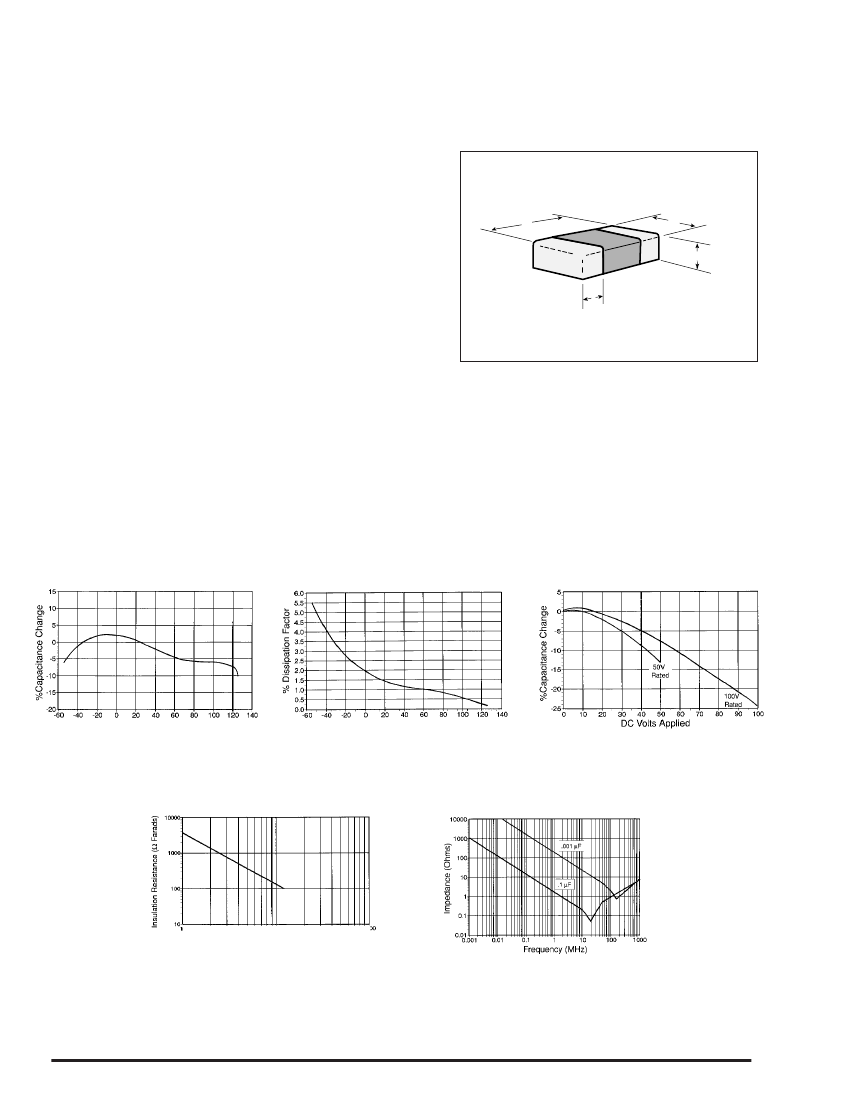

Temperature Coefficient
Aging Rate
Voltage Coefficient of Capacitance
Temperature (Celsius)
Impedance vs. Frequency
Dissipation Factor vs. Frequency
Minimum IR vs. Temperature
Temperature (Celsius)
Sales of ATC products are subject to the terms and conditions contained in American Technical Ceramics Corp. Terms and Conditions of Sale(ATC document #001-992 Rev. A 10/03). Copies of
these terms and conditions will be provided upon request. They may also be viewed on ATC's website at www.atceramics.com/productfinder/default.asp. Click on the link for Terms and
Conditions of Sale.
ATC has made every effort to have this information as accurate as possible. However, no responsibility is assumed by ATC for its use, nor for any infringements of rights of third parties which
may result from its use. ATC reserves the right to revise the content or modify its product without prior notice.
