DPAM-15-09.0-S-8-2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> DPAM-15-09.0-S-8-2

DPAM-15-09.0-S-8-2: DescriptionBoard Stacking Connector, 104 Contact(s), 8 Row(s), Male, Straight, 0.085 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size491KB，4 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

DPAM-15-09.0-S-8-2 Overview

Board Stacking Connector, 104 Contact(s), 8 Row(s), Male, Straight, 0.085 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

DPAM-15-09.0-S-8-2 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
subject depth	0.262 inch
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	MATTE TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10.4 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.085 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	16
Number of rows loaded	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	MIXED
Plating thickness	30u inch
Rated current (signal)	2.9 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.16 mm
Termination type	SURFACE MOUNT
Total number of contacts	104
Base Number Matches	1

Preview

Download Datasheet

View All

REVISION C

PATENT NUMBERS

6979238 / 7137832

6969286 / 7178232

7159312 / 7172438

7052337 / 7125293

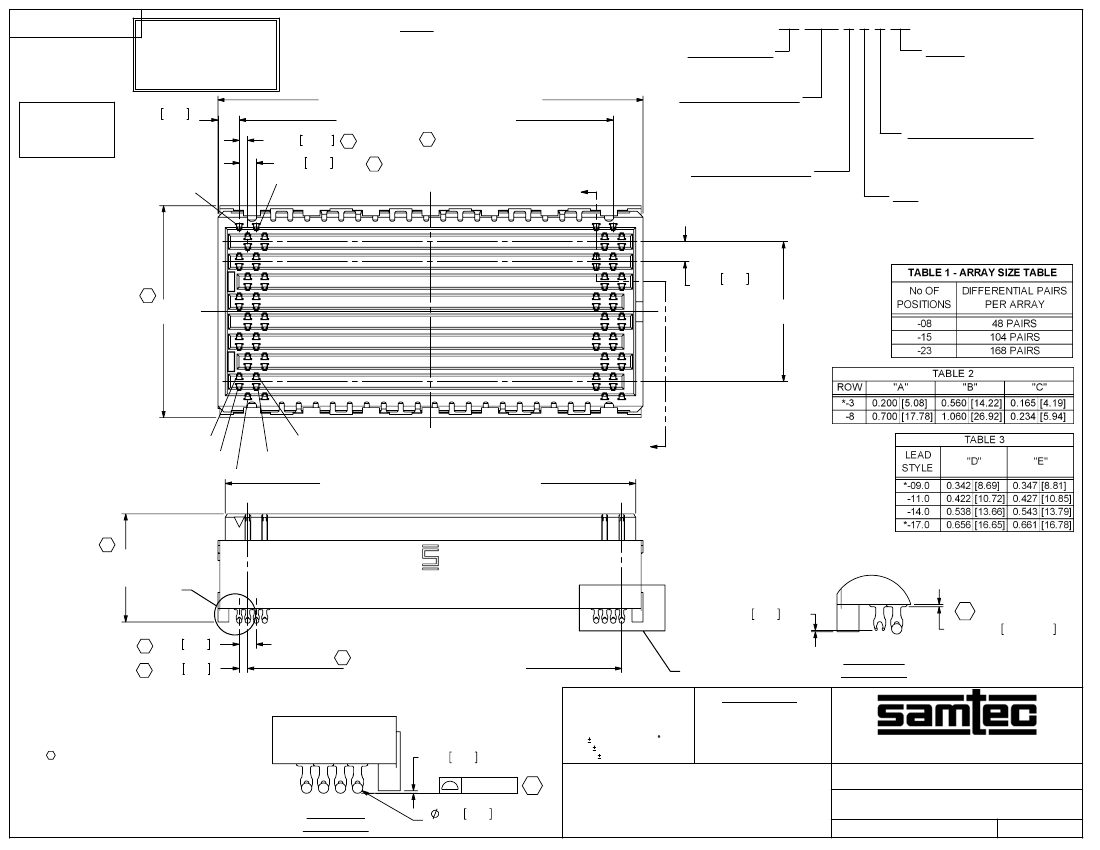

DPAM-23-14.0-S-8-1 SHOWN

(ALL TERMINALS NOT SHOWN FOR CLARITY)

FIG. 1

DPAM-XX-XX.X-X-X-X-XX

No OF POSITIONS

-08, -15, -23

(PER ROW)

LEAD STYLE (SEE NOTE 3)

-09.0: 12mm STACK HEIGHT

-11.0: 14mm STACK HEIGHT

-14.0: 17mm STACK HEIGHT

-17.0: 20mm STACK HEIGHT

PLATING SPECIFICATION

-S: SELECTIVE .000030 GOLD

IN CONTACT AREA, MATTE

TIN ON SOLDER TAIL

OPTION

-A: ALIGNMENT PIN

(SEE FIG. 2, SHEET 3)

-K: POLYAMIDE FILM

(SEE FIG. 3, SHT 3)

-TR: TAPE & REEL

(LEAVE BLANK FOR TRAY)

SOLDER CRIMP MATERIAL

-1: 63% TIN / 37% LEAD

(USE SUB-T-1M32-XX.X-1)

-2: 96.5% TIN/3% SILVER/0.5% COPPER

(USE SUB-T-1M32-XX.X-2)

ROW

-3: 3 DIFFERENTIAL PAIR ROWS

-8: 8 DIFFERENTIAL PAIR ROWS

DO NOT

SCALE FROM

THIS PRINT

.107 2.71

REF

(No OF POS) x .085[2.16] + .171 [4.34] REF

(No OF POS -1) x .085[2.16] (TYP)

.0425 1.080

.085 2.16 (TYP)

(Ground Pin)

"A"

* = NOT TOOLED

"B"

(SEE TABLE 2)

.100 2.54

REF (TYP)

"A" REF

(SEE TABLE 2)

PIN 2 (PAIR 1)

PIN 1 (PAIR 1)

PIN 4 (PAIR 2)

PIN 3 (PAIR 2)

(No OF POS) x .085[2.16] + .097[2.46] REF

"A"

"D"

(SEE TABLE 3)

(SEE NOTE 5)

'C'

.0029 0.07 REF

C11

.006±.003 0.15±0.08

.085 2.16

.043 1.08

C C

L L

(No OF POS - 1) x .085[2.16] (TYP)

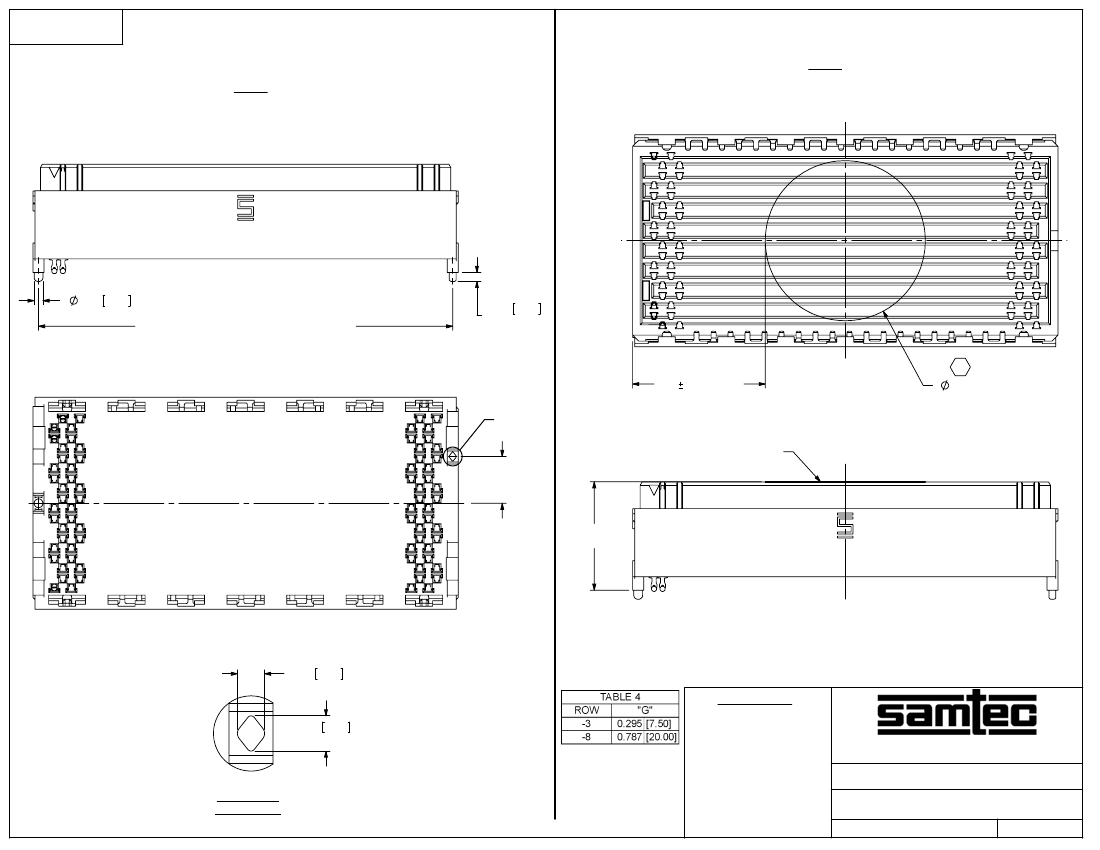

(SEE SHEET 2 FOR BOTTOM VIEW)

'B'

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

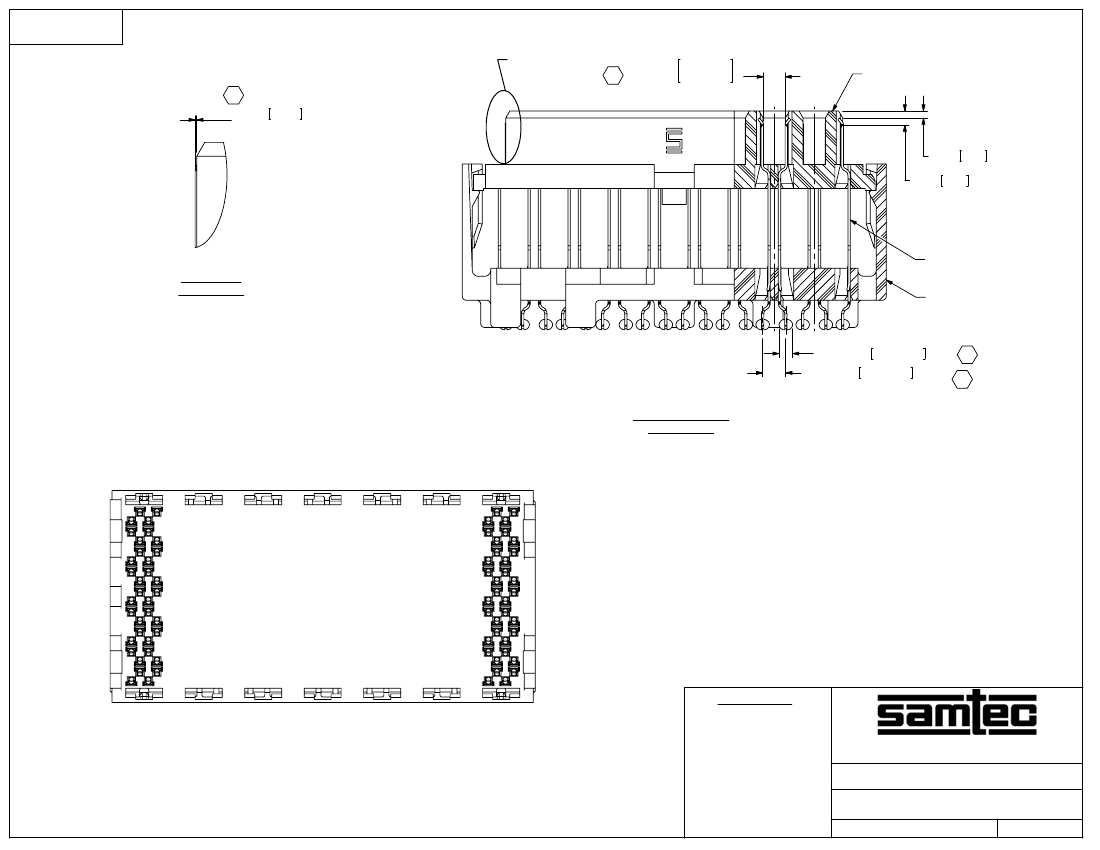

DETAIL 'C'

SCALE 4 : 1

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. MINIMUM PUSHOUT FORCE: 1.0 LBS.

3. LEAD STYLE STACK HEIGHTS APPLY WHEN

MATED WITH A -3.0 LEAD STYLE DPAF.

4. PARTS TO BE PACKAGED IN TRAYS IF -TR

OPTION IS NOT SELECTED.

5. TO BE CHECKED ON ALL 4 CORNERS.

6. DIMS TO BE CHECKED AT TIPS.

.006 0.15 REF

.008[0.20]

C10

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

INSULATORS: L.C.P., COLOR: BLACK

TERMINAL: COPPER ALLOY

.085 PITCH ELEVATED DP TERMINAL ASM

DETAIL 'B'

SCALE 4 : 1

.026 0.66

REF (TYP)

F:\DWG\MISC\MKTG\DPAM-XX-XX.X-X-X-X-XX-MKT.SLDDRW

BY:

CHAD F

DPAM-XX-XX.X-X-X-X-XX

01/13/2005

SHEET
