3832510KBL

Description
Pushbutton Switch, SPDT, Momentary, Quick Connect Terminal, Panel Mount-threaded, ROHS COMPLIANT
CategoryMechanical and electronic products    switch
File Size75KB，1 Pages
ManufacturerArcolectric
Environmental Compliance
Download Datasheet Parametric Compare View All

3832510KBL Online Shopping

Suppliers Part Number Price MOQ In stock
3832510KBL - - View Buy Now

3832510KBL Overview

Pushbutton Switch, SPDT, Momentary, Quick Connect Terminal, Panel Mount-threaded, ROHS COMPLIANT

3832510KBL Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerArcolectric
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Actuator typeROUND TYPE
body width15 mm
body height31.3 mm
Body length or diameter24.8 mm
Contact (AC) maximum rated R load16A@250VAC
Maximum contact current (AC)16 A
Maximum contact voltage (AC)250 V
Manufacturer's serial number380
Installation featuresPANEL MOUNT-THREADED
surface mountNO
Switch actionMOMENTARY
switch functionSPDT
Switch typePUSHBUTTON SWITCH
Termination typeQUICK CONNECT
Base Number Matches1

Preview

Download Datasheet

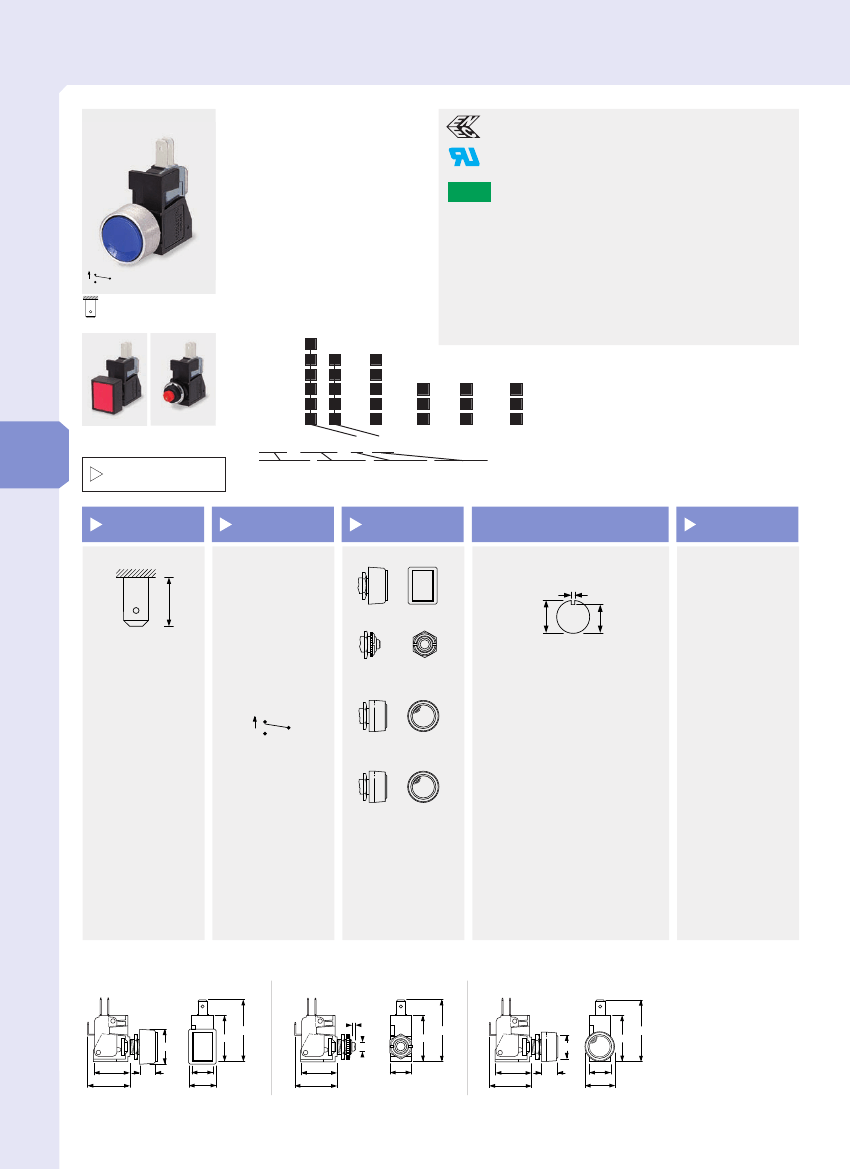

380 Push Button Snap Action Switches 16(4)A 250Vac
Snap action switches
Ratings up to 16A,
250Vac
Round and rectangular
buttons
17
16(4)A 250Vac 5E4 T85
16A 125/250Vac 3/4hp T85 50E3
125V
1
/
2
HP, 250V
3
/
4
HP, 0.4A 125Vdc, 0.2A 250Vdc
RoHS
RoHS compliant
Approvals apply to switch mechanism only.
µ contact gap.
383 2510 K BL
Blank for switch only
R
Red
B
Black
R
Red
B
Black
R
Red
B
Black
BL
Blue
G
Green
W
White
R
Red
B
Black
BL
Blue
G
Green
W
White
R
Red
B
Black
BL
Blue
G
Green
W
White
E
P
K
R
M
push
switches
383 2510 RR
383 2510 PR
383 2510 K BL
TERMINAL FUNCTION ACTUATOR ACTUATOR
CODE
CODE
CODE
COLOR
FUNCTION
ACTUATOR
R
Rectangular bezel
1.3
ORDER FORMAT
TERMINAL
BODY
Color
OPTIONS
383
12.0
P
Short
6.3 x 0.8
Ø12.7
Panel Cut-out
11.1
Call factory for
custom colors
A full range is available for
large orders
K
with satin chrome bezel
Panel thickness
Both nuts 2.5mm
No backnut 4.0mm
ON - ON
(momentary 1 side)
M
with nylon bezel
Dimensions
(mm)
R
P&E
K&M
1.7
31.3
23.9
43.5
7.7
31.3
43.5
17.8
31.3
43.5
24.8
28.7
10.8
15.0
20.1
24.8
28.7
15.0
2
24.8
28.7
10.9
15.0
22.0
48
Phone: 760-343-3650 •
Arcolectric
• Email: americas@elektron-technology.com
