231-100-H7ZL25-24PA datasheet, PDF

Datasheet> All Categories > The connector> The connector> 231-100-H7ZL25-24PA

231-100-H7ZL25-24PA: DescriptionMIL Series Connector, 24 Contact(s), Stainless Steel, Male, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size456KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

231-100-H7ZL25-24PA Overview

MIL Series Connector, 24 Contact(s), Stainless Steel, Male, Solder Terminal, Receptacle

231-100-H7ZL25-24PA Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-38999
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	GOLD (50) OVER NICKEL
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/MOISTURE/VIBRATION RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	231-100-H7
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	HERMETIC
Shell surface	NICKEL PLATED
Shell material	STAINLESS STEEL
Housing size	25
Termination type	SOLDER
Total number of contacts	24
Base Number Matches	1

Preview

Download Datasheet

View All

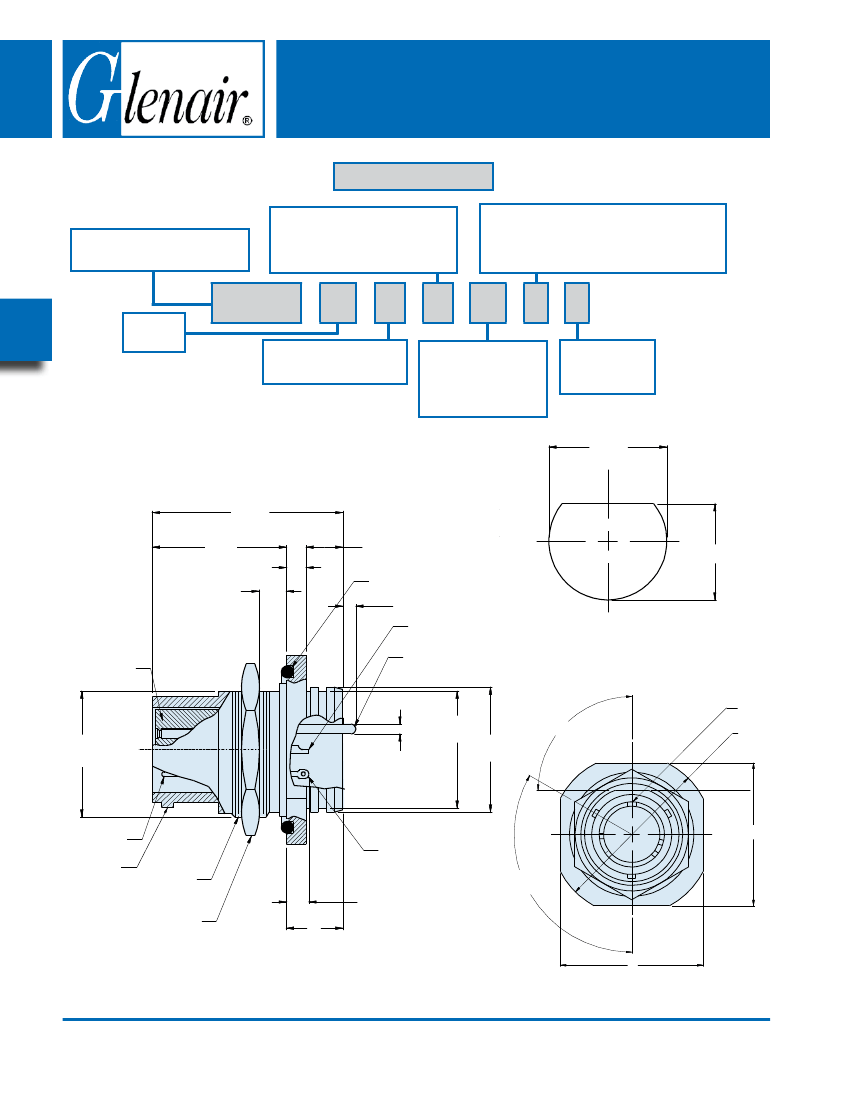

D38999 QPL

Hermetics

Shell Style

MS27470

Jam Nut Mount, Series I

MS27470

Jam Nut Mount Hermetic Receptacle

MIL-DTL-38999 Series I

How To Order:

Connector Material / Finish

- Carbon Steel - Fused Tin Finish

- Stainless Steel - Passivate Finish

- Stainless Steel - Nickel Finish

Contact Termination

- Pin, Solder Cup

- Socket, Solder Cup

- Pin, Eyelet

- Socket, Eyelet

- Pin, PCB

- Socket, PCB

Flex Feedthrough

MS27470

Class

Y-

Hermetic

Alternate Key

Position

A, B, C, D

(Omit for Normal)

Shell Size

9,11,13,15,17,19,21,23,25

Insert Arrangement

MIL-DTL-38999 Series I

Hermetic Inserts Per

MIL-STD-1560;

See Pages B-2 - B-4

K Dia

L Max

.920

.910

.125/.062

Panel

Thickness

.150

O-Ring

.175/.125

Solder Cup

Contact (P & S)

Feedthrough

Contact (C & D)

Master

Keyway

B DIA

Recommended Panel Cut-Out

Socket Face

Flat

DIA

(See Table ll)

DIA

90°/85°

Pin Face

Contrasting

Color Pin Ends

(3 Places)

Thread

Nut

Per MS27514

Max

Eyelet

Contact (X & Z)

.141 Max (P & X)

.172 Max (S & Z)

120°

TYP

www.glenair.com

CAGE CODE 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

B-8
