8913-080-178MSD-A-F datasheet, PDF

8913-080-178MSD-A-F: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Brown Insulator, Plug; CategoryThe connector The connector; File Size1MB，4 Pages; ManufacturerKEL Corporation; Environmental Compliance

Download Datasheet Parametric View All

8913-080-178MSD-A-F Overview

Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Brown Insulator, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305347625
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	SOLDER HOLDING POSTS
body width	0.26 inch
subject depth	0.197 inch
body length	2.446 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	650VAC V
maximum insertion force	LIF N
Insulation resistance	1000000000 Ω
Insulator color	BROWN
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8913
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	6.2992 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	80

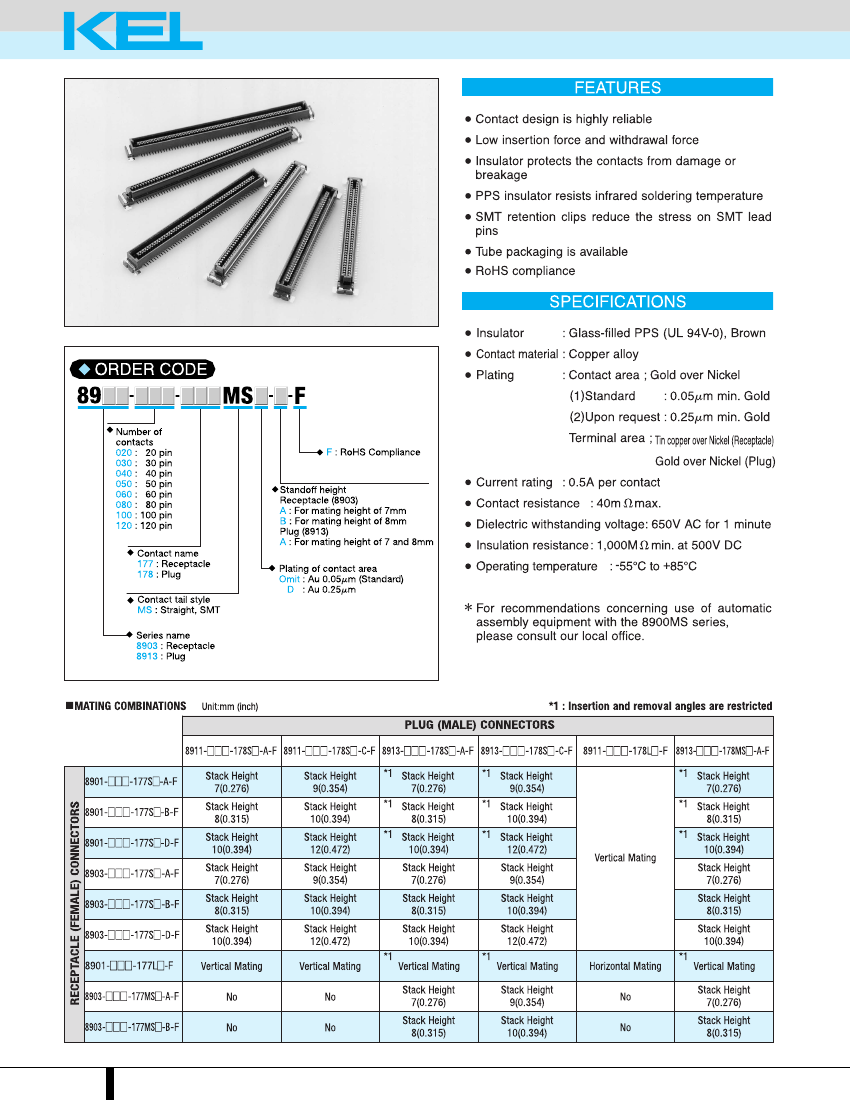

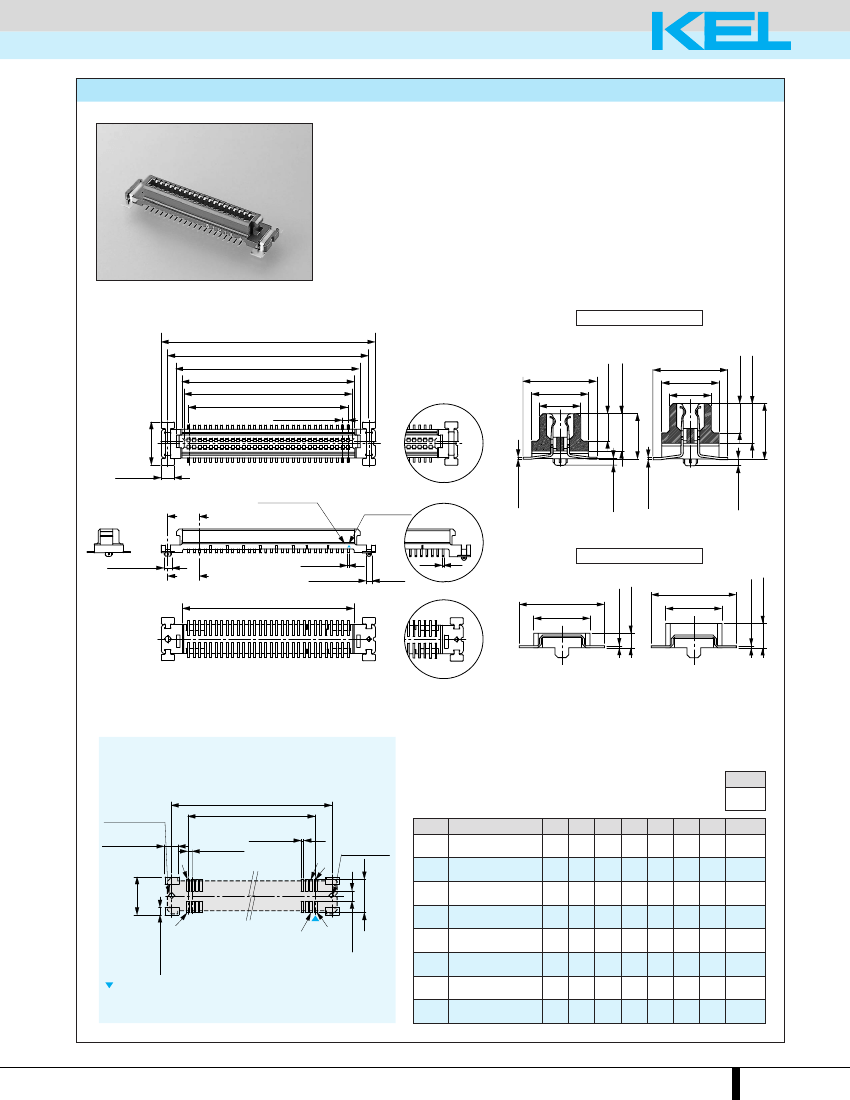

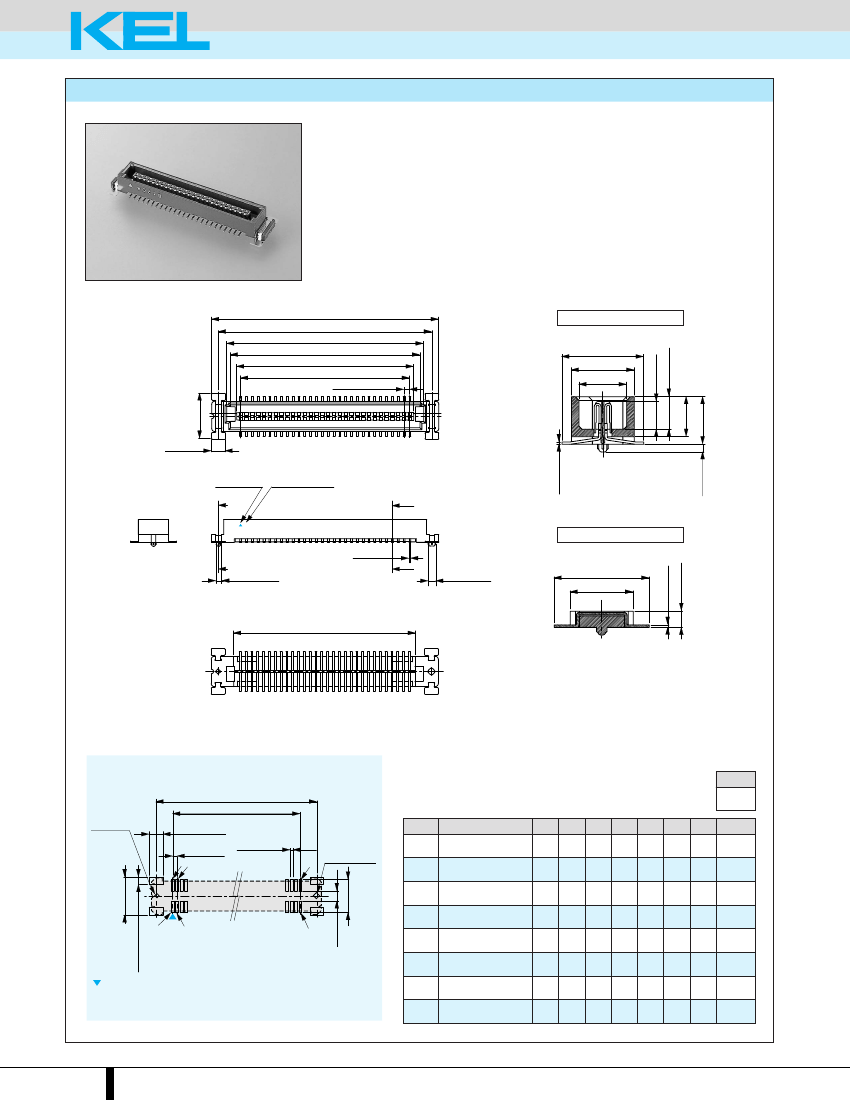

HIGH DENSITY SMT 50mil(1.27mm) PITCH 2 PIECE

CONNECTORS

8900MS

SERIES

B-13
