FRK9150D3 datasheet, PDF - EEWORLD Datasheet

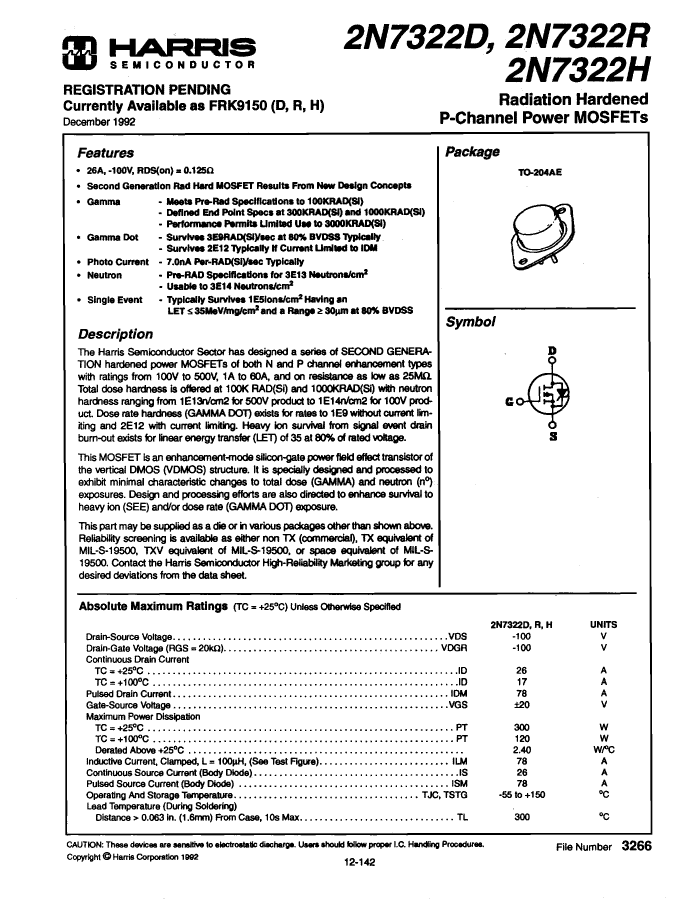

FRK9150D3: Description26A, 100V, 0.125ohm, P-CHANNEL, Si, POWER, MOSFET, TO-204AE; CategoryDiscrete semiconductor The transistor; File Size57KB，1 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric View All

FRK9150D3 Overview

26A, 100V, 0.125ohm, P-CHANNEL, Si, POWER, MOSFET, TO-204AE

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1407163313
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	RADIATION HARDENED
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	100 V
Maximum drain current (Abs) (ID)	26 A
Maximum drain current (ID)	26 A
Maximum drain-source on-resistance	0.125 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-204AE
JESD-30 code	O-MBFM-P2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Polarity/channel type	P-CHANNEL
Maximum power consumption environment	300 W
Maximum power dissipation(Abs)	150 W
Maximum pulsed drain current (IDM)	78 A
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	BOTTOM
Transistor component materials	SILICON
