L77SDEH25P datasheet, PDF - EEWORLD Datasheet

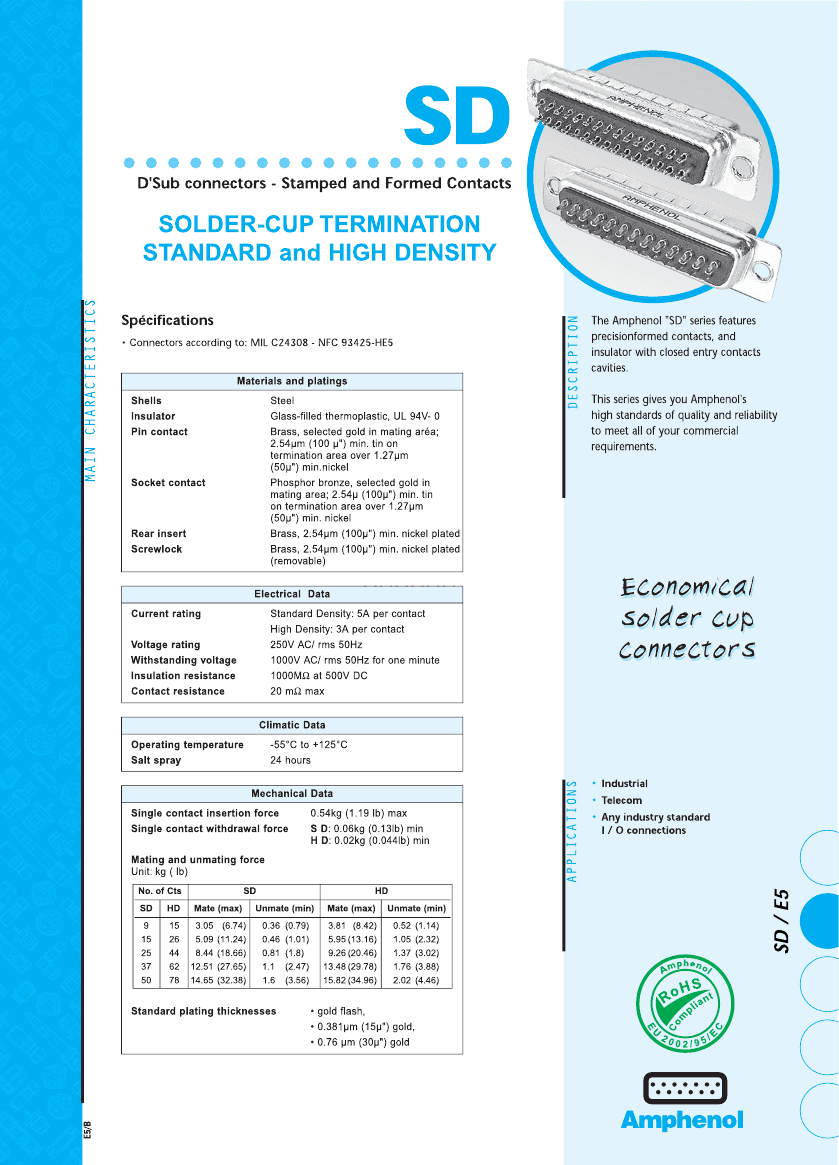

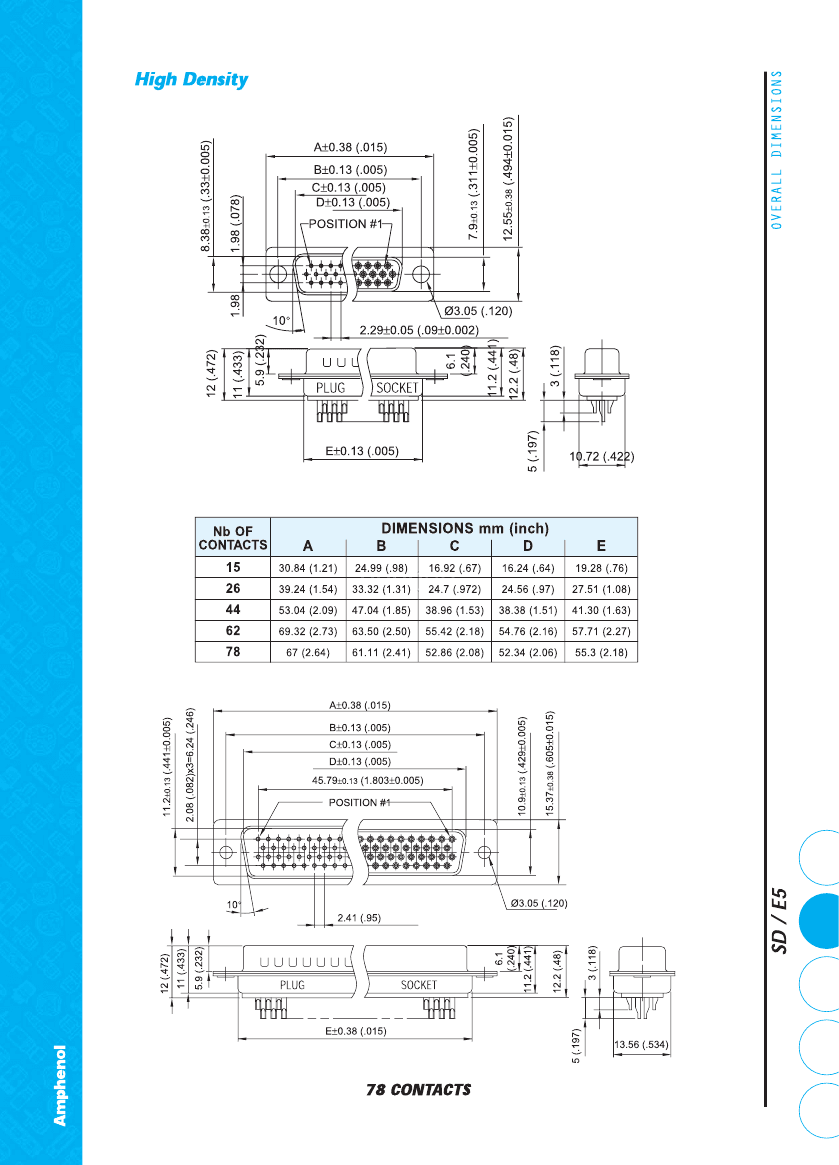

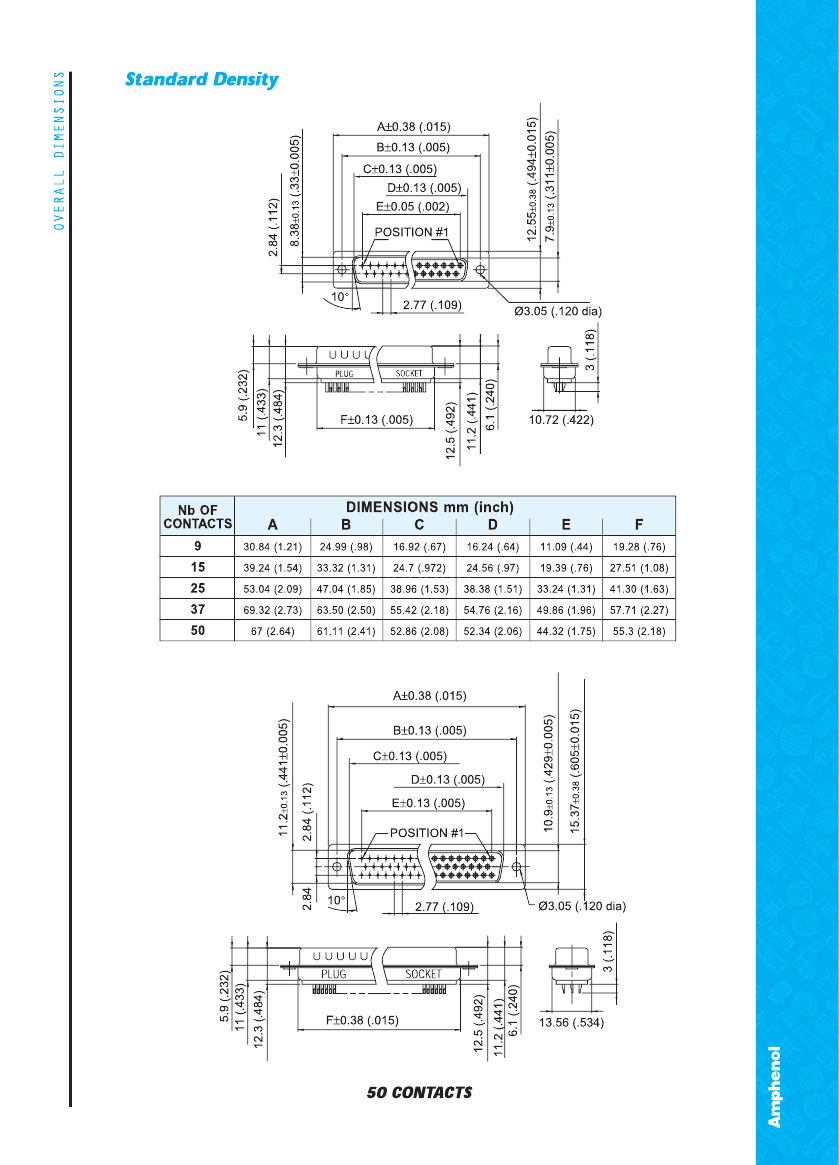

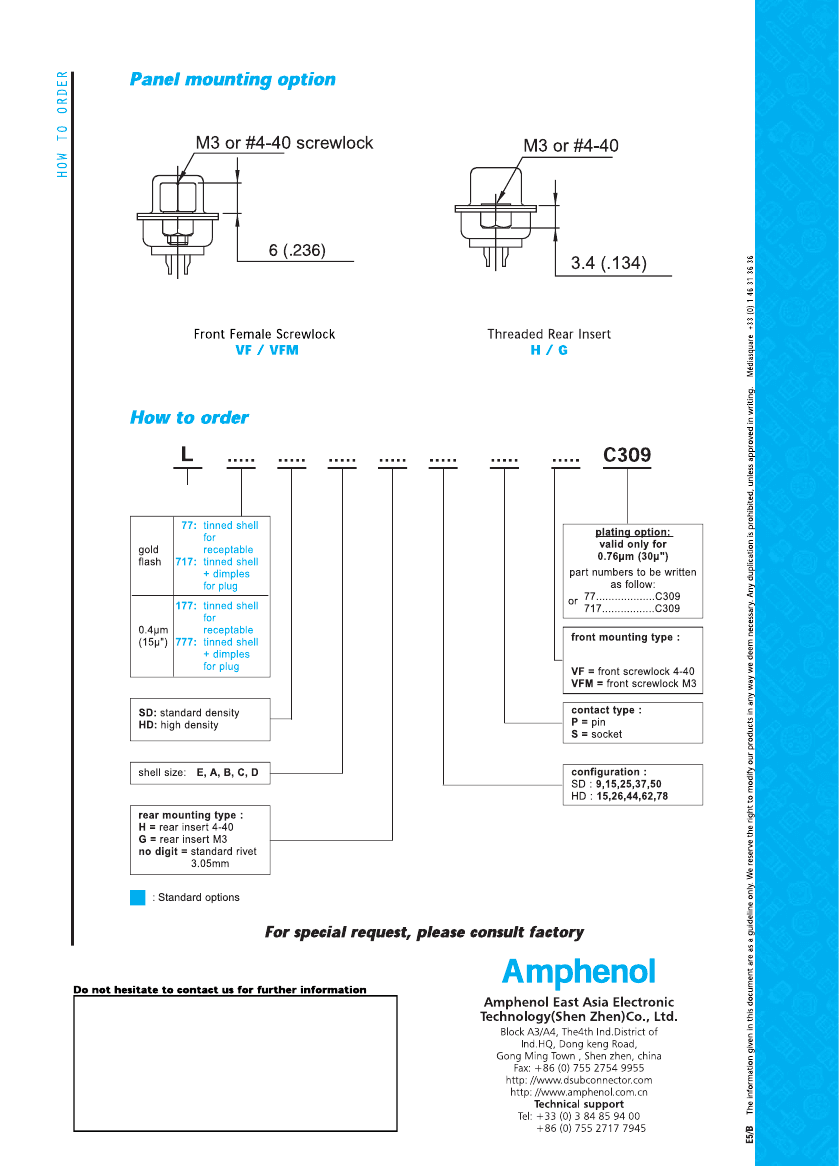

L77SDEH25P: DescriptionD Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, Locking; CategoryThe connector The connector; File Size1MB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

L77SDEH25P Overview

D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, Locking

Parameter Name	Attribute value
Objectid	316197749
Reach Compliance Code	unknown
ECCN code	EAR99
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1400VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYETHYLENE
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	LOCKING
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Rated current (signal)	5 A
Guideline	UL
Shell material	STEEL
Termination type	SOLDER LUG
Total number of contacts	25
