Part Number:
XZMOLA112S5W-A
AXSOLIGHT HIGH POWER LED
Features
Dimension: 48mm x 5mm x 1.6mm.
Instant light.
Linear type.
High efficiency.
Long operating life.
Low power consumption.
More energy efficient than incandescent,
most halogen lamps, and fluorescent lamp.
RoHS compliant.
Description
The package containing fifteen chips is capable of
providing high brightness.
High thermal dissipation efficiency is achieved by
incorporating aluminium as reflector and also substrate
to ensure long operating life.
Applications
Ceiling lights.
Contour lights.
Decoration lights.
General lighting.
Architectural lighting.
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
ATTENTION

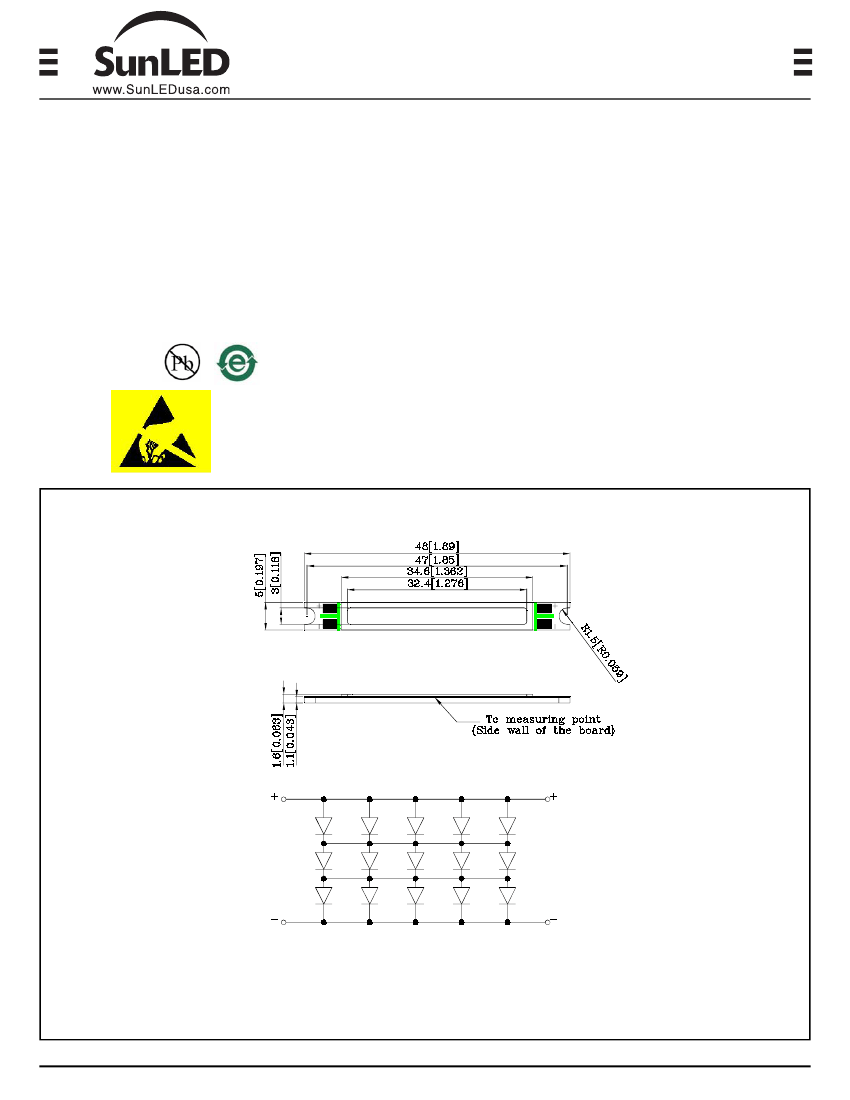

Package Schematics
MOLA
MOLA
MOLA
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.25(0.01") unless otherwise noted.
3. Specifications are subject to change without notice.
Mar 25, 2014
XDSB7609
V2-Z
Layout: Maggie L.
P. 1/8
Part Number:
XZMOLA112S5W-A
AXSOLIGHT HIGH POWER LED
Precautions
1. Do not touch the lens with any sharp object.
2. No stress should be applied on the lens.
3. Thermal grease between the light bar and heat sink is recommended to fill air gaps for better thermal
conductivity.
4. For securing the LED light bar , M2 screws are recommended. The light bar should not be bent or stressed
in any way which could damage the internal circuit.
5. To prevent damages caused by electrostatic discharge (ESD), it is recommended to wear proper gear such as
wristband or anti-static gloves when handling the product.
6. Constant current source is recommended to power the light bar . When more than one light bar are used, they should
be connected in series if possible.
7. Thermal management should be taken into consideration when using the product. Maximum driving current
should be reduced accordingly at higher ambient temperature to prevent overheating.
8. Soldering recommendations:
Soldering iron power should not exceed 40W, and should not be in contact with the joint for more than 3.5 secs.
The maximum soldering temperature should be less than 350°C.
Do not touch the product immediately after soldering.
Not reflow compatible.
9. As silicone encapsulation is permeable to gases, some corrosive substances such as H
2
S might corrode silver plating of
leadframe. Special care should be taken if an LED with silicone encapsulation is to be used near such substances.
Mar 25, 2014
XDSB7609
V2-Z
Layout: Maggie L.
P. 2/8
Part Number:
XZMOLA112S5W-A
AXSOLIGHT HIGH POWER LED
Absolute Maximum Ratings
Parameter
Forward Current
Forward Pulse Current [1]
Power Dissipation
LED Junction Temperature
Operating Temperature
Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Symbol
I
F
I
FP
P
D
T
j
Topr
Tstg
Rating
500
700
4.3
110
-30~+100
-40~+110
Units
mA
mA
W
°C
°C
°C
Electrical / Optical Characteristics
Part Name
Device
Parameter
Forward Voltage [2]
Luminous Flux CIE127-2007*[3]
Wavelength at peak emission CIE127-2007*[4]
Dominant Wavelength CIE127-2007*
Spectral bandwidth at 50%Φ
REL MAX
XZMOLA112S5W-A
Red
Temperature coefficient of
λpeak
Temperature coefficient of
λdom
Temperature coefficient of Forward Voltage
Symbol
V
F
Φv
λpeak
λdom
Δλ1/2
TCλpeak
TCλdom
ΔλV
F
/ΔT
2
θ
1/2
x direction
Emission Angle
2
θ
1/2
y direction
Notes:
2. Forward Voltage is measured with an accuracy of +/-0.1V.
3. Flux is measured with an accuracy of +/-15%.
4. Wavelength :+/-0.1nm.
*Luminous Flux value and wavelength are in accordance with CIE127-2007 standards.
-
120
-
Min.
5.6
60*
-
-
-
-
-
-
-
Typ.
7.0
89.7*
640*
625*
25
0.11
0.09
-3.8
120
-
-
-
-
-
-
-
Max.
8.6
Units
V
lm
nm
nm
nm
nm/°C
nm/°C
mV/°C
Conditions
I
F
=500mA
I
F
=500mA
I
F
=500mA
I
F
=500mA
I
F
=500mA
I
F
=500mA
I
F
=500mA
I
F
=500mA
I
F
=500mA
°
°
I
F
=500mA
Test Item
Moisture-proof Test
Test Condition
85°C , 85%RH for 1000 hours
Mar 25, 2014
XDSB7609
V2-Z
Layout: Maggie L.
P. 3/8

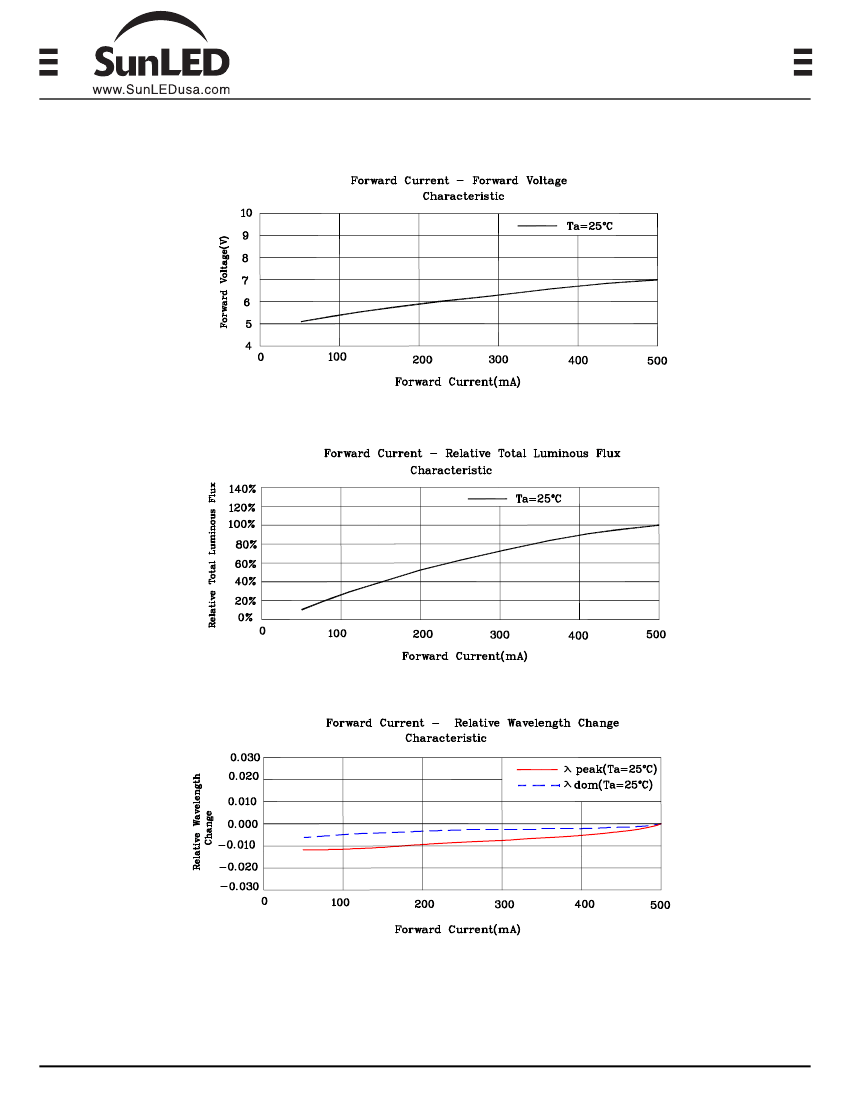

Part Number:
XZMOLA112S5W-A
AXSOLIGHT HIGH POWER LED
Mar 25, 2014
XDSB7609
V2-Z
Layout: Maggie L.
P. 4/8

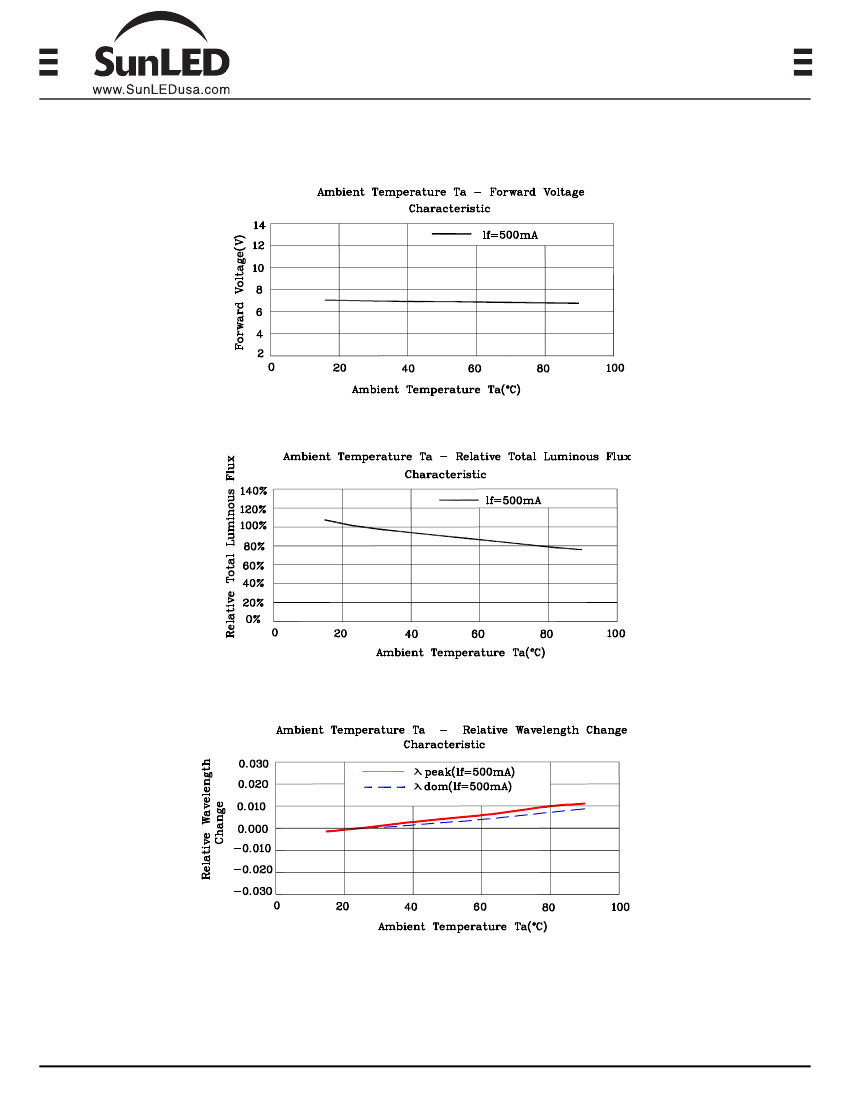

Part Number:
XZMOLA112S5W-A
AXSOLIGHT HIGH POWER LED
Mar 25, 2014
XDSB7609
V2-Z
Layout: Maggie L.
P. 5/8
