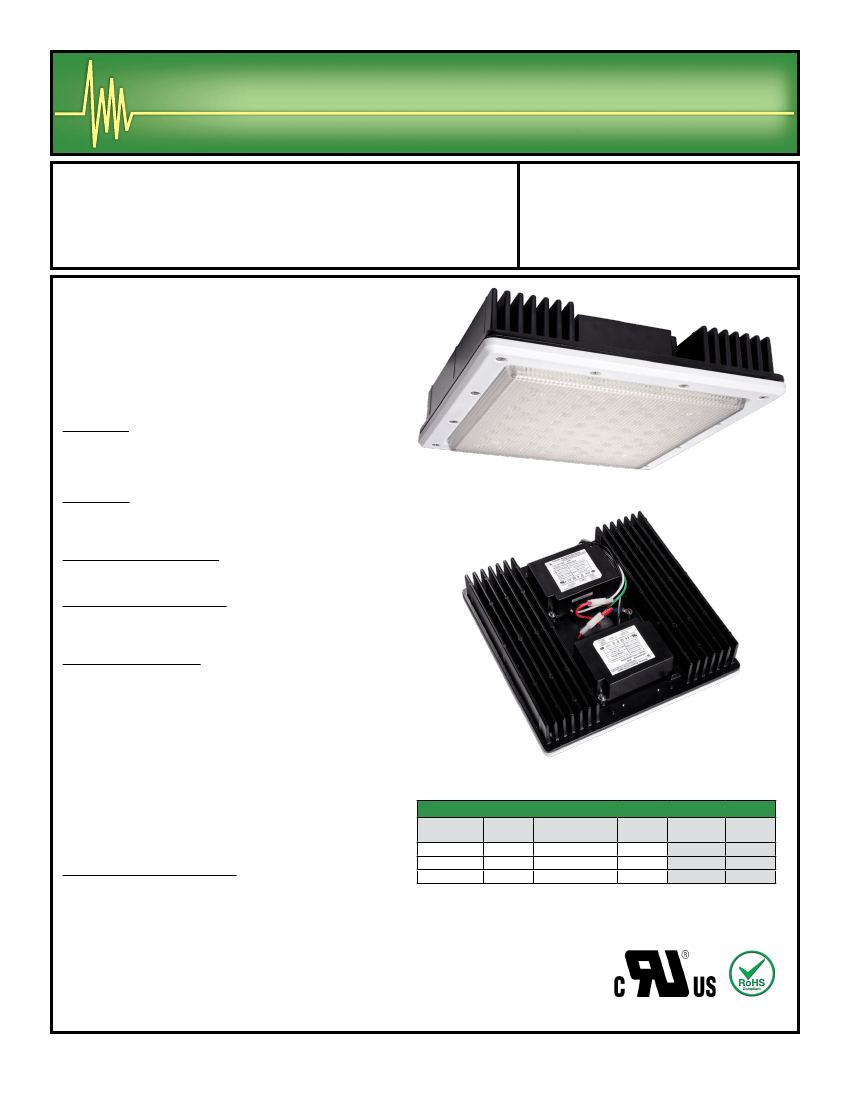

Thomas Research Products
TR-SS1 LED Core™
Integrated LED Canopy Module
Patented Design,
with 0-10V Dimming
TR-SS1 Integrated LED Canopy Module is designed to seamlessly
integrate into just about any canopy fixture. We have taken the
tedious engineering task out of designing an LED solution.
Combining cutting-edge optical characteristics and integrated LED
driver, it’s simpler than ever. We can provide your engineering staff
a full set of CAD files to speed along the integration process.
Includes 0-10V Dimming as standard.
SSL Solutions Faster Than The Speed Of Light
®
• Die-cast single piece aluminum body
• UV stabilized polycarbonate lens
with injection-molded frame
• Universal voltage (100-277Vac)
• Patented design is robust, for superb durability
• Modular: Key components can be refurbished
• Type V short
Electrical:
Class 1 and 2 power supplies accommodate an input voltage range
of 100-277V 50/60Hz. All power supplies provide Class A EMI rating
with high power factor of 90% typical.
Mounting:
Custom fixture mount only. CAD and Step files available to
streamline integration. Fixture cut out pattern show on next page.
Exterior Surface Finish:
Powder coated die-cast aluminum.
Testing and Compliance:
The TR-SS1 meets UL8750 specifications. Contact our
engineering staff for assistance in certifying your fixture.
Lumen Maintenance:
Lumen maintenance will vary substantially based upon fixture
in which the TR-SS1 is mounted. Additional heat dissipating
capacity from fixture is highly recommended to maximize lumen
maintenance. Lumen maintenance to be determined by using
LM80, in situ thermal data in accordance with DOE/EPA standards
and reliability data supplied by LED Manufacturer.
• Maintains a tolerance of ± 7% on flux measurements.
• Published output measurements using 4500K.
• Typical CRI for Neutral White (5000K) is 75.
• Output lumens will vary depending on factors involved
with fixture integration.
• 5 year limited warranty with validation of fixture.
SS1 Series LED Canopy Module
Model Number
TR-SS1-e36C
TR-SS1-e48C
TR-SS1-e72C
System
Power
41W
55W
75W
Initial
Delivered Lumens
2925
3900
5848
Lumens
Per Watt
71*
71*
71*
Replaces
HID lamp*
70W HPS
100W HPS
150W MH
Energy
Savings†
50W
75W
128W
Environmental Impact
• RoHS Compliant
• No mercury
• Reduction in Kw load by as much as 60%
* Based on Mean Lumens
†
Compares LED Core™ system wattage to avg. HID ballast input wattage
Specifications subject to change without notice.
Thomas Research Products • 11548 Smith Dr. • Huntley, IL 60142 • T: 847-515-3057 • F: 847-515-3047 • www.trpssl.com
7-09-13
Thomas Research Products
TR-SS1-C
SSL Solutions Faster Than The Speed Of Light
®
Pg 2 of 2

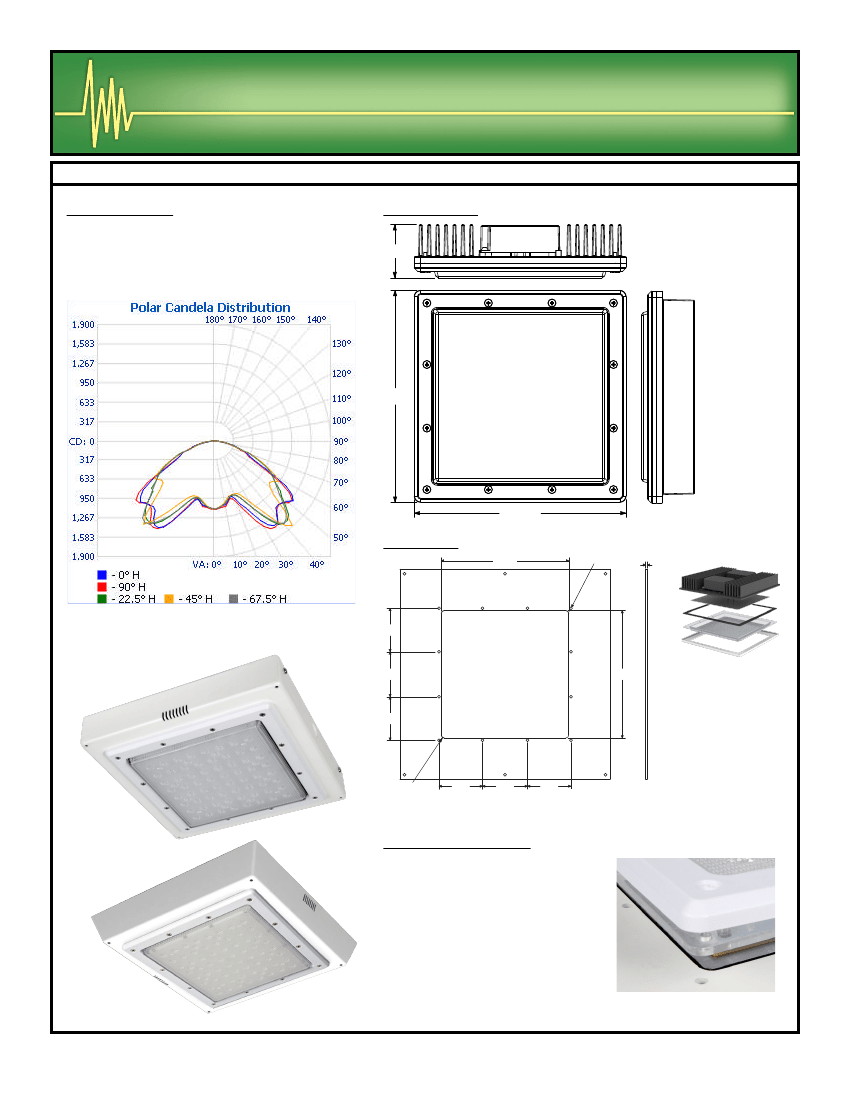

Photometrics
TR-SS1 Canopy Type V Short:
Tested to IESNA LM-79 standard
by an indepedent testing laboratory.
TR-SS1-72C Photometric Data
Dimensions
Page 1 of 2
2.51”
10.00”
334
2.5°
10.00”
Mounting
8.50”
R.10, 4 places
0.10”
Flood Summary
Efficiency Lumens
Horizontal
Spread
159.9
113.6
Vertical
Spread
160.4
117.8
2.90”
Mounting Examples:
Field (10%):
97.9%
Canopy Luminaires
Beam (50%):
80.4%
Total:
100%
Lumens Per Zone
5,411.2
4,442.9
5,523.2
3.00”
8.50”
2.90”
Zone Lumens % Total Zone
0-10
10-20
20-30
103.0
279.8
541.6
1.9% 90-100
5.1% 100-110
9.8% 110-120
18.2% 120-130
21.7% 130-140
20.1% 140-150
13.8% 150-160
6.9% 160-170
2.3% 170-180
Lumens % Total
16.6
0.8
0
0
0
0
0
0
0
0.3%
0%
0%
0%
0%
0%
0%
0%
0%
R.20, 4 places
2.90”
3.00”
2.90”
Material to be 0.1" Aluminum
30-40 1,003.0
40-50 1,201.1
50-60 1,108.0
60-70
70-80
80-90
763.1
381.7
126.6
Application Notes:
1) The LED Core™ is intended to be mounted
to a flange of the fixture, situated between
the LED Core™ module’s lens frame/lens/
gasket and aluminum body in order to
qualify for IP rating. (See detail.)
2) The LED Core™ module can be mounted
to the fixture flange on the backside of the
module’s body. Mounting holes are not
provided. This is not recommended as it
will not achieve an IP rating.
Thomas Research Products • 11548 Smith Dr. • Huntley, IL 60142 • T: 847-515-3057 • F: 847-515-3047 • www.trpssl.com
