Y202236R5000D9L

Description
Fixed Resistor, Metal Foil, 0.6W, 36.5ohm, 0.5% +/-Tol, -2,2ppm/Cel, 3011,
CategoryPassive components    The resistor
File Size409KB，5 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

Y202236R5000D9L Overview

Fixed Resistor, Metal Foil, 0.6W, 36.5ohm, 0.5% +/-Tol, -2,2ppm/Cel, 3011,

Y202236R5000D9L Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid286292557
Reach Compliance Codecompliant
Country Of OriginIsrael
ECCN codeEAR99
YTEOL10
structureRectangular
Lead diameter0.644 mm
Lead length25.4 mm
lead spacing3.81 mm
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package height8.28 mm
Package length7.62 mm
Package shapeRECTANGULAR PACKAGE
Package formRadial
Package width2.67 mm
method of packingBulk
Rated power dissipation(P)0.6 W
resistance36.5 Ω
Resistor typeFIXED RESISTOR
seriesBURDEN
size code3011
technologyMETAL FOIL
Temperature Coefficient2 ppm/°C
Tolerance0.5%

Y202236R5000D9L Preview

Burden Resistor (Through-Hole Resistor
BurdenResistor(Through-HoleVersion)
Burden Version)
(Through-Hole Version)
High Precision Bulk Metal
®
Foil Burden Resistor
High Precision Bulk Metal® Foil Burden Resistor
FEATURES AND BENEFITS
•
Temperature coefficient of resistance (TCR):
—55°C to +125°C, 25°C ref.
• Burden (C): ±2 ppm/°C typical (Table 1)
• Burden (K): ±1 ppm/°C typical (Table 1)
• Burden (Z): ±0.2 ppm/°C typical (Table 2)
• Resistance tolerance: to ±0.005% (50 ppm)
• Load-life stability: ±0.005% after 2,000 hrs of 0.1 W at
70°C
• Power rating: to 0.6 W at +70°C
• Resistance range: 1 Ω to 500 Ω (for higher or lower
values, please contact us)
• VFR resistors are not restricted to standard values;
specific “as required” values can be supplied at no
extra cost or delivery (e.g., 80R0123 vs. 80
Ω)
•
Electrostatic discharge (ESD): at least to 25 kV
• Thermal stabilization time: <1 s (within 10 ppm of
steady state value)
• Non-inductive, non-capacitive design
• Rise time: 1 ns effectively no ringing
• Current noise: 0.010 μV
RMS
/V of applied voltage
(<–40 dB)
• Thermal EMF: <0.05 μV/°C
• Low harmonic distortion, linear behavior
• Voltage coefficient: <0.1 ppm/V
• Low inductance: <0.08 μH
• Terminal finishes available: lead (Pb)-free, tin/lead alloy
•
For higher power and lower resistance values,
please check the VCSXXX Series:
http://www.vishaypg.com/doc?63240
Available from
our Express Hub
www.resistors4U.com
INTRODUCTION
The Vishay Foil Resistors (VFR) Burden resistor is usually
connected to the output of the power device for the
discharging of the bulk output filter capacitor when it is
charged and connected to a large power source, like an
accumulator or airplane battery. The Burden resistor offers
resistance of a few ohms and prevents the influence of
inrush current to the device that the power unit (power
converter) connects to. Inrush current usually happens
when the battery or accumulators are very large and their
capacity is too high. The Burden resistor is placed across
the output of the current transformer.
THE BURDEN RESISTOR
Current sensing transformers act as current sources and
need a load. A current source is the dual of a voltage
source, and just like you shouldn't short-circuit a voltage
source because it would cause infinite current, you
shouldn't leave a current source open, as it would cause
an infinite voltage. The precision Burden resistor converts
the current to a limited voltage. Typically it is used to
discharge a capacitor when the circuit isn't powered
anymore.

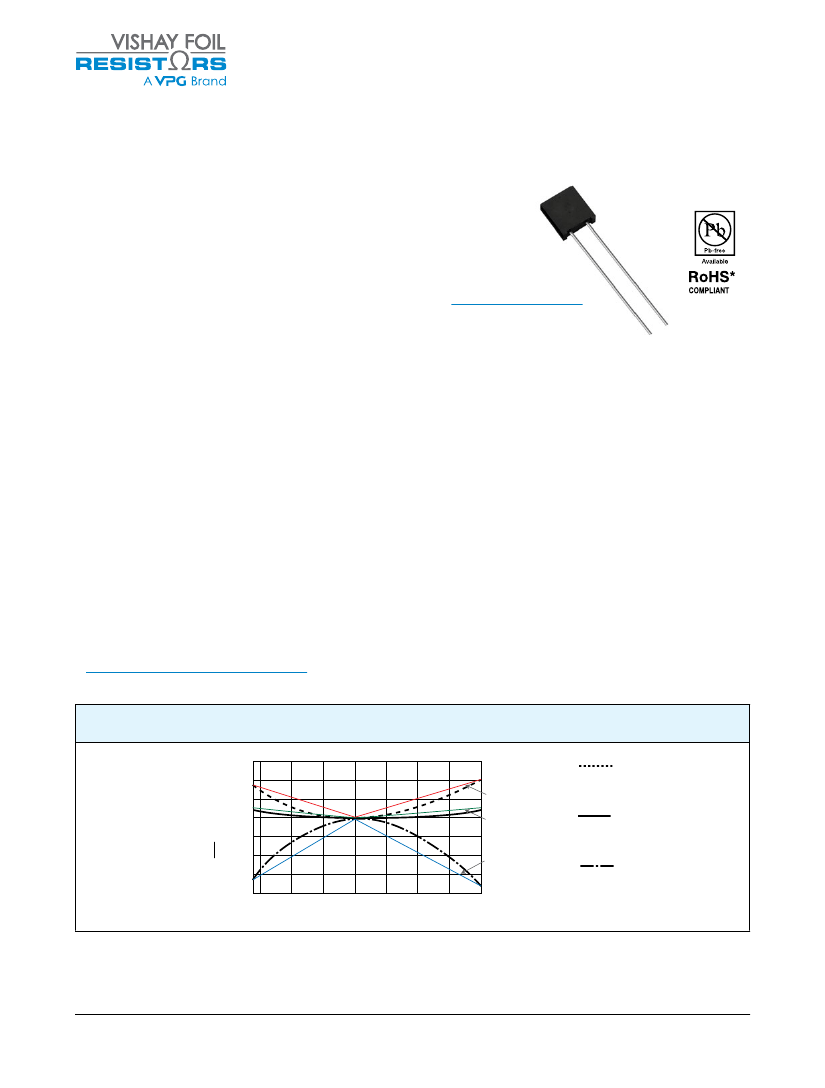

Figure 1—Nominal Resistance vs. Temperature Curves and Chord Slopes (TCR) of Foil Alloy
Types in Military Range
+150
+100
+50
±1 ppm/°C
±0.2 ppm/°C
K Alloy
1 ppm/ºC
Z Alloy
0.2 ppm/ºC
C Alloy
2 ppm/ºC
∆
R (ppm)
0
–50
–100
–150
–200
–50
–55
–2
0
+25
+50
+75
+100
R
±2 ppm/°C
+125
Note
* This datasheet provides information about parts that are RoHS-compliant and/or parts that are non-RoHS-compliant. For example,
parts with lead (Pb) terminations are not RoHS compliant. Please see the information/tables in this datasheet for details.
Document No.: 63258
Revision: 04-Dec-2014
For any questions, contact
foil@vpgsensors.com
www.vishayfoilresistors.com
1
Burden Resistor
BurdenResistor(Through-HoleVersion)
(Through-Hole Version)
Table 1—Typical TCR and Max. Spread
(–55°C to +125°C, +25°C Ref.)
Model
Number
Burden-K
80 to <500
Burden-C
Burden-K
50 to <80
Burden-C
Burden-K
1 to <50
Burden-C
±2 ±4.5
±2 ±3.5
±1 ±4.5
±2 ±2.5
±1 ±3.5
Burden-Z
Resistance
Value
(Ω)
Typical TCR and
Max. Spread
(ppm/°C)
±1 ±2.5
Table 2—Typical TCR and Max. Spread
(–55°C to +125°C, +25°C Ref.)
Model
Number
Resistance
Value
(Ω)
100 to 500
80 to <100
50 to <80
25 to <50
10 to <25
5 to <10
1 to <5
Typical TCR and
Max. Spread
(ppm/°C)
±0.2 ±0.6
±0.2 ±0.8
±0.2 ±1.0
±0.2 ±1.3
±0.2 ±1.6
±0.2 ±2.3
±0.2 ±3.2
Table 3—Model Selection
Model
Number
Resistance
Range
(Ω)
Ambient
Power Rating
at
+70°C
at
+125°C
Average
Weight
in
Grams
Dimensions
Inches
mm
Tightest
Tolerance
vs. Lowest
Resistance
Value
Burden-C
(Burden-J)
(1)
Burden-K
(Burden-L)
(1)
Burden-Z
(Burden-A)
(1)
(1)
1 to 500
0.6 W
0.3 W
0.6
W: 0.105 ±0.010
L: 0.300 ±0.010
H: 0.326 ±0.010
ST: 0.010 min.
SW: 0.040 ±0.005
LL: 1.000 ±0.125
LS: 0.150 ±0.005
2.67 ±0.25
7.62 ±0.25
8.28 ±0.25
0.254 min.
1.02 ±0.13
25.4 ±3.18
3.81 ±0.13
0.005% / 50 Ω
0.01% / 25 Ω
0.02% / 12 Ω
0.05% / 5 Ω
0.1% / 2 Ω
0.50% / 1 Ω
0.200" (5.08 mm) lead spacing available—specify
Burden-J
for Burden-C,
Burden-L
for Burden-K, and
Burden-A
for Burden-Z.
Figure 3—Standard Imprinting and Dimensions
Front View
L
H
XXXX
Burden-X
ST
LS
VFR
Date Code
14
22
Year Week
(1)
Rear View
W
50R734
0.005%
SW
Lead Material #22 AWG
Round Solder Coated Copper
(Pb-free coating available)
LL
Resistance
Tolerance
Model Number X =
C (C-Foil Alloy)
K (K-Foil Alloy)
Z (Z-Foil Alloy)
Notes
(1)
Standoffs provided to allow proper flushing of flux, debris, and contaminates from under resistor after all solder operations.
(2)
The standoffs shall be so located as to give a lead clearance of 0.010" minimum between the resistor body and the printed circuit
board when the standoffs are seated on the printed circuit board.
www.vishayfoilresistors.com
2
For any questions, contact
foil@vpgsensors.com
Document No.: 63258
Revision: 04-Dec-2014
BurdenResistor(Through-HoleVersion)
Burden Resistor
(Through-Hole Version)
Figure 2—Trimming to Values
(conceptual illustration)
Interloop
Capacitance
Reduction
in Series
Mutual Inductance
Reduction due
to Change in
Current Direction
Current Path
Before Trimming
Current Path After Trimming
Trimming Process
Removes this Material
from Shorting Strip Area
Changing Current Path
and Increasing
Resistance
Note
To acquire a precision resistance value,
the Bulk Metal Foil chip is trimmed by
selectively removing built-in “shorting bars.”
To increase the resistance in known increments,
marked areas are cut, producing progressively
smaller increases in resistance. This method
reduces the effect of “hot spots” and improves
the long-term stability of VFR resistors.
Foil shown in black, etched spaces in white
Table 4—Environmental Performance
Group/Parameter
Test Group I
Thermal shock, 5 x (–65°C to +150°C)
Short time overload, 6.25 x rated power
Test Group II
Low temperature storage (24 h at –65°C)
Low temperature operation (45 min, rated power at –65°C)
Terminal strength
Test Group III
Dielectric Withstanding Voltage (DWV)
Resistance to solder heat
Moisture resistance
Test Group IV
Shock
Vibration
Test Group V
Life test at 0.3 W/+125°C
Test Group Va
Life test at 0.6 W/+70°C, 2000 h
Test Group VI
High temperature exposure (2000 h at +175°C)
Test Group VII
Voltage coefficient
2000 h
10 000 h
MIL-PRF-55182
CHAR J
±0.2%
±0.2%
±0.15%
±0.15%
±0.2%
±0.15%
±0.1%
±0.4%
±0.2%
±0.2%
±0.5%
±2.0%
±0.5%
±2.0%
5 ppm/V
Burden Resistor
Maximum ΔR
Typical ΔR
±0.01% (100 ppm)
±0.01% (100 ppm)
±0.01% (100 ppm)
±0.01% (100 ppm)
±0.01% (100 ppm)
±0.01% (100 ppm)
±0.01% (100 ppm)
±0.05% (500 ppm)
±0.01% (100 ppm)
±0.01% (100 ppm)
±0.015% (150 ppm)
±0.05% (500 ppm)
±0.015% (150 ppm)
±0.1% (1000 ppm)
<0.1 ppm/V
± 0.002 % (20 ppm)
± 0.003 % (30 ppm)
±0.002% (20 ppm)
±0.002% (20 ppm)
±0.002% (20 ppm)
±0.002% (20 ppm)
±0.005% (50 ppm)
±0.01% (100 ppm)
±0.002% (20 ppm)
±0.002% (20 ppm)
±0.01% (100 ppm)
±0.03% (300 ppm)
±0.01% (100 ppm)
±0.05% (500 ppm)
<0.1 ppm/V
Document No.: 63258
Revision: 04-Dec-2014
For any questions, contact
foil@vpgsensors.com
www.vishayfoilresistors.com
3
Burden Resistor
BurdenResistor(Through-HoleVersion)
(Through-Hole Version)
Figure 4—Part Number Information
GLOBAL PART NUMBER: Y202180R5000V9L
DENOTES PRECISION
Y
R
=
K
=k
M
=M
VALUE
0
= tin/lead
9
= lead (Pb)-free
1 to 999
= custom
TYPE
Y
2
0
2
1
8
0
Ω
5
0
0
0
V
9
L
Y2021
= Burden-C
Y2022
= Burden-J
Y2023
= Burden-K
Y2024
= Burden-L
Y2025
= Burden-Z
Y2026
= Burden-A
PRODUCT CODE
RESISTANCE TOLERANCE
V
= ± 0.005 %
T
= ± 0.01 %
Q
= ± 0.02 %
A
= ± 0.05 %
B
= ± 0.1 %
C
= ± 0.25 %
D
= ± 0.5 %
F
= ± 1.0 %
L
= bulk pack
PACKAGING
FOR EXAMPLE: ABOVE GLOBAL ORDER Y2021 80R5000 V 9 L:
TYPE: Burden-C
VALUE: 80.5
ABSOLUTE TOLERANCE: ± 0.005 %
TERMINATION: lead (Pb)-free
PACKAGING: bulk pack
Burden-C
Burden-C
Burden-J
Burden-K
Burden-L
Burden-Z
Burden-A
MODEL
PART DESCRIPTION: Burden-C T 80R5000 V B
T
T
= lead (Pb)-free
None = tin/lead alloy
TERMINATION
80Ω500
RESISTANCE VALUE
80R00
= 80.00
V
V
= ± 0.005 %
T
= ± 0.01 %
Q
= ± 0.02 %
A
= ± 0.05 %
B
= ± 0.1 %
C
= ± 0.25 %
D
= ± 0.5 %
F
= ± 1.0 %
TOLERANCE
B
PACKAGING
B
= bulk pack
ORDER TODAY VIA LOCALLY MADE EXPRESS HUB (www.resistors4U.com)
While global marketing and distribution make most resistors available throughout most of the world, Express Hubs
give customers the choice of central-factory sourcing or local manufacturing—ideal for urgently needed high precision
resistors in prototype quantities at any resistance value or tolerance. Any value from 1
Ω
and tolerances of 0.005%
in small quantities are available in five working days or less. Take a closer look at each of our express hubs, where
craftsmanship is always on display.
Made in
The UK
Made in
The USA
Made in
Germany
www.vishayfoilresistors.com
4
For any questions, contact
foil@vpgsensors.com
Document No.: 63258
Revision: 04-Dec-2014
Legal Disclaimer Notice
Vishay Precision Group, Inc.
Disclaimer
ALL PRODUCTS, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Vishay Precision Group, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf
(collectively, “VPG”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in
any other disclosure relating to any product.
The product specifications do not expand or otherwise modify VPG’s terms and conditions of purchase, including but
not limited to, the warranty expressed therein.
VPG makes no warranty, representation or guarantee other than as set forth in the terms and conditions of purchase.
To the maximum extent permitted by applicable law, VPG disclaims (i) any and all liability arising out of the
application or use of any product, (ii) any and all liability, including without limitation special, consequential or
incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose,
non-infringement and merchantability.
Information provided in datasheets and/or specifications may vary from actual results in different applications and
performance may vary over time. Statements regarding the suitability of products for certain types of applications
are based on VPG’s knowledge of typical requirements that are often placed on VPG products. It is the customer’s
responsibility to validate that a particular product with the properties described in the product specification is suitable for
use in a particular application. You should ensure you have the current version of the relevant information by contacting
VPG prior to performing installation or use of the product, such as on our website at vpgsensors.com.
No license, express, implied, or otherwise, to any intellectual property rights is granted by this document, or by any
conduct of VPG.
The products shown herein are not designed for use in life-saving or life-sustaining applications unless otherwise
expressly indicated. Customers using or selling VPG products not expressly indicated for use in such applications do
so entirely at their own risk and agree to fully indemnify VPG for any damages arising or resulting from such use or sale.
Please contact authorized VPG personnel to obtain written terms and conditions regarding products designed for such
applications.
Product names and markings noted herein may be trademarks of their respective owners.
Copyright Vishay Precision Group, Inc., 2014. All rights reserved.
Document No.: 63999
Revision: 15-Jul-2014
www.vpgsensors.com
1
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Solar power circuit

Incandescent lamp life extension circuit 3b

Thermometer circuit with temperature compensation

Circuit diagram to identify wind direction

555 safety electric iron stand circuit

Structural diagram of a typical linear charger

EEWORLD University ---- TPS65218D0: User Programming of Multi-Rail Power Management IC (PMIC)
TPS65218D0: User Programming of Multi-Rail Power Management IC (PMIC) : https://training.eeworld.com.cn/course/5289This video will demonstrate the user programming feature of the TPS65218D0 PMIC. The ...
hi5 Talking
What is the maximum transmission distance of serial communication?
Serial interface refers to the sequential transmission of data one bit at a time. Its characteristics are simple communication lines. As long as a pair of transmission lines can achieve two-way commun...
fish001 Analogue and Mixed Signal
Make a counter, no! Ask a question
A friend asked me to make a counter for him, but I have never been involved in hardware before, so I came here to ask for advice from all the masters. I hope you can give me some advice. Thank you. Th...
ldy9375 Embedded System
Transfer a FPGA SOC development board SocKit at a low price
Hardware version C. Accessories: original power supply, 8G SD card, network cable. The board is in good working order, but I am not able to provide technical support. I am selling FPGA ARM cyclone V S...
ou513 Buy&Sell
Red Hurricane II CY1C6 Development Learning Board
[Applicable groups] Suitable for undergraduates, postgraduates, doctoral students majoring in computer science and electrical engineering, early design verification of IC integrated circuits/IP CORE, ...
dz51 FPGA/CPLD
Does anyone have the launchpad28027 program? Can you share it?
Does anyone have the launchpad28027 program? Can you share it? My email is [email]1509294684@qq.com[/email] I am new to it and have no information. I have been working on it for a month and it has not...
竹林海宝 Microcontroller MCU
Shortcut:   E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components

  1. MAX4376-MAX4378
  2. D38999/26FH32SE-LC
  3. 1200RGG30IPF35B
  4. MGDT-10-H-CF-L
  5. PMF1/20-2773-QT25
  6. HBSTS-245-S-A-07-H-120-LT
  7. FP2001477502DCAX
  8. CL21B561JBEL
  9. AME8833AEIV320Y
  10. 1.5SMCJ7.5A-AU_R1_100A1
  11. A1501HD-5P-MG
  12. TC212A336M010Y

Popular Articles

  1. MEMS fiber optic sensor manufacturer Bioan Sensors receives Series A investment
  2. Standard self-locking multi-core connector with locating pins
  3. Infineon's 12-inch power semiconductor wafer fab enters mass production
  4. Watch the Apple conference five days in advance. Is iPhone 13 really not worth buying?
  5. Intelligent temperature control fan based on 51 single chip microcomputer
  6. Fibocom and its wholly-owned subsidiary have obtained 6 more patent certificates
  7. How to choose a spectrum analyzer and repair it? Fault analysis of spectrum analyzers
  8. Patent dispute arises again: Appotronics counter-sues Delta for malicious litigation
  9. Samsung permanently closes Tizen app store: mobile phones and watches completely abandon the system
  10. Inverter grounding precautions

Technical ResourceMore

  1. FPGA Implementation of Miller Modulation Subcarrier Codec
  2. Application of Kalman Filter in Passive Target Tracking System
  3. ProE full set of Chinese tutorials - download
  4. Medical power supply requirements
  5. TMS320DM643 realizes single-channel video surveillance system
  6. Assembly Language Self-Study Tutorial
  7. LCD monitor disassembly analysis
  8. JTAG Function and System Design
  9. CAN implementation program of MCP2510 and F149-SPI interface
  10. Softswitch Network Technology

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2733  1948  1128  2  1590  56  40  23  1  33
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
